Lorex D862 Series Manual de usuario
Digital Video Recorder (DVR)
Quick Setup Guide
D862 Series
lorex.com
En
Contents
Package contents and dimensions...........................................1
Using the mouse.............................................................................10
Back panel overview......................................................................2
Using the quick menu...................................................................11
Setup
Step 1: Connect cameras................................................3
Step 4: Connect monitor/TV..........................................7
Step 2: Connect router.....................................................5
Step 5: Connect power....................................................8
Step 3: Connect mouse...................................................6
Step 6: Lorex Setup Wizard............................................9
Motion detection and smart motion detection.......................12
Using deterrence features............................................................13
Changing the recorder’s output resolution..............................19
Playback and search.....................................................................20
Backup..............................................................................................21
Face detection............................................................................... 16
Face recognition........................................................................... 17
Remote viewing
Before you start.................................................................22
Connect to the App..........................................................23
Lorex Home App live view..............................................24
Package contents and dimensions
• 4K Ultra HD Security DVR
• Power Adapter
• Ethernet Cable
• USB Mouse
• HDMI Cable
1
12.8” / 324mm
9.8” / 249mm
2.1”
53mm
1
24
3
6
5
8
7
Back panel overview
2
1 2 3
9 8
654 7
1. Video Inputs: Connect cameras*
2. Audio In/Out: Connect microphone/speaker*
3. HDMI Port: Connect monitor*
4. LAN Port: Connect router*
5. RS-485: Connect Pan-Tilt-Zoom cameras*
Note:
The 8 channel DVR recorder in this guide is for illustration only. Your recorder may appear
different, with all the same ports in different locations.
*Not included/sold separately.
6. USB Port: Connect USB stick*
7. Power Port: Connect power
8. Power Switch: Power on/off
9. VGA Port: Connect monitor*
BNC connector Video input
Power adapter
3

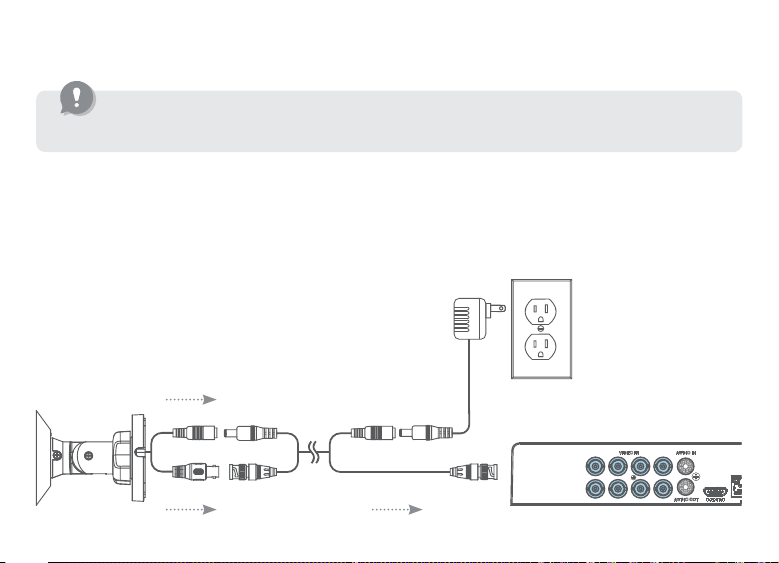

Setup step 1 — Connect cameras
To connect cameras directly to the DVR:
1. Connect the extension cable’s male power head and BNC connector to the camera.
2. Then connect the other end of the BNC connector to a video input on your DVR.
3. Connect the female power head to the included power adapter.
IMPORTANT: Test your cameras prior to selecting a permanent mounting location by
temporarily connecting the cameras and cables to your DVR.
1
24
3
6
5
8
7
4
Notes:
• The extension cable must be a single stretch of cable between the
recorder and camera. You cannot connect multiple extension cables to
each other.
• This guide covers connecting cameras to your security recorder only.
For full instructions on installing your cameras and mounting tips,
please refer to your camera’s documentation at lorex.com.
5
Setup step 2 — Connect router
Connect the recorder
to your router using the
included Ethernet cable.
Note: To receive automatic rmware
updates and access your system remotly
with mobile apps, a high speed Internet
connection is required. Minimum upload
speed of 5Mbps required for 4K viewing;
3.5Mbps for lower resolutions. All other
system features can be used without an
Internet connection.
1
24
3
6
5
8
7
6
Setup step 3 — Connect mouse
Connect the included USB
mouse to the USB port on
the recorder.
To copy your video recordings
and to perform a rmware
upgrade, connect a USB stick
or ash drive to the USB port on
the front panel of the recorder.
1
24
3
6
5
8
7
7
Setup step 4 — Connect monitor/TV
Connect the recorder to
a monitor/TV using the
included HDMI cable or a
VGA cable (not included).
The HDMI port supports up
to 4K resolution, and VGA
supports up to 1080p.
Note: To optimize picture
quality, set the recorder’s
video output to match
the resolution of your
monitor. See ‘Changing
the recorder’s output
resolution’ page 19 for
details.
OR
1
24
3
6
5
8
7
