Logitech VU0034 Manual de usuario

Logitech® ConferenceCam CC3000e

Setup Guide

Guide d’installation

COVER IMAGE TO COME

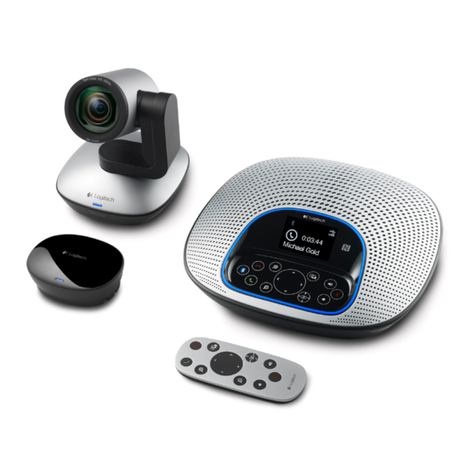

Logitech ConferenceCam CC3000e

English. . . . . . . . . . . . . . . . . . 3

Français . . . . . . . . . . . . . . . . 10

Español . . . . . . . . . . . . . . . . 17

Português . . . . . . . . . . . . . . . 24

www.logitech.com/support . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Logitech ConferenceCam CC3000e

English 3

Know your product

Camera

1. 10X lossless zoom

2. Camera LED

3. Kensington®

Security Slot

Hub

4. Hub LED

5. Power

6. USB

7. Camera

8. Speakerphone

9. Hub velcro mount

10. Camera mount

11. Cables

Logitech ConferenceCam CC3000e

4 English

1615

141312 18

20 2218

21 26

Speakerphone base and remote

12. Speaker

13. LCD

14. NFC

15. Microphones

16. Speakerphone LEDs

17. Kensington

Security Slot

18. Answer

19. Zoom in

20. Pan and tilt

21. Zoom out

22. Volume down

23. Mute

24. Hang up

25. Far end control

26. Camera presets

27. Volume up

28. Remote battery door

29. Bluetooth®

Logitech ConferenceCam CC3000e

English 5

Set up your product

1. Set up camera on table, or using mount

on table or wall.

2. Connect CC3000e as displayed in

the diagram.

3. Connect to external power. The LCD will

turn on and display the Logitech logo

when receiving power.

4. To start a call from your PC or Mac

application, connect the USB cable

from the hub to your USB port.

The speakerphone LCD will also

prompt you to connect. The camera

and speakerphone LEDs will ﬂash to

show that connection is taking place,

and when completed, the camera

head will rotate and the speakerphone

will play a sound. If these activities

do not take place, try again and

then consult Troubleshooting or call

technical support.

Logitech ConferenceCam CC3000e

6 English

5. Start your video or audio call from your

application. The LEDs on the camera

and speakerphone will alight when

streaming, and the LCD will display

call information depending on your

application’s support.

6. To connect CC3000e speakerphone to

your mobile device:

•If your device is NFC enabled, touch

the mobile device to the NFC icon

on the speakerphone, which should

enable Bluetooth acceptance on the

mobile device OR

•Press the Bluetooth button on the

speakerphone until connection is made

to the mobile device.

•When the speakerphone is Bluetooth

enabled, a small icon will appear on

the LCD. When the CC3000e is paired

and connected, the icon will appear

bright and when paired but not

connected, it will be greyed out. No

icon will appear if disconnected.

•Note: The CC3000e cannot pair to

Bluetooth while streaming to USB. If

an attempt is made to pair to a mobile

device while in a USB call, an error

beep will sound. Please wait till the

USB call is complete before pairing

your mobile device.

Logitech ConferenceCam CC3000e

English 7

Visit Product Central

Discover your product’s full potential. Get

valuable information and usage tips by

browsing easy-to-use FAQs. Find answers

to product questions and get help setting

up your product. See if there’s software

available for download that can enhance

your product experience. To enjoy all the

beneﬁts of your Logitech product, visit

www.logitech.com/support/cc3000e and

take advantage of Logitech’s wide range of

useful support services:

•Product information

•Tutorials

•User “How to” One-Pager

•Troubleshooting

•Diagnostics

•Firmware upgrades

•Support community

•Software downloads

•In-box documentation

•Warranty information

•Spare parts (if available)

Use your product

Video

•Starting the video: The video is

controlled by the application and will

start once the camera is selected and the

video is started in the application. An LED

will light when the video is streaming.

•Pan and tilt the camera using the

controls on the remote control or on

the speakerphone console. Press once

for incremental or press and hold for

continuous pan or tilt. Caution: Do not

manually rotate webcam head. Doing so

may damage unit.

•Zoom the camera up to 10X by pressing

the zoom button.

•Camera Preset: If you wish the camera

to return to your own deﬁned “home”

position when reconnected to the PC,

ﬁrst select the position and then press

and hold the Camera Preset button until

the associated icon displays on the LCD

and a beep plays to conﬁrm the setting.

You may also return to your deﬁned

home position at any time by pressing

the Camera Preset button once.

Logitech ConferenceCam CC3000e

8 English

•Far end control: By selecting this key

and downloading the application from

www.logitech.com/support/cc3000e,

you may control the pan, tilt and zoom

of a remote ConferenceCam CC3000e or

a ConferenceCam BCC950 in supported

applications. Camera selection and pan,

tilt and zoom tools are also available from

the downloadable application for PC

as well as ability to disable this feature

locally. Please visit the download page

listed for more information.

•Volume: Volume Up and Down

adjusts volume.

•Mute: Mute audio with Mute button.

•Calling: Run video conferencing software.

Answer picks up call. Hang up ends call.

Note: Answer and Hang up buttons may not work

in some applications. Use video conferencing

software to answer and end call. To enable answer

and hangup buttons for Skype or Cisco Jabber,

please download the respective plug-ins available

from www.logitech.com/support/cc3000e.

•Speakerphone Activity light indications

Blue: ConferenceCam is in active call.

Blinking blue: Call is being received.

Blinking blue light in call: Call has been

put on hold (from hold function in

application) Speakerphone blue activity

light may not work in some applications.

Red: Audio is muted.

•LCD Activity: The LCD will display

call activity as well as volume and

connectivity status.

•Bluetooth:To connect CC3000e

speakerphone to your mobile device for

speakerphone broadcast of call:

– If your device is NFC enabled, touch

the mobile device to the NFC icon on

the speakerphone, which should enable

Bluetooth acceptance on the mobile

device OR

– Press the Bluetooth button on the

speakerphone until connection is made

to the mobile device.

– When the speakerphone is Bluetooth

enabled, a small icon will appear on the

LCD. When the CC3000e is paired and

connected, the icon will appear bright

and when paired but not connected, it

will be greyed out. No icon will appear if

disconnected.

Logitech ConferenceCam CC3000e

English 9

Changing the remote control battery

The CC3000e remote control runs on a

Li-ion CR2032 battery. Battery life will vary

based on usage.

Troubleshooting tips

Please visit www.logitech.com/support/

cc3000e for troubleshooting tips,

information on software tools and for a

diagnostic tool to help troubleshoot issues

you may have with your CC3000e.

What do you think?

Please take a minute to tell us.

Thank you for purchasing our product.

www.logitech.com/ithink

Logitech ConferenceCam CC3000e

www.logitech.com/support/cc3000e

Argentina +00800-555-3284

Brasil +0 800-891-4173

Canada 1-877-897-9879

Chile 1230 020 5484

Colombia 01-800-913-6668

Mexico 01.800.800.4500

United States 1-877-897-9879
