Logitech G735 Manual de usuario

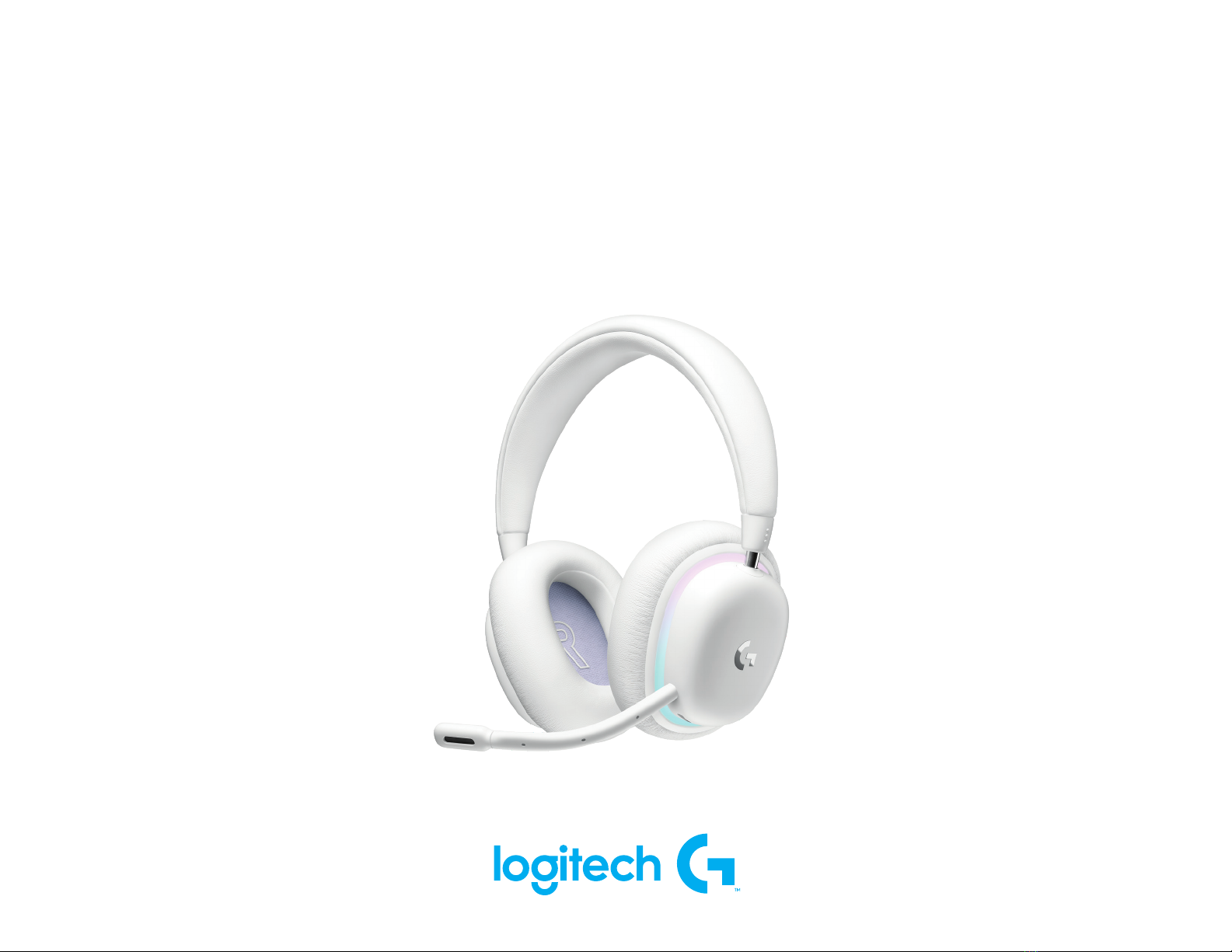

G735 HEADSET |CASQUE G735

Wireless Gaming Headset

Souris gaming sans l

SETUP GUIDE |GUIDE D’INSTALLATION

ENGLISH......................3

FRANÇAIS....................12

ESPAÑOL ....................21

PORTUGUÊS ..................30

3 ENGLISH

Bluetooth®Connectivity/

Active Source LED

Power, Battery,

Charging LED

Bluetooth®Connectivity/

AUX & LIGHTSPEED Toggle

Power Button

Audio Mixing

Source A (Bluetooth®)

Volume Roller

Audio Mixing

Source B (AUX/LIGHTSPEED)

Mute Toggle

3 sec

4 ENGLISH

SETUP INSTRUCTIONS

1Insert the microphone connector into the port on

the left ear cup. It is designed to t in one way.

2Turn on the G735 headset by pressing and

holding the power button located on the left ear

cup for 3 seconds.

3Insert the LIGHTSPEED receiver, with extender

and cable into the PC USB port. Receiver can be

used without the extender and cable by inserting

it directly into a USB port if desired.

4Download and install G HUB software to

yourPC/MAC for the best gaming experience

(GHUB has onboarding story for features).

Gotowww.logitechG.com/ghub

1 2

www.logitechG.com/ghub

3 sec

5 ENGLISH

BLUETOOTH®CONNECTIVITY

1Turn on the G735 headset by pressing and

holding the power button for 3 seconds.

2Press Connectivity button to select

Bluetooth®– the indicator light above

willturn blue.

3Press and hold Connectivity button

for 3seconds to initiate pairing mode.

Thebluelight will ash quickly for up to

3minutes.

4Follow Bluetooth®connection for

yourdeviceto pair with the headset.

3 sec

6 ENGLISH

Volume

Adjust volume with the roller on the leftearcup.

This adjusts the headset’s total volume,

notthevolumes of your sources.

Mute/Unmute Microphone

Press the mute button located below the volume on

the left ear cup. This will mute the microphone.

When muted, the cosmetic RGB will temporarily

ash red.

There will be a mute sound notication.

7 ENGLISH

Audio Source Options

G735 can connect to and mix multiple audio sources

at once:

- LIGHTSPEED audio

- Bluetooth®audio

- Auxiliary audio via 3.5 mm cable (not supplied)

- LIGHTSPEED + Bluetooth®

- Auxiliary + Bluetooth®

Toggling LIGHTSPEED/AUX & Bluetooth®

After connecting to both LIGHTSPEED and AUX,

togglebetween LIGHTSPEED and AUX options by

pressing the connectivity button on the right ear cup.

When LIGHTSPEED is active, the LED light above

thebutton will light up cyan for 5 seconds.

When AUX is active, the LED light will light up white

for5 seconds.

AUX only available when a cable is connected.

8 ENGLISH

Mixing LIGHTSPEED/AUX & Bluetooth®

After connecting to 2 sources LIGHTSPEED or AUX,

and Bluetooth®:

- To adjust source balance, press the up and down

buttons on the right ear cup to paddle.

- Pressing up increases Bluetooth®source

- Pressing down increases the active source

(LIGHTSPEED or AUX)

- To reset to equal levels, press and hold both

buttons for 3 seconds.

3 sec

9 ENGLISH

Powering O

Turn o G735 headset by pressing the power button

on the left ear cup for 3 seconds.

The headset lighting will turn o after a short

lighting animation. There will be a sound

notication indicating power o.

If the headset is inactive for 10 minutes,

itwillautomatically shut o.

Checking Battery Status

To check the battery status, short press the power

button on the left ear cup.

The LED will be:

- Green when it’s over 30% battery

- Red when it’s under 30% battery

- Blink red when it’s under 15% battery

= >30% battery

= <30% battery

= <15% battery

10 ENGLISH

Lighting ON/OFF

To turn o the cosmetic lighting, double press

thepower button on the left ear cup.

Charging the Battery

Plug the USB-C cable into the port at thebottom

ofthe left ear cup, located between themicrophone

and AUX connector ports. Connect the USB-A end

into a USB port on a PC or USB charging adapter

(not included).

The power light will illuminate green and pulse

whilecharging.

The power light glows red for low battery (<30%).

The G735 headset ships with about 60% charge.

Werecommend charging completely before use.
