Logitech POWERSHELL Manual de usuario
POWERSHELL
CONTROLLER + BATTERY
Setup Guide|Guide d’installation
3
English. . . . . . . . . . . . . 4
Français . . . . . . . . . . . . 12
Español . . . . . . . . . . . 20
Português . . . . . . . . . . 28
www.logitech.com/support . . . . . . . . . . . . . . . . 39
4 English
54 22 3
1
10
16
9
6
7
8
13
14
15
11
12
English 5
Know your product
1. 8-Way Analog D-Pad
2. Analog shoulder buttons
3. iPhone Sleep/Wake button
4. iPod touch adapter
5. Lightning connector
6. Analog buttons
7. Pause button
8. Audio Jack access port
9. Extended battery on/o switch
10. Wrist strap mount (wrist strap not included)
11. Micro-USB charging port
12. iPhone/iPod touch volume and ring/silent switch access
13. Headset extender cable
14. Micro-USB charging cable
15. Camera opening
16. Battery indicator
6 English
Getting Started

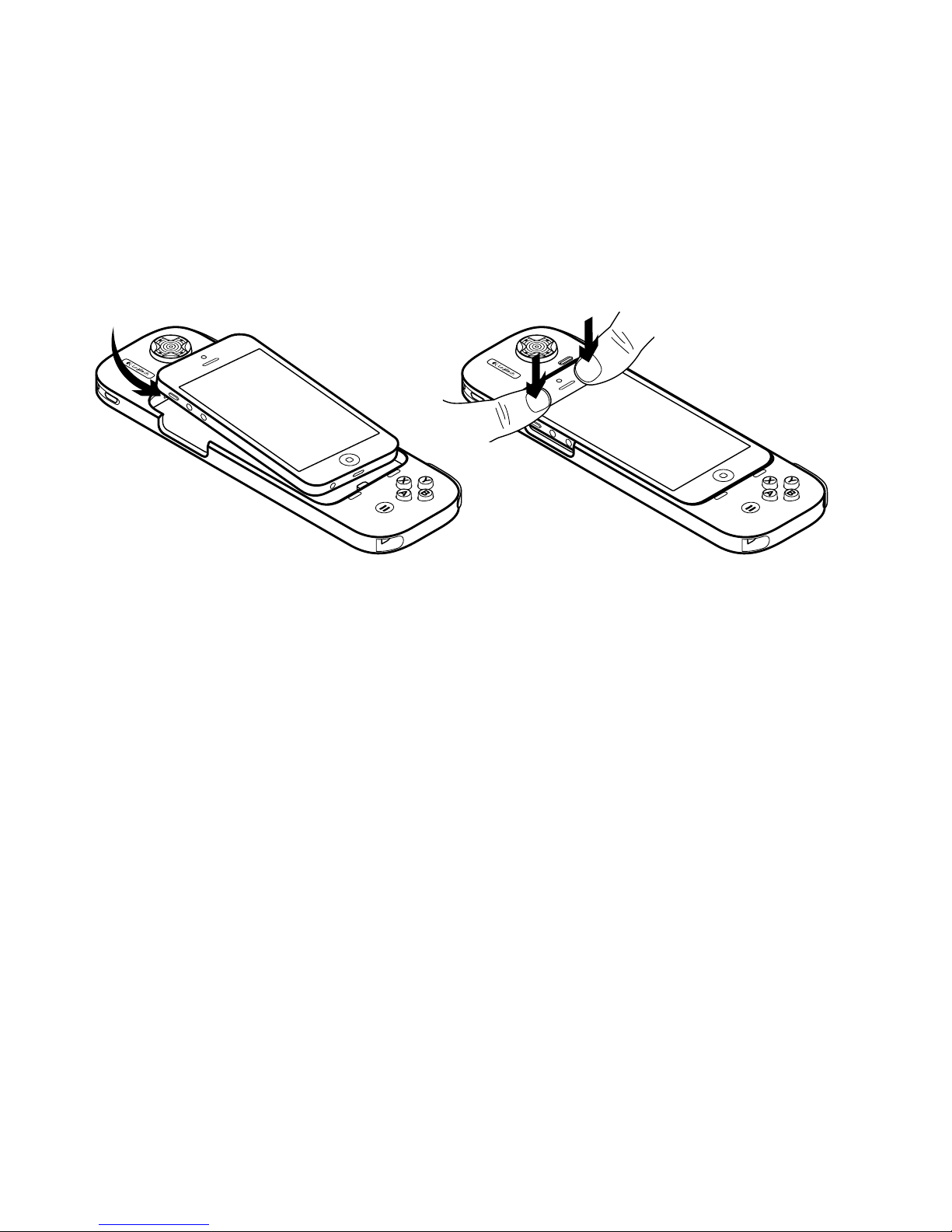

iPhone:
1. Place the iPhone onto the Controller’s Lightning connector.
2. Press phone into the Controller’s frame until the phone
is held securely.
English 7

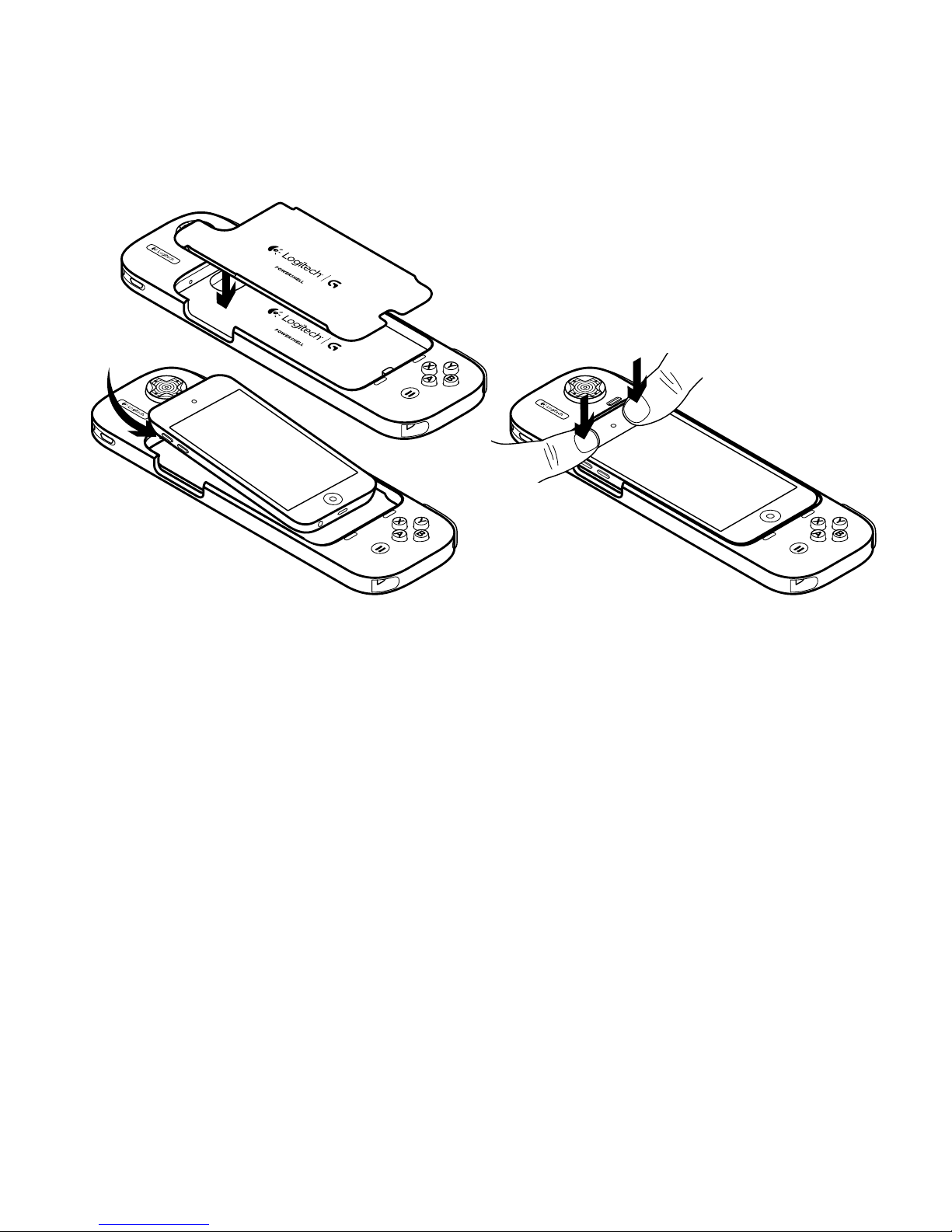

iPod touch:
1. Place iPod touch adapter into the body of the Controller’s cradle.
Note: Insert the iPod touch adapter so that the G pull-tab rests
behind the Lightning connector.
2. Place the iPod touch onto the Lightning connector.
3. Press the iPod touch into the Controller’s frame until the iPod touch
is held securely.
8 English
Using your Controller
1. Use the Controller to play iOS 7 games.
2. To use a headset with your Controller, insert the included headphone
extender cable into the audio jack access port.
3. To extend your iPod touch or iPhone battery, simply move
the Extended Battery switch to “On”.
4. When the Controller’s battery needs to be charged, the G logo on
the back will turn red. Please charge your Controller when possible.
English 9
Removing your iPod touch or iPhone from
your Controller
1. Remove any headphones or other audio jack devices from
the headset port.
2. Over a table, hold your Controller and press through the camera
opening until the iPhone or iPod touch rotates slightly out of
the Controller’s frame.
3. Once the iPhone or iPod touch is slightly out of the frame,
pull your Apple device directly away from the Lightning connector.
10 English
Charging your Controller
1. Plug your USB charging cable into your iPhone or iPod AC adapter*.
2. Plug the micro-USB connector into the Controller’s charging port.
3. The G logo will blink while charging. Once the Controller
is fully charged, the G logo will glow solid blue. Your Controller
is now charged.
4. To charge your iPhone or iPod touch while charging your Controller,
make sure to set the Extended Battery switch to On.
* Only use Apple power adapters compatible with iPhone 5 or iPod touch
(5th generation).
Note: At the end of product life remove battery as shown.
