Logitech G Pro X Superlight Manual de usuario
PRO X SUPERLIGHT
SETUP GUIDE |设置指南 |設定指南 |설치 가이드
All manuals and user guides at all-guides.com
ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . 3
简体中文 . . . . . . . . . . . . . . . . . . . . . . . . 10
繁體中文 . . . . . . . . . . . . . . . . . . . . . . . . 17
한국어 . . . . . . . . . . . . . . . . . . . . . . . . . 24
All manuals and user guides at all-guides.com
3ENGLISH
PACKAGE CONTENTS
1
5
3 4
2
6
1 Mouse
2 Optional grip tape
3 Receiver (installed in extension adapter)
4 USB charging and data cable
5 Surface preparation cloth
6 Optional POWERPLAY aperture door
withPTFEfoot
All manuals and user guides at all-guides.com
4ENGLISH
MOUSE FEATURES
1 Left Click
2 Right Click
3 Middle Click/Scroll
4 Browser Forward
5 Browser Back
6 Power LED
7 USB charging/data port
8 Power on/o
9 POWERPLAY™ Aperture door
2
8
9
3
6
1
7
4
5
All manuals and user guides at all-guides.com
5ENGLISH

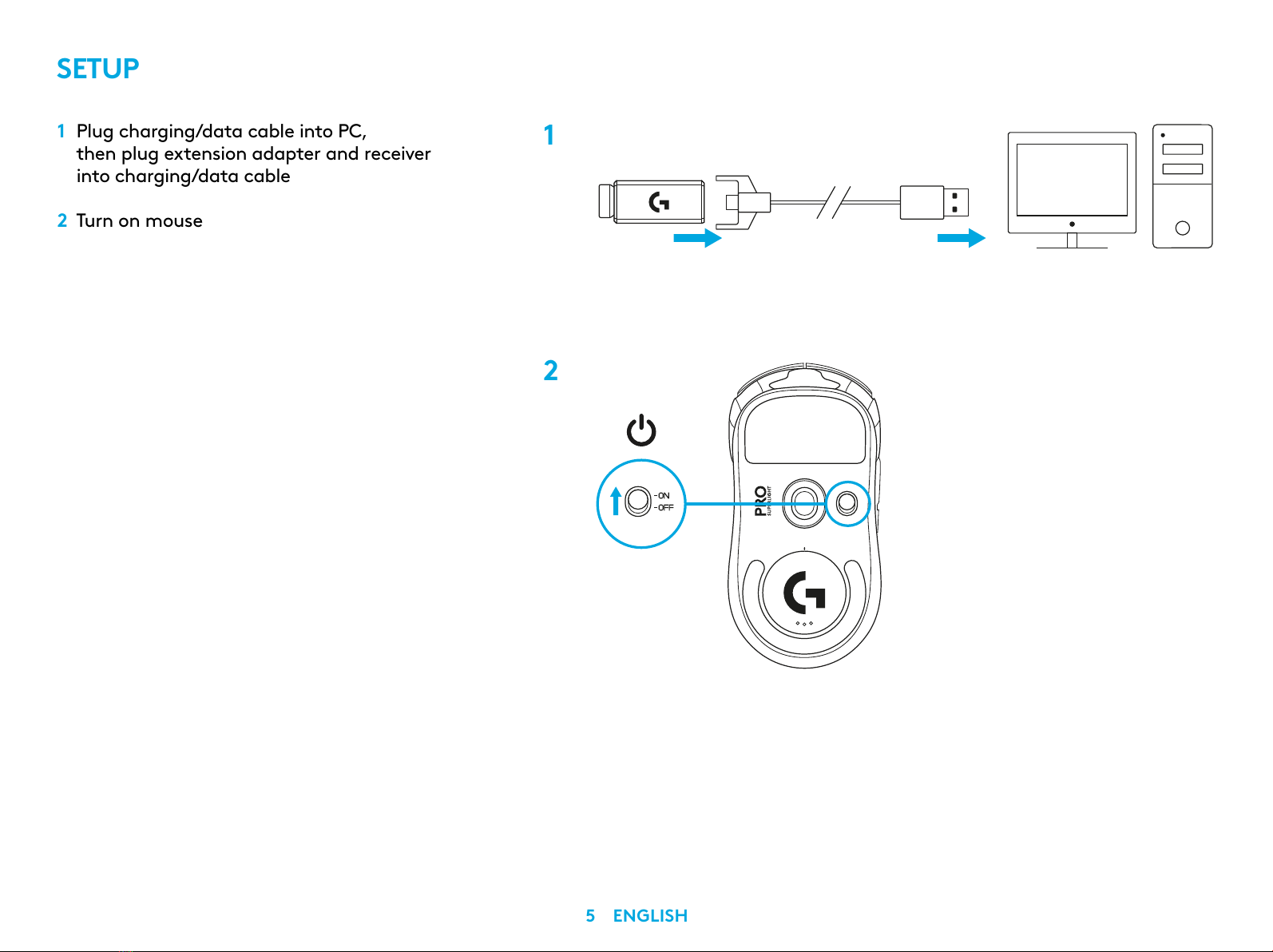

SETUP
1 Plug charging/data cable into PC,
thenplugextension adapter and receiver
intocharging/data cable
2 Turn on mouse
1
2
All manuals and user guides at all-guides.com
6ENGLISH
3 To congure mouse settings like DPI, download G HUB software from
logitechG.com/GHUB
3
logitechG.com/ghub
All manuals and user guides at all-guides.com
7ENGLISH
> 2 m
~ 20 cm
For optimal wireless performance, use mouse within 20cm of
receiver and greater than 2m from sources of 2.4GHz interference
(such as wi routers).
All manuals and user guides at all-guides.com
8ENGLISH
To install optional grip tape, rst clean surface of mouse with
provided surface preparation cloth to remove any oil or dust.
Then,carefully align grip tape to mouse surfaces.
1 2
All manuals and user guides at all-guides.com
9ENGLISH
The USB receiver can be stored inside the mouse by removing the POWERPLAY
aperture door. This can prevent the receiver from being lost when using the mouse
with the Logitech G POWERPLAY wireless charging system.
Removing this door also allows the included, optional aperture door with PTFE foot
to be installed instead of the default aperture door.
PTFE
All manuals and user guides at all-guides.com
10 简体中文
包装内容
1
5
3 4
2
6
1 鼠标
2 可选握胶
3 接 收 器（ 预 装 于 扩 展 适 配 器 中 ）
4 USB 充电/数据线
5 表面清洁布
6 带PTFE 脚垫的可选 POWERPLAY 底盖
All manuals and user guides at all-guides.com
