OPERATING MANUAL

WALL SAW hydraulic

LWSH1201

LISSMAC Maschinenbau GmbH

Lanzstrasse 4

D-88410 Bad Wurzach

Telefon +49 (0) 7564 / 307-0

Telefax +49 (0) 7564 / 307-500

[email protected]om

www.lissmac.com

CONSTRUCTION TECHNOLOGY

Page 2

Page 3

Safety

DANGER

Failure to comply with the safety instructions may result in serious injury or even death.

Ensure that the safety instructions have been read and understood in full.

DANGER

Cuts from the saw blade.

Always wear protective gloves when working on the wall saw, particularly when working on

the saw blade.

Always use the blade guard when operating the wall saw.

DANGER

Serious injury or material damage as a result of uncontrolled movements of the wall saw.

Never connect or disconnect hoses while the drive unit is running.



Page 4

Description

Wall saw system

Wall saw für professional use. Not suitable for use in explosion hazard environments.

Wall saw

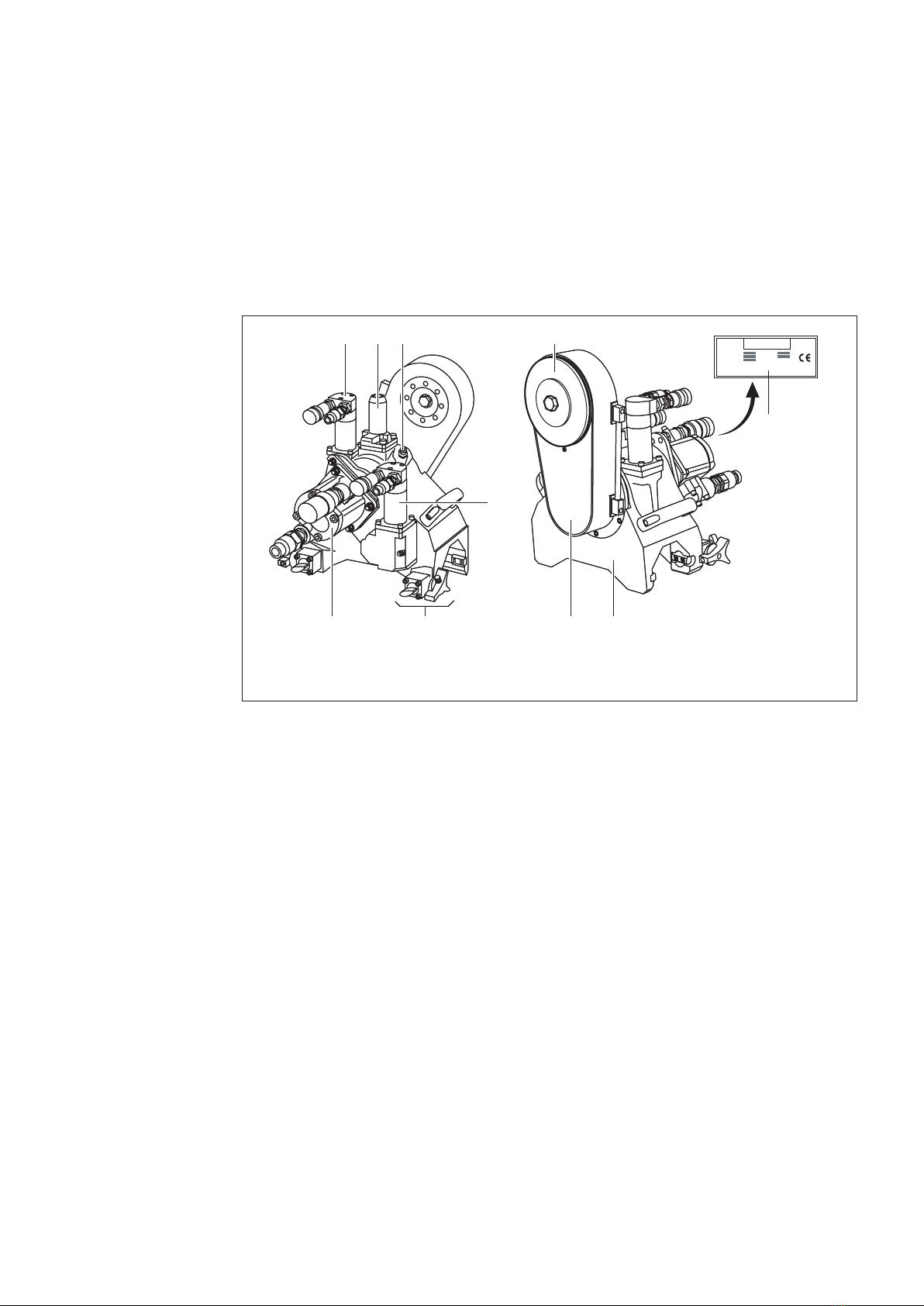

Components

1 Feed motor, swivel 6 Blade drive motor

2 Blade guard holder 7 Saw blade holder

3 Water connection 8 Name plate

4 Feed motor, travel 9 Chassis

5 Lock unit 10 Belt swivel arm

10 9

Typ

Masch.- Nr.

Gewicht.

Index

Baujahr

10 9

Typ

Masch.- Nr.

Gewicht.

Index

Baujahr

2.1

2.2

Page 5

Assembly / disassembly

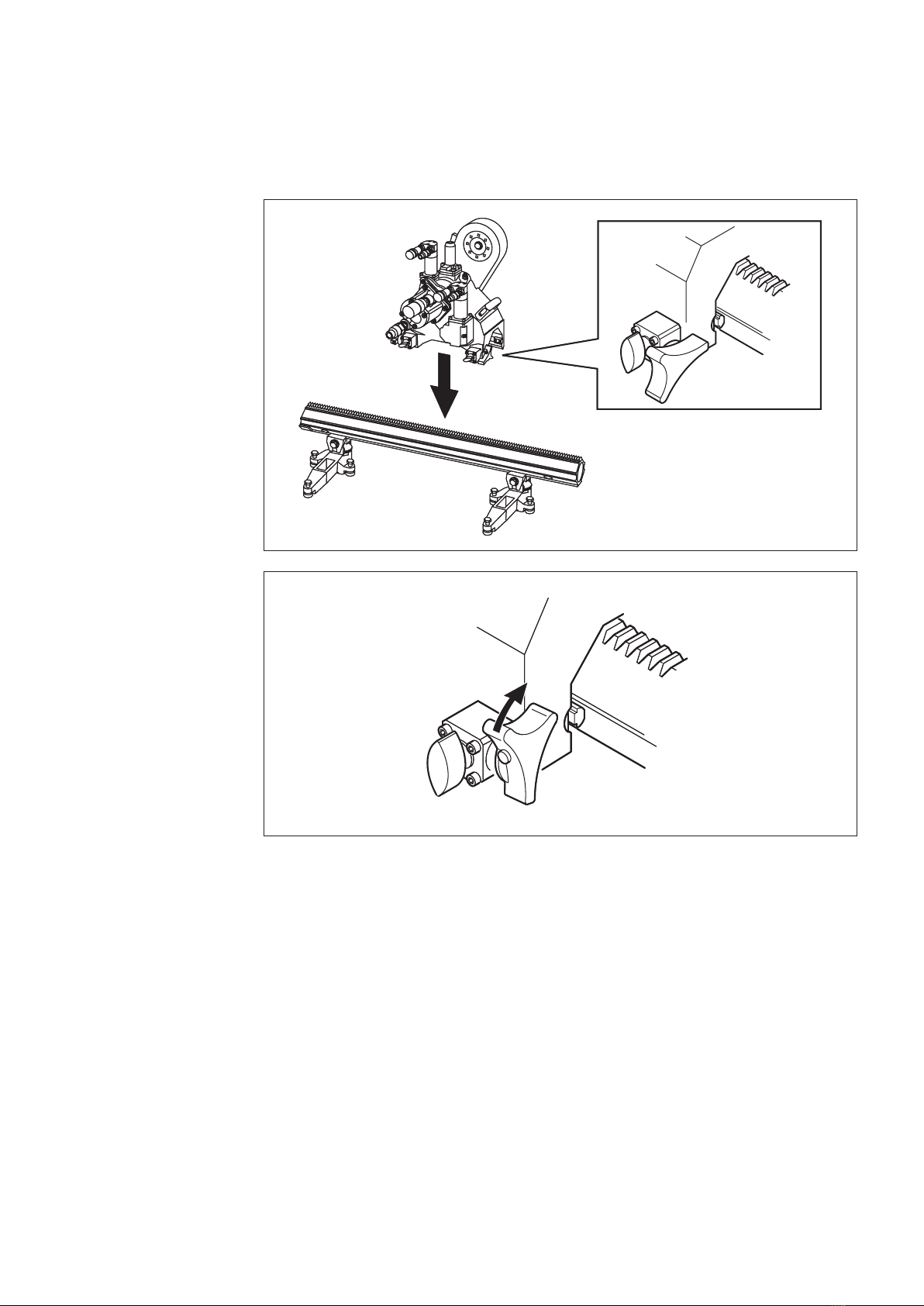

Place the wall saw on the guide rail

3.1

Page 6

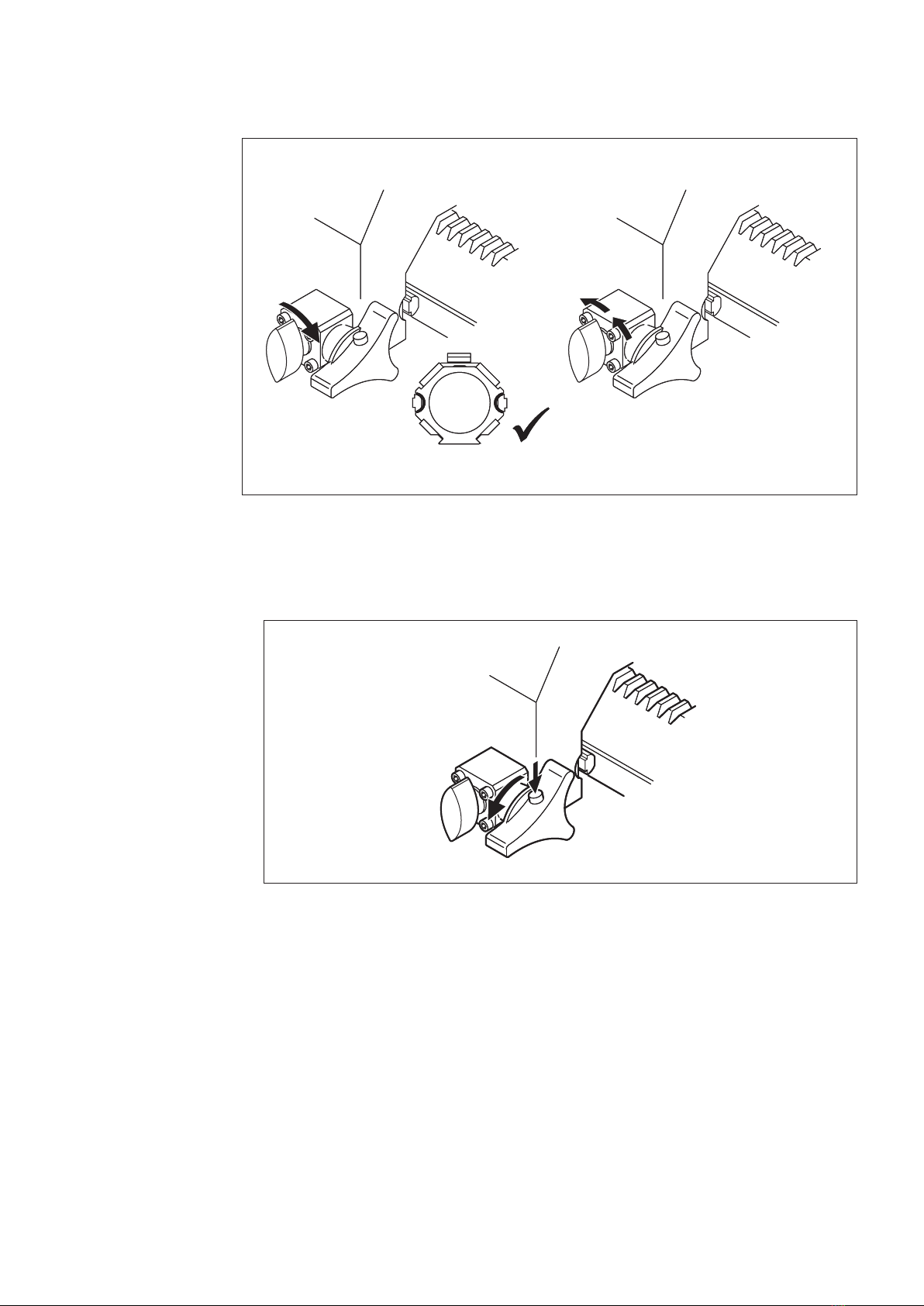

Adjustment of the closure

A: Rotate as far as the stop.

B: Rotate back two notch positions.

Release the closure

Perform the remaining assembly steps in reverse order.

click

3.2

3.3

Page 7

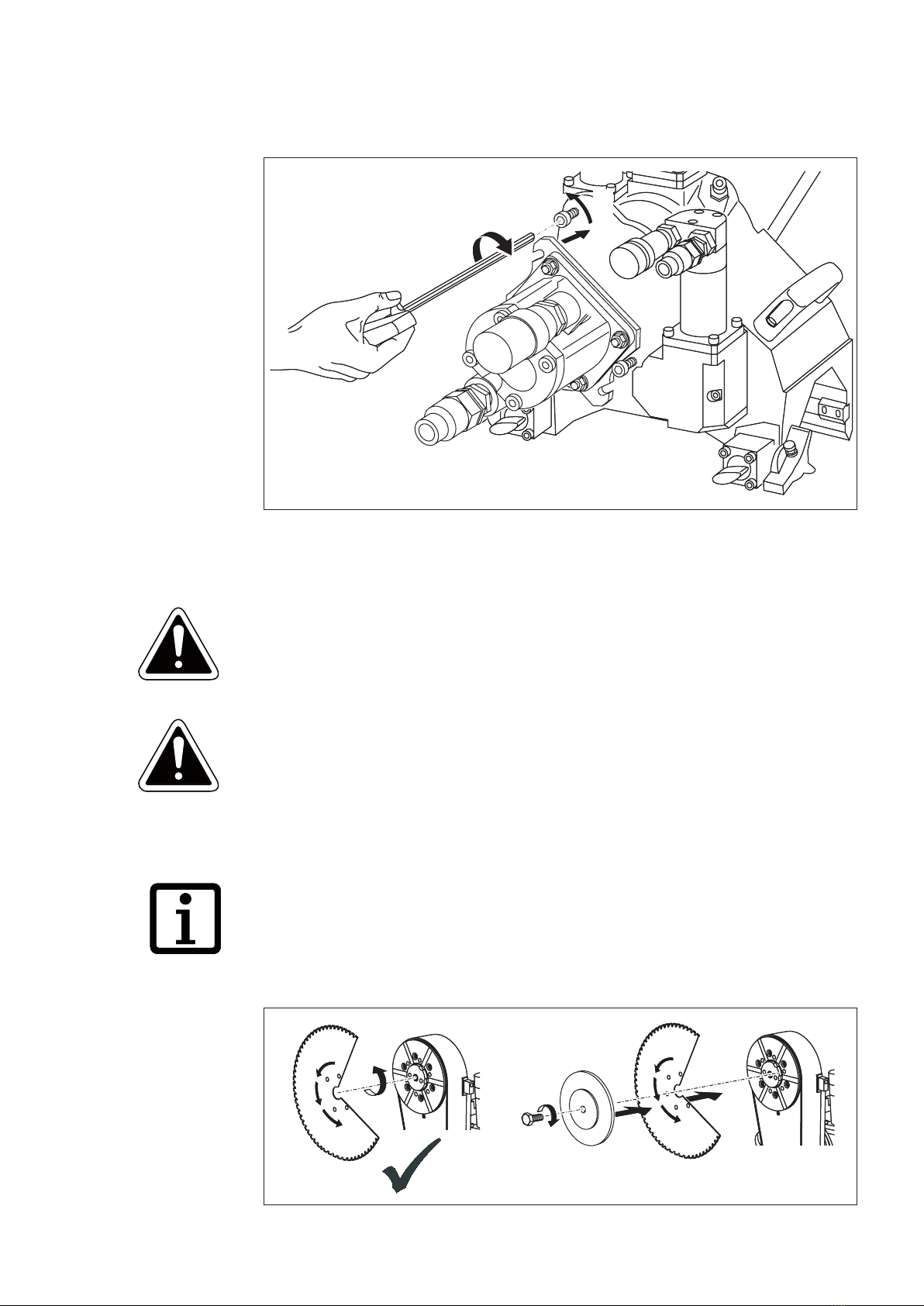

Mount the drive motor

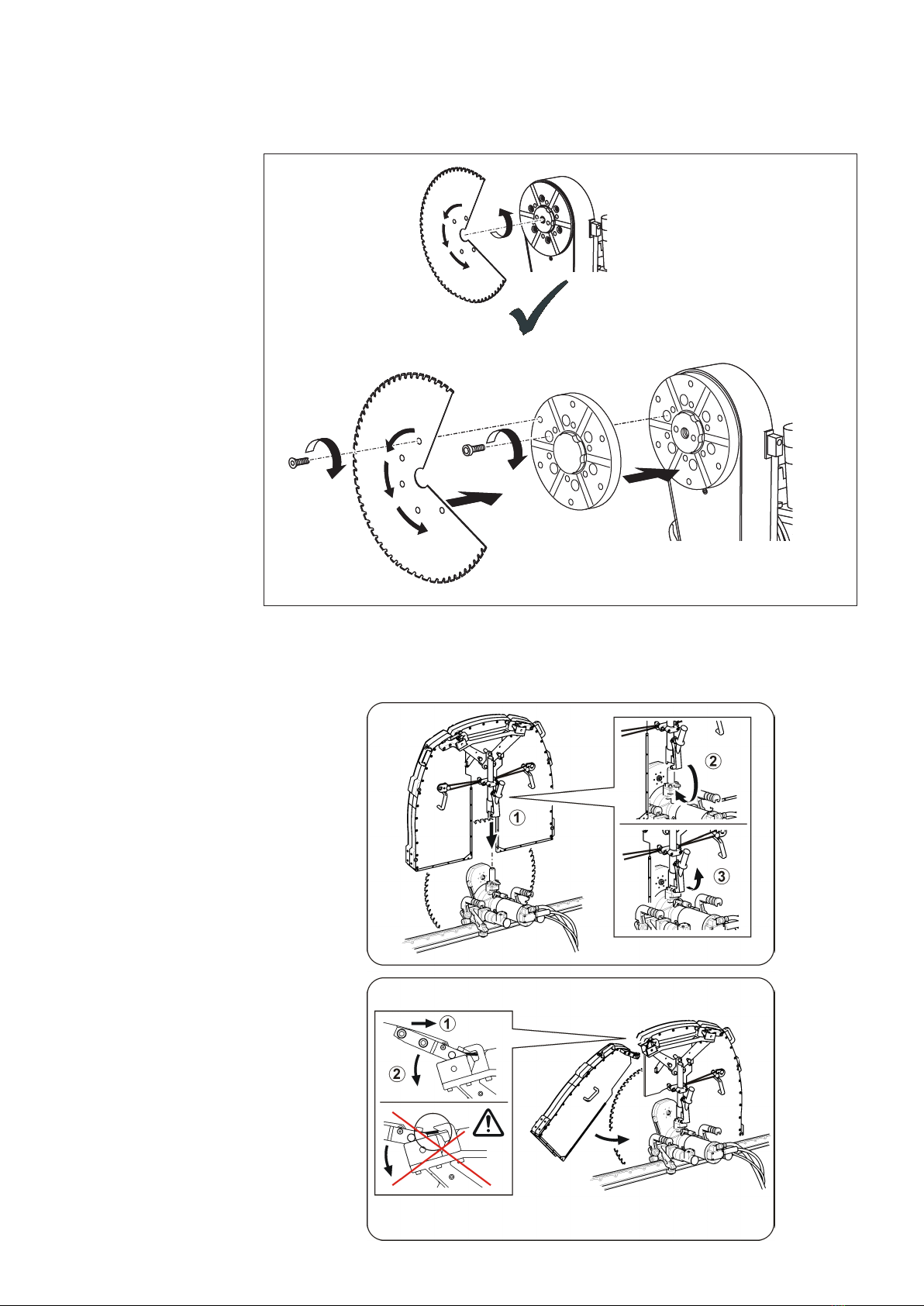

Mount the saw blade

DANGER

It can cause death or serious injury if the saw blade ies away.

Only use original screws and bolts.

DANGER

Serious injury can be caused by sudden start-up of the saw blade.

Switch o the drive unit before working on the saw blade.

Depressurize the hoses.

Fixing saw blade in position

The direction of rotation of the saw blade must match the direction of rotation of the machine.

Correct alignment: Countersinking of the fastening bores against the blade cover.

For normal cuts



3.4

3.5

3.5.1

Page 8

For ush cuts

Mount the blade guard

D6x

B6x

D6x

B6x

3.6

Page 9

Connecting the wall saw to the drive unit

The drive unit is isolated from the power supply.

Couplings are clean.

Hoses are undamaged.





3.7

Page 10

Servicing and maintenance

Lubricate lock unit

1 Grease nipple



Maintenance and servicing table

Before every

commissioning

At end of work

Weekly

Yearly

After faults

After damage

Wall saw Retighten loose bolts, screws and nuts

(refer to the tightening torque speci-

cations)

X X X

Prism guides Check for wearX

Replace before the anchoring screws

of the guide prisms touch the rail or

the chassis touches the rail

X

Y-guides Apply 2-3 applications of grease to

the lubricating nipples

X

Couplings Check for leak-tightness and damage

and replace as required

X

Swivel arm Clean with waterX

Check the saw blade uptake for wearX X X

Feed motor Check cleanliness and leak-tightnessX X X X

Drive motor Check cleanliness and leak-tightnessX X X X

Water economy Check water line for cleanliness and

leak-tightness

X X X

Blow out waterX

Saw blade Clean with waterX

Check for wearX X X X

Service To be performed by LISSMAC or an

authorised workshop

After 100 / 300 / 500 / 700 hours

4.1
