Lionel VISION Baggage Car Manual de usuario

78-5326-250

6/18

Featuring

Lionel VISION

Baggage Car

Owner’s Manual

Lionel VISION

Baggage Car

Owner’s Manual

Thank you for your purchase of this Lionel VISION Baggage Car! Equipped with the latest

technology to bring you realistic loading and unloading sequences and true-to-life freight car

sounds, your new VISION baggage car adds the dimension of sound to your passenger train

experience. This car operates in conventional mode (limited features), with a CAB-1L/CAB1 (more

features) and with a CAB2 remote (full functionality).

Thank You!

VISION Baggage Car basics

VISION baggage car switch locations 3-4

LEGACY and Command Control Operations

LEGACY Control Operations 5

Choosing and ID for your VISION baggage car 6

Setting up your VISION baggage car with your CAB-2 remote 7-10

The LEGACY CAB-2 remote controller 11

TrainMaster Command Control (TMCC) operations 12

Creating a Train with the CAB-1 or CAB 1-L remote 13

Operating your VISION baggage car with your CAB-1 or CAB-1L remote 14

CAB-1/CAB-1L Remote Controller Commands 15

Adjusting the volume from your LEGACY remote 16

Adjusting the volume from your CAB-1 or CAB-1L remote 17

Shut down and Start up commands 18

Dialog while stopped 19

LEGACY RailSounds Sequence Control 20

Sound System Operations

Sounds while in motion 21

Rail Clatter 21

Grind 21

Bump 21

Maintenancing your VISION Baggage Car

Uncoupling your VISION Baggage Car 22

Installing scale couplers (optional) 22

Switching the interior light on and off 23

Replacing the LED 23

Lionel Limited Warranty Policy & Service 24

The following Lionel marks are used throughout this Owner’s Manual and are protected under law.

Lionel®, TMCC®, LEGACY®,TrainMaster®, RailSounds®, CrewTalk™, TowerCom™, StationSounds™,

ElectroCoupler™, CAB-1®Remote Controller, TMCC®, FreightSounds®

Table of Contents

VISION Baggage Car basics

Power your baggage car with an alternating-current (50-60Hz AC) transformer only.

Powering your car with a direct-current (DC) transformer, or in excess of

19 volts AC, may result in damage to sensitive electronic components.

Your baggage car requires Lionel or Lionel-compatible O-54 or larger track curves.

Note!

This sound equipped VISION Baggage car has a programming switch. Refer to Figure 1. The

instructions below are specific to this baggage car; note that available

features (and switches) may differ from other sound equipped cars and roll-

ing stock.

Run / Program Switch

Your baggage car is automatically assigned ID#1 when you first receive it. Assign it a new ID

different from the locomotive pulling it (refer to your locomotive manual for its startup operations).

To assign a new ID # to the baggage car in LEGACY and Command operation follow these steps:

1. Slide the Program/Run switch to the “PROG” position.

2. Place the car on the track.

3. Connect the Command Base and plug it in.

4. Power up the track to 18 Volts AC (50 or 60 Hz).

5. Press ENG on your CAB controller.

6. Enter an unique ID#. Choose any number from 1 to 98 that has not been assigned to another

engine or RailSounds car.

7. Press the SET button on your CAB controller.

8. Slide the Program/Run switch back to the RUN position.

The baggage car’s ID# has been set. Be sure to record the new ID# for your reference.

Max / Min Switch

Used to make the sound, simulating the scraping and banging of the contents of the baggage car,

less or more active. When the switch is in the MIN position, the sequences and some background

motion sounds will turn off. This allows you to put more than one sound-equipped car on the same

ID. To do this, set one car to MAX and then trigger loading/unloading. Sound effects will come

from all cars; however dialog will only come from one.

Volume Pot

To adjust the overall volume of sounds, flip the car upside down, as shown in Figure 1, insert a

small Flathead screwdriver into the Volume Pot adjustment post and turn. To increase the volume,

turn the post clockwise. To decrease the volume, turn the post counter-clockwise. Your CAB-remote

can also adjust volume; the setting of this physical control will limit the maximum volume your

baggage car can produce.

VISION Baggage car switch locations

RUN/PGRM

MAX/MIN

LIGHTS

OFF ON

StationSounds Diner Car basics

VISION baggage car switch locations continued

Lights ON / OFF Switch

Used to turn the lights ON and OFF.

Volume Pot

Speaker

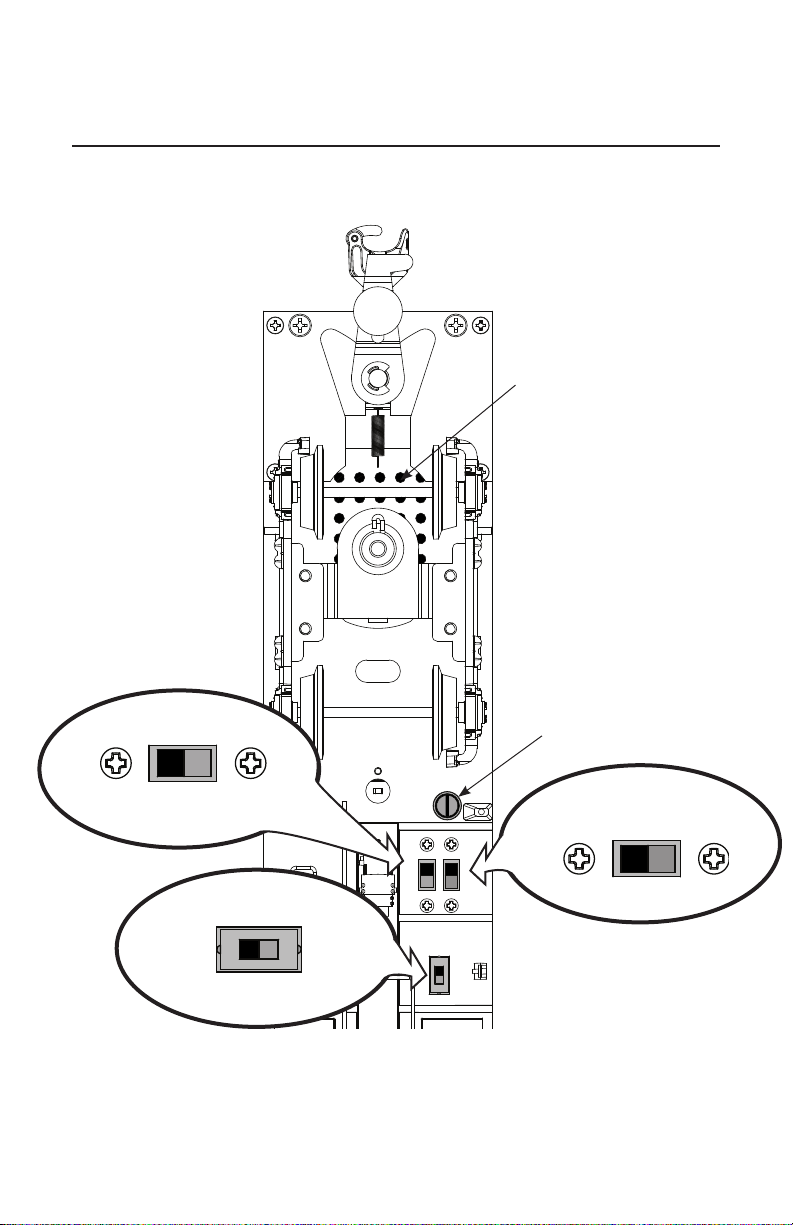

Figure 1. Switch locations

RUN/PGRM

MAX/MIN

LIGHTS

OFF ON

RUN/PGRM

MAX/MIN

LIGHTS

OFF ON

RUN/PGRM

MAX/MIN

LIGHTS

OFF ON

LEGACY and Command Control Remote

Operations

1. Turn off track power, and then plug in the LEGACY Base and connect it to the

track.

2. Place your baggage car on the track.

3. Increase track power (no more than 18 volts AC). If a circuit breaker trips when you

turn on the Lionel power supply, check the wheels of your baggage car to make sure they are all

securely on the track. Check to make sure the track is free of all metals that may cause a short

circuit.

4. Moving your train with the attached baggage car after powering up the track

automatically turns on the sound.

LEGACY Control operations

Your VISION baggage car is designed for operation with the Lionel LEGACY system. It will also

operate on the original Lionel Trainmaster System (TMCC1) with limited features and also

on the LEGACY Cab-1L / Base-1L operating system (again with reduced features.) Using a Lionel

LEGACY set (6-14295) will allow you to access ALL the features this diner car has to offer.

Your commands are sent by the Remote Controller to the Command Base, which broadcasts a

radio frequency that is distributed through the outside rails of the track to your sound equipped diner

car. Moving your train after you power up your track will turn the sounds on.

If you send the VISION baggage car (or the Train of which is assigned) a shutdown com-

mand, this will prevent the car from making sounds simply because it is moving. In this

case, send a startup command to the train or engine address and your VISION baggage

car will begin making sound again.

Newer sound equipped cars will have the interior lighting turn on when power is ﬁrst

applied without having the ﬁrst address the car using a Cab remote.

Note!

Choosing an ID for your VISION baggage car

The VISION baggage car must be given a unique Engine ID. Use the Program / Run switch and

follow the instructions on Page 3. Setting it to the same LEGACY or TMCC ID as the locomotive

pulling it will result in undesired operation. Once a unique ID is set, the baggage car should be

assigned to a train along with your locomotive.

If you have more than one VISION baggage car, for best results set them all to unique ID’s. You

may also choose to set them all to the same ID. In this case, set one baggage car’s min/max switch to

the MAX position (see page 4) and all others to MIN.

It is not recommend to set the TMCC ID of the VISION baggage car to the same TMCC ID

as the locomotive, nor to assign it as a FRONT engine of the Train. Undesirable operation

will result.

Note!

LEGACY and Command Control Remote

Operations

LEGACY and Command Control Remote

Operations

Setting up your VISION baggage car in your CAB-2 remote

For best operation, your baggage car should be set to TYPE PASS (Passenger). This will display a

special set of touch screen icons specifically designed for use with this type of car.

1. Press ENG and the 1 or 2 digit TMCC ID you assigned to your baggage car

following the instructions on page 3 (Engine ID 57 has been assigned in the

illustrations on this and following pages.)

2. Press INFO (see page 11 for button location).

3. Scroll the big red knob until you see the TYPE Tab (DSL STM DSW SSW)

4. Press the small black down-facing triangle to the right of SSW. This will scroll

down through several pages of engine types.

5. The third page includes Accessory, Passenger, BreakDown B Unit and Freight

(ACC PAS BDU FRT)

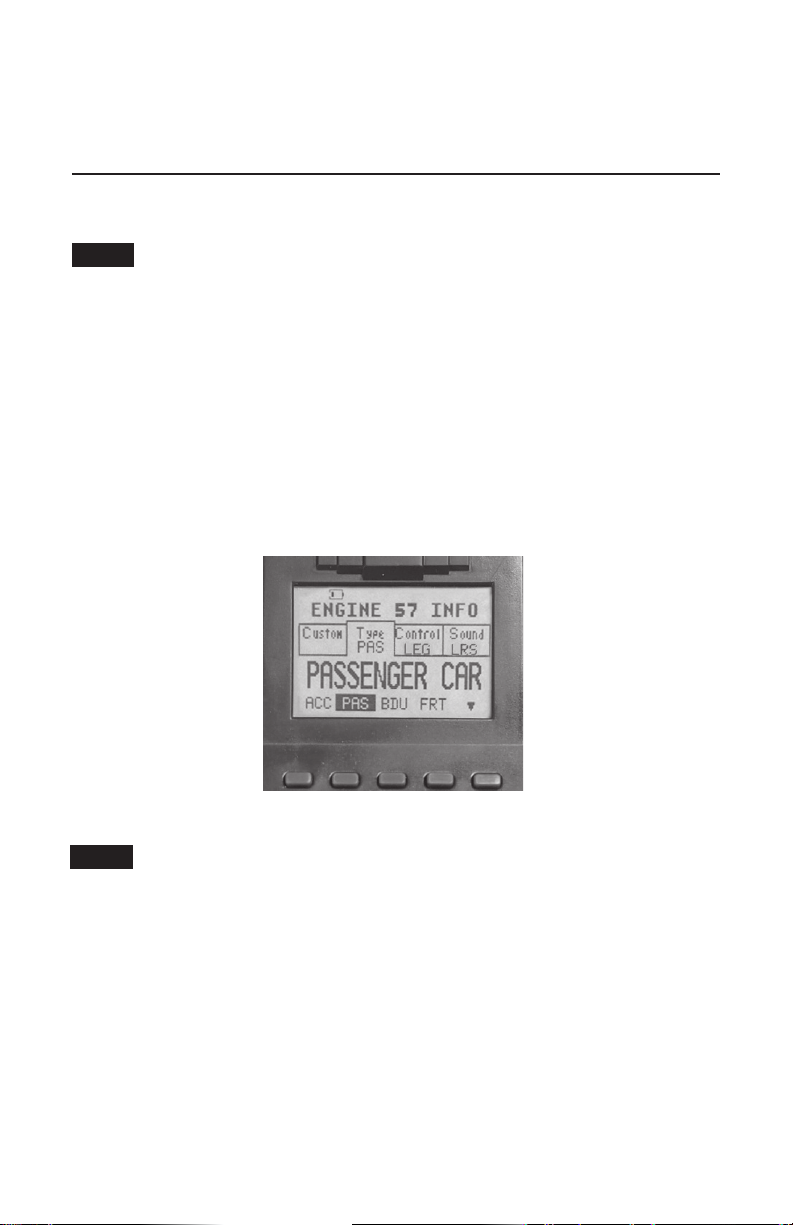

6. Choose PAS. Your screen should look like this:

7. Press INFO to complete the operation.

If you have a SensorTrack, rolling the car over the track will automatically program your

CAB-2 remote with the baggage car’s information.

LEGACY version 1.6 is required for optimum operation of your VISION baggage car.

Note!

Adding Your baggage car to a Train

Use the Train Builder and create a train including your head-end locomotive and the VISION baggage

car. If you have followed the steps on the previous page, the diner car will automatically be added as a

Train Linked device.

Perform the following steps to build your train.

1. Press the TR button and enter a 1 or 2 digit number for your new train. (2, in

this example)

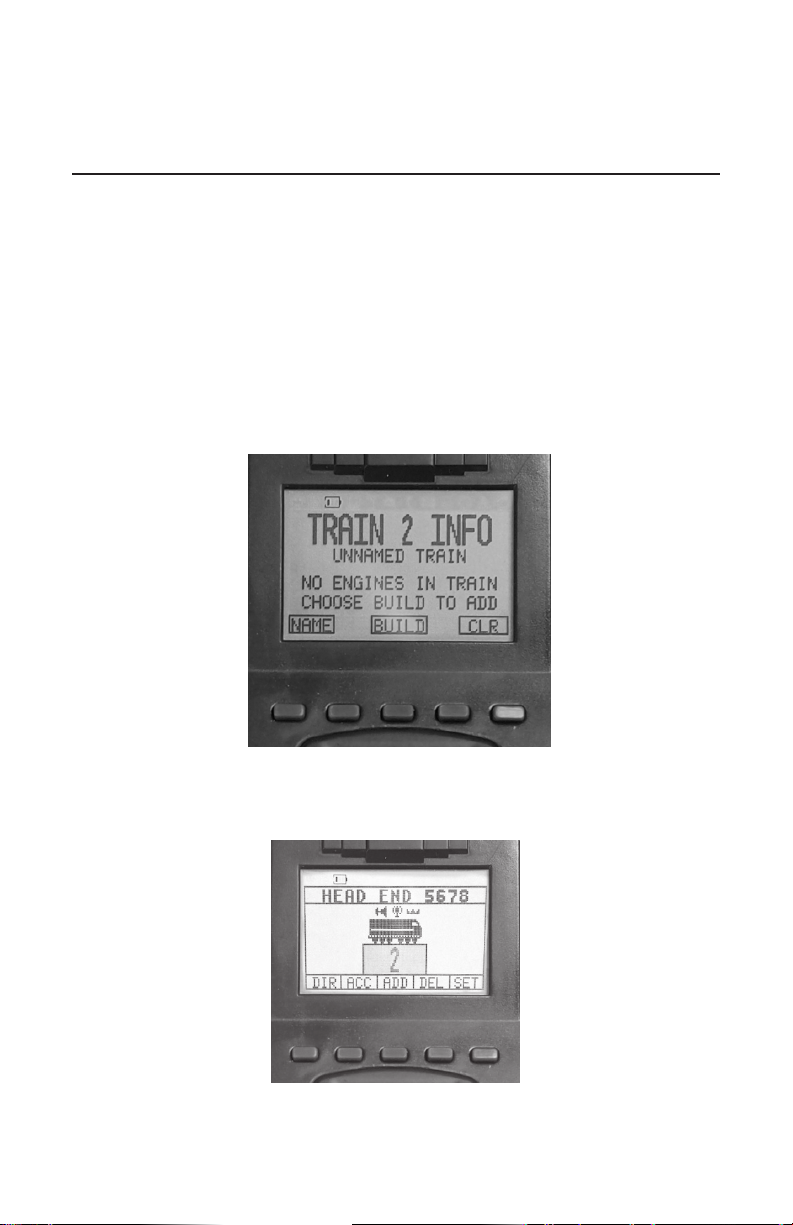

2. Press the INFO button. Your screen will look like this:

LEGACY and Command Control Remote

Operations

Setting up your VISION baggage car in your CAB-2 remote continued

3. Press BUILD.

4. Enter the TMCC ID of the locomotive that will head up this train. (2 in this

example)

LEGACY and Command Control Remote

Operations

Setting up your VISION baggage car in your CAB-2 remote continued

Adding Your baggage car to a Train

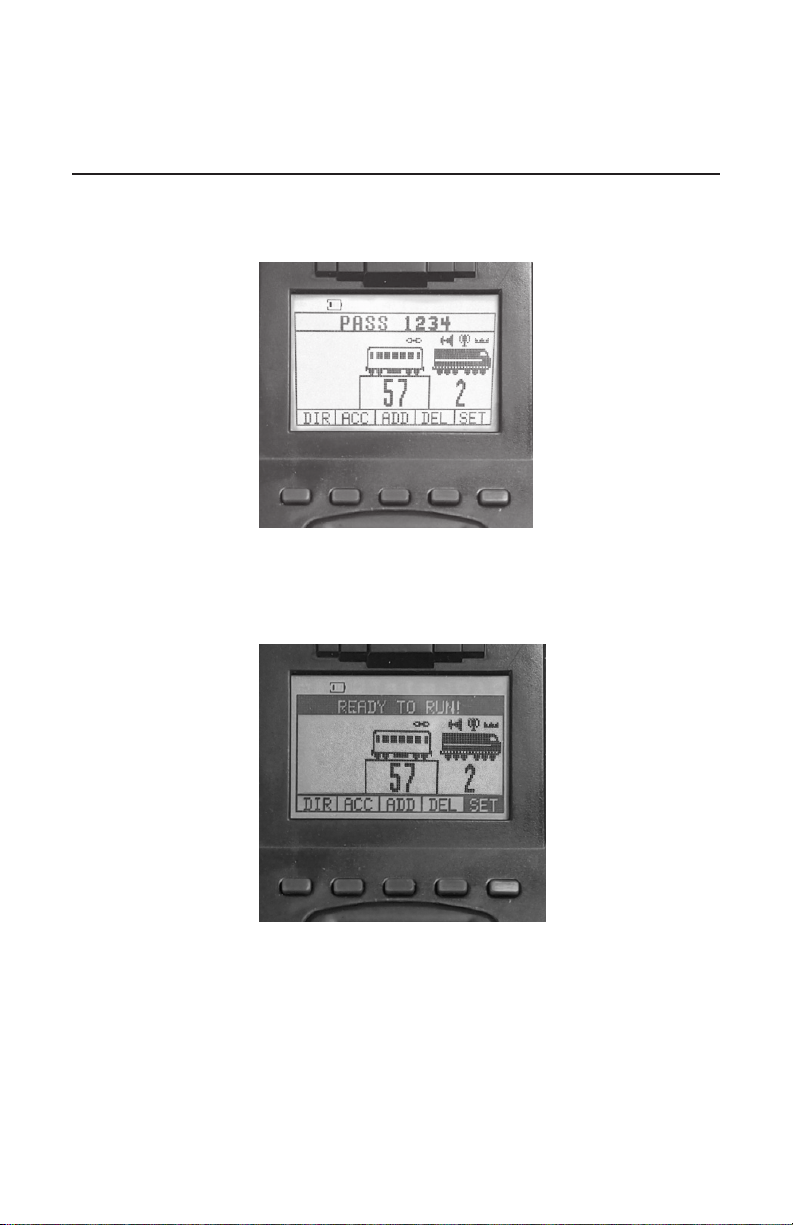

5. Press ADD to add a second member to the Train

6. Enter the TMCC ID of the passenger car (57 in this example).

7. Press SET and wait for the horn to sound on the head-end locomotive, a

metallic "thwack" sound to come from your VISION baggage car and the

"Ready to Run" message to appear on your CAB-2 screen.

To move your locomotive, select the Train by its ID number and use the throttle, boost, and brake to

run it. Apply your CAB-2 Train brake and hear the brakes operating on your VISION baggage car. For

more prototypical action, stopping with the train brake applied (in any amount) will keep your roll-

ing stock consist stretched-out and prevents stress on the coupler when starting. Your train simulates

this effect. If you stop without using Train Brake, you’ll hear the impact of your baggage car hitting

the coupler in front of it. And when you move the next time, you’ll hear another impact sound as the

coupler slack is taken up.

Setting up your VISION baggage car in your CAB-2 remote continued

LEGACY and Command Control Remote

Operations

Using Train Link

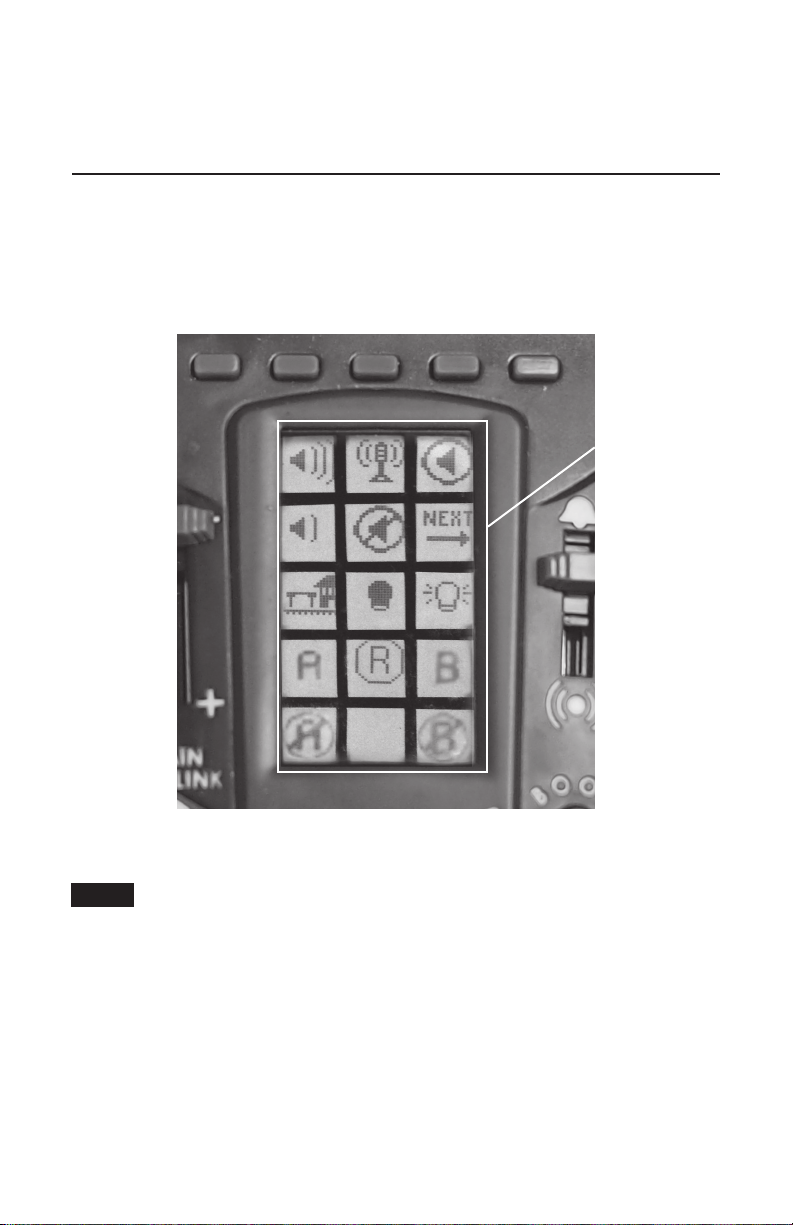

To send a command speciﬁcally to your baggage car, such as a coupler command or to trigger load-

ing/unloading, press the Train Link button (see page 11 for button location). Notice that the keypad

has changed. It should appear like the screen below.

Select one or more commands then press the Train Link button to continue controlling your train.

In order to send commands directly to your baggage car, you must press Train Link. The

remote will show the screen above. In this mode, the train itself (ie. the engine) will not

respond because you are sending commands directly to the diner car.

Note!

VISION BAGGAGE

CAR COMMANDS

If you wish to control the train press Train Link again. In this mode you will be able to adjust speed,

apply the train brake, access TowerCom and CrewTalk, blow the engine’s horn or whistle, and ring the

engine’s bell.
