LQBBL – Boombox User Manual

Please read this manual before operating your device, and keep it for future reference.

The Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth

word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth

SIG.

microSD™ and the microSD logo are Trademarks of the SD Card Association.

Wi-Fi, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wireless

Fidelity Alliance, Inc.

Table of Contents

LQBBL – Boombox User Manual ............................................................................................................................. 1

Copyright..............................................................................................................................................................2

Table of Contents......................................................................................................................................................3

General notices for use ..........................................................................................................................................4

Disclaimer.............................................................................................................................................................4

Box Contents ............................................................................................................................................................4

Getting Started..........................................................................................................................................................5

Product Specifications...........................................................................................................................................5

Features.................................................................................................................................................................6

Power Source........................................................................................................................................................6

Turning the speakers on / off..............................................................................................................................6

Charging your speakers......................................................................................................................................6

Understanding your LQBBL Speakers.......................................................................................................................7

Pairing your speakers with another device..............................................................................................................8

NFC Function........................................................................................................................................................9

Listening to the speakers........................................................................................................................................9

Bluetooth Mode.................................................................................................................................................9

AUX Mode........................................................................................................................................................9

Two or more speakers...................................................................................................................................... 10

Customer service..................................................................................................................................................... 11

General notices for use



This product is a highly advanced electronics device. Disassembly, customization or

repairs without the appropriate knowledge and precautions can leadto dangerous

situations with chance of damaging the product and causing serious personal injuries.

Avoid use in extreme conditions such as high or low temperatures, high humidity or

moist environments and around magnetic fields. Also avoid long-time exposure to

sunlight.

Only use the manufacturer permitted accessories to avoid damages to the product and

possibly warranty loss.

Please follow the relevant local environmental regulations to deal with obsolete

machines and accessories.

Use a protective folder to avoid extreme physical shocks to the device (i.e. of dropping).

Disclaimer



The screenshots in this manual are for reference only. They may be made on a device

with a different resolution or hardware configuration than yours and therefore can be

slightly different that the final product.

The manufacturer takes no responsibility for loss of information or data caused by

hardware or software failure. The user is responsible for performing timely backups of

important data.

Allinformation and images used inthis user manualare provided ‘as is’and aresubject

to change without notice.

The manufactureraccepts no liability for the information offered in this document.

Box Contents

LinQTab LQBBL Speakers

Power Adapter

Micro USB Cable

User Manual

3.5mm Stereo Cable

Getting Started

Product Specifications

BOOMBOX Crystal Clear Bass Sound

Model No. LQBBL – LinQTab BOOMBOX Crystal Clear Bass Sound System

Main Features BOOMBOX designed for Crystal-Clear bass sound

LinQTab Bluetooth Subwoofer Speaker

Output Power 5W * 2

Speaker Specification 52mm 2Ω 5W

Frequency Response 60Hz-18KHz

SNR ≥95dB

Bluetooth Bluetooth V 4.0

NFC NFC Function

Connectivity PC, Mobile and Tablets

USB Micro USB

Working Range Up to 10 m

Working Time Up to 10 Hours

Microphone Built-in Microphone for phone calls

Audio Input 3.5 mm Audio Jack

Special Feature Super Bass in-built Sub Woofer

Controls On-Device - Play, Pause, Stop, Mode, Next, Previous, Volume Control and Call

Dimension 18.5cm(L) x 5.6cm(W) x 7.5cm(H) or 7.3"(L) x 2.2"(W) x 3.0"(H)

Weight 683 grams or 1.51 Lbs

Battery Lithium Ion

Color Black Speaker Unit

Warranty 6-months

Features

Advanced CSR Brand Bluetooth Version 4.0

Faster Bluetooth transmission rate and higher audio fidelity, lower power consumption

Honorable person voice prompt

Support for iPhone’s Siriand Android Voice Calls

Battery level shows on iPhone / iPod / iPad

The indicator light will show RED when charging, and it will go out when fully charged

NFC Function (NFC area is on the top of the device next to the MIC port or power

indicator)

Button Control for PREV / NEXT; Answer / End Phone Call (Supports the third party call,

as well)

Double5W loudspeakers high quality stereo sound beyond imagination

Two ormore Box Speakers can work at the same time

Power Source

Turning the speakers on / off

Long Press Power button to turn the system on / off.

Charging your speakers

Firmly connectthe supplied adapter toUSB jack onthe side of the speakers viathe USB cable, and

plug the adapterinto a wall outlet. Charging begins automatically, whether the system is turned onor

off. The charging status is displayed onthe device.

(Notice:The indicator lightwill show RED. Once the deviceis fully charged,the light will goout.)

Understanding your LQBBL Speakers

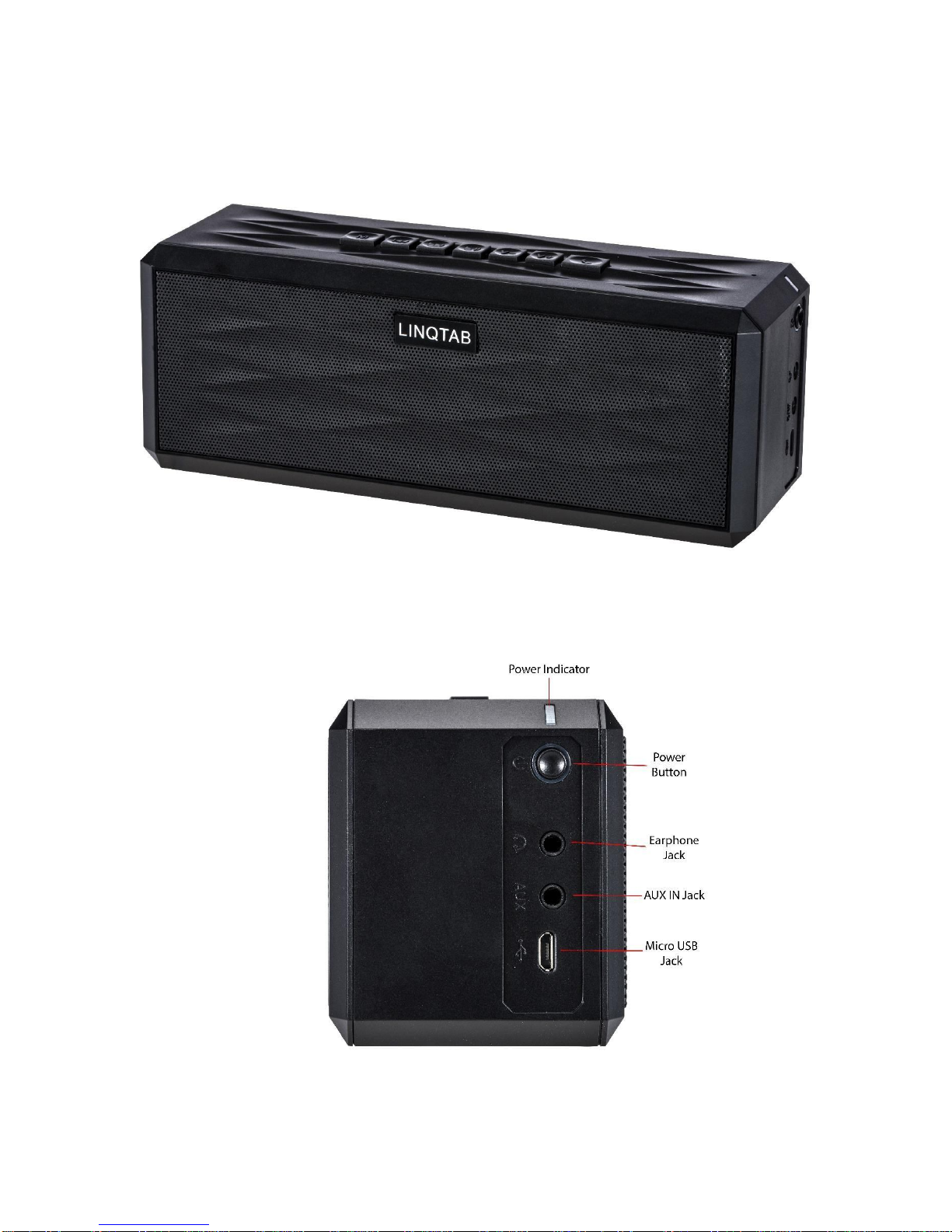

Front Views of speakers

Side View of speakers

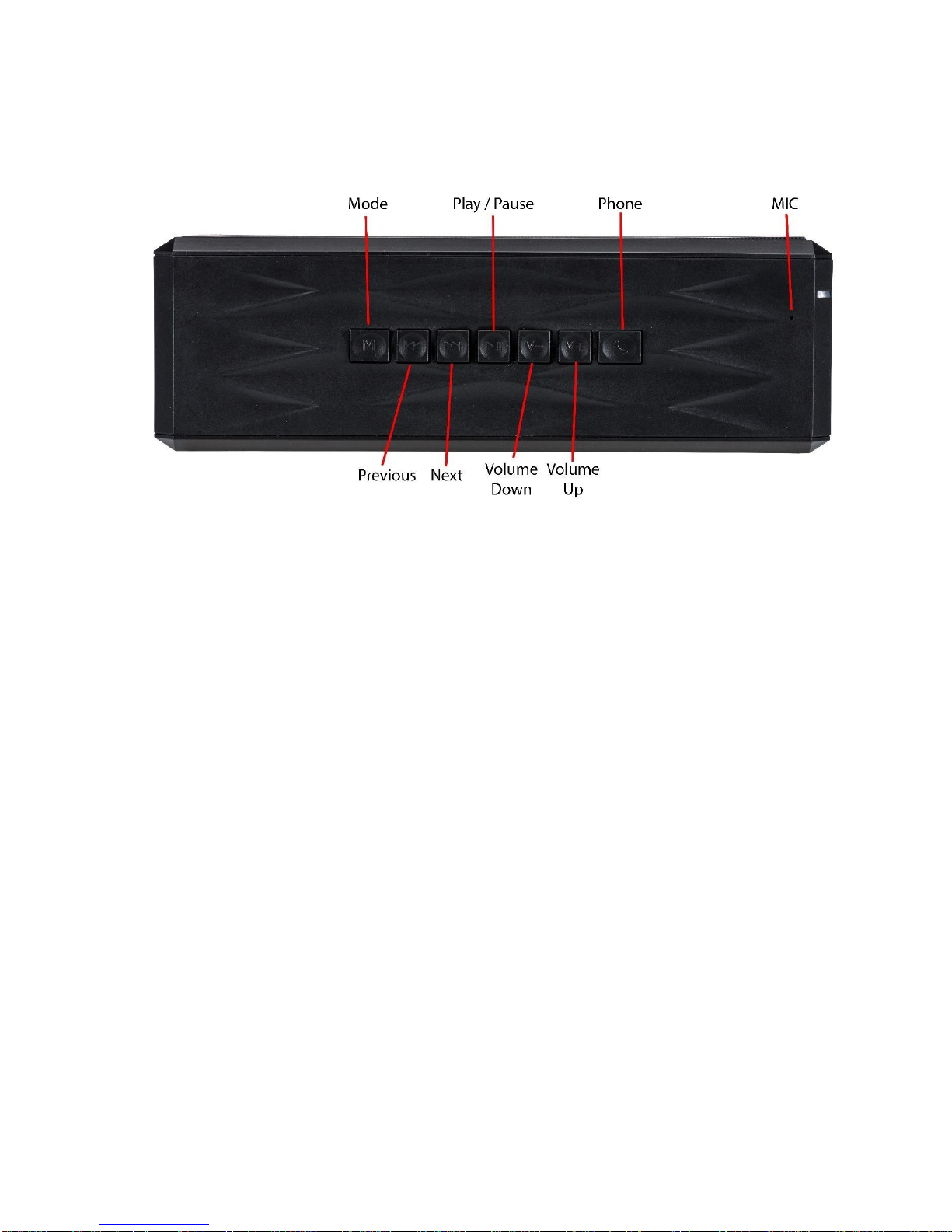

Top View of speakers

Pairing your speakers with another device

Long pressPower buttonto turn on your speakers. The power indicator lights up green.

Press Play / Pause button for 3 seconds. You will hear a voice prompt that it is ready to pair.

a. When the indicatorlightshows a fast alternating blue and red, the system enters pairing

mode.

b. Note: Pairing mode is cancelled after 3 minutes, along with a “Beep” sound. If you want

to enter into pairing mode again, please start step 2 over again.

Perform the pairing procedure onthe Bluetoothdevice todetect the speakers

a. A list of detected devices appears onthe display of the Bluetooth stereo audio source

device.

b. The speakers are displayed as “LINQ-200”. If the speakers are notdisplayed, repeat step

c. Note: When pairing, be sure to keep both devices within 1 meter range of each other.

Select “LINQ-200” shown in the display of the Bluetooth device.

If Passcode input is required on the display of the Bluetooth device, input 0000

a. Note: Passcodemay be called “Passkey”, “PIN code”,“PIN Number” or “Password”

Start the Bluetooth connection from the Bluetooth device.

a. Note: The system memorizes the device as the last connected device. Some Bluetooth

devices may connectwith the speakers automaticallywhen pairing is complete.

NFC Function

Turn on NFC on your Bluetooth device (If your device has NFC functionality), place your device to the

NFC area (on the top of the speakers next to the MIC port or power indicator) of the speakers, the two

devices will be connected by Bluetooth to each other. Repeat this for disconnecting.

Listening to the speakers

Long press the Power button to turn on / off the speakers. After turning on the speakers short press the

M button. This will switch between AUX and Bluetooth modes.

While playing music on AUX or Bluetooth mode you can plug in headphones into the earphone jack.

Bluetooth Mode

On the status of the Bluetooth connection you may only switch to AUX mode bypressing the M

button once your Bluetooth device is paused. At this time, Bluetooth is still connected and has

priority. When you replay the music via Bluetooth, the audio from AUX mode automatically

stops. When the Bluetooth device is paused, AUX mode automatically opens after 3 seconds.

Short press PREV / NEXT for previous &next song

Short press V+ / V- to increase or decrease the volume

a. Note: Volume can be adjusted separately on all the modes including Bluetooth, AUX and

phone calls

During playing musicon Bluetooth mode,if thereis anincoming call, theBluetooth music

automatically stops to enter into Call mode. Short press the Phone button to answer, long press

to reject / end the call. When talking, short press Phone button to switchover if another call is

coming; long press to end the call.

a. While in Bluetooth mode, press and hold the Phone button for 3 seconds to enter into

iPhone Siri or Android Voice Dial; Press twice to redial the latest call.

AUX Mode

Press M button to select AUX mode.

o Short press V+ / V- for volume up and down.

Two or more speakers

Two or more speakers canwork at the same time via a3.5mm audio cable (i.e. Box-A and Box-

B).

When playing the music via Box-A keep one end of a 3.5mm audiocable plug intothe earphone

jack of Box-A, and the other end into Box-B’s AUX jack.(Ensure Box-B is on AUX mode).

oNote: The loudspeakers of Box-A will automatically shut off when earphone jack is

plugged in. Long press M button of Box-A for 5 seconds to open the loudspeakers

again, then the earphone output functionality is activated.

oThis process can be continued with as many speakers in sequence using the same

process above. (Box-A Box-B Box-C Box-N....)
