DC861 QUICK START GUIDE

DESCRIPTION

DC861A-A or -B demonstration circuit features a dual digitally pro-

grammable gain amplifier (PGA) C, LTC6912-1 (DC861A-A) or

LTC6912-2 (DC861A-B).

The LTC® 6912 is a family of dual chan-

nel, low noise, digitally programmable gain amplifiers (PG A) that

are easy to use and occupy very little PC board space. The gains

for both channels are independently programmable using a 3-

wire SP interface to select voltage gains of 0, 1, 2, 5, 10, 20, 50,

and 100V/V (LTC6912-1); and 0, 1, 2, 4, 8, 16, 32, and 64V/V

(LTC6912-2). All gains are inverting. The LTC6912 consists of 2

matched amplifiers with rail-to-rail outputs. O perating from sin-

gle or split supplies from 2.7V to 10.5V total, the LTC6912-X is

offered in tiny SSO P-16 and DFN -12 Packages (the DC861 board

contains an LTC6912 in the SSOP-16).

The demo board highlights the following:

1. Two independent digitally programmable gain amplifiers.

2. A 2:1 Analog M UX with a dual PGA.

3. Daisy chain of two dual PGAs (must use two DC861boards).

4. A 4:1 Analog M UX with quad PGAs (must use two DC861boards).

On board switches and a 4-Digit LED display provide the user with the

means to input PG A settings to a P C (micro-controller). The P C

sends the settings to the PGA using a 3-wire SP interface. Jumpers

on board configure the demonstration circuit as a dual PGA or a 2:1

analog M UX. A flat ribbon cable and a connector are provided for the

daisy-chain connection of two DC861 boards.

The DC861 demonstration circuit is a stand-alone board (computer

control is not required).

DEMO CIRCUIT

861

QUICK START GUIDE

DUAL, SPI PROGRAMABLE GAIN AMP

LIFIER R,

LTC6912-1 AND LTC6912-

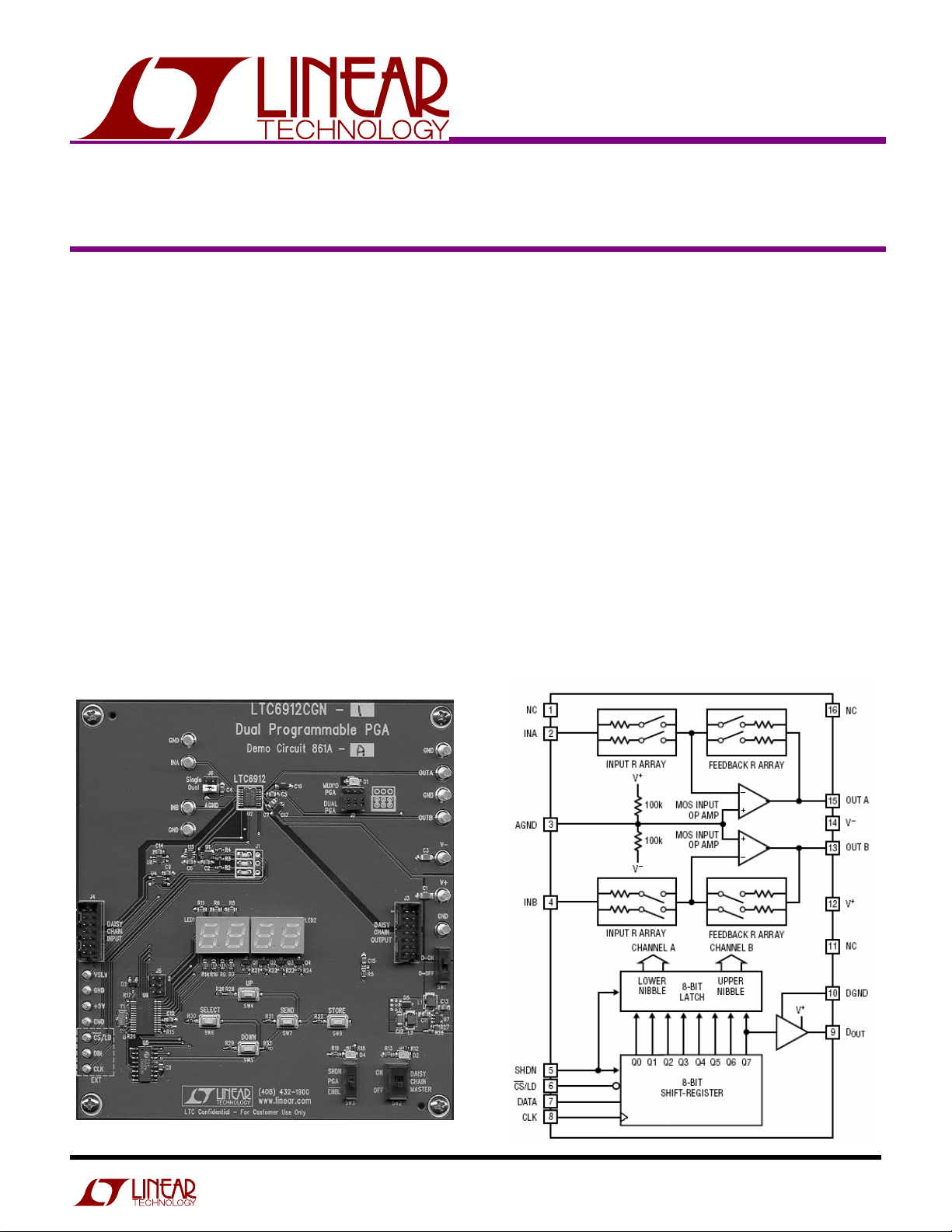

Figure 1. Demonstration Circuit DC861A-A (LTC6912-1). Figure 2. Block Diagram LTC6912-1/2 SSOP -16 Package.

DC861 QUICK START GUIDE

Note 1: States 13 14 and 15 (binary 11xx) are not used. Programming a channel to states 8 or higher w ill configure that particular channel

into a low pow er shutdow n state. In addition programming a channel into state 15 (binary 1111) w ill cause that particular channel to draw

up to 20mA of supply current and is not recommended.

(Note 1)

(

Note 1)

Description of the 3-W ire SPI Interface

Gain control of each amplifier is independently programmable

using the 3-wire SP interface (see Figure 3). Logic

levels for

the LTC6912 3-

wire serial interface are TTL/CM O S compatible.

W hen CS/LD is low, the serial data on D N is shifted into an 8-

bit shift-register on the rising edge

of the clock, with the M SB

transferred first. Serial data on

DOUT is shifted out on the

clock’s falling edge. A rising edge on CS/LD will latch the shift-

latch and disable the clock

internally on the C. The upper nibble of the D-

latch (4 most

significant bits), configures the gain for the B-channel ampli-

fier. The lower nibble of the D-

latch (4 least significant bits),

configures the gain for the A-channel ampli

fier. Tables 1 and 2

detail the nominal gains and respective gain codes.

Figure 3.Block Diagram LTC6912-1/2 Serial Interface

DC861 QUICK START GUIDE

Figure 4. DC861A Inputs Outputs Jumpers Sw itches and Connectors.

PGA A Input

PGA B Input

PGA A Output

PGA B Output

Jumper J6

. Sets the LTC6912 for a dual or a single power supply operation.

In a single supply operation the AG ND pin of the LTC6912 is connected to V+/2 thru the

J6 jumper and the V- input must be grounded externally. In addition in a single supply

operation the PGA A and B input should have a DC bias equal to V+/2 or be AC coupled.

Jumper J2:

Sets the LTC6912 for a dual PGA or a 2:1

analog M UX operation (the D1 LED is in a 2:1 M UX).

SW 1 to D-On:

Provides

power to the digital circuits

and 4-digit LED.

SW 1 to D-Off:

Turns off

power to the digital circuits

and 4

digit LED.

SELECT SW

: Selects 1 of 4 digits

(the selected digit is blinking).

Pressing the SELECT SW for more than three seconds changes the

LED display to show the LTC6912 setting in decimal.

UP SW :

ncrements selected digit.

DO W N SW

: Decrements selected digit.

SEN D SW :

Sends SP control to the LTC6912.

STO R E SW :

Stores last SP control setting (available on power-up).

the 4-digit LED display

shows the LTC6912 gain

setting in hex. The display

switches to decimal if the

SELECT sw is pressed for

more than three seconds.

Pow er

Supply

Inputs.

SW 2 to OFF:

Sets the board for

stand-alone or slave operation.

SW 2 to ON :

Sets the board as mas-

ter SP controller in a two DC861

board connection (the D2 LED is on

in daisy chain master operation).

Jumper J4.

Flat ribbon cable

connection to a

DC861 SP master in

daisy chain operation.

Jumper J3.

Flat ribbon cable connection

to a DC861 SP slave in

daisy chain operation.

SW 3 to ENBL:

Power is on for the

LTC6912.

SW 3 to SHD N :

Sets the LTC6912 to a hard-

ware shut down (D4 LED is

on in SHDN).

For normal board operation

set SW 3 to ENBL.

DC861 QUICK START GUIDE

Table 3.

Hex

and Decimal

Digits

and PGA Settings.

Hex (

Note 1)

LTC6912-1 Gain Decimal LTC6912-2 Gain Decimal

0 (-120dB) (

Note 2)

0 (-120dB) (

Note 2)

-1 -1

-2 -2

-5 -4

-10 -8

-20 -16

-50 -32

-100 -64

0 (-120dB) (

Note 3)

0 (-120dB) (

Note 3)

0 (-120dB) (

Note 3)

0 (-120dB) (

Note 3)

0 (-120dB) (

Note 3)

0 (-120dB) (

Note 3)

0 (-120dB) (

Note 3)

0 (-120dB) (

Note 3)

ΑΑ

ββ

0202

0505

1010

2020

5050

1Η

1Η1Η

1Η

Η1

Η1Η1

Η1

Η1Η1

Η1

Η1Η1

Η1

Η1Η1

Η1

Note 1:

The hex digits C,

D, E and F are not used.

0101

0202

0404

0808

1616

3232

6464

Η1

Η1Η1

Η1

Η1Η1

Η1

Η1Η1

Η1

Η1Η1

Η1

Note 2:

The input is high impedance and

the output is low impedance.

Note 3:

The input and output

are high impedance.

Initial Setup Procedure:

The following is an initial set-up guide to the function of the board’s jum pers, switches and connectors (see Figure 4).

A. Dual PGA (one DC861)

1. Connect a DC861 board as shown in Figure 5.

(J2-Dual, J6-DUAL, SW 1-D-ON , SW 2-OFF, SW 3-ENBL).

2. Set the power supply to

±5V and turn it on.

3. Turn on the sinewave generator and set it to a 1Vp-p, 1kHz sinewave

(refer to Tables 1 or 2 for the nominal PGA A and B input impedance).

4. On power up the 4-digit LED display shows the LTC6912 gain settings in hex

(The gain setting shown on power up is the last stored setting).

Holding the SELECT sw for more than three seconds changes the display to show decimal digits

The correspondence between a hex number and a PGA setting is shown on Table 3.

(See Figure 6 for display examples in hex and decimal digits).

6. Use the SELECT and UP and DOW N switches to select the gain and press the SEND switch to send the data to

the LTC6912 (for a quick board test, set the PGA A and B gain to one (0dB) and the oscilloscope channels #1

and #2 connected to OUT A and OUT B respectively should show a 1Vp-p, 1kHz sinewave (1Vp-p input times

one).

DC861 QUICK START GUIDE

B. 2:1 Analog M UX

1. Connect a DC861 board as shown in Figure 5.

(J2-Dual, J6-M UX’D, SW 1-D-ON , SW 2-OFF, SW 3-ENBL).

2. Set the power supply to

±5V and turn it on.

3. Turn on the sinewave generator and set it to a 1Vp-p, 1kHz sinewave

(refer to Tables 1 or 2 for the nominal PGA A and B input impedance).

4. Connect one oscilloscope channel to an output (in a M UX operation OUT A and B are shorted).

5. Use the SELECT and UP and DOW N switches to set the gain to one (0dB) for PGA A and two (6dB) for PGA B

and press the SEND switch to send the data to the LTC6912.

6. Pressing the SEND switch repeatedly will show on the LED display an 01 or an 02 (the 2:1 M UX gain switches

from one to two) and the output between OUT A or OUT B (the oscilloscope display should alternately show a

1Vp-p and a 2Vp-p, 1kHz sinewave (the 2:1 M UX switches between amplifier gains one and two).

C. QUAD PGA (Daisy Chain Operation of tw o DC861)

Note In a daisy chain m ode, the PGA settings are set in hex and on SEND the settings are shown in decim al.

1. Connect two DC861 boards as shown in Figure 7.

(jumpers and switches on master and slave boards, J2-Dual, J6-DUAL, SW 1-D-ON, SW 3-ENBL).

2. On the master board set SW 2 to ON and on the slave board set SW 2 to OFF.

3. Set the power supply to

±5V and turn it on.

4. Turn on the sinewave generator and set it to a 0.1V p-p (100mV), 1kHz sinewave

(refer to Tables 1 or 2 for the nominal PGA A and B input impedance).

5. The 4-digit display on the slave board should be blank and the gain settings for all four PGAs shown in hex digits on

the master board’s 4-digit LED display.

Use the SELECT and UP and DOW N switches to set on the master’s display the gains in hex of the four PGAs

as follows: #1 digit to 4, #2 digit to 3, #3 digit to 2 and #1 digit to 1.

Note Before the SEND sw is pressed, the m aster display shows the PGA gain from left to right in the same sequence of the

16-bit SPI word (the setting for the slave PGA B is sent first then the setting for the slave PGA A, then the setting for the

m aster PGA B and last the setting for the master PGA A).

7. Press the SEND switch to send the data to the LTC6912 on the master and slave boards.

8. The master and slave display and oscilloscope display should show:

a. M aster display digits #1 and 2, PGA B gain=02 and on oscilloscope channel #2 a 0.2Vp-p, 1kHz sinewave.

b. M aster display digits #3 and 4, PGA A gain=01 and on oscilloscope channel #1 a 0.1Vp-p, 1kHz sinewave.

c. Slave display digits #1 and 2, PGA B gain=10 (LTC6912-1) or PGA B gain=08 (LTC6912-2) and on

oscilloscope channel #4 a 1.0Vp-p, 1kHz sinewave (LTC6912-1) or a 0.8Vp-p, 1kHz sinewave (LTC6912-2).

d. Slave display digits #3 and 4, PGA A gain=05 (LTC6912-1) or PGA B gain=04 (LTC6912-2) and on

oscilloscope channel #3 a 0.5Vp-p, 1kHz sinewave (LTC6912-1) or a 0.5Vp-p, 1kHz sinewave (LTC6912-2).

(See Figure 7 example).

DC861 QUICK START GUIDE

D. A 4:1 Analog M UX PG A (Daisy Chain Operation of tw o DC861)

Note In a daisy chain m ode, the PGA settings are set in hex and on SEND the settings are shown in decim al.

1. Connect two DC861 boards as shown in Figure 7.

(jumpers and switches on master and slave boards, J2-Dual, J6-M UX’D, SW 1-D-ON, SW 2-OFF, SW 3-ENBL).

2. On the master board set SW 2 to ON and on the slave board set SW 2 to OFF.

Note The daisy chain flat ribon cable shorts the master board’s OUT A and B to the slave board’s OUT A and B.

3. Set the power supply to

±5V and turn it on.

4. Turn on the sinewave generator and set it to a 0.1V p-p (100mV), 1kH z sinewave

(refer to Tables 1 or 2 for the nominal PGA A and B input impedance).

5. The 4-digit display on the slave board should be blank and the gain settings for all four PGAs shown in hex digits on

the master board’s 4-digit LED display.

Use the SELECT and UP and DOW N switches to set on the master’s display the gains in hex of the four PGAs

as follows: #1 digit to 4, #2 digit to 3, and #3 digit to 2 and #1 digit to 1.

7. Press the SEND switch repeatedly and the display will show in sequence:

a. on the master display 01 then 02 then on the slave display 10 and 05 (LTC6912-1) or

b. on the master display 01 then 02 then on the slave display 08 and 04 (LTC6912-2).

The oscilloscope display should show in sequence:

a. 0.1Vp-p, 1kHz sine, 0.2Vp-p, 1kHz sinewave, 1.0Vp-p, 1kHz sinewave and 0.5Vp-p (for an LTC6912-1) or

b. 0.1Vp-p, 1kHz sine, 0.2Vp-p, 1kHz sinewave, 0.8Vp-p, 1kHz sinewave and 0.4Vp-p (for an LTC6912-2).

ADDITIO NAL BO ARD FUNCTIONS

Note A: For the lowest analog noise and distortion tests, set SW 1 to D-OFF after pressing the SEND sw.

W hen SW -1 is set to D-OFF, the board’s digital circuits are disconnected and the LTC6912 is a fixed gain

amplifier (dual or single depending if the J6 junper is in DUAL or M UX’D position). The amplifier’s gain

is the last setting before the SEND sw is pressed.

Note B. For an optional external serial control of the LTC6912, remove the jumper wires of J1 from 1-2, 4-5 and

7-8 and connect jumper wires to 2-3, 5-6 and 8-9 (see DC861 schematic). The external SP control

inputs are the CLK, DN and CS/LD miniature turrets under connector J4 (on the lower left corner of

DC861).

Note C. The VSLV miniature turret under the J4 connector is for monitoring the digital 5V voltage of the slave

board in a daisy chain connection. The +5V miniature turret under the J4 connector is for monitoring

the DC861 5V switching regulator that provides power to the board’s digital circuits.

DC861 QUICK START GUIDE

Figure 5. Dual PG A or 2:1 M UX Quick Set-Up (Dual Supply Operation)

Oscilloscope

#1 #2

Connect:

Out A to #1

Oscilloscope nput

Out B to #2

Oscilloscope nput

Sinew ave Generator

Connect generator output

to NA and NB

Dual Pow er Supply

Ground

Lead

Ground

Lead

Figure 6. LED Display Examples in Hex and Decimal

(LTC6912-1 or LTC6912-2)

Note:

Only one oscilloscope channel is required

for output monitoring in a 2:1 M UX operation.

DC861 QUICK START GUIDE

Connect:

Out A of M aster to #1 Oscilloscope nput

Out B of M aster to #2 Oscilloscope nput

Out A of Slave to #3 Oscilloscope nput

Out B of Slave to #4 Oscilloscope nput

Figure 7. Quad PGA or 4:1 M UX Daisy Chain Quick Set-Up (Dual Supply Operation)

Sinew ave Generator

Connect generator output to NA

and N B of M ASTER board.

Note:

Only one oscilloscope channel is required

for output monitoring in a 4:1 M UX operation.

Este manual sirve para los siguientes modelos

Otros manuales de Placa madre de Linear Technology

Linear Technology

Linear Technology Demo Circuit 1592A Manual de usuario

Linear Technology

Linear Technology DC1948A Guía de configuración rápida

Linear Technology

Linear Technology DC776 Manual de usuario

Linear Technology

Linear Technology DC2048A Manual de usuario

Linear Technology

Linear Technology DC1848A Manual de usuario

Linear Technology

Linear Technology DC1811A Guía de configuración rápida

Linear Technology

Linear Technology DC2143A-B Manual de usuario

Linear Technology

Linear Technology DC1743A Guía de configuración rápida

Linear Technology

Linear Technology DC1472A Guía de configuración rápida

Linear Technology

Linear Technology DC1041A-B Manual de usuario

Linear Technology

Linear Technology Analog Devices DC2814A-A Guía de configuración rápida

Linear Technology

Linear Technology DC426B Manual del operador

Linear Technology

Linear Technology DC2077A Guía de configuración rápida

Linear Technology

Linear Technology DC2017A Guía de configuración rápida

Linear Technology

Linear Technology DC1338B Guía de configuración rápida

Linear Technology

Linear Technology LT5557 Manual de usuario

Linear Technology

Linear Technology DC2142A Guía de configuración rápida

Linear Technology

Linear Technology DC1403A Guía de configuración rápida

Linear Technology

Linear Technology DC1554 Guía de configuración rápida

Linear Technology

Linear Technology DC2117A Guía de configuración rápida

Linear Technology

Linear Technology DC1703A Guía de configuración rápida

Linear Technology

Linear Technology LTC2418 Guía de configuración rápida

Linear Technology

Linear Technology DC832 Manual de usuario

Linear Technology

Linear Technology DC2603A-A Guía de configuración rápida

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
