DEMO MANUAL DC2367A

DESCRIPTION

LTM4632EV

Ultrathin µModule Regulator for DDR-QDR4

Memory VDDQ, VTT and VREF

Demonstration circuit DC2367A features the LT M

4632EV

µModule

regulator, a tiny low-profile high-performance

high efficiency dual step-down regulator for DDR power.

LTM4632 has an operating input voltage range of 3.6V

to 15V. The output voltage of channel 1 (VDDQ) is resis-

tor programmable from 0.6V to 2.5V and is capable of

delivering up to 3A of output current. The output voltage

of channel 2 (VTT) is set to regulate ½of the voltage on

the VDDQIN pin which can provided by either the channel

1 output or an external reference voltage. It can source or

sink up to 3A of output current. A 10mA buffered output

of VDDQIN/2 is also provided for supplying VREF voltage

for DDR memory. DC2367A also provides the option for

paralleling channels 1 and 2 together for up to 6A capable

VTT rail. LTM4632 is a complete DC/DC DDR dual point L, LT, LTC, LTM, Linear Technology, the Linear logo, µModule and Burst Mode are registered

trademarks of Linear Technology Corporation. All other trademarks are the property of their

respective owners.

of load regulator in a low-profile thermally enhanced

6.25mm × 6.25mm × 1.82mm LGA package requiring

only a few input and output capacitors. Output voltage

tracking is available through the TRACK/SS pin for supply

rail sequencing. External clock synchronization is avail-

able through the SYNC/MODE pin. For high efficiency at

low load currents the MODE pin jumper (JP4) selects the

Burst Mode

option for operation in less noise sensitive

applications. The LTM4632 data sheet must be read in

conjunction with this demo manual for working on or

modifying demo circuit 2367A.

Design files for this circuit board are available at

http://www.linear.com/demo/DC2367A

BOARD PHOTO

Downloaded from Arrow.com.

dc2367af

DEMO MANUAL DC2367A

QUICK START PROCEDURE

Demonstration circuit DC2367A is an easy way to evaluate

the performance of the LTM4632. Please refer to Figure 1

for test setup connections and follow the procedure below.

1. With power off, place the jumpers in the following

positions for a typical application for 2.5VOUT1 and

1.25VOUT2 rails:

JP1 JP2 JP3 JP4 JP6

RUN1 RUN2 TRACK/SS MODE VDDQ SEL

ON ON SS CCM 2.5V

2. Before powering up the input supply and loads, preset

the input voltage supply to be between 3.6V to 15V.

Preset the load current for each output rail to 0A.

3. With power off, connect the loads, input voltage supply

and meters as shown in Figure 1.

4. Turn on the input power supply. The output voltage me-

ters for each output rail should display the programmed

output voltage ±1.5%.

5. Once the proper output voltages are established, ad-

just the load current on each rail within the 0A to 3A

range and observe each output rail’s load regulation,

efﬁciency, and other parameters.

6. To observe increased light load efﬁciency place the

mode pin jumper (JP4) in the BURST MODE position.

PERFORMANCE SUMMARY

Specifications are at TA= 25°C

PARAMETER CONDITIONS MIN TYP MAX UNITS

Input Voltage Range 3.6 15 V

Output Voltage VOUT1 (VDDQ) Resistor Programmable, Jumper Selectable 1.5 (±1.5%)

1.8 (±1.5%)

2.5 (±1.5%)

Maximum Continuous Output Current IOUT1 Derating Is Necessary for Certain Operating

Conditions. See Data Sheet for Details

3 A

Output Voltage VOUT2 (VTT) VOUT1 = 1.5V

VOUT1 = 1.8V

VOUT1 = 2.5V

0.75

0.9

1.25

Maximum Continuous Output Current IOUT2 Derating Is Necessary for Certain Operating

Conditions. See Data Sheet for Details

±3 A

Default Operating Frequency 1 MHz

Efficiency VIN = 12V, VOUT1 = 2.5V, IOUT = 3A, fSW = 1MHz

VIN = 12V, VOUT2 = 1.25V, IOUT = 3A, fSW = 1MHz

83.9

(See Figure 2)

72.3

(See Figure 3)

Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2367af

DEMO MANUAL DC2367A

VIN

VARIALE RESISTOR

(OPTIONAL) FOR

SINK CURRENT TEST

–

LOAD

0A TO 3A

–

+–

–

LOAD

0A TO 3A

–

+–

QUICK START PROCEDURE

Figure 1. Test Setup

Figure 2. VDDQ 12VIN Efficiency Figure 3. VTT 12VIN Efficiency

OUTPUT CURRENT (A)

EFFICIENCY (%)

60 2.01.0

dc2367a F02

3.0

1.50.5 2.5

RUN2 = OFF

VDDQ = 2.5V

VDDQ = 1.8V

VDDQ = 1.5V

OUTPUT CURRENT (A)

EFFICIENCY (%)

2.01.0

dc2367a F03

3.0

1.50.5 2.5

RUN1 = OFF

VDDQIN, SUPPLIED

EXTERNALLY

VTT = 1.25V

VTT = 0.9V

VTT = 0.75V

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2367af

DEMO MANUAL DC2367A

QUICK START PROCEDURE

IN = 12V

OUT1 = 2.5V

COUT1

= 100µF ×2, 10µF ×1

VOUT1 = 50mV/DIV

IOUT1_STEP = 2A/DIV

dc2367a F04

IN = 12V

OUT2 = 1.25V

COUT2

= 100µF ×3, 10µF ×1

VOUT2 = 50mV/DIV

IOUT1_STEP = 2A/DIV

dc2367a F05

Figure 4. VDDQ Load Transient Response (0A to 1.5A Load Step)

Figure 5. VTT Load Transient Response (0A to 1.5A Load Step)

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2367af

DEMO MANUAL DC2367A

QUICK START PROCEDURE

IN = 12V

OUT1 = 2.5V

OUT1 = 3A

OUT2 = 1.25V

OUT2 = 3A

SW = 1MHz

= 25°C, NO FORCED AIRFLOW

dc2367a F06

Figure 6. 12VIN Full Load Thermal Capture

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2367af

DEMO MANUAL DC2367A

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 2 CIN1, CIN2 CAP., 4.7µF, X5R, 16V, 10%, 0603 TDK - C1608X5R1C475K080AC

2 2 COUT7, COUT9 CAP., 10µF, X5R, 6.3V, 10%, 0805 MURATA, GRM219R60J106KE19D

3 5 COUT1, COUT2, COUT3, COUT4, COUT6 CAP., 100µF, X5R, 6.3V, 20%, 1206 MURATA, GRM31CR60J107ME39L

4 1 R4 RES., 19.1k, 1/10W, 1%, 0603 VISHAY, CRCW060319K1FKEA

5 1 U1 I.C., LTM4632EV, LGA 25-6.25X6.25 LINEAR TECH., LTM4632EV#PBF

Additional Demo Board Circuit Components

1 0 CIN4, COUT5, COUT8 CAP., OPTION, 1206 OPT

2 1 CIN5 CAP., 47µF, X5R, 16V, 20%, 1206 TDK, C3216X5R1C476M160AB

3 1 CIN3 CAP., 2.2µF, X7R, 25V, 10%, 0805 TAIYO YUDEN, TMK212B7225KGHT

4 1 CIN6 CAP., POSCAP, 22µF, X5R, 25V, 20%, 7343 PANASONIC, 25TQC22MV

5 4 CVCC1, C4, C18, CVCC CAP., 1µF, X5R, 10V, 10%, 0603 MURATA, GRM188R61A105KA61D

6 0 CDDQIN CAP., OPTION, 0805 OPT

7 1 CTR1 CAP., 4700pF, X7R, 50V, 10%, 0603 KEMET, C0603C472K5RACTU

8 1 CTTR CAP., 0.01µF, X7R, 50V, 10%, 0603 KEMET, C0603C103K5RACTU

9 1 CFFW1 CAP., 10pF, C0G, 50V, 5%, 0603 MURATA, GRM1885C1H100JA01D

10 0 CC1, CC2, CTTR1 CAP., OPTION, 0603 OPT

11 0 RFB1, RTR2, R7, R26, RD1, RDDQIN RES, OPTION, 0603 OPT

12 1 R5 RES., 30.1k, 1/10W, 1%, 0603 VISHAY, CRCW060330K1FKEA

13 1 R6 RES., 40.2k, 1/10W, 1%, 0603 VISHAY, CRCW060340K2FKEA

14 1 R3 RES., 10k, 1/10W, 1%, 0603 VISHAY, CRCW060310K0FKEA

15 2 RPG1, RPG2 RES., 100k, 1/10W, 1%, 0603 VISHAY, CRCW0603100KFKEA

16 1 R8 RES., 1k, 1/10W, 1%, 0603 VISHAY, CRCW06031K00FKEA

17 2 R1, R2 RES., 1M, 1/10W, 1%, 0603 VISHAY, CRCW06031M00FKEA

18 2 RTR1, RVDDQ RES., 0Ω, 1/10W, 0603 VISHAY, CRCW06030000Z0EA

19 1 RS1 RES., 0.05Ω, 1/4W, 1%, 1206 VISHAY, WSL1206R0500FEA

20 0 R29 RES, OPTION, 2512 OPT

21 1 Q1 XSTR., MOSFET, N-CH, 40V, 14A, TO-252 VISHAY, SUD50N04-8M8P-4GE3

Hardware: For Demo Board Only

1 14 E1-E14 TESTPOINT, TURRET, 0.094" MTG. HOLE MILL-MAX, 2501-2-00-80-00-00-07-0

2 3 JP1, JP2, JP3 CONN., HEADER, 1X3, 2mm SULLINS, NRPN031PAEN-RC

3 1 JP4 CONN., HEADER, 2X3, 2mm SULLINS, NRPN032PAEN-RC

4 1 JP6 CONN., HEADER, 2X4, 2mm SULLINS, NRPN042PAEN-RC

5 5 XJP1, XJP2, XJP3, XJP4, XJP6 SHUNT, 2mm SAMTEC 2SN-BK-G

6 2 J1, J2 CONN, BNC, 5PINS CONNEX, 112404

7 4 STAND OFF STAND OFF, NYLON, SNAP-ON, 0.375" KEYSTONE_8832

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2367af

DEMO MANUAL DC2367A

Information furnished by Linear Technology Corporation is believed to be accurate and reliable.

However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-

tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.

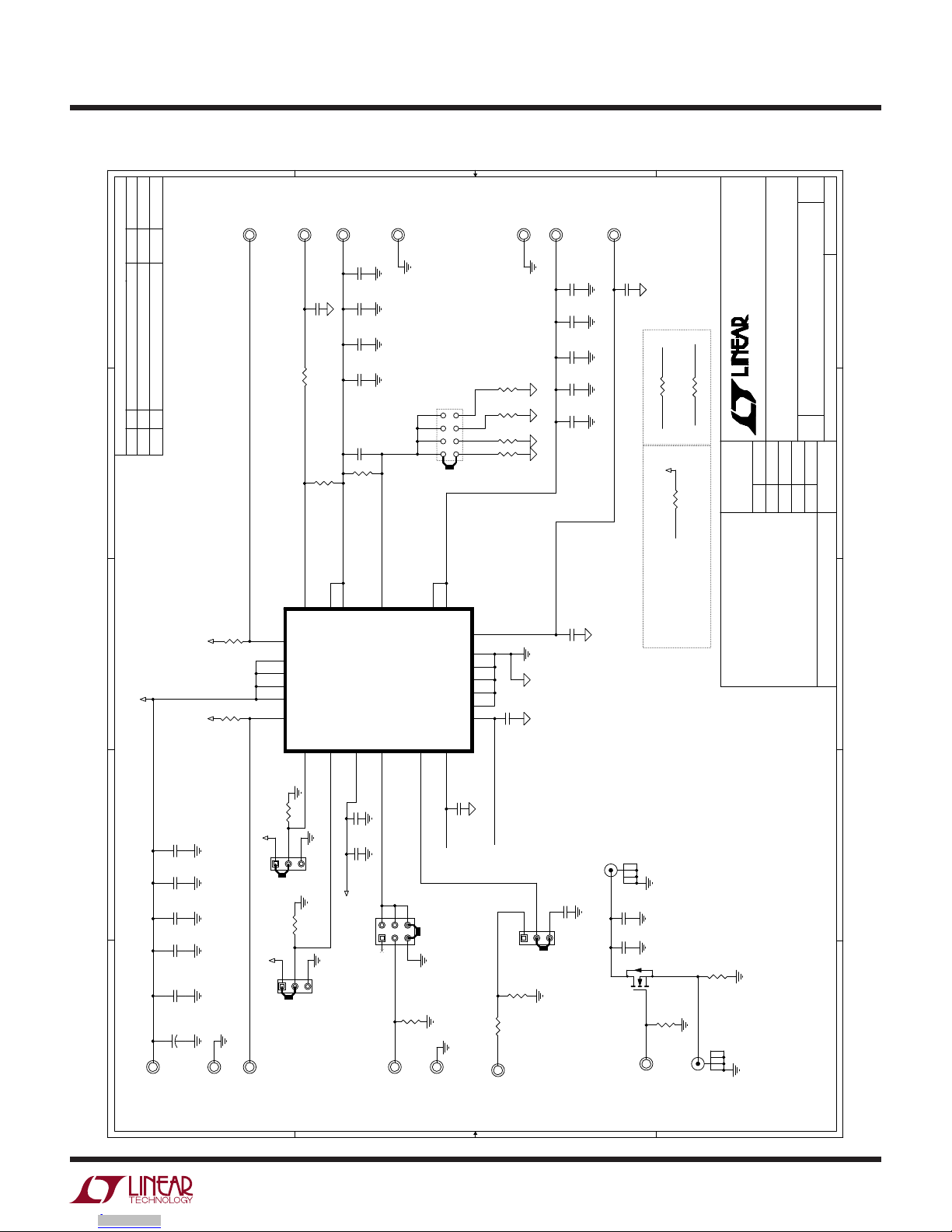

SCHEMATIC DIAGRAM
