DEMO MANUAL DC2007A-C

DESCRIPTION

LTM4630EV

High Efficiency, PolyPhase

140A Step-Down Power

µModule Regulator

Demonstration circuit 2007A-C features a PolyPhase

design using the LT M

4630EV, the high efficiency,

high density, dual 18A, switch mode step-down power

µModule

regulator. The input voltage is from 4.5V to

15V. The output voltage is jumper selectable from 0.9V to

1.8V. The DC2007A-C can deliver a nominal 140A output

current. As explained in the data sheet, output current

derating is necessary for certain VIN, VOUT, and thermal

conditions. The LTM4630 on the DC2007A-C always

operates in continuous conduction mode. The switching

frequency can be programmed through a resistor or can

be synchronized to an external clock signal. The board

allows the user to program how its output voltage ramps

L, LT, LTC, LTM, Linear Technology, the Linear logo, PolyPhase and µModule are registered

trademarks of Linear Technology Corporation. All other trademarks are the property of their

respective owners.

up and down through the TRACK pin. The output voltage

is tightly regulated between “VO+” and “VO-” through

remote output voltage sensing which improves output

voltage regulation at heavy loads. These features and

the availability of the LTM4630EV in a compact 16mm ×

16mm ×4.41mm LGA package make it ideal for use in

many high density point-of-load regulation applications.

The LTM4630 data sheet must be read in conjunction with

this demo manual for working on or modifying the demo

circuit DC2007A-C.

Design files for this circuit board are available at

http://www.linear.com/demo

Figure 1. 70A PolyPhase LTM4630/DC2007A-C Demo Board

dc2007a_cf

DEMO MANUAL DC2007A-C

QUICK START PROCEDURE

PERFORMANCE SUMMARY

Specifications are at TA= 25°C

PARAMETER CONDITIONS / NOTES VALUE

Input Voltage Range 4.5V ~ 15V

Output Voltage VOUT VIN = 4.5A ~ 15V, IOUT = 0A ~ 140A, JP5: 1.0V 1.0V ±1.5% (0.985V ~ 1.015V)

Maximum Continuous Output Current Derating Is Necessary for Certain VIN, VOUT and

Thermal Conditions, See Data Sheet for Details.

140A

Default Operating Frequency 400kHz

Resistor Programmable Frequency Range 400kHz to 780kHz

External Clock Sync. Frequency Range 400kHz to 780kHz

Efficiency VIN = 12V, VOUT = 1.0V, IOUT = 140A, fSW = 400kHz 83.7% See Figure 3

Load Transient VIN = 12V, VOUT = 1.0V, ISTEP = 0A ~ 35A <100mV, See Figure 4

Output Voltage Ripple VIN = 12V, VOUT = 1.0V, IOUT = 140A <5mV, See Figure 5

Demonstration circuit DC2007A-C is easy to set up to

evaluate the performance of PolyPhase operation of the

LTM4630EV. Due to the high input/output current, user

should select the proper input supply/load/cable which

can sustain the full load operation. It’s recommended to

pull load current from J2 and J4. The load current pulled

from J5 and J6 shouldn’t exceed 18A. Please refer to

Figure 2 for proper measurement setup and follow the

procedure below:

1. Place jumpers in the following positions for a typical

1.0VOUT application:

JP1 JP2 JP4 ~ JP8

CLK RUN VOUT SELECT

INT OFF ON JP5/1.0V

2. With power off, connect the input power supply, load

and meters as shown in Figure 2. Preset the load to 0A

and VIN supply to 12V.

3. Turn on the power supply at the input. Place JP2 to the

ON position. The output voltage between “VO+” and

“VO-” should be 1.0V ±1.5% (0.985V ~ 1.015V).

4. Oncetheproperoutputvoltageisestablished,adjustthe

load within the operating range and observe the output

voltage regulation, output voltage ripple, efficiency

and other parameters. Output voltage ripple should

be measured at J7 with BNC cables. 50Ω termination

should be set on the oscilloscope or BNC cables.

5. (Optional) For an optional load transient test, apply an

adjustable pulse signal between “IOSTEP CLK” and the

“GND” test point. Pulse amplitude (3V~ 3.5V) sets the

loadstepcurrentamplitude.Theoutputtransientcurrent

can be monitored at the BNC connector, J8 (5mV/A).

The pulse signal should be very small duty cycle (<10%)

to limit the thermal stress on the transient load circuit.

6. (Optional) The LTM4630 can be synchronized to an

external clock signal. Place the JP1 jumper on EXT

and apply a clock signal (0V~ 5V, square wave) on the

“EXT_CLK” test point.

7. (Optional)The outputsofthe LTM4630 can trackanother

supply. The output voltage tracks the voltage on TRACK

when a valid signal is applied on the test point.

8. (Optional) The DC2007A-C can be configured to a dual

output configuration with VO at 122.5A load current and

VO2 at 18A load current. Stuff a 0Ω resistor on R61

and a 0.1µF on C14. Remove R22, R23, R24, R26, R27,

R28, R32, R33, R35. Output voltage VO2 is set by R37

based on the equation VO2 = 0.6V(1 + 60.4K/R37).

dc2007a_cf

DEMO MANUAL DC2007A-C

QUICK START PROCEDURE

Figure 2. Test Setup of DC2007A-C

dc2007a_cf

DEMO MANUAL DC2007A-C

PARTS LIST

QUICK START PROCEDURE

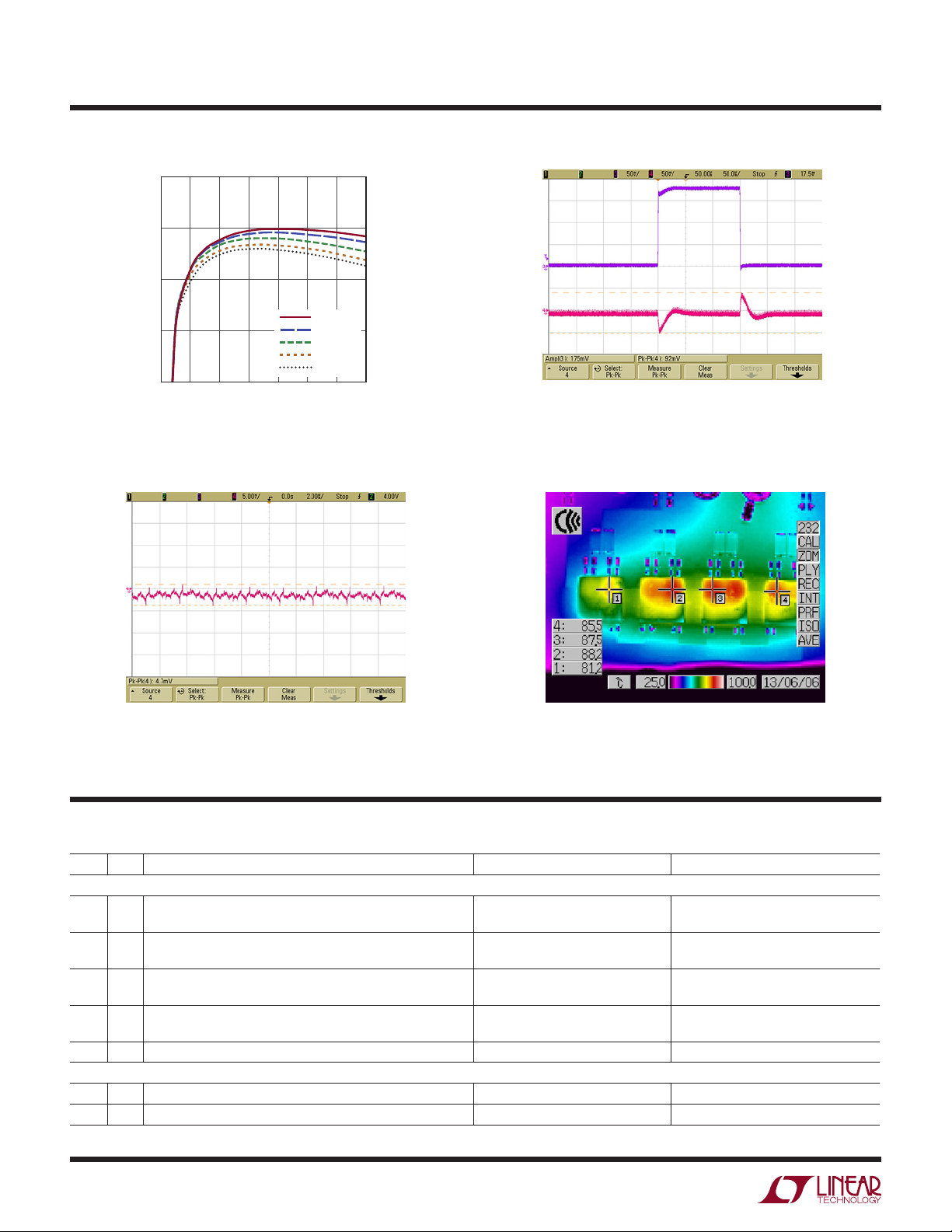

Figure 3. Measured Efficiency VIN = 12V, fSW = 400kHz

Figure 5. Measured Output Voltage Ripple at 12VIN, 1.0VOUT,

140A with Standard Demo Circuit Default Setup

Figure 6. Thermal Capture at 12VIN, 1.0VOUT, 140A

(TA= 25°C, 400 LFM Airflow and No Heat Sink)

Figure 4. Load Transient 0A to 35A (VIN = 12V, VOUT = 1.OV)

LOAD CURRENT (A)

EFFICIENCY (%)

100

20 40 60 80 100 120 140

VO= 1.8V

VO= 1.5V

VO= 1.2V

VO= 1.0V

VO= 0.9V

0A TO 35A LOAD STEP

1.0V OUTPUT (20MHz BW) [50mV/DIV]

1.0V OUTPUT (20MHz BW) [5mV/DIV]

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 16 CIN3, CIN4, CIN5, CIN6, CIN7, CIN8, CIN9, CIN10, CIN12,

CIN13, CIN14, CIN15, CIN16, CIN17, CIN18, CIN19

CAP, 1210 22µF 10% 25V X5R AVX, 12103D226KAT2A

2 12 CO1, CO5, CO7, CO11, CO15, CO18, CO20, CO24, CO26,

CO30, CO34, CO38

CAP, 1210 100µF 20% 10V X5R TAIYO YUDEN, LMK325BJ107MM-T

3 10 CO4, CO6, CO10, CO12, CO19, CO23, CO25, CO29,

CO31, CO37

CAP, 7343 470µF 20% 4V POSCAP SANYO, 4TPE470MCL

4 14 R6, R19, R20, R27, R28, R32, R33, R34, R35, R40, R45,

R46, R62, R63

RES, 0603 0Ω JUMPER VISHAY, CRCW06030000Z0EA

5 4 U1, U2, U3, U4 IC, VOLTAGE REGULATOR, LGA LINEAR TECH., LTM4630EV#PBF

Additional Demo Board Circuit Components:

1 1 CIN1 CAP, 150µF 25% 25V ALUM SUN ELECT., 25CE150AX

2 2 CIN2, CIN11 CAP, 1206 1µF 10% 25V X5R TAIYO YUDEN, TMK316BJ105KD-T

dc2007a_cf

DEMO MANUAL DC2007A-C

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

3 1 C1 CAP, 0603 100pF 10% 25V XNPO AVX, 06033A101KAT2A

4 0 C2, C3, C5, C8, C9, C12, C13, C14, C15, C16, C17, C20, C21,

C26, C29, C30

CAP, 0603 OPTION OPTION

5 4 C4, C10, C18, C22 CAP, 0603 2.2µF 20% 10V X5R TAIYO YUDEN, LMK107BJ225MA-T

6 6 C6, C11, C19, C23, C27, C28 CAP, 0603 1µF 10% 10V X7R TAIYO YUDEN, LMK107BJ105KA-T

7 2 C7, C25 CAP, 0603 0.1µF 10% 25V X7R AVX, 06033C104KAT2A

8 1 C24 CAP, 0603 0.01µF 10% 100V X7R AVX, 06031C103KAT2A

9 0 CO2, CO3, CO8, CO9, CO13, CO14, CO16, CO17, CO21,

CO22, CO27, CO28, CO32, CO33, CO35, CO36

CAP, 1210 OPTION OPTION

10 2 Q1, Q2 MOSFET, N-CH D-S 30V TO252 VISHAY, SUD50N04-8M8P-4GE3

11 4 R1, R3, R25, R29 RES, 0603 10Ω 5% 1/10W VISHAY, CRCW060310R0JNEA

12 5 R2, R14, R21, R39, R47 RES, 0603 121k 1% 1/10W VISHAY, CRCW0603121KFKEA

13 4 R4, R36, R41, R54 RES, 0603 10k 5% 1/10W VISHAY, CRCW060310K0JNEA

14 0 R5, R7, R8, R10, R30, R37, R38, R42, R44, R48, R49, R50,

R52, R53, R55, R61

RES, 0603 OPTION OPTION

15 4 R9, R31, R43, R51 RES, 0603 100k 1% 1/10W VISHAY, CRCW0603100KFKEA

16 1 R15 RES, 0603 90.9k 1% 1/10W VISHAY, CRCW060390K9FKEA

17 1 R16 RES, 0603 60.4k 1% 1/10W VISHAY, CRCW060360K4FKEA

18 1 R17 RES, 0603 40.2k 1% 1/10W VISHAY, CRCW060340K2FKEA

19 1 R18 RES, 0603 30.1k 1% 1/10W VISHAY, CRCW060330K1FKEA

20 4 R22, R23, R24, R26 RES, 2010 0Ω JUMPER VISHAY, CRCW20100000Z0EF

21 2 R56, R57 RES, 2512 0.010Ω 1% 1W VISHAY, WSL2512R01000FEA

22 0 R58, R59 RES, 2512 OPTION OPTION

23 1 R60 RES, 1206 0Ω JUMPER VISHAY, CRCW12060000ZOEA

24 0 R13 RES, 0603 OPTION OPTION

Hardware

1 11 E1, E2, E3, E4, E6, E7, E8, E9, E12, E13, E22 TURRET MILL MAX 2308-2-00-80-00-00-07-0

2 2 E19, E20 TURRET MILL MAX 2501-2-00-80-00-00-07-0

3 2 JP1, JP2 HEADER, 3-PIN 2mm SAMTEC TMM-103-02-L-S

4 5 JP4, JP5, JP6, JP7, JP8 HEADER, 2-PIN 2mm SAMTEC TMM-102-02-L-S

5 4 J1, J2, J3, J4 STUD PEM KFH-032-10

6 2 J5, J6 JACK, BANANA KEYSTONE 575-4

7 8 NUT, BRASS 10-32 ANY

8 4 LUG RING #10 KEYSTONE 8205

9 4 WASHER, TIN PLATED BRASS #10 ANY

10 2 J7, J8 CON, BNC CONNEX 112404

11 3 JP1, JP2, JP4 SHUNT SAMTEC 2SN-BK-G

12 4 STAND-OFF, NYLON KEYSTONE 8833

dc2007a_cf
