Lindy 42798 Manual de usuario

USB 2.0 to DVI Adapter Classic

User Manual

English

LINDY No. 42798

www.lindy.com

User Manual English

Introduction

Thank you for purchasing the USB

2.0

DVI

Adapter Classic. It enables you to connect

an additional display device (CRT/LCD monitor, projector) to your desktop or notebook

PC. The connected display can act as mirrored or extended desktop (it can also be

used as the primary display) of the main display on your PC. The flexibility of USB 2.0

technology saves the need to open the computer and install a VGA graphics card.

System Requirements

•

Available USB 2.0 port

•

Minimum Requirement to use one (1) USB Display Adapter: Intel/AMD Single

Core 1.5GHz or higher processor, RAM: 512MB memory or higher

•

2~3 Displays - (additional USB display adapters): Intel/AMD Single Core

2.4GHz or higher processor, RAM: 1GB memory or higher

•

4~6 Displays (additional USB display adapters): Intel/AMD Dual Core 2.0GHz or

higher processor, RAM: 2GB memory or higher

•

Windows 2000 SP4 / Windows XP SP2 / Windows Vista

Package Contents

•

USB 2.0 to DVI Adapter

•

Driver CD

•

LINDY Manual

Features

•

USB 2.0 compliant

•

supports display resolution up to DVI : 1680 x 1050

•

Plug-and-Play USB connectivity

•

Display Modes: Primary, Extended, Mirror

•

Display Rotation: 0°, 90°, 180°, 270°

•

Identify Monitors

•

Multi-Display Control Panel

•

Short-cut to access Windows Display Setting

User Manual English

Resolution USB-DVI

Refresh Rate

Frequency

800 * 600 16bit, 32bit

60Hz,75Hz

1024 *768 16bit, 32bit

60Hz,75Hz

1152 * 864 16bit, 32bit

60Hz

1280 * 720 16bit, 32bit

60Hz

1280 * 768 16bit, 32bit

60Hz

1280 * 800 16bit, 32bit

60Hz

1280* 960 16bit, 32bit

60Hz

1280 * 1024 16bit, 32bit

60Hz

1360 * 768 16bit, 32bit

60Hz

1400 * 1050 16bit, 32bit

60Hz

1440 * 900 16bit, 32bit

60Hz

1680 * 1050 16bit, 32bit

60Hz

Installation

Windows 2000/XP:

Installing the device driver enables your computer’s operating system to recognize the

USB

DVI

Adapter once it’s connected. Please check your operating system and refer to

the appropriate installation procedure to begin installing the device driver. Please make

sure the USB

DVI

Adapter is

unplugged

from your PC or Notebook before executing

the setup program. This section illustrates the simple device driver installation

procedure for computer running Windows 2000 / XP operating system.

Step 1

Insert the Driver CD into the CD-ROM drive; the setup program should be launched

automatically. If setup program does not begin automatically, click Start, Run and

double click “

D:\Setup.exe

” (where D: is the path of your CD-ROM drive).

User Manual English

Step 2

Driver Installation Wizard, click “

” to

continue.

Step 3

License Agreement; please read it and

select

“I accept the terms of the

license agreement

.” Click “

” to

accept the License Agreement.

Step 4

The Microsoft Software Installation

Certificate warning dialogue box, please

select “

Continue Anyway

” to continue with

the device driver installation. This will not

affect the device driver installation and the

device usage.

User Manual English

Step 5

Please select “

Yes, I want to restart my

computer now”.

Then, click “

Finish

” to

complete the software installation.

Step 6 (After System Reboot)

Please connect the external display device (monitor/projector) to the DVI connector

of USB

DVI

Adapter and switch it on.

Then plug the USB

DVI

Adapter into an available USB 2.0 port of your PC or

Notebook.

Step 7

A Hardware Installation Wizard dialog will

show up, please select “

No, not this

time

” and click “

” to continue.

User Manual English

Step 8

Please select

“Install the software

automatically (Recommended)”.

And click

”Next”

to continue.

Step 9

The Microsoft Software Installation

Certificate warning dialogue box, please

select “

Continue Anyway

” to continue

with the hardware installation.

This will not affect the device driver

installation and the device usage.

The extended display will be shown

on 2

display device.

Step 10

Click

“Finish

” to complete the Hardware

Wizard.

User Manual English

Step 11

Installation of multiple

USB

DVI

Adapters

Please plug the additional USB

DVI

Adapter into an available USB 2.0 port of your PC

or Notebook.

a. A Hardware Installation Wizard dialog

will show up, please select “

No, not this

time

” and click “

” to continue.

b. Please select “

Install the software

automatically (Recommended)

”.

And click ”

” to continue.

c. Please select “

Continue Anyway

” to complete the device driver installation.

The extended display will be shown on additional display device.

d. Click

“Finish

” to complete the

Hardware Wizard.

e. If you wish to install additional USB

DVI

Adapter, please follow the procedure

a~ d

again.

User Manual English

To make sure the USB DVI

Adapter works

correctly, please reboot the computer after

the installation.

After rebooting the computer, the USB

extended display will be shown on the

display device.

Verifying the device driver installation

The following procedure allows you to verify the device driver installation.

Please right click “

My Computer

”



“

Properties

”



“

Hardware

”



“

Device

Manager

”.

Plug-in the

USB DVI

Adapter, then double click “

Display adapters

” and “

Universal

Serial Bus controllers

”. It will show the new directions as below,

Single USB DVI Adapter installation on the computer

User Manual English

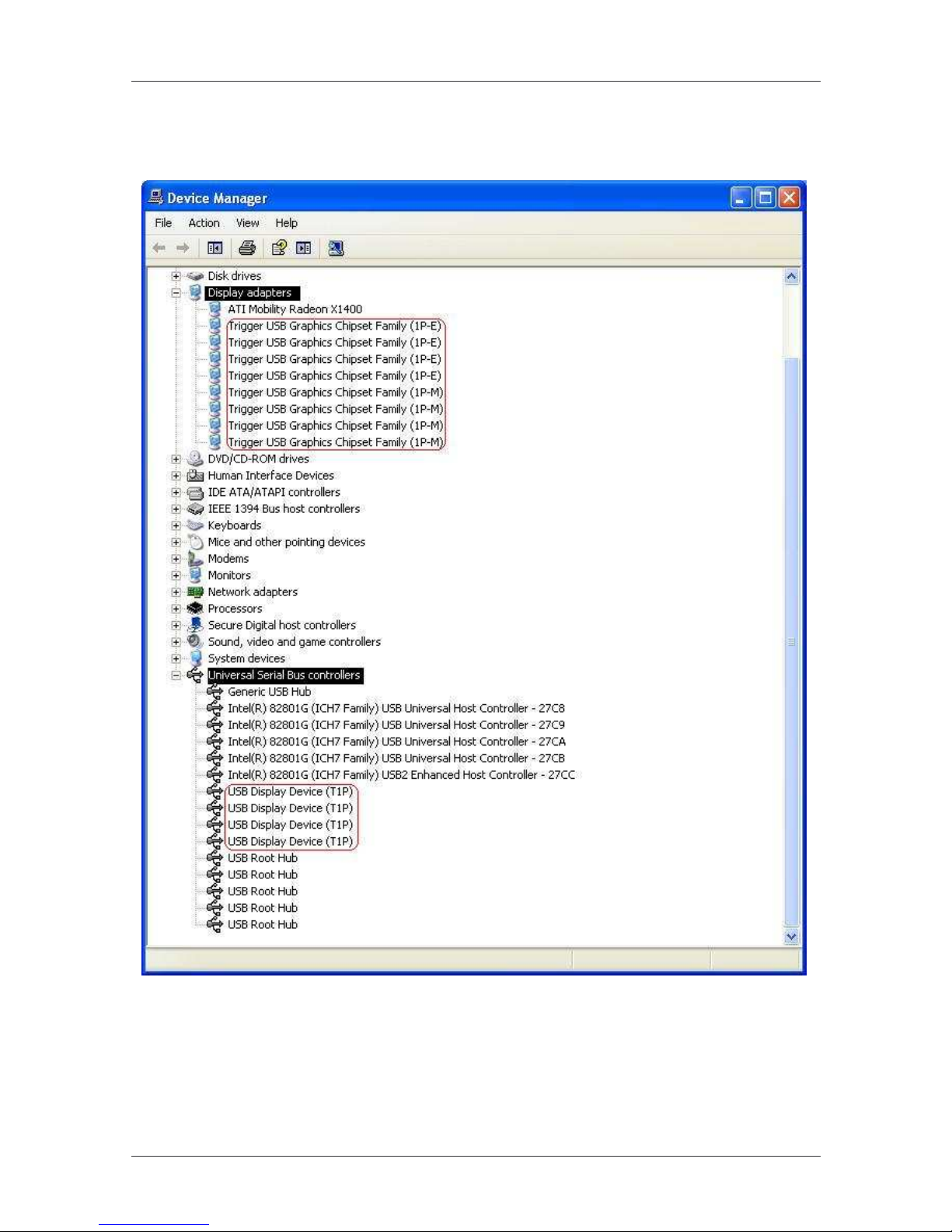

Multiple USB DVI Adapters installation on the computer
