Lindab LCFV Manual de usuario
Installation instruction - UK
Installations vejledning - DK
Montageinstruktion - SE
Asennusohje - FI
Montageanleitung - DE
Istruzioni di montaggio - IT
Instructions de montage - FR
©© 01.2021 Lindab Ventilation. All forms of reproduction without written permission are forbidden. is the registered trademark of Lindab AB.
Lindab's products, systems, product and product group designations are protected by intellectual property rights (IPR).
lindab | for a better climate
LindabLCFV / LCFV-P
click click click
x 3
x 1
x 3
click
B
A
Lindab reserves the right to make changes without prior notice
2021-01-12
Lindab reserves the right to make changes without prior notice
2021-01-12
lindab | for a better climate
Installation of faceplate
Installation af bundplade
Montera frontplatta
Etulevyn asennus
Montage der Frontplatte
Installazione del frontale
Montage de la façade
2
LCFV
x 2
x 2
B
Ød1= 125 => B= 250 mm
Ød1= 160 => B= 300 mm
Ød1= 200 => B= 400 mm
M8
Ød1
A
B
Lindab reserves the right to make changes without prior notice
2021-01-12
Lindab reserves the right to make changes without prior notice
2021-01-12
lindab | for a better climate
Mounting of LCFV in ceiling
Ophængning af LCFV i loft
Upphängning av LCFV mot tak
Kannakointi LCFV
Montage des LCFV an der Decke
Montaggio LCFV a soffitto
Installation de LCF contre le plafond
3
LCFV
A B
C
C1
Click !
C2
C3C4
Lindab reserves the right to make changes without prior notice
2021-01-12
Lindab reserves the right to make changes without prior notice
2021-01-12
lindab | for a better climate
Install / uninstall the damper
Montering / demontering af spjældet
Montera / demontera spjäll
Säätöpellin asennus / irrota
Montage / Demontage der Drossel
Montaggio / Smontaggio serranda
Montage / Démontage du registre
Hold manual switch down.
Hold manuel knap nede.
Håll den manuella knappen nedan.
Pidä painiketta alhaalla.
Hold manual switch down - DE
Tenere premuto l’interruttore manuale.
Presser et maintenir le switch manuel.
4
LCFV
E
Click !Click !
D F
Lindab reserves the right to make changes without prior notice
2021-01-12
Lindab reserves the right to make changes without prior notice
2021-01-12
lindab | for a better climate

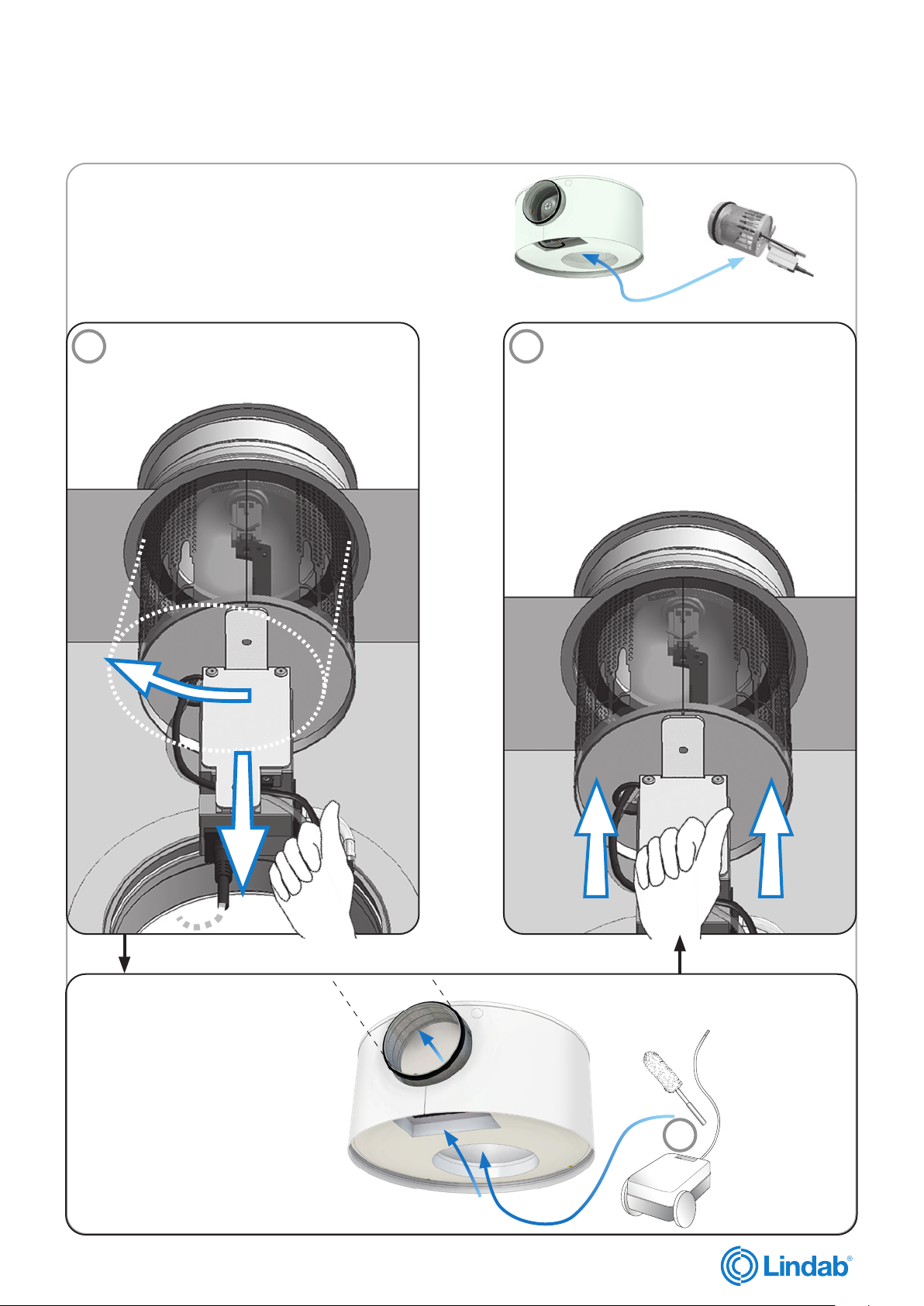

Install / uninstall the damper
Montering / demontering af spjældet
Montera / demontera spjäll
Säätöpellin asennus / irrotus
Montage / Demontage der Drossel
Montaggio / Smontaggio serranda
Montage / Démontage du registre
Maintenance
Vedligeholdelse
Underhåll
Huolto
Wartung
Manutenzione
Entretien
Insert damper unit - Installation af spjæld -
Montering av spjäll - Säätöpellin asennus -
Montage des Drossel - Montaggio di seranda -
Montage de registrere.
Take out damper unit - Demonter spjældenhed -
Demontera spjällenhet - Säätöpellin irroitus -
Drossel demontieren - Smontaggio serranda -
Démontage du registre.
5
LCFV
x 1
B
E
CD
!
A
Lindab reserves the right to make changes without prior notice
2021-01-12
Lindab reserves the right to make changes without prior notice
2021-01-12
lindab | for a better climate
Accessories
Tilbehør
Tillbehör
Lisävarusteet
Zubehör
Accessori
Accessoires
No - Nej - Nej - Ei -
Nein - No - Non
6
LCFV
-P
Lindab reserves the right to make changes without prior notice
2021-01-12
Lindab reserves the right to make changes without prior notice
2021-01-12
lindab | for a better climate
- With presence sensor
- Med bevægelsessensor
- Med närvarosensor
LCFV-P - Varustettu liiketunnistimella
- Mit Präsenzmelder
- Con sensore di presenza
- Avec détecteur de présence
Optional presence sensor in diffuser faceplate.
Inklusiv bevægelsessensor i armaturbundplade.
Inklusiv närvarosensor i don frontplatta.
Liiketunnistin lisävarusteena etulevyssä
Mit Präsenzmelder in der durchlass Frontplatte.
Inclusivo sensore di presenza a del frontale del diffusore.
Détecteur de présence optionnel intégré sur la façade.
7
LCFV-P
