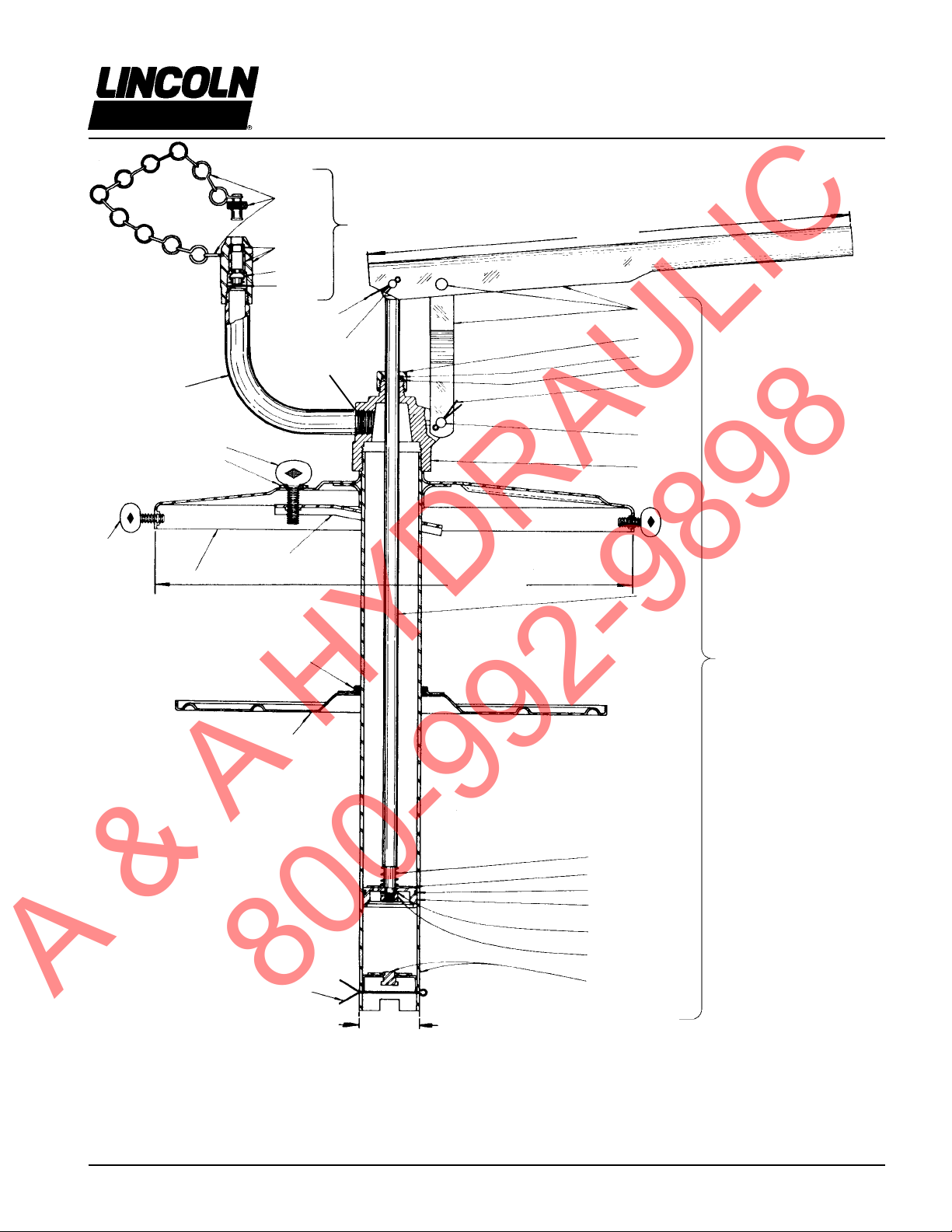

Lincoln A Series Manual de usuario

91386

91385

13034

56073

82614 Filler Fitting Assembly

68402

12 5/8

248225

13115

34281

48461

68402

2 Reqd

13116

41225

67313

48051

50702

66130

3 Reqd 91383 45812

12 1/4 Dia. 13127

55165

48267

32066

13128

66186

51009

91384

1 1/2 Dia.

68400

91393{Follower

34282

34282 82646 Bare Pump

Assembly

Page

Section - J24 - 5C

Form 403068

March 2001

Model No. 1296

FILLER PUMP

Series A

NOTE: IF FILLER

NIPPLE DOES NOT

SEAL PROPERLY,

FILLER FITTING

ASSEMBLY MAY BE

WORN. REMOVE

AND REPLACE.

PROCEDURE FOR

ASSEMBLY OF PUMP

PUMP ASSEMBLY

1.Attach HANDLE to the PUMP

ROD and OUTLET CASTING.

Use the two TOGGLE PINS

and COTTERS.

DRUM COVER ASSEMBLY

2.Slide PUMP TUBE through

DRUM COVER. Assemble

45812 CLAMP to inside of

DRUM COVER using WASH-

ER and large THUMB

SCREW (Do not tighten

securely). Assemble the

three SMALL THUMB

SCREWS into the rim of

DRUM COVER.

3. Install FOLLOWER on PUMP

TUBE. Insert LONG COTTER

PIN through PUMP TUBE at

lower end.

ASSEMBLY AND

OPERATING INSTRUCTIONS

PARTS AND SERVICE

TO INSTALL PUMP

LUBRICANT

CONTAINER

1. Remove COVER of

LUBRICANT

CONTAINER.

2. Place PUMP TUBE into

LUBRICANT CONTAINER

with PUMP TUBE resting

on BOTTOM of

CONTAINER.

Position FOLLOWER to

cover the face of the

LUBRICANT.

Slide DRUM COVER down

to rest on RIM of

LUBRICANT CONTAINER.

Tighten the three THUMB

SCREWS securely.

3. Tighten the large THUMB

SCREW to secure PUMP

TUBE to DRUM COVER.

13122

3/8 NPTF

A & A HYDRAULIC

800-992-9898

Page Number - 2 Form 403068

The MODEL 1296 FILLER PUMP is

hand operated and designed to fill all

Lever Type Lubriguns equipped with

LINCOLN FILLER NIPPLE.

OPERATING AND MAINTENANCE INSTRUCTIONS.

SELECTION OF LUBRICANT:

The MODEL 1296 is designed to dispense NORMAL GREASES (NLGI Grade #00, NLGI Grade #0, NLGI Grade #1).

If necessary to dispense a heavy grease (such as NLGI Grade #2), use LINCOLN FILLER PUMP MODEL 1204.

INITIAL PRIMING:

It is necessary that the FILLER PUMP TUBE be filled completely with LUBRICANT before attempting to fill a LUBRI-

GUN. To do this, unscrew the FILLER FITTINGAssembly from the OUTLET PIPE (see Fig. 1). Operate the HANDLE

until LUBRICANT flows from OUTLET PIPE. Replace FILLER FITTING Assembly on OUTLET PIPE.

NOTE:If PUMP does not prime, it may be necessary to prime it with oil. Use clean light weight oil; pour

approximately two ounces into OUTLET PIPE and operate HANDLE. When FILLER PUMP is primed, insert

FILLER NIPPLE into FILLER FITTING Assembly and LUBRIGUN is ready to be filled (see Fig. 2).

CAUTION:

If LUBRIGUN CONTAINER to be filled is air primed type, be sure to open VENT PLUG in COVER CAP to permit the

air to escape while CONTAINER is being filled.

IF FILLER PUMP LOSES PRIME OR VOLUME DECREASES:

1. Check LUBRICANT CONTAINER; it may be empty.

2. Dirt or foreign particles may be lodged in FOOT VALVE; clean thoroughly.

3. 32066 PISTON PACKING may be worn. Remove and replace.

4. Dirt or foreign particles may be lodged under 48267 PISTON CHECK DISC. Clean thoroughly.

NOTE: If lubricant leaks between 13127 PISTON ROD and 13115 GLAND NUT, this indicates 34251 GLAND

PACKING is worn. Remove and replace.

Part Description Part Description Part Description

13034 Check 45812 Clamp 68400 Cotter Pin 2.1/2” Long

13115 Gland Nut 48051 Washer 68402 Cotter Pin l” Long

13116 Toggle Pin 48267 Piston Check Disc 82614 Filler Fitting Assembly

13122 Handle Pin 48461 Washer 82646 Bare Pump Assembly

13127 Piston Rod 50702 Thumb Screw 5/16-18 x1” Long 91383 Drum Cover Assembly

13128 Piston 51009 1/4”-28 Hex. Nut 91384 Pump Tube Assembly

32066 Piston Packing 55165 Spring 91385 Filler Body

34281 Gland Packing 56073 Check Spring 91386 Plug Assembly

34282 Follower Packing 66130 Thumb Screw 1/4”-20 x3/4” Long 91393 Follower Assembly

41225 OutletCasting 66186 Lockwasher 248225 Handle & Toggle Assembly

67313 OutletPipe

REPAIR PARTS LIST

Lubricant

Outlet Pipe

Filler Fitting

Assembly

Lincoln Lever

Type Lubrigun

Filler Nipple

FIG. 1

Americas:

One Lincoln Way

St. Louis, MO 63120-1578

USA

Phone +1.314.679.4200

Fax +1.800.424.5359

Europe/Africa:

Heinrich-Hertz-Str 2-8

D-69183 Walldorf

Germany

Phone +49.6227.33.0

Fax +49.6227.33.259

Asia/Pacific:

25 Intl Business Park

#01-65 German Centre

Singapore 609916

Phone +65.562.7960

Fax +65.562.9967

Printed in USA

Web site:

www.lincolnindustrial.com

Lubricant

Container

A & A HYDRAULIC

800-992-9898
