Vantage®400

EN INE DRIVEN WELDERS

Compact, Multi-Process, Excellent Value

ENGINE DRIVEN WELDERS

The Vantage®400 is one of the most compact 400 amp engine-driven welder/

generators in the construction, pipe or rental fleet market today. It’s also one of

the most quiet, with a smooth running 4-cylinder Perkins®diesel engine. Use this

multi-process welder for arc gouging with up to 5/16" carbons, stick welding with

up to 1/4" electrodes and CV wire welding with up to 3/32" wire. You’ll value the

superior arc performance delivered by Lincoln Chopper Technology®. You'll

also appreciate VRD™(Voltage Reduction Device™), which reduces OCV (open

circuit voltage) in the CC-Stick weld mode for added safety.

This model efficiency generates 19,000 watts (peak) of 3-phase or 12,000 watts

of 1-phase AC generator power for your lights, grinders and power tools. And, it's

housed in a rugged, low maintenance stainless steel enclosure and loaded with

many innovative service features. That all totals up to an excellent value!

Processes

Stick, TIG, MIG, Flux-Cored, Gouging

Publicatio E6.210 10/05

Web Update 4/08

www.li col electric.com

TECHNICAL SPECIFICATIONS

•Compact Case

- One of the most compact 400 amp machines available. Suitable

for many pickup and service trucks.

•tainless teel Enclosure

- Standard stainless steel roof, side panels and engine-access door

deliver added protection and durability.

•Multi-Process Welding, imple to Operate

- Select one of four Process Modes, including CC-Stick (up to

1/4"), Downhill Pipe (for stick), Touch-Start®DC TIG or CV-Wire

(up to 3/32"(1)), and then dial in the desired output.

•VRD™Voltage Reduction Device™

- Reduced OCV in the CC-Stick weld mode for added safety.

- First engine-driven welder in North America having this standard

feature.

•Plenty of AC Generator Power

- 19 kW peak (17 kW continuous) 3-Phase 240V AC generator

power. Will power industrial equipment such as a plasma cutter,

pump or inverter welder.

- 12 kW peak (11 kW continuous) 1-phase AC generator power for

common construction tools.

•Arc Gouging

- Arc gouging with up to 5/16" carbons.

•Reliable Engine

- 4 cylinder 1800 RPM Perkins®diesel engine runs smooth and

quiet. Standard engine gauges allow you to monitor performance

at a glance.

•Low Noise

- 99.1 dBA Lwa sound power (74.8 dB at 23 ft./7 m) is one of the

quietest 400 amp engine-driven welders available.

•Innovative ervice Access

- Lockable, removable sliding engine access door provides ample

space for engine and oil filter work without requiring a large

clearance space on your truck.

- Battery drawer on front of machine and top-mounted radiator cover

provide convenient access to these systems.

- Patented tilt down control panel for easy servicing of internal

components.

- Patented radiator cap cover is latched for easy access and is lockable.

(1)3/32" E70T-6 up to 260 IPM, 27V.

Rated Output

Current/Voltage/Duty Cycle

400A/36V/100%

450A/32V/100%

Output

Range

30-500A DC

40-300A Pipe

20-250A DC TIG

14-36V CV

3-Phase AC Power:

19 kW Peak

17 kW Continuous

1-Phase AC Power:

12 kW Peak

11 kW Continuous

Engine

Model

Perkins®404D-22

Diesel

EPA Tier 4i

No. of

Cyl.

HP & peed

(rpm)

32.7@1800

Dimensions

HxWxD

Inches (mm)

35.9 x 25.3 x 60.0

(913 x 642 x 1524)

Net

Weight

lbs (kg)

1230

(559)

Product

Name

Vantage®400

kWP

Output

Input

Advantage Lincoln

PERFORMANCE

Arc Performance

• 400 amps @100% duty cycle with output range up to 500 amps

using Chopper Technology®. All ratings are at temperatures

of 104°F/40°C.

• Arc ouging with up to a 5/16" carbon.

• VRD™(Voltage Reduction Device™) reduced OCV (open circuit

voltage) in CC-stick welding mode for added safety.

• CC-Stick mode is optimized for general purpose stick using

E7018 low hydrogen electrode.

• Built-in “hot” start for easier starts and restrikes minimizing the

electrode “sticking” to the work.

• Downhill pipe mode with active arc force control - enhanced

downhill pipe welding mode. Excellent for cellulosic electrodes.

Fast travel speeds, especially on fill passes. Arc control adjust-

ment for a soft, buttery arc or a more forceful digging arc.

• Standard Touch-Start DC TI ®welding, not scratch start, for easy

arc starting that avoids tungsten contamination and the use of

high-frequency equipment.

• Excellent CV wire welding with cored-wire and MI (CO2 and

blended gas). 3/32" E70T-6 up to 260 IPM, 27V.

Generator Performance

• 3-Phase 240V AC generator power rated at 19 kW peak (17 kW

continuous) output to power industrial equipment such as

a plasma cutter, pump or inverter welder. Simultaneously weld

and use 3-Phase AC power - for example, up to 9,400 watts can

be delivered while welding at 300 amps. Compare to competitive

product which has 3-Phase power available as an extra-cost fac-

tory-only option.

• 3-Phase 240V receptacle on control panel eliminates the need to

hard-wire the connections.

• The Vantage®400 provides added value at the job site by deliver-

ing up to 12 kW peak (11 kW continuous) watts of 1-Phase AC

auxiliary power for equipment such as a Lincoln plasma cutter.

Also use for lights, grinders and other common construction

tools. And, you can simultaneously weld and have access to AC

power – 4,700 watts can be delivered while welding at 300 amps.

• AC generator voltage is constant at 120V or 240V at any weld

dial setting.

• Two 120V FCI duplex receptacles.

• All receptacles are circuit breaker protected and have weather

protective covers.

Va tage®400

www.li col electric.com

[2]

A CLOSER LOOK

Patented and award-winning Lincoln Chopper Technology®delivers

superior DC arc welding performance for general purpose stick, Downhill

Pipe, DC TI , MI , cored-wire and arc gouging.

Benefits of Chopper Technology®include:

- Easy arc starting

-Smooth arc action

- Low spatter levels

-Excellent bead appearance

Traditio al weld co trol is more

variable arou d the desired output.

Chopper Tech ology®

delivers extremely fast respo se

for smoother output co trol.

WHAT IS CHOPPER TECHNOLOGY®?

WHAT IS TOUCH-START TIG®?

Touch-Start TI ®uses a very low voltage to sense when the tip of

the tungsten electrode is touched to the work piece. When this

occurs, a complete circuit is established. When the tungsten is then

raised from the work piece, the circuit senses a change in voltage

and initiates the appropriate welding current and voltage to support

the TI welding process.

Enjoy the added benefits of Lincoln’s Touch-Start TI ®when DC TI

welding. Not only do you avoid tungsten contamination when arc

starting, but you also don’t need extra high frequency equipment.

The VRD™(Voltage Reduction Device™) provides additional safety in the

CC-Stick weld mode, especially when working in an environment with a

higher risk of electrical shock such as wet areas and hot, humid sweaty

conditions. The VRD™reduces the OCV (open circuit voltage) at the welding

output terminals while not welding to less than 32 volts DC.

The VRD™is activated by flipping a toggle switch inside the machine to the

“ON” position. Indicator lights monitor the voltage: green for less than 32

volts while not welding, and either red (greater than 32 volts) or green while

welding, depending on the actual voltage of the arc.

Other weld modes when VRD™is on:

Downhill Pipe There is no output.

CV-Wire OCV is not reduced.

Touch Start TIG®No difference in

operation. TI is

normally a low

voltage (less than

32 volts) operation.

WHAT IS VRD™?

VRD™portio of ameplate

with gree light o .

100

200

300

400

500

17,000 41

15,400 37

13,000 31

9,400 23

3,400 8

11,000 46

8,000 33

4,700 20

1,700 7

0 0

11,000 -

8.000 -

4,700 -

1,700 -

Weld Amps 1 Phase

Watts Amps

SIMULTANEOUS WELDING AND AUXILIARY POWER

3 Phase

Watts Amps

imultaneous 1 and 3 Phase

Watts Amps

AND OR OR

A CLOSER LOOK

Key Controls

141312

1. low Plug Button

2. Weld Mode Selector Switch

3. Run/Stop Switch

4. Hour Meter

5. Start Push button

6. Engine Idler Switch

7. Fuel Level, Engine Temperature and

Oil Pressure auges

8. Engine Protection Light

9. Engine Battery Charging Light

10. 120 VAC Circuit Breakers

11. 120 VAC FCI Receptacles

12. 120/240 VAC Full-KVA 1-Phase Receptacle

13. 240 VAC Full-KVA 3-Phase Receptacle

14. Full-KVA 1- & 3-Phase Circuit Breaker

15. Covered Weld Output Terminals + and -

16. round Stud

17. 14-Pin Wire Feeder Connector

18. 6-Pin Remote Control Connector

19. Arc Force & Inductance/Pinch Control Dial

20. Welding Terminals Control Switch

21. Wire Feeder Voltmeter Polarity Switch

22. Digital Amps and Volts Output Meters

23. VRD Indicator Lights

24. Output Control Dial

FEATURES

24 23

Note: Control panel door not shown.

Single-side engine access

with lockable sliding door.

Fuel, Oil Pressure and Engine

Temperature gauges help you

monitor performance.

Patent-pending latched

and lockable radiator cap

cover.

Convenient slide-out battery

drawer below control panel.

Handy oil drain valve and tube

makes oil changes easy.

Output automatically switches

to remote mode when remote

device is connected.

• Simple Controls – Keeps training time to a minimum. The flip-down

control panel door keeps less frequently used dials out of the way.

Scratch-resistant Lexan®nameplate.

• Digital weld meters for amps and volts output make it easy to

precisely set your procedures.

• Large 15 gallon (57 liter) fuel tank provides run time for an extended

day—12 hours of welding at 400A/36V/100% duty cycle output, or

36 hours at high idle.

• reat Engine Choice – 32.7 horsepower water-cooled 4 cylinder

Perkins®404D-22 diesel engine. Engine has an automatic idler for

greater fuel economy and reduced noise. low plug button for cold

weather starting.

• Engine hour meter for scheduled maintenance.

• LN-25 PRO Across-the-Arc wire feeder is a recommended option.

• 14-pin connector for Lincoln wire feeders with control cables LF-72,

LF-74, LN-7, LN-8, LN-15, LN-23P, LN-25 and LN-742. Also com-

patible with Magnum®S Spool un System.

• Two Vantage®400 units can be paralleled in the CC-Stick Mode to

increase output.

Va tage®400

www.li col electric.com

[3]

Dimensions (6)

Product Ordering CC/Pipe-Rated DC Output(1) CV Rated Output(1) H x W x L Weight

Name Information Description Current/Voltage/Duty Cycle Current/Voltage/Duty Cycle AC Power(3)(4) inches (mm) lbs. (kg)

Vantage®400 400 Amp DC Welder with DC Constant Current DC Constant Voltage(2) 19,000 Peak 35.9 x 25.3 x 60.0 1230

K2410-2 Engine Gauges 400A/36V/100% 400A/36V/100% Watts, 60 z (913 x 642 x 1524) (559)

450A/32V/100% 450A/32V/100%

19,000 Watts Peak 30-500 Amps Two 120V

17,000 Watts 14-36V Duplex GFCI

Continuous AC Power DC Pipe Current Single Dial Receptacles

3-Phase 300A/32V/100% Continuous Control 20A Per Duplex

40-300A 40A Total (5)

12,000 Watts Peak Touch- tart TIG®Range Wire Feeder Power 1-Phase

11,000 Watts 250A/30V/100% 120V/60 z Full KVA

Continuous AC Power 20-250 Amps 42V/60 z Receptacle

1-Phase 46A@240V

Single Dial 46A@120V Each

Continuous Control Branch Circuit(5)

60V DC Max OCV

@1880 RPM 3-Phase

Full KVA

Receptacle

41A@240V

Va tage®400

www.li col electric.com

[4]

A CLOSER LOOK

MACHINE SPECIFICATIONS

ENGINE SPECIFICATIONS

(1) igh Altitude: For maximum rating, derate the output 2.5% to 3.5% for every 1,000 ft. (300 m). igh Temperature: For maximum rating, derate 2 volts for every 18°F (10°C)

above 104°F (40°C).

(2) DC Constant Voltage capability provides convenience and added safety when welding in electrically hazardous conditions.

(3) When welding, available auxiliary power will be reduced. Output voltage is within +/- 10% at all loads up to rated capacity.

(4) 120V will operate either 60 z or 50/60 z power tools, lights, etc.

(5) Circuits cannot be wired in parallel to operate the same device.

(6) eight is to top of case. Add 7.4 in. (187mm) to top of exhaust elbow.

(7) Perkins®warranty is 2 years/2,000 hours, all non-electric components, 3 years major non-electric components. See warranty for details.

QUALITY AND RELIABILITY

• Simple wire harnessing keeps connections to a minimum for greater

reliability. Lead and harness strain reliefs on all control connections

help ensure trouble-free performance.

• Engine Protection System includes automatic shutdown for low oil

pressure or high engine temperature.

• Indicator light turns on for low oil pressure or high engine

temperature. A second indicator light turns on if the engine

battery charging system malfunctions.

• Circuit breaker protection on the battery ignition system provides

added component protection.

• Environmental friendly engine! Engine has a closed breather

system to keep the engine compartment and ground clean. This

system eliminates oil mist from collecting inside the engine

compartment, especially on surfaces that would lower engine

cooling efficiency.

• Self-bleeding engine simplifies startup if your fuel tank runs dry.

• Perkins®engine camshaft is gear-driven. No timing belt maintenance.

• Printed circuit boards are environmentally-shielded using Lincoln’s

engineered potting and protective frame trays.

• Dependability and long life aided by all-copper windings in rotor and

stator with high quality insulation.

• Standard stainless steel roof, side panels and engine-access door

deliver added protection, durability and corrosion-resistance.

Eliminates the need to paint or replace rusting panels.

• Manufactured under a quality system certified to ISO 9001

requirements and ISO 14001 environmental standards.

• Three-Year Lincoln Warranty on welder. (Engine is warranted

separately by the manufacturer.)

Product Horsepower & Operating Fuel

Name Description Displacement Capacities peeds Consumption

Perkins®404D-22 (7) 4 Cylinder, 4 Cycle 32.7 P@1800 RPM FUEL: 400A Load 1.2 Gal/ r

EPA Tier 4i Water-Cooled Diesel Engine, 15 gals (57 ltrs) 1800 RPM 4.4 Ltr/ r

12V Electric Start, 136 cu. in.

Dry Type Air Cleaner, (2.2 ltrs) OIL: High Idle 0.4 Gal/ r

Fuel Filter with Water Separator 8.5 qts (8.0 ltrs) 1880 RPM 1.5 Ltr/ r

RADIATOR COOLANT: Low Idle 0.3 Gal/ r

8.0 qts (7.6 ltrs) 1400 RPM 1.1 Ltr/ r

Va tage®400

www.li col electric.com

[5]

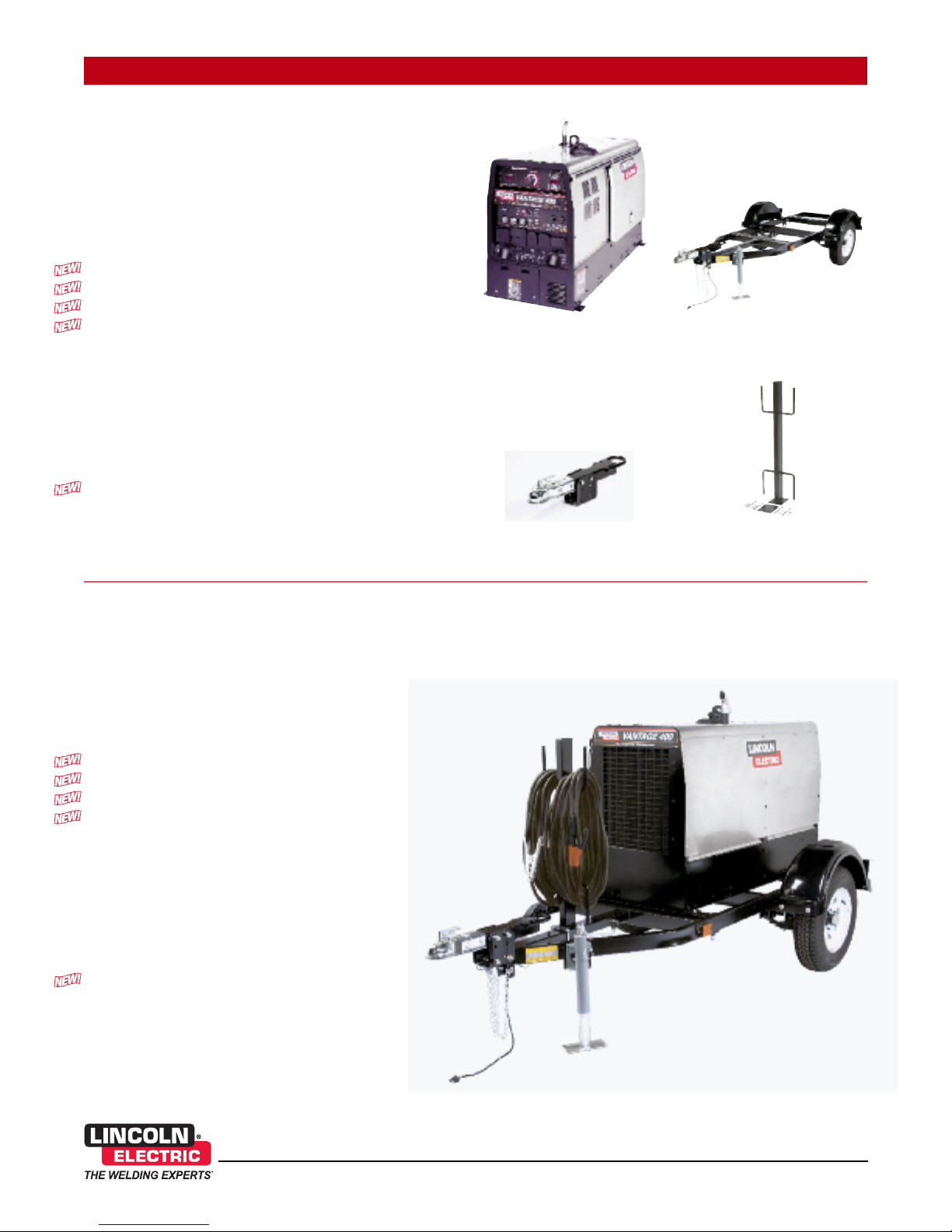

A CLOSER LOOK

SYSTEM SELECTION

One-Pak®Welding Packages

Order a Lincoln One-Pak®and get everything you need to

complete a welding package - all with one order number.

(One-Pak®Packages require assembly.)

Each UNASSEMBLED Package Contains:

• Vantage®400 (See Order Number Below)

• Medium Welder Trailer (K2636-1)

• Duo-Hitch™2" Ball/Lunette Eye Hitch (included)

• Fender and Light Kit (K2639-1)

• Cable Rack (K2640-1)

• Cable Connectors - two (K2487-1)

• Electrode Cable 3/0, two 50 ft. (15.3 m) lengths (K2485-3)

• Electrode Cable 3/0, 10 ft. (3 m) (K2483-3)

• Work Cable 3/0, 50 ft. (15.3 m) (K2484-3)

• 400A Electrode Holder (K909-8)

• 500A Work Clamp (K910-2)

Order:

K2508-3 Vantage®400 One-Pak®Package

Ready-Pak®Welding Packages

Order a Lincoln Ready-Pak®Package and get an assembled welding package.

Each COMPLETELY ASSEMBLED Package Contains:

• Vantage®400 (See Order Number Below)

• Medium Welder Trailer (K2636-1)

• Duo-Hitch™2" Ball/Lunette Eye Hitch (included)

• Fender and Light Kit (K2639-1)

• Cable Rack (K2640-1)

• Cable Connectors - two (K2487-1)

• Electrode Cable 3/0, two 50 ft. (15.3 m) lengths (K2485-3)

• Electrode Cable 3/0, 10 ft. (3 m) (K2483-3)

• Work Cable 3/0, 50 ft. (15.3 m) (K2484-3)

• 400A Electrode Holder (K909-8)

• 500A Work Clamp (K910-2)

Order:

K2509-3 Vantage®400 Ready-Pak®Package

K2636-1 Medium Welder Trailer

Va tage®400

Duo-Hitch™2" Ball/Lu ette Eye Hitch

(i cluded)

K2640-1 Cable Rack

Completely Assembled Ready-Pak®Pkg.

Va tage®400

www.li col electric.com

[6]

RECOMMENDED OPTIONS

120V

GENERAL OPTIONS

Power Plug Kit (20A)

Provides four 120V plugs rated at

20 amps each, and one dual volt-

age, full KVA 1-phase plug rated

at 120/ 240V, 50 amps. 120V plug

may not be compatible with com-

mon household receptacles.

Order K802N

Power Plug Kit (15A)

Provides four 120V plugs rated at

15 amps each, and one dual volt-

age, full KVA 1-phase plug rated

at 120/ 240V, 50 amps. 120V plug

is compatible with common house-

hold receptacles.

Order K802R

Full-KVA Power Plug (1-Phase)

One dual voltage plug rated at

120/240V, 50 amps. NEMA 14-50P.

Order T12153-9

Full-KVA Power Plug (3-Phase)

One plug rated at 240V, 50 amps.

NEMA 15-50P.

Order T12153-10

Medium Welder Trailer

For heavy-duty road, off-road, plant

and yard use. Includes pivoting jack

stand, safety chains, and 13"

wheels. Stiff .120" welded rectan-

gular steel tube frame construction

is phosphate etched and powder

coat painted for superior rust and

corrosion resistance. Low sway

suspension gives outstanding sta-

bility with manageable tongue

weight. Wheel bearings are packed

with high viscosity, high pressure,

low washout Lubriplate®grease.

Includes a Duo-Hitch™– a 2"

Ball/Lunette Eye combination

hitch. Overall width 60".

Order:

K2636-1 Trailer

K2639-1 Fender & Light Kit

K2640-1 Cable Rack

Four-Wheeled Steerable

Yard Trailer

For off-road, plant and yard use.

Includes an automatically engaging

drawbar lock when the drawbar is

raised to the verticle position. 13"

wheels. Wheel bearings are packed

with high viscosity, high pressure,

low washout Lubriplate®grease.

Stiff 3/16" welded rectangular steel

frame construction is phosphate

etched and powder-coat painted

for superior rust and corrosion

resistance. Also includes a

Duo-Hitch™–a2" Ball/ Lunette

Eye combination hitch. Overall

width: 55".

Order K2641-2

Spark Arrestor Kit

Mounts to Muffler Exhust Tube.

Virtually eliminates spark emissions.

Order K903-1

Service Indicator Kit

Provides a O/NO- O visual indica-

tion of air cleaner element useful

service life. Filter service based on

restriction readings allows the longest

life possible from the filter and best

engine protection.

Order K1858-1

Cold Weather Heater and Tarp Kit

For engine starting and operation in

extreme cold weather conditions

down to -40°F(-40°C) (with the use of

0W40 synthetic oil and arctic diesel

fuel). Includes 120V AC oil pan heater,

120V AC engine block heater, and

radiator grill tarp.

Order K2679-1

STICK OPTIONS

Accessory Kit

Includes 35 ft. (10.7 m) 2/0 electrode

cable with lug, 30 ft. (9.1 m) 2/0 work

cable with lugs, headshield, filter

plate, cover plate, work clamp and

electrode holder. 400 amp capacity.

Order K704

Remote Output Control

Consists of a control box with choice

of two cable lengths. Permits remote

adjustment of output.

Order K857 for 25 ft. (7.6 m)

K857-1 for 100 ft. (30.5 m)

TIG OPTIONS

Pro-Torch®PTA-26V TIG Torch

Air-cooled 200 amp torch (2 piece)

equipped with valve for gas flow

control. 25 ft. (7.6 m) length.

Order K1783-9

Magnum®Parts Kit for PTA-26V

TIG Torch

Magnum®Parts Kit provides all the

torch accessories you need to start

welding. Parts kit provides collets,

collet bodies, a back cap, alumina

nozzles and tungstens in a variety of

sizes, all packaged in an easy to carry

reclosable sack.

Order KP509

Foot Amptrol®

Provides 25 ft. (7.6 m) of remote out-

put control for TI welding. (6-pin

plug connection).

Order K870

RECOMMENDED OPTIONS

Va tage®400

www.li col electric.com

[7]

Drive Roll and Guide Tube Kit

(for LN-25 PRO)

For .035" and .045" (0.9-1.1 mm) solid

steel wire.

Order KP1696-1

LN-23P Wire Feeder

Portable CV unit for Innershield pipe

welding. Includes drive rolls and guide

tubes. Requires K2393-1 or -2 Input

Cable Assembly and Magnum®

Innershield®un.

Order K316L-2

Input Cable Assembly for LN-23P

8-socket to 14-pin control cable with

lugged electrode cable for K316L-2

LN-23P Wire Feeder.

Order:

K2393-1 25 ft (7.6 m)

K2393-2 75 ft (22.9 m)

Magnum®350 Innershield®Gun

(for LN-23P)

Rated 350 amps, 60% duty cycle. For

.068"-5/64" (1.7-2.0 mm) Innershield®

wire and includes reduced speed

switch.

Order K345-10

Magnum®SG Spool Gun

Hand held semiautomatic wire feeder.

Requires S Control Module and Input

Cable.

Order K487-25

SG Control Module

The interface between the power

source and the spool gun. Provides

control of the wire speed and gas flow.

For use with a spool gun.

Order K488

Input Cable

(For SG Control Module)

For Lincoln engine power sources with

14-pin MS-type connection, separate

115V NEMA receptacles and output

stud connections.

Order K691-10

PLASMA CUTTING

Pro-Cut®55

Cuts metal using the AC generator

power from the engine-driven welder.

Accepts 3-phase or 1-phase input

power. Requires the K1816-1 Full KVA

adapter kit, if connected for 1-phase

input power.

Order K1580-1

Full-KVA Adapter Kit (1-Phase)

Provides convenient connection of

Lincoln Electric equipment having a

240V AC 1-phase plug (NEMA 6-50P)

to the full-KVA receptacle on Lincoln

engine-driven welders.

Order K1816-1

Hand Amptrol®

Provides 25 ft. (7.6 m) of remote

current control for TI welding.

(6-pin plug connection). Velcro

straps secure torch.

Order K963-3 (one size fits all

Pro-Torch®TI Torches)

Precision TIG®225

Ready-Pak®Pkg.

For AC TI Welding with square

wave performance, use the AC gen-

erator of the engine-driven welder

to supply the power (Full rated

output may not be available). Easy

setup. Includes torch, Foot Amptrol®

and as Regulator & Hose. Requires

the K1816-1 Full KVA Adapter Kit.

Order K2535-1

Invertec®V205-T AC/DC

One-Pak®Package

For AC TI welding with square

wave performance, use the AC

generator of the engine-driven

welder to supply the power. Easy

setup. Includes torch, parts kit,

regulator and hose kit, Twist-Mate™

torch adapter, work cable with

Twist-Mate end and foot Amptrol®.

Requires K1816-1 Full-KVA Adapter

Kit.

Order K2350-2

Full - KVA Adapter Kit (1-Phase)

Provides convenient connection of

Lincoln Electric equipment having a

240V AC 1-phase plug (NEMA 6-

50P) to the full-KVA receptacle on

Lincoln engine-driven welders.

Order K1816-1

WIRE FEEDER OPTIONS

LN-25 PRO Wire Feeder

Portable CC/CV unit for flux-cored

and MI welding with MAXTRAC®

wire drive system. Includes gas sole-

noid and internal contactor

Order K2613-1

Magnum®350 Innershield Gun

(for LN-25 PRO)

For self-shielded wire with 15 ft.

(4.5 m) cable. For .062"-3/32"

(1.6-2.4 mm) wire.

Order K126-2

Drive Roll and Guide Tube Kit

(for LN-25 PRO)

For cored or solid steel wire.

Order KP1697-068

for .068"-.072" (1.8 mm)

KP1697-5/64

for 5/64" (2.0 mm)

Magnum®300 MIG Gun

For .035"-.045" (0.9-1.2 mm) gas-

shielded wire with 15 ft. (4.5 m)

cable.

LN-25 PRO Order:

K1802-1 (Includes Connector Kit)

VANTAGE®400 K2410-2

VANTAGE®400 ONE-PAK®PKG. K2508-3

VANTAGE®400 READY-PAK®PKG. K2509-3

RECOMMENDED GENERAL OPTIONS

Power Plug Kit - 20 amp K802N

Power Plug Kit - 15 amp K802R

Full-KVA Power Plug (1-Phase) T12153-9

Full-KVA Power Plug (3-Phase) T12153-10

Medium Welder Trailer with Duo-Hitch™2" Ball/Lunette Eye Hitch K2636-1

-Fender and Light Kit K2639-1

- Cable Rack K2640-1

Four-Wheeled Steerable Yard Trailer K2641-2

(with Duo-Hitch™: 2" Ball/Lunette Eye Hitch)

Spark Arrestor Kit K903-1

Service Indicator Kit K1858-1

Cold Weather Heater &Tarp Kit K2679-1

RECOMMENDED STICK OPTIONS

Accessory Kit K704

Remote Output Control

-25 ft. (7.6m) K857

-100 ft. (30.5m) K857-1

RECOMMENDED TIG OPTIONS

Pro-Torch®PTA-26V TI Torch K1783-9

Magnum®Parts Kit For PTA-26V TI Torch KP509

Foot Amptrol®K870

Hand Amptrol®(All Pro-Torch®TI torches) K963-3

Precision TI ®225 Ready-Pak®Pkg. (for AC TI Welding) K2535-1

Invertec®V205-T AC/DC One-Pak®Pkg. (for AC TI welding) K2350-2

- Full KVA Adapter Kit (required for K2535-1 and K2350-1) K1816-1

RECOMMENDED WIRE FEEDER OPTIONS

LN-25 PRO Wire Feeder K2613-1

Magnum®350 Innershield®un K126-2

Drive Roll and uide Tube Kit .068"-.072" (for LN-25 PRO) KP1697-068

Drive Roll and uide Tube Kit 5/64" (for LN-25 PRO) KP1697-5/64

Magnum®300 MI un (for LN-25 PRO) (includes Connector Kit) K1802-1

Drive Roll and uide Tube Kit (for LN-25 PRO) KP1696-1

LN-23P Wire Feeder K316L-2

- Input Cable Assembly, 25 ft. (7.6 m) K2393-1

- Input Cable Assembly, 50 ft. (15.2 m) K2393-2

Magnum®350 Innershield®Welding un K345-10

Magnum®S Spool un®K487-25

- S Control Module (required) K488

- Input Cable (required) K691-10

RECOMMENDED PLASMA CUTTING OPTIONS

Pro-Cut®55 K1580-1

- Full KVA Adapter Kit (required for 1-phase input power) K1816-1

TOTAL:

THE LINCOLN ELECTRIC COMPANY®

22801 St. Clair Ave., Cleveland, OH 44117-1199 • 216.481.8100 • www.lincolnelectric.com

VANTAGE®400 ORDER FORM

PRODUCT DESCRIPTION ORDER NUMBER QUANTITY PRICE

CUSTOMER ASSISTANCE POLICY

The business of The Lincoln Electric Company®is manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to meet the needs of

our customers and to exceed their expectations. On occasion, purchasers may ask Lincoln Electric for information or advice about their use of our products. Our employees respond to

inquiries to the best of their ability based on information provided to them by the customers and the knowledge they may have concerning the application. Our employees, however, are not

in a position to verify the information provided or to evaluate the engineering requirements for the particular weldment. Accordingly, Lincoln Electric does not warrant or guarantee or assume

any liability with respect to such information or advice. Moreover, the provision of such information or advice does not create, expand, or alter any warranty on our products. Any express or

implied warranty that might arise from the information or advice, including any implied warranty of merchantability or any warranty of fitness for any customers’ particular purpose is

specifically disclaimed.

Lincoln Electric is a responsive manufacturer, but the selection and use of specific products sold by Lincoln Electric is solely within the control of, and remains the sole responsibility of the

customer. Many variables beyond the control of Lincoln Electric affect the results obtained in applying these types of fabrication methods and service requirements.

Subject to Change – This information is accurate to the best of our knowledge at the time of printing. Please refer to www.lincolnelectric.com for any updated information.

Otros manuales para VANTAGE 400

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de soldadura de Lincoln Electric

Lincoln Electric

Lincoln Electric INVERTEC IM10051 Manual de usuario

Lincoln Electric

Lincoln Electric POWER MIG 255 SVM144-B Manual de usuario

Lincoln Electric

Lincoln Electric IDEALARC R3R-300 Manual de usuario

Lincoln Electric

Lincoln Electric IM355-C LN-9 GMA Manual de usuario

Lincoln Electric

Lincoln Electric POWER WAVE S500CE IM10123 Manual de usuario

Lincoln Electric

Lincoln Electric SAE-400 SEVERE DUTY IM727 Manual de usuario

Lincoln Electric

Lincoln Electric RED-D-ARC LN-25 PRO EXTREME Manual de usuario

Lincoln Electric

Lincoln Electric RANGER 305D AU Manual de usuario

Lincoln Electric

Lincoln Electric Mobiflex 400-MS Manual de usuario

Lincoln Electric

Lincoln Electric PRINCE IM818 Manual de usuario

Lincoln Electric

Lincoln Electric MIG-PAK 15 Manual de usuario

Lincoln Electric

Lincoln Electric NA-3 Manual de usuario

Lincoln Electric

Lincoln Electric Cruiser K3048-1 Manual de usuario

Lincoln Electric

Lincoln Electric INVERTEC IM465-B Manual de usuario

Lincoln Electric

Lincoln Electric LN-10 HEADS & CONTROLS IM587-B Manual de usuario

Lincoln Electric

Lincoln Electric SP-140T Manual de usuario

Lincoln Electric

Lincoln Electric CLASSIC 11572 Manual de usuario

Lincoln Electric

Lincoln Electric INVERTEC V310-T AC/DC Manual de usuario

Lincoln Electric

Lincoln Electric COOLARC 34 Manual de usuario

Lincoln Electric

Lincoln Electric INVERTEC V160 Manual de usuario

Lincoln Electric

Lincoln Electric IDEALARC CV-300 Manual de usuario

Lincoln Electric

Lincoln Electric Square Wave TIG 200 Manual de usuario

Lincoln Electric

Lincoln Electric Idealarc DC-600 Manual de usuario

Lincoln Electric

Lincoln Electric AutoDrive 4R90 Manual de usuario

Manuales populares de Sistema de soldadura de otras marcas

Berner

Berner PLASMACUT 54 Manual de usuario

Pro Spot

Pro Spot PR-155 Manual de usuario

Forney

Forney 210 Manual de usuario

Thermal Arc

Thermal Arc 400S Manual de usuario

GYS

GYS PROTIG 201 AC/DC Manual de usuario

TAFA

TAFA 30*8B35 Manual de usuario

ESAB

ESAB Buddy Arc 145 Manual de usuario

CIGWELD

CIGWELD 636804 Guía rápida

Red-D-Arc

Red-D-Arc DC-400 Manual de usuario

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manual de usuario

Elettro

Elettro HI-MIG 3000 SYNERGIC Manual de usuario

WIA

WIA Weldmatic 270 CP132-2 Manual de usuario

Sonics

Sonics H520T Manual de usuario

Miller

Miller Big Blue 400D Manual de usuario

NewArc

NewArc RT2000 Guía de inicio rápido

Hypertherm

Hypertherm powermax1000 Manual de usuario

Everlast

Everlast POWER MTS 221STi Manual de usuario

Kipor

Kipor KDE180XW Manual de usuario
