Lincoln Electric COOLARC 46 Manual de usuario

M3044

09/2012

REV01

COOLARC 46

OPERATOR’S MANUAL

ENGLISH

Lincoln Electric Bester Sp. z o.o.

ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland

www.lincolnelectric.eu

English I English

Declaration of conformity

Lincoln Electric Bester Sp. z o.o.

Declares that the welding machine:

K14105-1

COOLARC 46

conforms to the following directives:

2006/95/CEE, 2004/108/CEE

and has been designed in compliance with the

following standards:

EN 60974-2, EN 60974-10:2007

27.04.2012

Paweł Lipiński

Operations Director

Lincoln Electric Bester Sp. z o.o., ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland

12/05

English II English

12/05

THANKS! For having chosen the QUALITY of the Lincoln Electric products.

Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified

immediately to the dealer.

For future reference record in the table below your equipment identification information. Model Name, Code & Serial

Number can be found on the machine rating plate.

Model Name:

………………………………………………………………………………………………………………………………………….

Code & Serial Number:

…………………………………………………………………..

Date & Where Purchased

………………………………………………………………….

…………………………………………………………………..

ENGLISH INDEX

Safety.................................................................................................................................................................................. 1

Introduction ......................................................................................................................................................................... 2

Installation and Operator Instructions.................................................................................................................................. 2

Electromagnetic Compatibility (EMC).................................................................................................................................. 7

Technical Specifications...................................................................................................................................................... 8

WEEE.................................................................................................................................................................................. 9

Spare Parts ......................................................................................................................................................................... 9

Electrical Schematic............................................................................................................................................................ 9

Accessories......................................................................................................................................................................... 9

English 1 English

Safety

11/04

WARNING

This equipment must be used by qualified personnel. Be sure that all installation, operation, maintenance and repair

procedures are performed only by qualified person. Read and understand this manual before operating this equipment.

Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this

equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible

for damages caused by improper installation, improper care or abnormal operation.

WARNING: This symbol indicates that instructions must be followed to avoid serious personal injury,

loss of life, or damage to this equipment. Protect yourself and others from possible serious injury or

death.

READ AND UNDERSTAND INSTRUCTIONS: Read and understand this manual before operating this

equipment. Arc welding can be hazardous. Failure to follow the instructions in this manual could cause

serious personal injury, loss of life, or damage to this equipment.

ELECTRIC SHOCK CAN KILL: Welding equipment generates high voltages. Do not touch the

electrode, work clamp, or connected work pieces when this equipment is on. Insulate yourself from the

electrode, work clamp and connected work pieces.

ELECTRICALLY POWERED EQUIPMENT: Turn off input power using the disconnect switch at the

fuse box before working on this equipment. Ground this equipment in accordance with local electrical

regulations.

ELECTRICALLY POWERED EQUIPMENT: Regularly inspect the input, electrode, and work clamp

cables. If any insulation damage exists replace the cable immediately. Do not place the electrode holder

directly on the welding table or any other surface in contact with the work clamp to avoid the risk of

accidental arc ignition.

ELECTRIC AND MAGNETIC FIELDS MAY BE DANGEROUS: Electric current flowing through any

conductor creates electric and magnetic fields (EMF). EMF fields may interfere with some pacemakers

and welders having a pacemaker shall consult their physician before operating this equipment.

CE COMPLIANCE: This equipment complies with the European Community Directives.

ARTIFICIAL OPTICAL RADIATION: According with the requirements in 2006/25/EC Directive and EN

12198 Standard, the equipment is a category 2. It makes mandatory the adoption of Personal Protective

Equipment (PPE) having filter with a protection degree up to a maximum of 15, as required by EN169

Standard.

FUMES AND GASES CAN BE DANGEROUS: Welding may produce fumes and gases hazardous to

health. Avoid breathing these fumes and gases. To avoid these dangers the operator must use enough

ventilation or exhaust to keep fumes and gases away from the breathing zone.

ARC RAYS CAN BURN: Use a shield with the proper filter and cover plates to protect your eyes from

sparks and the rays of the arc when welding or observing. Use suitable clothing made from durable

flame-resistant material to protect you skin and that of your helpers. Protect other nearby personnel with

suitable, non-flammable screening and warn them not to watch the arc nor expose themselves to the

arc.

English 2 English

WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area

and have a fire extinguisher readily available. Welding sparks and hot materials from the welding

process can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks,

drums, containers, or material until the proper steps have been taken to insure that no flammable or

toxic vapors will be present. Never operate this equipment when flammable gases, vapors or liquid

combustibles are present.

WELDED MATERIALS CAN BURN: Welding generates a large amount of heat. Hot surfaces and

materials in work area can cause serious burns. Use gloves and pliers when touching or moving

materials in the work area.

CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct

shielding gas for the process used and properly operating regulators designed for the gas and pressure

used. Always keep cylinders in an upright position securely chained to a fixed support. Do not move or

transport gas cylinders with the protection cap removed. Do not allow the electrode, electrode holder,

work clamp or any other electrically live part to touch a gas cylinder. Gas cylinders must be located

away from areas where they may be subjected to physical damage or the welding process including

sparks and heat sources.

SAFETY MARK: This equipment is suitable for supplying power for welding operations carried out in an

environment with increased hazard of electric shock.

The manufacturer reserves the right to make changes and/or improvements in design without upgrade at the same time

the operator’s manual.

Introduction

The COOLARC 46 is a cooling system designed for use

witch water-cooler torches and guns:

GTAW torches

MGAW guns up to 500A.

The following equipment has been added to

COOLARC 46:

Hose with quick water connector –0,2m.

COOLARC 46 is delivered empty with no coolant in the

system.

Recommended equipment, which can be bought by

user, was mentioned in the chapter "Accessories".

Installation and Operator Instructions

Read this entire section before installation or operation

of the machine.

Location and Environment

This machine will operate in harsh environments.

However, it is important that simple preventative

measures are followed to assure long life and reliable

operation:

Do not place or operate this machine on a surface

with an incline greater than 15° from horizontal.

Do not use this machine for pipe thawing.

This machine must be located where there is free

circulation of clean air without restrictions for air

movement to and from the air vents. Do not cover

the machine with paper, cloth or rags when switched

on.

Dirt and dust that can be drawn into the machine

should be kept to a minimum.

This machine has a protection rating of.IP23. Keep it

dry when possible and do not place it on wet ground

or in puddles.

Locate the machine away from radio controlled

machinery. Normal operation may adversely affect

the operation of nearby radio controlled machinery,

which may result in injury or equipment damage.

Read the section on electromagnetic compatibility in

this manual.

Do not operate in areas with an ambient temperature

greater than 40°C.

Input Supply Connection

The COOLARC 46 could be supplied by welding power

source using 9-PIN socket.

To connect the input supply to the COOLARC 46, turn

off the power to the welding power source and

disconnect it from the input supply.

The allowable input voltages are 230V/400V, 50/60Hz.

Make sure that the supply voltage of the unit matches

the cooler’s rated voltage.

WARNING

Do not switch on the welding power source with the

cooler applied if the reservoir was not filled and the

torch’s/gun’s hoses are disconnected from the cooling

unit. The no observance of this warning may be cause

internal damages at the cooler unit.

English 3 English

Controls and Operational Features

FLOW

SENSOR

OFF

MINIMUM

LIQUID

LEVEL

Figure 1.

1. Power Indicator Light: This lamp will light

up to indicate that the cooler is supplied

by the power source.

2. Flow Sensor off Switch: Turn the coolant flow sensor

off. This switch can be used only when the pump has

to be primed and the cooler has to be bled (see "First

use of the cooler and bleeding cooling system").

WARNING

Incorporated into the cooler is an automatic flow sensor

to detect low or no coolant flow. A low or no flow

condition will cause welding output to automatically stop

to protect the torch.

3. Reservoir for Coolant with Nut: The translucent

reservoir enables control of value of the coolant.

4. Quick Connect Coupling: Coolant outlet

(supplies cool coolant to the torch/gun).

5. Quick Connect Coupling: Coolant inlet

(takes warm coolant from torch/gun).

6. Minimum Liquid Level: Determine the level of coolant

in which the cooler can work.

Figure 2.

7. Fuse: Use the 2A slow-blow fuse (see "Spare Parts"

section).

8. Power Lead with 9-PIN Socket.

9. Airflow Slots: Enable proper circulation of air cooling

(Figure.3).

Figure 3.

WARNING

Moving parts can injure. Never place fingers into the

openings of the Cooler.

WARNING

Avoid placing the cooler near a flux hopper or an area

where dust build-up is extreme.

Circulation of Coolant in the Cooler

Figure 4.

Warning: The ambient air temperature influences the

parameters of cooling. If the ambient temperature is

higher, the cooling system will be less effective.

WARNING

Avoid placing the cooler near areas of extreme heat.

Preparation COOLARC 46 to Work

Fill the coolant reservoir.

Connect COOLARC 46 to power source.

Turn the power source on.

Warning: First use the cooler require the pump is

primed by coolant.

Turn power source off.

Connect the water-cooler hoses to the cooler’s inlet

[5] and outlet [4] socket (Figure 6).

Turn the power source on.

Warning: The water-cooler hoses can require

bleeding.

English 4 English

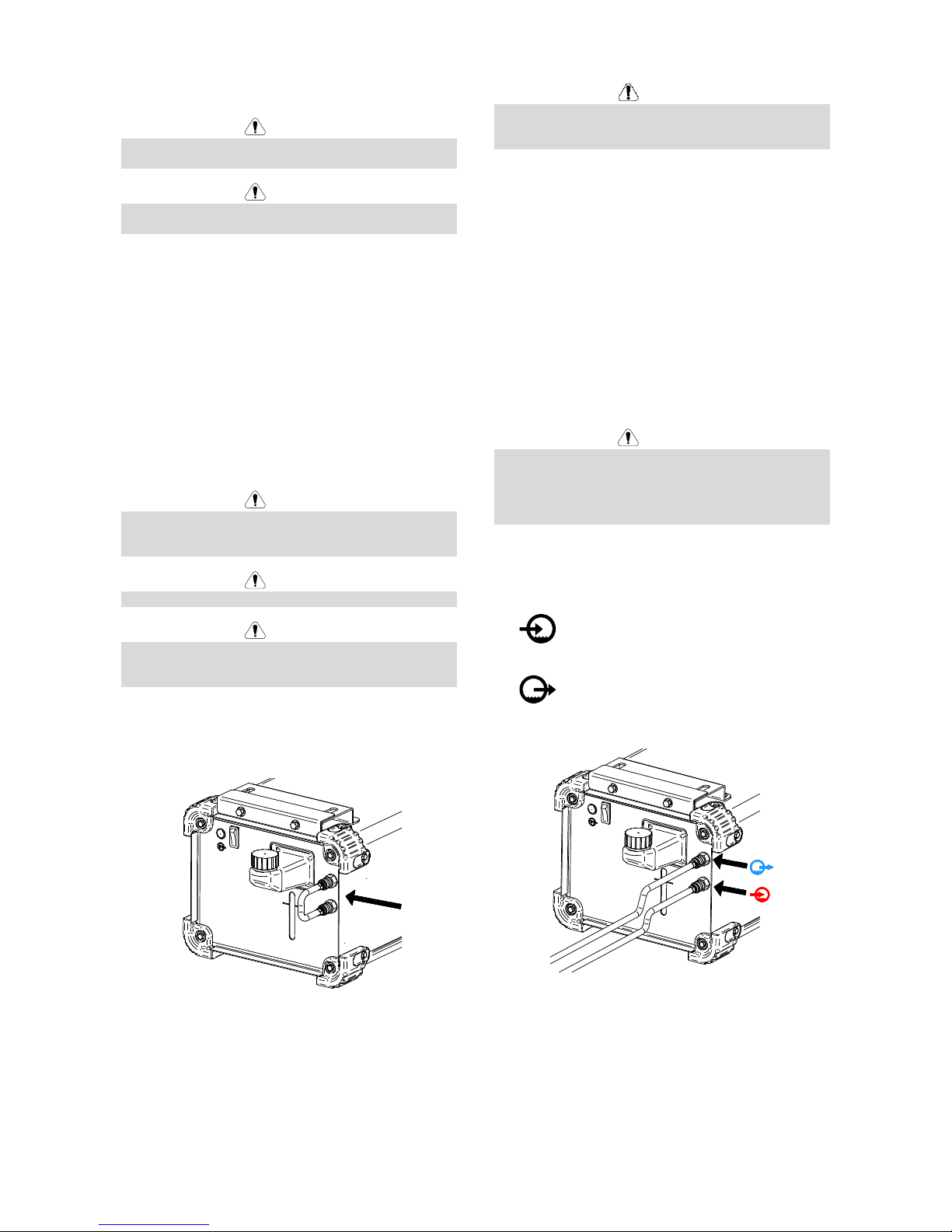

Coolant and Filling the Reservoir

WARNING

Before filling the coolant reservoir, disconnect cooler’s

power lead to the power source.

WARNING

Avoid contact with coolant. Wear waterproof gloves and

protective eye wear.

Warning: The cooler can be filled and used only in the

horizontal position.

Acorox is recommended coolant for COOLARC 46 (see

"Accessories" chapter).

Do not use pre-packaged welding industry coolants.

These coolants may contain oil-based substances,

which attack the plastic components of the cooler. Once

added to the cooler, these substances are impossible to

purge from the water lines and heat exchanger.

Do not use automotive anti-freeze. These coolants will

damage the pump and block of the heat exchanger,

affecting cooling performance.

WARNING

The coolant reservoir can be filled maximum 6l coolant.

Minimum 4l of coolant has to be poured into the

reservoir.

WARNING

Never operate the cooler with the reservoir empty.

WARNING

Do not start cooler with coolant less than 4l.

Too less volume of coolant can not be enough to full

priming of the system and may damage the pump.

Priming Pump (only first use the

cooler) and Bleeding the Cooling

System

Figure 5.

Assemble the welding set.

Connect the hose with quick water connector (added

to the equipment) to the cooler’s inlet and outlet

socket (Figure 5).

Fill the coolant reservoir –minimum 4l.

Undo the nut.

WARNING

At first using of the COOLARC 46 reservoir’s nut has to

be removed to avoid generate partial vacuum in cooling

system during priming pump.

Turn the power source on.

Force circulation of coolant: simultaneously press

and hold the flow sensor off switch [2] and

torch’s/gun’s trigger until the coolant does not

circulate the cooling system and does not return the

reservoir.

Turn the power source off.

Disconnect the hose with quick water connector.

Connect the water-cooler hoses –Figure 6.

Turn the power source on.

Force circulation of coolant: simultaneously press

and hold the flow sensor off switch [2] and

torch’s/gun’s trigger until the coolant does not

circulate the cooling system and does not return the

reservoir.

Tighten the nut.

WARNING

After priming pump and/or bleeding the cooling system,

be sure the reservoir’s nut is tightened up. Operation of

the cooler without the nut is tightened, can cause poor

cooling efficiency, evaporation loss of coolant, and low

product life.

The welding set is ready to work.

Connecting the Cooling System Hoses

The power source has to be turned off.

Connect the "outlet" hose of torch/gun

(colored or tagged red on most hoses)

into the inlet quick connect coupling [5]

located on the front panel of the cooler.

Connect the "inlet" hose of torch/gun

(colored or tagged blue on most hoses)

into the outlet quick connect coupling [4]

located on the front panel of the cooler.

Figure 6.

Warning: The water-cooler hoses are connected into

the quick connect coupling type 21KATS09MPX (see

"Spare parts" chapter), which are equipped with

automatic outflow blockade.

Before water-cooler hoses installing to the cooler, you

should check if the water-cooler hoses connectors match

to the quick connect coupling located on the front panel

of the cooler.

English 5 English

WARNING

Avoid kinking or putting sharp bends in any water lines.

WARNING

Keep all water lines clean and free of any blockage.

Transport

To avoid freeze damage and water leakage during

transport, the coolant has to be removed from the

cooler’s reservoir.

Maintenance

WARNING

For any repair operations, modifications or

maintenances, it is recommended to contact the nearest

Technical Service Center or Lincoln Electric. Repairs

and modifications performed by unauthorized service or

personnel will cause, that the manufacturer’s warranty

will become null and void.

Any noticeable damage should be reported immediately

and repaired.

Routine maintenance (everyday)

Check condition of water-cooler hoses, connections

of the power lead.

Check the welding torch / gun condition: replace it, if

necessary.

Check condition and operation of the cooling fan.

Keep clean its airflow slots.

The reservoir volume should be checked daily before

using the cooler!!

Keep the reservoir full, especially after disconnecting

the water lines or changing the accessory being

cooled.

Periodic maintenance (not less than once a year)

Perform the routine maintenance and, in addition:

Keep the machine clean. Using a dry (and low

pressure) airflow, remove the dust from the external

case and from the cabinet inside.

In dirty or dusty environments or if biological growth

occurs in the coolant, it may be necessary to flush

the coolant reservoir. Drain the old coolant, rinse the

inside of the reservoir and circulate rinsing solution

through the coolant system. Add new coolant when

cleaning is finished.

WARNING

Hot coolant can burn skin. Always be sure coolant is

NOT HOT before servicing the cooler.

WARNING

Special precautions have to be taken when

the coolant is removed from the cooler

reservoir. The coolant must not be poured

out into ground water, sewerage, soil.

Read "Material Safety Data Sheet" (coolant

used) and contact the local Department of

Environmental Protection office to obtain

information on recycling coolant.

The frequency of the maintenance operations may vary

in accordance with the working environment where the

machine is placed.

WARNING

Do not touch electrically live parts.

WARNING

Before the case of machine will be removed, the

machine had to be turned off and the power lead had to

be disconnected from mains socket.

WARNING

Mains supply network must be disconnected from the

machine before each maintenance and service. After

each repair, perform proper tests to ensure safety.

English 6 English

Troubleshooting

This Troubleshooting Guide is designed to be used by the machine Owner/Operator. Unauthorized repairs performed on

this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For

your safety, please observe all safety notes and precautions detailed in the Safety Section of this manual to avoid

electrical shock or danger while troubleshooting this equipment.

WARNING

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact the

nearest authorized Technical Service Center or Lincoln Electric for technical troubleshooting assistance before you

proceed.

Cooler does not

operate.

Power lead unplugged.

No power at outlet.

Power lead is damaged.

Water lines blocked or crimped.

Leak in gun or water hoses.

Reservoir empty.

Plug in power lead.

Check outlet circuit breaker.

Repair damaged lead or order new lead

set.

Clear blockage in hose. Avoid kinking or

putting sharp bends in water lines.

Repair leak.

Fill reservoir.

Internal water leak.

Hose clamp loose on one of internal

hoses.

Internal hose punctured.

Heat exchanger leaking.

Tighten or replace hose clamp.

Replace punctured hose with new hose.

Replace heat exchanger.

Leak at inlet/outlet

connector block.

Hose clamp loose.

Tighten hose clamp onto hose.

Torch or gun runs hot.

Unit placed by area of extreme heat.

Low coolant flow.

No coolant flow.

Fan not operating.

Move unit away from hot air.

See Low Coolant Flow Section.

See No Coolant Flow Section.

Reference fan section.

Fan operates but there

is low coolant flow.

Leak in torch/gun or hoses.

Torch/gun or hoses partially obstructed.

Reservoir empty or very low.

Repair leak.

Clear obstruction.

Refill reservoir.

Fan operates but there

is no coolant flow.

Pump failure.

Pump seized.

Replace pump.

Pump operates, but

fan does not.

Fan blade contacting heat exchanger.

Fan motor failure.

Replace fan.

Cooler trips outlet

circuit breaker.

Circuit overloaded.

Cooler electrical component failure.

Check outlet circuit breaker.

Replace suppressor assembly and rectifier

inside of cooler.

English 7 English

Electromagnetic Compatibility (EMC)

11/04

This machine has been designed in accordance with all relevant directives and standards. However, it may still generate

electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or

other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand this

section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine.

This machine has been designed to operate in an industrial area. To operate in a domestic area it is

necessary to observe particular precautions to eliminate possible electromagnetic disturbances. The

operator must install and operate this equipment as described in this manual. If any electromagnetic

disturbances are detected the operator must put in place corrective actions to eliminate these disturbances

with, if necessary, assistance from Lincoln Electric.

Before installing the machine, the operator must check the work area for any devices that may malfunction because of

electromagnetic disturbances. Consider the following.

Input and output cables, control cables, and telephone cables that are in or adjacent to the work area and the

machine.

Radio and/or television transmitters and receivers. Computers or computer controlled equipment.

Safety and control equipment for industrial processes. Equipment for calibration and measurement.

Personal medical devices like pacemakers and hearing aids.

Check the electromagnetic immunity for equipment operating in or near the work area. The operator must be sure

that all equipment in the area is compatible. This may require additional protection measures.

The dimensions of the work area to consider will depend on the construction of the area and other activities that are

taking place.

Consider the following guidelines to reduce electromagnetic emissions from the machine.

Connect the machine to the input supply according to this manual. If disturbances occur if may be necessary to take

additional precautions such as filtering the input supply.

The output cables should be kept as short as possible and should be positioned together. If possible connect the

work piece to ground in order to reduce the electromagnetic emissions. The operator must check that connecting the

work piece to ground does not cause problems or unsafe operating conditions for personnel and equipment.

Shielding of cables in the work area can reduce electromagnetic emissions. This may be necessary for special

applications.

WARNING

The Class A equipment is not intended for use in residential locations where the electrical power is provided by the public

low-voltage supply system. There may be potential difficulties in ensuring electromagnetic compatibility in those

locations, due to conducted as well as radiated disturbances.

Otros manuales para COOLARC 46

Tabla de contenidos

Otros manuales de Sistema de soldadura de Lincoln Electric

Lincoln Electric

Lincoln Electric POWER WAVE SVM173-A Manual de usuario

Lincoln Electric

Lincoln Electric 11827 Manual de usuario

Lincoln Electric

Lincoln Electric Precision TIG 375 Manual de usuario

Lincoln Electric

Lincoln Electric POWER MIGTM 200 IM693 Manual de usuario

Lincoln Electric

Lincoln Electric HELIX M627 Manual de usuario

Lincoln Electric

Lincoln Electric AUTODRIVE 4R220 Manual de usuario

Lincoln Electric

Lincoln Electric Weldanpower 125 Manual de usuario

Lincoln Electric

Lincoln Electric handy mig Manual de usuario

Lincoln Electric

Lincoln Electric Square Wave TIG 200 Manual de usuario

Lincoln Electric

Lincoln Electric FlexCut 200 Manual de usuario

Lincoln Electric

Lincoln Electric POWER WAVE STT Manual de usuario

Lincoln Electric

Lincoln Electric WELD-PACK 100 PLUS IM546 Manual de usuario

Lincoln Electric

Lincoln Electric POWER MIG 255XT Manual de usuario

Lincoln Electric

Lincoln Electric DUAL VANTAGE 800-I Manual de usuario

Lincoln Electric

Lincoln Electric INVERTEC IM465-B Manual de usuario

Lincoln Electric

Lincoln Electric POWER FEED 10M SINGLE/DUAL SVM172-A Manual de usuario

Lincoln Electric

Lincoln Electric RED-D-ARC IM648-B Manual de usuario

Lincoln Electric

Lincoln Electric POWER WAVE 405 Manual de usuario

Lincoln Electric

Lincoln Electric LINC FEED 37 Manual de usuario

Lincoln Electric

Lincoln Electric DC-655 IM602-A Manual de usuario

Lincoln Electric

Lincoln Electric INVERTEC SVM129-B Manual de usuario

Lincoln Electric

Lincoln Electric TOMAHAWK TM 625 IM10020 Manual de usuario

Lincoln Electric

Lincoln Electric VANTAGE IM10064 Manual de usuario

Lincoln Electric

Lincoln Electric POWER FEED 84 SINGLE Manual de usuario

Manuales populares de Sistema de soldadura de otras marcas

Berner

Berner PLASMACUT 54 Manual de usuario

Pro Spot

Pro Spot PR-155 Manual de usuario

Forney

Forney 210 Manual de usuario

Thermal Arc

Thermal Arc 400S Manual de usuario

GYS

GYS PROTIG 201 AC/DC Manual de usuario

TAFA

TAFA 30*8B35 Manual de usuario

ESAB

ESAB Buddy Arc 145 Manual de usuario

CIGWELD

CIGWELD 636804 Guía rápida

Red-D-Arc

Red-D-Arc DC-400 Manual de usuario

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manual de usuario

Elettro

Elettro HI-MIG 3000 SYNERGIC Manual de usuario

WIA

WIA Weldmatic 270 CP132-2 Manual de usuario

Sonics

Sonics H520T Manual de usuario

Miller

Miller Big Blue 400D Manual de usuario

NewArc

NewArc RT2000 Guía de inicio rápido

Hypertherm

Hypertherm powermax1000 Manual de usuario

Everlast

Everlast POWER MTS 221STi Manual de usuario

Kipor

Kipor KDE180XW Manual de usuario
