Commander 300

OPERATOR’S MANUAL

IM700-D

July, 2004

Safety Depends on You

Lincoln arc welding and cutting

equipment is designed and built

with safety in mind. However, your

overall safety can be increased by

proper installation ... and thoughtful

operation on your part. DO NOT

INSTALL, OPERATE OR REPAIR

THIS EQUIPMENT WITHOUT

READING THIS MANUAL AND

THE SAFETY PRECAUTIONS

CONTAINED THROUGHOUT. And,

most importantly, think before you

act and be careful.

For use with machines having Code Numbers: 10702; 10870; 10899; 10950; 11200 (Standard)

10703; 10871; 10900; 10951; 11201 (Deluxe)

™

•Sales and Service through Subsidiaries and Distributors Worldwide •

Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com

•World's Leader in Welding and Cutting Products •

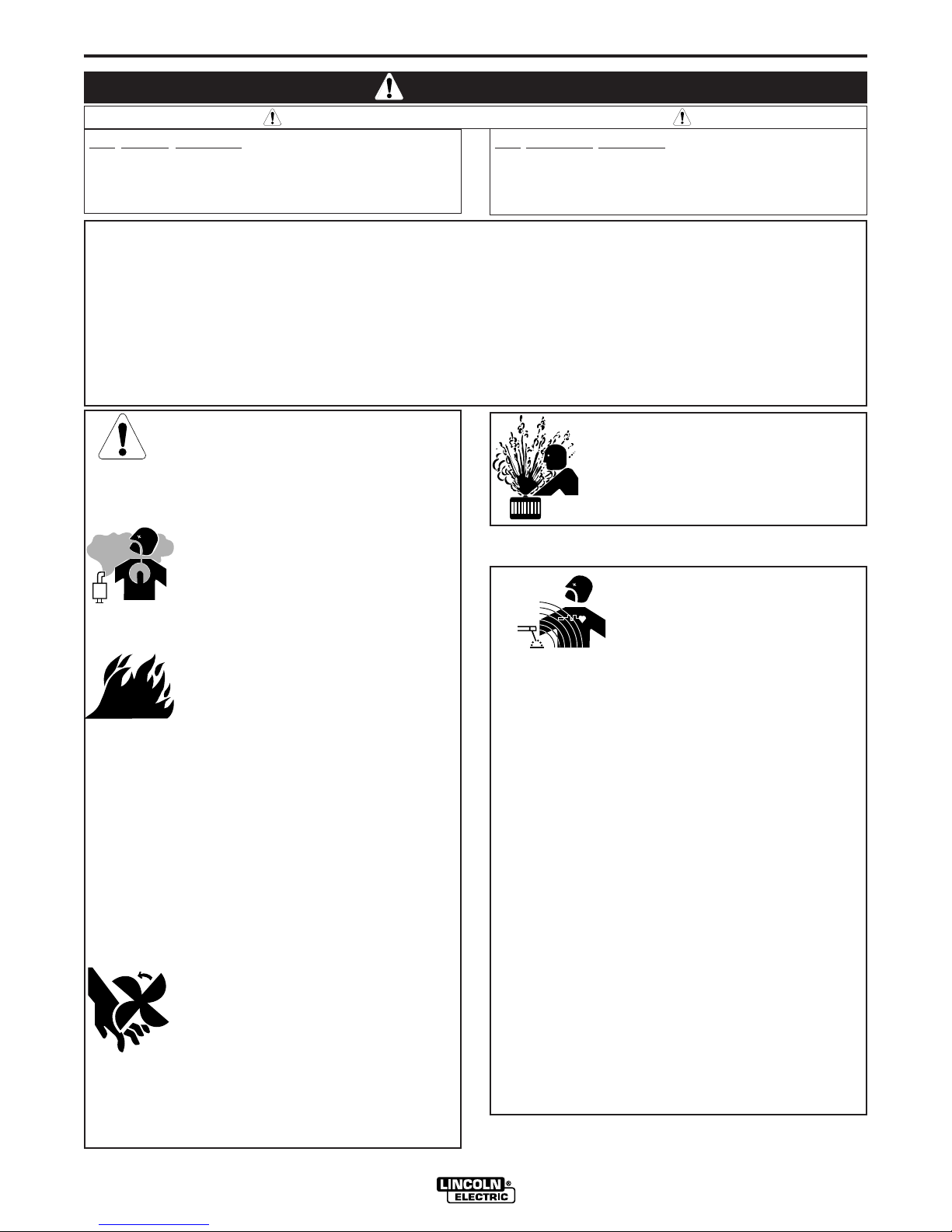

FOR ENGINE

powered equipment.

1.a. Turn the engine off before troubleshooting and maintenance

work unless the maintenance work requires it to be running.

____________________________________________________

1.b.Operate engines in open, well-ventilated

areas or vent the engine exhaust fumes

outdoors.

____________________________________________________

1.c. Do not add the fuel near an open flame weld-

ing arc or when the engine is running. Stop

the engine and allow it to cool before refuel-

ing to prevent spilled fuel from vaporizing on

contact with hot engine parts and igniting. Do

not spill fuel when filling tank. If fuel is spilled,

wipe it up and do not start engine until fumes

have been eliminated.

____________________________________________________

1.d. Keep all equipment safety guards, coversand devices in posi-

tion and in good repair.Keep hands, hair, clothing and tools

away from V-belts, gears, fans and all other moving parts

when starting, operating or repairing equipment.

____________________________________________________

1.e. In some cases it may be necessary to remove safety

guards to perform required maintenance. Remove

guards only when necessary and replace them when the

maintenance requiring their removal is complete.

Always use the greatest care when working near moving

parts.

___________________________________________________

1.f. Do not put your hands near the engine fan.

Do not attempt to override the governor or

idler by pushing on the throttle control rods

while the engine is running.

___________________________________________________

1.g. To prevent accidentally starting gasoline engines while

turning the engine or welding generator during maintenance

work, disconnect the spark plug wires, distributor cap or

magneto wire as appropriate.

SAFETY

ARC WELDING CAN BE HAZARDOUS. PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH.

KEEP CHILDREN AWAY. PACEMAKER WEARERS SHOULD CONSULT WITH THEIR DOCTOR BEFORE OPERATING.

Read and understand the following safety highlights. For additional safety information, it is strongly recommended that you

purchase a copy of “Safety in Welding & Cutting -ANSI Standard Z49.1”from theAmerican Welding Society, P.O. Box 351040,

Miami, Florida 33135 or CSA Standard W117.2-1974. A Free copy of “Arc Welding Safety”booklet E205 is available from the

Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.

BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE

PERFORMED ONLY BY QUALIFIED INDIVIDUALS.

WARNING

Mar ‘95

ELECTRIC AND

MAGNETIC FIELDS

may be dangerous

2.a. Electric current flowing through any conductor causes

localized Electric and Magnetic Fields (EMF). Welding

current creates EMF fields around welding cables and

welding machines

2.b. EMF fields may interfere with some pacemakers, and

welders having a pacemaker should consult their physician

before welding.

2.c. Exposure to EMF fields in welding may have other health

effects which are now not known.

2.d. All welders should use the following procedures in order to

minimize exposure to EMF fields from the welding circuit:

2.d.1.

Route the electrode and work cables together - Secure

them with tape when possible.

2.d.2. Never coil the electrode lead around your body.

2.d.3. Do not place your body between the electrode and

work cables. If the electrode cable is on your right

side, the work cable should also be on your right side.

2.d.4. Connect the work cable to the workpiece as close as

possible to the area being welded.

2.d.5. Do not work next to welding power source.

1.h. To avoid scalding, do not remove the

radiator pressure cap when the engine is

hot.

For Diesel Engines: Diesel engine exhaust and

some of its constituents are known to the State

of California to cause cancer, birth defects, and

other reproductive harm.

For Gasoline Engines: The engine exhaust from

this product contains chemicals known to the

State of California to cause cancer, birth defects,

or other reproductive harm.

CALIFORNIA PROPOSITION 65 WARNINGS

SAFETY

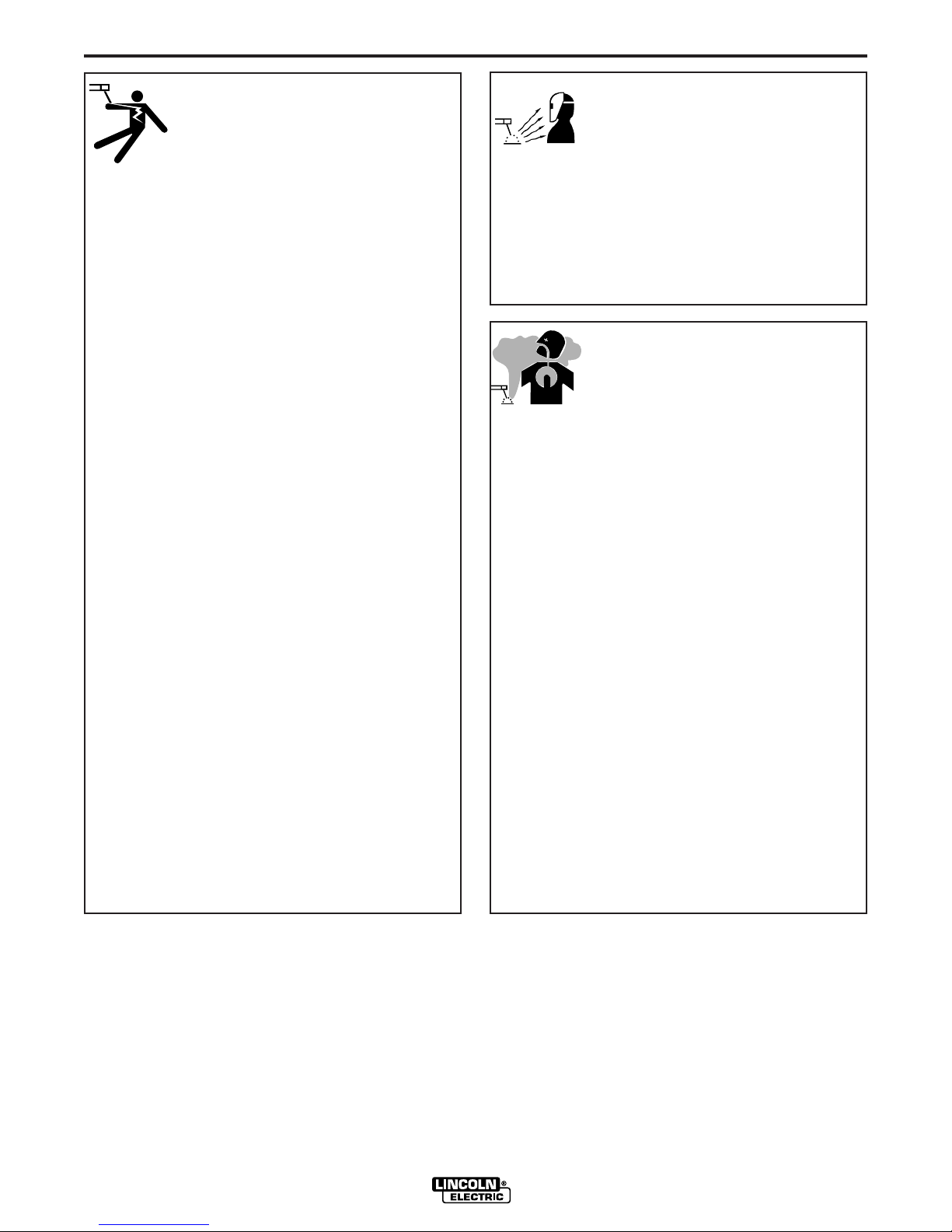

ARC RAYS can burn.

4.a. Use a shield with the proper filter and cover

plates to protect your eyes from sparks and

the rays of the arc when welding or observing

open arc welding. Headshield and filter lens

should conform to ANSI Z87. I standards.

4.b. Use suitable clothing made from durable flame-resistant

material to protect your skin and that of your helpers from

the arc rays.

4.c. Protect other nearby personnel with suitable, non-flammable

screening and/or warn them not to watch the arc nor expose

themselves to the arc rays or to hot spatter or metal.

ELECTRIC SHOCK can kill.

3.a. The electrode and work (or ground) circuits

are electrically “hot”when the welder is on.

Do not touch these “hot”parts with your bare

skin or wet clothing. Wear dry, hole-free

gloves to insulate hands.

3.b. Insulate yourself from work and ground using dry insulation.

Make certain the insulation is large enough to cover your full

area of physical contact with work and ground.

In addition to the normal safety precautions, if welding

must be performed under electrically hazardous

conditions (in damp locations or while wearing wet

clothing; on metal structures such as floors, gratings or

scaffolds; when in cramped positions such as sitting,

kneeling or lying, if there is a high risk of unavoidable or

accidental contact with the workpiece or ground) use

the following equipment:

•Semiautomatic DC Constant Voltage (Wire) Welder.

•DC Manual (Stick) Welder.

•AC Welder with Reduced Voltage Control.

3.c. In semiautomatic or automatic wire welding, the electrode,

electrode reel, welding head, nozzle or semiautomatic

welding gun are also electrically “hot”.

3.d. Always be sure the work cable makes a good electrical

connection with the metal being welded. The connection

should be as close as possible to the area being welded.

3.e. Ground the work or metal to be welded to a good electrical

(earth) ground.

3.f.

Maintain the electrode holder, work clamp, welding cable and

welding machine in good, safe operating condition. Replace

damaged insulation.

3.g. Never dip the electrode in water for cooling.

3.h. Never simultaneously touch electrically “hot”parts of

electrode holders connected to two welders because voltage

between the two can be the total of the open circuit voltage

of both welders.

3.i. When working above floor level, use a safety belt to protect

yourself from a fall should you get a shock.

3.j. Also see Items 6.c. and 8.

FUMES AND GASES

can be dangerous.

5.a.Welding may produce fumes and gases

hazardous to health. Avoid breathing these

fumes and gases.When welding, keep

your head out of the fume. Use enough

ventilation and/or exhaust at the arc to keep

fumes and gases away from the breathing zone. When

welding with electrodes which require special

ventilation such as stainless or hard facing (see

instructions on container or MSDS) or on lead or

cadmium plated steel and other metals or coatings

which produce highly toxic fumes, keep exposure as

low as possible and below Threshold Limit Values (TLV)

using local exhaust or mechanical ventilation. In

confined spaces or in some circumstances, outdoors, a

respirator may be required. Additional precautions are

also required when welding on galvanized steel.

5.b.

Do not weld in locations near chlorinated hydrocarbon

vapors

coming from degreasing, cleaning or spraying operations.

The heat and rays of the arc can react with solvent vapors

form phosgene, a highly toxic gas, and other irritating

products.

5.c. Shielding gases used for arc welding can displace air and

cause injury or death. Always use enough ventilation,

especially in confined areas, to insure breathing air is safe.

5.d. Read and understand the manufacturer’s instructions for this

equipment and the consumables to be used, including the

material safety data sheet (MSDS) and follow your

employer’s safety practices. MSDS forms are available from

your welding distributor or from the manufacturer.

5.e. Also see item 1.b.

Mar ‘95

FOR ELECTRICALLY

powered equipment.

8.a. Turn off input power using the disconnect

switch at the fuse box before working on

the equipment.

8.b. Install equipment in accordance with the U.S. National

Electrical Code, all local codes and the manufacturer’s

recommendations.

8.c. Ground the equipment in accordance with the U.S. National

Electrical Code and the manufacturer’s recommendations.

CYLINDER may explode

if damaged.

7.a. Use only compressed gas cylinders

containing the correct shielding gas for the

process used and properly operating

regulators designed for the gas and

pressure used. All hoses, fittings, etc. should be suitable for

the application and maintained in good condition.

7.b. Always keep cylinders in an upright position securely

chained to an undercarriage or fixed support.

7.c. Cylinders should be located:

•Away from areas where they may be struck or subjected to

physical damage.

•A safe distance from arc welding or cutting operations and

any other source of heat, sparks, or flame.

7.d. Never allow the electrode, electrode holder or any other

electrically “hot”parts to touch a cylinder.

7.e. Keep your head and face away from the cylinder valve outlet

when opening the cylinder valve.

7.f. Valve protection caps should always be in place and hand

tight except when the cylinder is in use or connected for

use.

7.g. Read and follow the instructions on compressed gas

cylinders, associated equipment, and CGA publication P-l,

“Precautions for Safe Handling of Compressed Gases in

Cylinders,”available from the Compressed Gas Association

1235 Jefferson Davis Highway, Arlington, VA 22202.

iii

SAFETY

iii

Mar ‘95

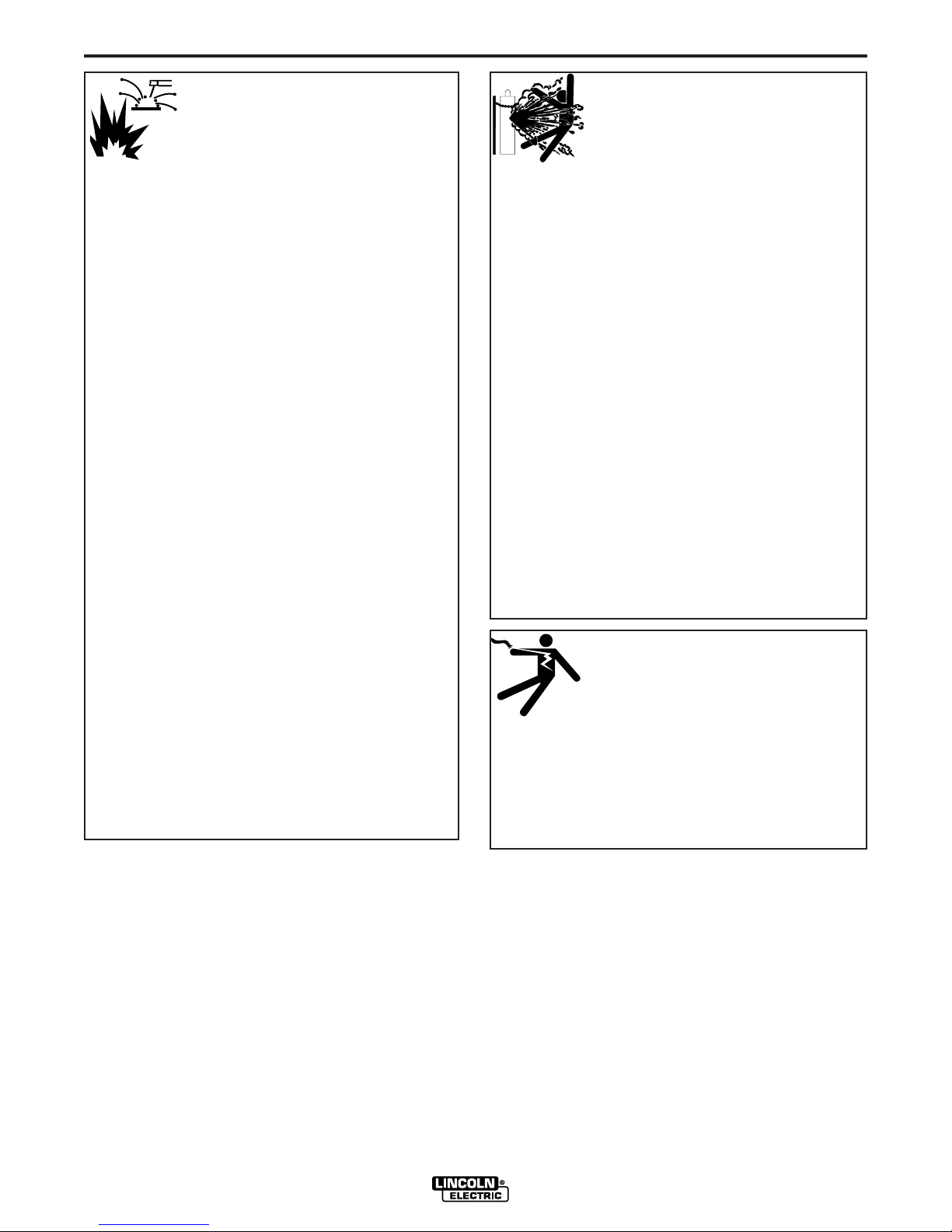

WELDING SPARKS can

cause fire or explosion.

6.a.

Remove fire hazards from the welding area.

If this is not possible, cover them to prevent

the welding sparks from starting a fire.

Remember that welding sparks and hot

materials from welding can easily go through small cracks

and openings to adjacent areas. Avoid welding near

hydraulic lines. Have a fire extinguisher readily available.

6.b. Where compressed gases are to be used at the job site,

special precautions should be used to prevent hazardous

situations. Refer to “Safety in Welding and Cutting”(ANSI

Standard Z49.1) and the operating information for the

equipment being used.

6.c. When not welding, make certain no part of the electrode

circuit is touching the work or ground. Accidental contact can

cause overheating and create a fire hazard.

6.d. Do not heat, cut or weld tanks, drums or containers until the

proper steps have been taken to insure that such procedures

will not cause flammable or toxic vapors from substances

inside. They can cause an explosion even

though

they have

been “cleaned”. For information, purchase “Recommended

Safe Practices for the

Preparation

for Welding and Cutting of

Containers and Piping That Have Held Hazardous

Substances”, AWS F4.1 from the American Welding Society

(see address above).

6.e. Vent hollow castings or containers before heating, cutting or

welding. They may explode.

6.f.

Sparks and spatter are thrown from the welding arc. Wear oil

free protective garments such as leather gloves, heavy shirt,

cuffless trousers, high shoes and a cap over your hair. Wear

ear plugs when welding out of position or in confined places.

Always wear safety glasses with side shields when in a

welding area.

6.g. Connect the work cable to the work as close to the welding

area as practical. Work cables connected to the building

framework or other locations away from the welding area

increase the possibility of the welding current passing

through lifting chains, crane cables or other alternate circuits.

This can create fire hazards or overheat lifting chains or

cables until they fail.

6.h. Also see item 1.c.

SAFETY

Mar. ‘93

PRÉCAUTIONS DE SÛRETÉ

Pour votre propre protection lire et observer toutes les instructions

et les précautions de sûretéspecifiques qui parraissent dans ce

manuel aussi bien que les précautions de sûretégénérales suiv-

antes:

SûretéPour Soudage A L’Arc

1. Protegez-vous contre la secousse électrique:

a. Les circuits àl’électrode et àla piéce sont sous tension

quand la machine àsouder est en marche. Eviter toujours

tout contact entre les parties sous tension et la peau nue

ou les vétements mouillés. Porter des gants secs et sans

trous pour isoler les mains.

b. Faire trés attention de bien s’isoler de la masse quand on

soude dans des endroits humides, ou sur un plancher met-

allique ou des grilles metalliques, principalement dans

les positions assis ou couchépour lesquelles une grande

partie du corps peut être en contact avec la masse.

c. Maintenir le porte-électrode, la pince de masse, le câble de

soudage et la machine àsouder en bon et sûrétat defonc-

tionnement.

d.Ne jamais plonger le porte-électrode dans l’eau pour le

refroidir.

e. Ne jamais toucher simultanément les parties sous tension

des porte-électrodes connectésàdeux machines àsoud-

er parce que la tension entre les deux pinces peut être le

total de la tension àvide des deux machines.

f. Si on utilise la machine àsouder comme une source de

courant pour soudage semi-automatique, ces precautions

pour le porte-électrode s’applicuent aussi au pistolet de

soudage.

2. Dans le cas de travail au dessus du niveau du sol, se protéger

contre les chutes dans le cas ou on recoit un choc. Ne jamais

enrouler le câble-électrode autour de n’importe quelle partie

du corps.

3. Un coup d’arc peut être plus sévère qu’un coup de soliel,

donc:

a. Utiliser un bon masque avec un verre filtrant approprié

ainsi qu’un verre blanc afin de se protéger les yeux du ray-

onnement de l’arc et des projections quand on soude ou

quand on regarde l’arc.

b. Porter des vêtements convenables afin de protéger la

peau de soudeur et des aides contre le rayonnement de

l‘arc.

c. Protéger l’autre personnel travaillant àproximitéau

soudage àl’aide d’écrans appropriés et non-inflammables.

4. Des gouttes de laitier en fusion sont émises de l’arc de

soudage. Se protéger avec des vêtements de protection libres

de l’huile, tels que les gants en cuir, chemise épaisse, pan-

talons sans revers, et chaussures montantes.

5. Toujours porter des lunettes de sécuritédans la zone de

soudage. Utiliser des lunettes avec écrans lateraux dans les

zones oùl’on pique le laitier.

6. Eloigner les matériaux inflammables ou les recouvrir afin de

prévenir tout risque d’incendie dûaux étincelles.

7. Quand on ne soude pas, poser la pince àune endroit isoléde

la masse. Un court-circuit accidental peut provoquer un

échauffement et un risque d’incendie.

8. S’assurer que la masse est connectée le plus prés possible de

la zone de travail qu’il est pratique de le faire. Si on place la

masse sur la charpente de la construction ou d’autres endroits

éloignés de la zone de travail, on augmente le risque de voir

passer le courant de soudage par les chaines de levage,

câbles de grue, ou autres circuits. Cela peut provoquer des

risques d’incendie ou d’echauffement des chaines et des

câbles jusqu’à ce qu’ils se rompent.

9. Assurer une ventilation suffisante dans la zone de soudage.

Ceci est particuliérement important pour le soudage de tôles

galvanisées plombées, ou cadmiées ou tout autre métal qui

produit des fumeés toxiques.

10. Ne pas souder en présence de vapeurs de chlore provenant

d’opérations de dégraissage, nettoyage ou pistolage. La

chaleur ou les rayons de l’arc peuvent réagir avec les vapeurs

du solvant pour produire du phosgéne (gas fortement toxique)

ou autres produits irritants.

11. Pour obtenir de plus amples renseignements sur la sûreté, voir

le code “Code for safety in welding and cutting”CSAStandard

W 117.2-1974.

PRÉCAUTIONS DE SÛRETÉPOUR

LES MACHINES ÀSOUDER À

TRANSFORMATEUR ET À

REDRESSEUR

1. Relier àla terre le chassis du poste conformement au code de

l’électricitéet aux recommendations du fabricant. Le dispositif

de montage ou la piece àsouder doit être branchéàune

bonne mise àla terre.

2. Autant que possible, I’installation et l’entretien du poste seront

effectués par un électricien qualifié.

3. Avant de faires des travaux àl’interieur de poste, la debranch-

er àl’interrupteur àla boite de fusibles.

4. Garder tous les couvercles et dispositifs de sûretéàleur

place.

Thank You for selecting a QUALITY product by Lincoln Electric. We want you

to take pride in operating this Lincoln Electric Company product •••

as much pride as we have in bringing this product to you!

Read this Operators Manual completely before attempting to use this equipment. Save this manual and keep it

handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection.

The level of seriousness to be applied to each is explained below:

WARNING

This statement appears where the information must be followed exactly to avoid serious personal injury or

loss of life.

This statement appears where the information must be followed to avoid minor personal injury or damage to

this equipment.

CAUTION

Please Examine Carton and Equipment For Damage Immediately

When this equipment is shipped, title passes to the purchaser upon receipt by the carrier. Consequently, Claims

for material damaged in shipment must be made by the purchaser against the transportation company at the time

the shipment is received.

Please record your equipment identification information below for future reference. This information can be found

on your machine nameplate.

Product _________________________________________________________________________________

Model Number ___________________________________________________________________________

Code Number or Date Code_________________________________________________________________

Serial Number____________________________________________________________________________

Date Purchased___________________________________________________________________________

Where Purchased_________________________________________________________________________

Whenever you request replacement parts or information on this equipment, always supply the information you

have recorded above. The code number is especially important when identifying the correct replacement parts.

On-Line Product Registration

- Register your machine with Lincoln Electric either via fax or over the Internet.

•For faxing: Complete the form on the back of the warranty statement included in the literature packet

accompanying this machine and fax the form per the instructions printed on it.

•For On-Line Registration: Go to our

WEB SITE at www.lincolnelectric.com. Choose “Quick Links”and then

“Product Registration”. Please complete the form and submit your registration.

TABLE OF CONTENTS Page

Safety .........................................................................................................................i-iv

Installation .......................................................................................................Section A

Technical Specifications ........................................................................................A-1

Safety Precautions ................................................................................................A-2

Location / Ventilation .............................................................................................A-2

Storing.............................................................................................................A-2

Stacking ..........................................................................................................A-2

Angle of Operation..........................................................................................A-2

Lifting...............................................................................................................A-3

High Altitude Operation...................................................................................A-3

Towing.............................................................................................................A-3

Pre-Operation Engine Service...............................................................................A-4

Oil....................................................................................................................A-4

Fuel.................................................................................................................A-4

Fuel Cap..........................................................................................................A-4

Engine Cooling System...................................................................................A-4

Battery Connection..........................................................................................A-4

Muffler .............................................................................................................A-5

Spark Arrester.................................................................................................A-5

High Frequency Generators for TIG Applications .................................................A-5

Remote Control .....................................................................................................A-5

Welding Terminals .................................................................................................A-5

Welding Output Cables..........................................................................................A-6

Machine Grounding...............................................................................................A-6

Auxiliary Power Receptacles.................................................................................A-6

Standby Power Connections..........................................................................A-6, A-7

Connection of Lincoln Electric Wire Feeders.................................................A-8, A-9

Operation.........................................................................................................Section B

Safety Precautions ................................................................................................B-1

General Description...............................................................................................B-1

Recommended Applications............................................................................B-1

Design Features and Advantages...................................................................B-1

Welding Capability ..........................................................................................B-2

Controls and Settings............................................................................................B-3

Engine Controls.......................................................................................B-3, B-4

Welder Controls,Auxiliary Power Controls..............................................B-5, B-6

Engine Operation...................................................................................................B-6

Starting the Engine .........................................................................................B-6

Stopping the Engine........................................................................................B-6

Break-In Period...............................................................................................B-7

Typical Fuel Consumption...............................................................................B-7

Welder Operation ..................................................................................................B-7

Stick Welding ..................................................................................................B-7

TIG Welding................................................................................................... B-8

Typical Current Ranges for Tungsten Electrodes..........................................B-9

Wire Feed (Constant Voltage) Welding.........................................................B-10

Arc Gouging..................................................................................................B-10

Paralleling .....................................................................................................B-10

Auxiliary Power Operation...................................................................................B-11

Simultaneous Welding and Auxiliary Power Loads.......................................B-11

vivi

COMMANDER 300

TABLE OF CONTENTS

Accessories.....................................................................................................Section C

Optional Field Installed Accessories .....................................................................C-1

Recommended Optional Equipment .....................................................................C-1

High Frequency Generators For TIG Applications................................................C-1

Maintenance ....................................................................................................Section D

Safety Precautions................................................................................................D-1

Routine and Periodic Maintenance.......................................................................D-1

Engine Maintenance..............................................................................................D-1

Air Filter...........................................................................................................D-1

Fuel Filters......................................................................................................D-2

Cooling System...............................................................................................D-2

Cooling Blower Belt ........................................................................................D-2

Battery Handling .............................................................................................D-3

Nameplates / Warning Decals Maintenance.........................................................D-3

Welder / Generator Maintenance..........................................................................D-3

Storage ...........................................................................................................D-3

Cleaning..........................................................................................................D-3

Brush Removal and Replacement..................................................................D-3

Engine Maintenance Components........................................................................D-4

Troubleshooting..............................................................................................Section E

Diagrams and Dimension Print......................................................................Section F

Parts List......................................................................................................P388 Series

viivii

COMMANDER 300

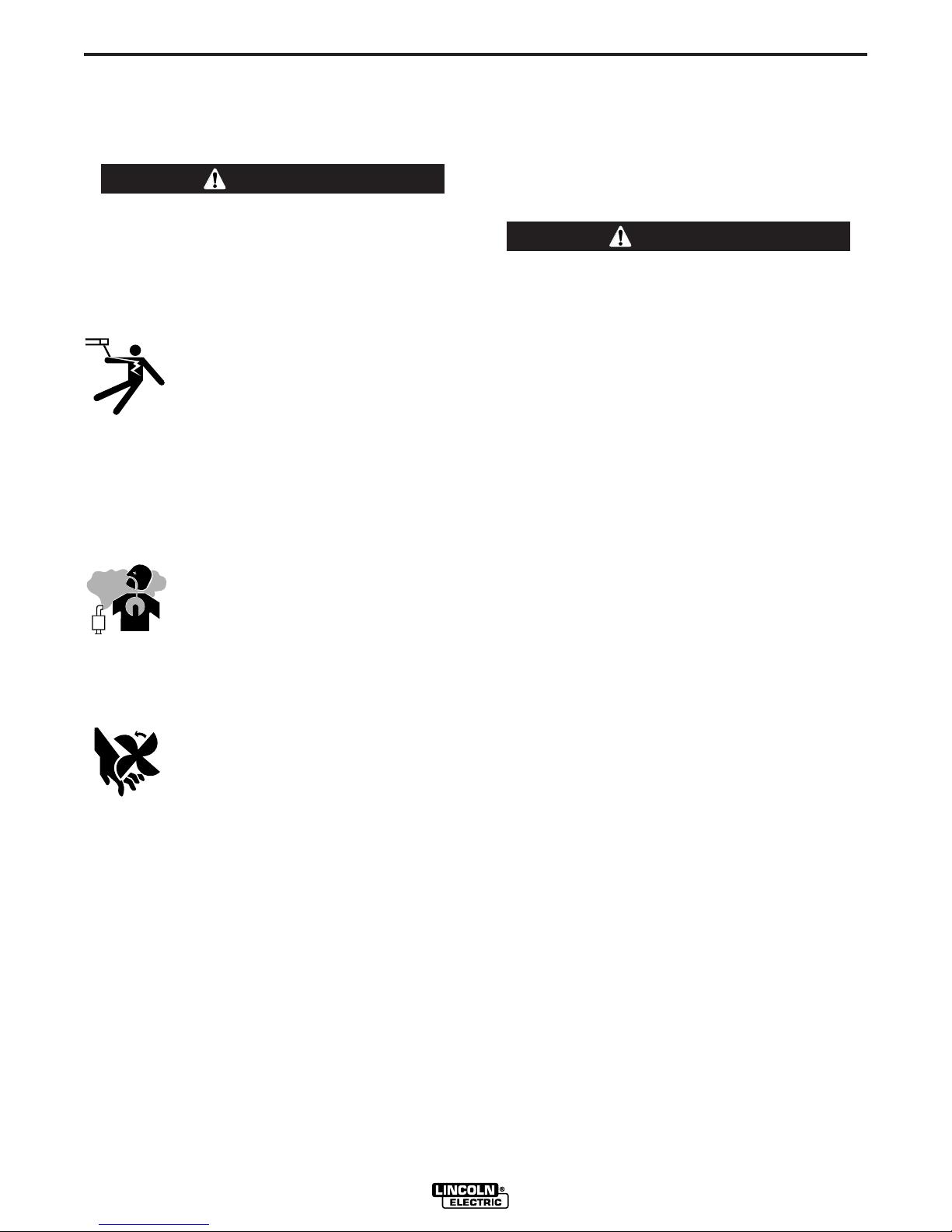

A-2

INSTALLATION

COMMANDER 300

A-2

Read this entire installation section before you

start installation.

SAFETY PRECAUTIONS

Do not attempt to use this equipment until you have

thoroughly read all operating and maintenance manu-

als supplied with your machine. They include impor-

tant safety precautions, detailed engine starting, oper-

ating and maintenance instructions and parts lists.

ELECTRIC SHOCK can kill.

•Do not touch electrically live parts

such as output terminals or internal

wiring.

•Insulate yourself from the work and

ground.

•Always wear dry insulating gloves.

------------------------------------------------------------------------

ENGINE EXHAUST can kill.

•Use in open, well ventilated areas or

vent exhaust outside

•Do not stack anything near the

engine.

------------------------------------------------------------------------

MOVING PARTS can injure.

•Do not operate with doors open or

guards off.

•Stop engine before servicing.

•Keep away from moving parts

------------------------------------------------------------------------

Only qualified personnel should install, use or service

this equipment

LOCATION / VENTILATION

The welder should be located to provide an unrestricted

flow of clean, cool air to the cooling air inlets and to avoid

restricting the cooling air outlets. Also, locate the welder

so that the engine exhaust fumes are properly vented to

an outside area.

DO NOT MOUNT OVER COMBUSTIBLE SURFACES

Where there is a combustible surface directly under

stationary or fixed electrical equipment, that surface

should be covered with a steel plate at least

.06”(1.6mm) thick, which should extend not less than

5.90”(150mm) beyond the equipment on all sides.

STORING

1. Store the machine in a cool, dry place when it is not

in use. Protect it from dust and dirt. Keep it where it

can’t be accidentally damaged from construction

activities, moving vehicles, and other hazards.

2. Drain the engine oil and refill with fresh 10W30 oil.

Run the engine for about five minutes to circulate oil

to all the parts. See the MAINTENANCE section of

this manual for details on changing oil.

3. Remove the battery, recharge it, and adjust the elec-

trolyte level. Store the battery in a dry, dark place.

4. If the engine is not used for a long period of time,

every two to three months run the engine for about

five minutes to keep it free from rust.

STACKING

Commander 300 machines cannot be stacked.

ANGLE OF OPERATION

To achieve optimum engine performance the

Commander 300 should be run in a level position. The

maximum angle of operation for the Deutz engine is 20

degrees in a direction to cause the control panel to be

angled up, 30 degrees for side to side tilting and for the

control panel to be angled down. If the engine is to be

operated at an angle, provisions must be made for

checking and maintaining the oil level at the normal

(FULL) oil capacity in the crankcase. When operating

the welder at an angle, the effective fuel capacity will

be slightly less than the specified 25 gallons.

WARNING

CAUTION

A-3

INSTALLATION

COMMANDER 300

A-3

LIFTING

The Commander lift bale should be used to lift the

machine. The Commander is shipped with the lift bale

retracted. Before attempting to lift the Commander the

lift bale must be secured in a raised position. Secure

the lift bale as follows:

a. Open the engine compartment door.

b. Locate the 2 access holes on the upper middle

region of compartment wall just below the lift

bale.

c. Use the lifting strap to raise the lift bale to the full

upright position. This will align the mounting

holes on the lift bale with the access holes.

d. Secure the lift bale with 2 thread forming screws.

The screws are provided in the shipped loose

parts bag.

HIGH ALTITUDE OPERATION

At higher altitudes, output derating may be necessary. For

maximum rating, derate the welder output 5% for every 300

meters (984 ft.) above 1500 meters (4920 ft.). For output of

300A and below, derate the welder output 5% for every 300

meters (984 ft.) above 2100 meters (6888 ft.)

Contact a Deutz Service Representative for any

engine adjustments that may be required.

TOWING

The recommended trailer for use with this equipment

for road, in-plant and yard towing by a vehicle(1) is

Lincoln’s K953-1. If the user adapts a non-Lincoln trail-

er, he must assume responsibility that the method of

attachment and usage does not result in a safety haz-

ard nor damage the welding equipment. Some of the

factors to be considered are as follows:

1. Design capacity of trailer vs. weight of Lincoln

equipment and likely additional attachments.

2. Proper support of, and attachment to, the base of

the welding equipment so that there will be no

undue stress to the trailer’s framework.

3. Proper placement of the equipment on the trailer to

insure stability side to side and front to back when

being moved and when standing by itself.

4. Typical conditions of use, such as travel speed,

roughness of surface on which the trailer will be

operated, and environmental conditions.

5. Proper preventative maintenance of trailer.

6. Conformance with federal, state and local laws.(1)

(1)Consult applicable federal, state and local laws

regarding specific requirements for use on public high-

ways.

VEHICLE MOUNTING

Improperly mounted concentrated loads may

cause unstable vehicle handling and tires or other

components to fail.

•Only transport this Equipment on serviceable vehi-

cles which are rated and designed for such loads.

•Distribute, balance and secure loads so vehicle is

stable under conditions of use.

•Do not exceed maximum rated loads for compo-

nents such as suspension, axles and tires.

•Mount equipment base to metal bed or frame of vehi-

cle.

•Follow vehicle manufacture’s instructions.

WARNING

•Lift only with equipment of

adequate lifting capacity.

•Be sure machine is stable

when lifting.

•Do not lift this machine using

lift bale if it is equipped with a

heavy accessory such as trail-

er or gas cylinder.

FALLING •Do not lift machine if lift bale

is damaged.

EQUIPMENT can •Do not operate machine while

cause injury. suspended from lift bale.

------------------------------------------------------------------------

WARNING

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de soldadura de Lincoln Electric

Lincoln Electric

Lincoln Electric RANGER IM604-B Manual de usuario

Lincoln Electric

Lincoln Electric POWER FEED 84 SINGLE Manual de usuario

Lincoln Electric

Lincoln Electric RANGER 9 IM753-A Manual de usuario

Lincoln Electric

Lincoln Electric LN- 25 IM10084 Manual de usuario

Lincoln Electric

Lincoln Electric RANGER SVM148-B Manual de usuario

Lincoln Electric
