Page 1 of 20
LINAK.COM/HOMELINE
CBH Basic systems
User manual
Page 2 of 20
Contents
Preface............................................................................................................................................... 3
Valid for............................................................................................................................................ 4
Important information ................................................................................................................... 5
Safety instructions........................................................................................................................ 5
Safety issues................................................................................................................................ 6
Before installation, re-installation or troubleshooting.................................................................... 7
Before Start-up ............................................................................................................................ 7
During operation.......................................................................................................................... 7
Misc. ........................................................................................................................................... 7
Only for EU markets ....................................................................................................................... 8
Only for Non EU markets .............................................................................................................. 8
Misuse .............................................................................................................................................. 8
Repairs.............................................................................................................................................. 9

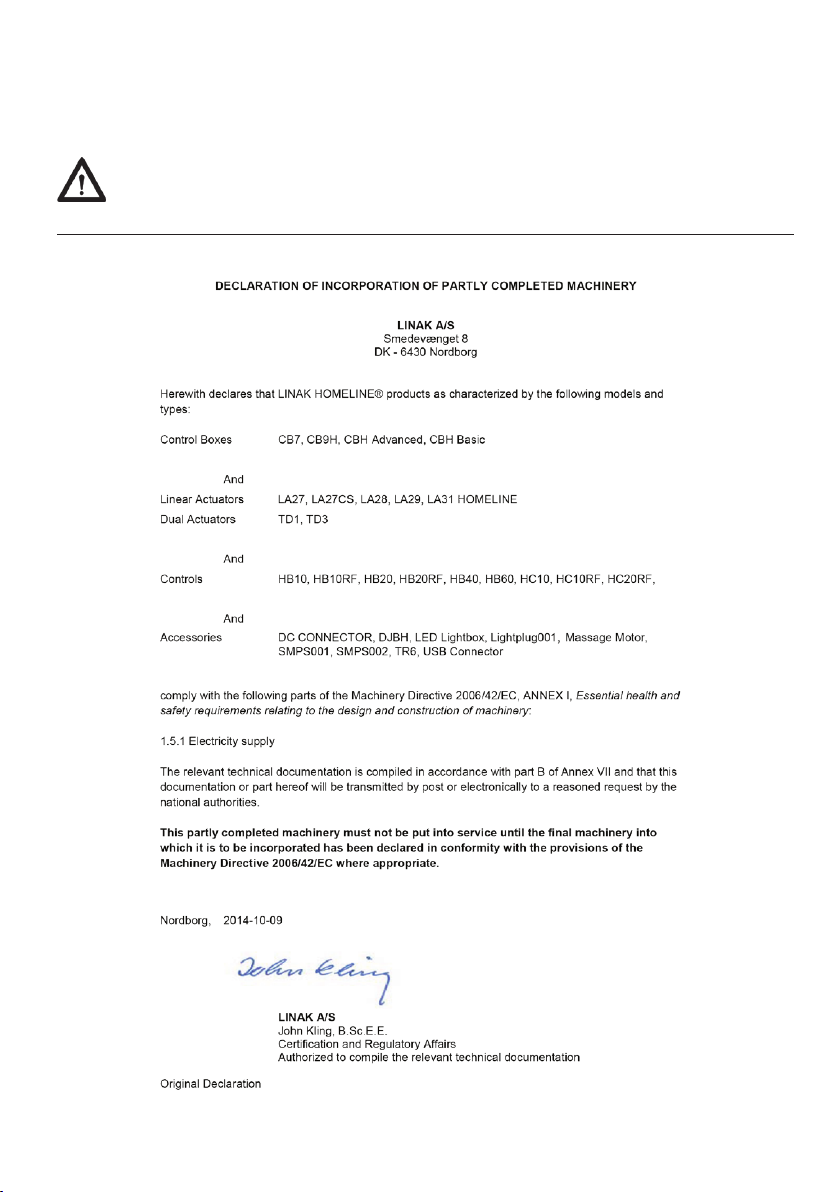

Manufacturer’s declaration............................................................................................................ 9
Misc. on the HOMELINE®system................................................................................................. 10
Warranty.................................................................................................................................... 10
Maintenance.............................................................................................................................. 10
ETL-marking................................................................................................................................... 10
Description of the HOMELINE®CBH Basic system .................................................................... 11
Mounting guideline for the CBH................................................................................................. 11
Cable relief................................................................................................................................ 12
How to mount the locking device (0705889) ........................................................................... 13
Disposal of LINAK’s products ...................................................................................................... 14
Main groups of disposal ............................................................................................................... 14
Disposal of batteries ..................................................................................................................... 14
Labels............................................................................................................................................... 15
Drawings ......................................................................................................................................... 16
Addresses........................................................................................................................................ 20
Page 3 of 20
Preface
Dear User,
We are delighted that you have chosen a product from LINAK®.
LINAK systems are high-tech products based on many years of experience in the manufacture and development
of actuators, electric control boxes, controls and chargers.
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer
of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It
is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety
information from this manual is passed on to the end-user.
We are sure that your LINAK product/system will give you many years of problem-free operation.
Before our products leave the factory they undergo full function and quality testing. Should you nevertheless
experience problems with your LINAK product/system, you are always welcome to contact your local dealer.
LINAK subsidiaries and some distributors situated all over the world have authorised service centres, which are
always ready to help you.
LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance
with the specifications, maintenance being done correctly and any repairs being carried out at a service centre,
which is authorised to repair LINAK products.
Changes in installation and use of LINAK products/systems can affect their operation and durability. The
products are not to be opened by unauthorised personnel.
The User Manual has been written based on our present technical knowledge. We are constantly working on
updating the information and we therefore reserve the right to carry out technical modifications.
LINAK A/S
Page 4 of 20
Valid for:
This User Manual is valid for the following products:
(See the first 3 - 5 characters on the label)
Actuators: LA27, KA20
Control box: CBH1200B
Power supply: SMPS001 or SMPS002
Controls: HB10, HBBRIO02
Page 5 of 20
Safety instruction
General
Important information
Important information on LINAK®products can be found under the following
headings:
Warning!
Failure to comply with these instructions may result in accidents involving
serious personal injury.
Failing to follow these instructions can result in the product being damaged
or being destroyed.
Safe use of the system is possible only when the operating instructions are read
completely and the instructions contained are strictly observed.
Failure to comply with instructions marked with the ”NOTE” symbol may result in
serious damage to the system or one of its components.
It is important for everyone who is to connect, install, or use the systems to
have the necessary information and access to this User Manual. Follow the
instructions for mounting – risk of injury if these instructions are not followed.
The appliance is not intended for use by young children or infirm persons
without supervision.
If there is visible damage on the product it must not be installed.
Note that during construction of applications, in which the actuator is to
be fitted, there must be no possibility of personal injury, for example the
squeezing of fingers or arms.
Only the power supply type SMPS001 or SMPS002, shall be used with the
system (CBH basic System).
The power supply shall not be covered while operating to allow sufficient
cooling of this appliance.
...to be continued
Page 6 of 20
The appliance is only to be used with the power supply unit provided with the
appliance.
Furthermore take care about the connecting wires from the power supply to
the CBH Basic System, don’t damage this by overrun.
Assure free space for movement of application in both directions to avoid
blockade.
Safety issues
The builder of the equipment shall ensure that the use of the component
complies with relevant standards – like the Machine Directive. Care must be
taken to avoid squeezing of cables as it can cause movement of the system!
The SMPS001/002 must not be packed in heat insulating material, but must
be placed so that it can emit waste heat to the surroundings. There are no
ventilation holes to consider, the SMPS emits heat through its surface.
Only the power supply type SMPS001 or SMPS002, or similar suited products
meeting the requirements EN 60335-1, shall be used with the system (CBH
basic System).
Please observe that the actuators LA27 used for CBH Basic systems are with
signal end-stop switches and are not compatible with CBH Advanced systems
The SMPS006 is not compatible with the CBH Basic system. The system is only
released to 24V DC (SMPS006 = 29V DC)
It is possible only to use 1 power supply (SMPS001 or SMPS002) for 2 CBH
systems. Remember speed may decrease when running 2 systems at the same
time.
Page 7 of 20
Before installation, re-installation, or troubleshooting:
• Stop the actuators
• Pull out the mains plug.
• Relieve the actuators of any loads, which may be released during the work.
Before start-up:
• Make sure that the system has been installed as instructed in this User Manual.
• Make sure that the voltage of the control box/SMPS is correct before the system
is connected to the mains.
• System connection. The individual parts must be connected before the control box
/SMPS is connected to the mains. See the User Manual for LINAK actuators, if
necessary.
During operation
• If the control box makes unusual noise or smells, switch off the mains voltage
immediately.
• Take care that the cables are not damaged.
• The products must only be used in an environment, that corresponds to their IP
protection.
Misc.
The actuator system has a sound level below 70dB(A) in typical applications.
Updated manuals and declarations can always be found here:
www.linak.com/homeline
Page 8 of 20
Only for EU markets
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Only for Non EU markets
Persons who do not have the necessary experience or knowledge of the
product/products must not use the product/products. Besides, persons with
reduced physical, sensory or mental abilities must not use the product/
products, unless they are under surveillance or they have been thoroughly
instructed in the use of the apparatus by a person who is responsible for the
safety of these persons.
Moreover, children must be under surveillance to ensure that they do not play
with the product.
Misuse
Do not overload the actuators – this can cause danger of personal injury and
damage to the system.
Do not use the actuator system for lifting persons. Do not sit or stand on a
table while operating – risk of personal injury.
Do not use the system in environments other than the intended indoor use
Page 9 of 20
Repairs
In order to avoid the risk of malfunction, all HOMELINE®repairs must only be carried out by authorised LINAK®workshops or
repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned
to authorised LINAK workshops.
Warning!
If any of the HOMELINE®products are opened, there will be a risk of subsequent malfunction.
Page 10 of 20
Misc. on the HOMELINE®system
Warranty
There is a 36 months’ warranty on the HOMELINE products CBH Basic Systems against manufacturing faults from the produc-
tion date of the individual products (see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and
maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. In
the event of this, the warranty will be ineffective/invalid. For further details, please see LINAK A/S’ ordinary conditions of sale.
Maintenance
Clean dust and dirt on the outside of the system at appropriate intervals and inspect for damage and breaks.
Inspect the connections, cables, and plugs and check for correct functioning as well as fixing points.
The cleaners and disinfectants must not be highly alkaline or acidic (pH value 6-8).
ETL-marking
Due to space limitations, the complete ETL-marking demands are not represented on the marking plates.
The full ETL Recognized Component markings are shown here.
C/N 4008003
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United States
C/N 4008005
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United States
C/N 4008671
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United States
C/N 120690
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United
States
C/N 9901916
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United
States
