Lightolier Silhouette SF Manual de usuario

Silhouette SF

Indirect/Direct pendant, 2 lamp, T5/HO

Page 1 of 3

Catalog number:

Notes: Type:

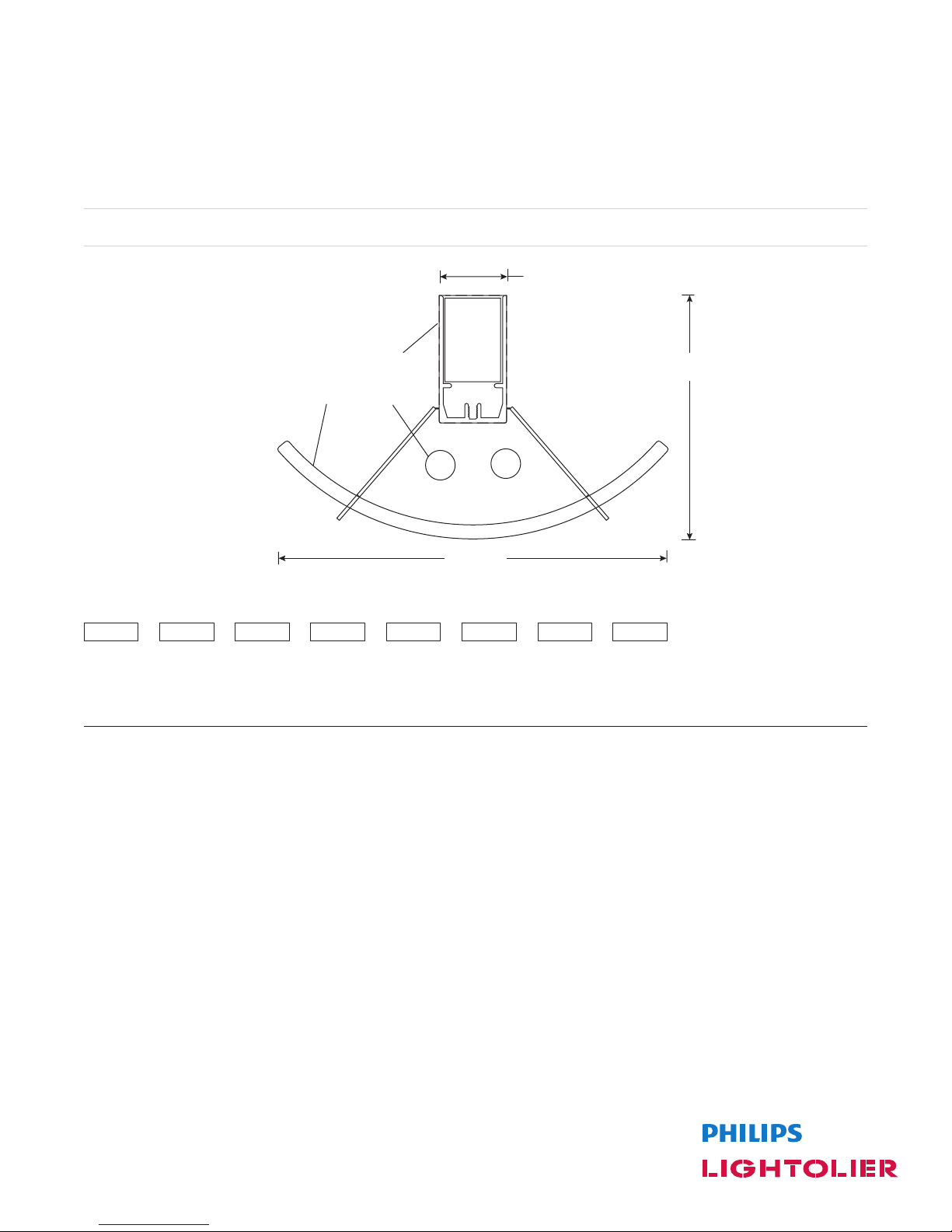

4-7/16"

(11.27 cm)

1-3/16" (3.02 cm)

7" (17.78 cm) Half scale

Ordering information

1=120v

2=277v

28 = 28 watts

54 = 54 watts

Voltage Finish OptionsType WattageLength

Light

source

J=Joiner WH=White

AL=Aluminum

2= 2 lamp

4=4 foot

8=8 foot

M7 =0-10v dimming

DS =Dual switching

X4 = One additional pair of

thru wires

X5 = Two additional pairs of

thru wires

Family

Silhouette

Features

1. Housing: Extruded aluminum. Die-cast end plate mechanically attached with

no exposed fasteners.

2. Light source: Two T5 (28 or 54 watt as specified) fluorescent lamps per

4-foot section. Provided by others. Factory installed lamps optional

(consult factory).

3. Reflector: Die-formed specular aluminum reflector.

4. Shielding: Die-formed 18 gauge CRS.

5. Diffuser: Translucent acrylic diffuser.

Electrical

Specify 120 volt or 277 volt. Three conductor, 18 gauge wire. For special circuiting,

consult factory. Ballast is class "P" electronic, class "A" sound rating, less than 10%

THD, thermally protected, end of lamp life cutoff. Standard ballast dimensions

1-1/8" X 1", 0-10v dimming standard. For other dimming options consult factory.

Factory installed ballast disconnect as required by National Electrical code.

Mountings

Cable suspension: 5-1/4" (13.3 cm) diameter canopy powder coated matte

white, 1/16" (0.16cm) diameter galvanized steel aircraft cable adjustable up to 48"

(122cm). Gripping with cable adjustment. Draw tight connector create hairline

seam between joiner modules.

Finish

Powder coated matte white or aluminum finish. Custom colors available, consult factory.

Options and Accessories

L, T, X inline joiner blocks and emergency battery pack available. Consult factory.

Ordering Instructions

Individual Fixtures:

1. Order one JOINER MODULE.

2. Order one POWER FEED END SET.

3. Order one CABLE ASSEMBLY.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of JOINER MODULES to complete the run.

3. Order one POWER FEED END SET per run.

4. Order one CABLE ASSEMBLY per JOINER MODULE.

5. For patterns that exceed amperage limits, order the appropriate number of

CABLE/CORD FEEDS.

Square/Rectangle Patterns:

1. Order appropriate number of JOINER MODULES to complete the pattern size.

2. Order number and type of JOINER BLOCKS required.

3. Order one CABLE/CORD ASSEMBLY or POWER FEED END SET to power the

pattern.

4. For patterns that exceed amperage limits, order the appropriate number of

CABLE/CORD FEEDS.

Approvals

Certified to UL, CSA standards.

Silhouette SF

Indirect/Direct pendant, 2 lamp, T5/HO

Page 2 of 3

Mounting and Joiner block accessories

8” (20.32cm)

4”

(10.16cm)

4” (10.16cm)

3.4”

(8.64cm)

4.6” (11.68cm)

4” (10.16cm)

8”

(20.32cm)

4”

(10.16cm)

2,000

700

500

400

200

FOOTCANDLE 20 30 50 70 100

12345710 20 30 40 50 70 100200

ROOM AREA IN SQUARE FEET

NUMBER OF FIXTURES REQUIRED

300

1,000

100

90˚

85˚

95˚

105˚

75˚

65˚

55˚

115˚

125˚

180˚ 175˚ 165˚ 155˚ 145˚ 135˚

0˚ 5˚ 15˚ 25˚ 35˚ 45˚

750

600

450

300

150

300

450

600

750

90˚

0˚

Cable assembly

SC36WW

Power feed end set

SE36WH White

SE36AL Aluminum

"L" block with

suspension

SL36WH White

SL36AL Aluminum

"X" block with

suspension

SX36WH White

SX36AL Aluminum

"T" block with

suspension

SX36WH White

SX36AL Aluminum

Fixture lengths and mounting locations

8” (20.32cm)

4”

(10.16cm)

4” (10.16cm)

3.4”

(8.64cm)

4.6” (11.68cm)

4” (10.16cm)

8”

(20.32cm)

4”

(10.16cm)

2,000

700

500

400

200

FOOTCANDLE 20 30 50 70 100

12345710 20 30 40 50 70 100200

ROOM AREA IN SQUARE FEET

NUMBER OF FIXTURES REQUIRED

300

1,000

100

90˚

85˚

95˚

105˚

75˚

65˚

55˚

115˚

125˚

180˚ 175˚ 165˚ 155˚ 145˚ 135˚

0˚ 5˚ 15˚ 25˚ 35˚ 45˚

750

600

450

300

150

300

450

600

750

90˚

0˚

4 foot joiner 8 foot joiner

48" (121.92 cm) 98" (243.84 cm)

1-1/4" (3.18 cm)

5/8"

(1.59 cm)

Sample run

8” (20.32cm)

4”

(10.16cm)

4” (10.16cm)

3.4”

(8.64cm)

4.6” (11.68cm)

4” (10.16cm)

8”

(20.32cm)

4”

(10.16cm)

2,000

700

500

400

200

FOOTCANDLE 20 30 50 70 100

12345710 20 30 40 50 70 100200

ROOM AREA IN SQUARE FEET

NUMBER OF FIXTURES REQUIRED

300

1,000

100

90˚

85˚

95˚

105˚

75˚

65˚

55˚

115˚

125˚

180˚ 175˚ 165˚ 155˚ 145˚ 135˚

0˚ 5˚ 15˚ 25˚ 35˚ 45˚

750

600

450

300

150

300

450

600

750

90˚

0˚

Power feed

end set

Cable

assembly

48" (121.92 cm)

20' 1/8" (609.92 cm)

8 foot joiner

98" (243.84 cm)

8 foot joiner

98" (243.84 cm)

4 foot joiner

48" (121.92 cm)

Silhouette SF

Indirect/Direct pendant, 2 lamp, T5/HO

Page 3 of 3

Philips Lightolier

e: [email protected]

t: (508) 679-8131, Technical info. (978) 657-7600

w: www.lightolier.com

SF September 7, 2012

Specifications are subject to change without notice.

Zonal lumen summary

Zone Lumens % Lamp % Fixt.

0- 90 2749 47.4 53.0

90-180 2440 42.1 47.0

0-180 5189 89.5 100.0

Photometry

Efficiency: 89.5%

Lumens: 2900 lm

Lamps: (2) F28T5

Catalog number: SF24I281WH

Report number: LRL 299-1H

Vertical Horizontal Angle

Angle 022.5 45 67. 5 90

0747 747 747 747 747

5746 747 740 748 747

15 725 729 725 749 737

25 674 681 690 728 736

35 582 601 632 691 705

45 465 495 544 630 650

55 364 394 472 582 569

65 244 280 372 470 505

75 150 194 292 398 428

85 33 99 191 276 308

95 13 77 162 238 270

105 34 182 235 282 299

115 138 239 464 621 657

125 217 278 426 562 616

135 301 347 401 499 520

145 343 375 435 467 474

155 383 394 447 493 503

165 408 398 428 462 472

175 415 389 404 424 419

180 415 404 392 382 382

Ceiling: 80 70 50

Wall: 70 50 30 70 50 30 50 30 10

RCR 0 96 96 96 89 89 89 76 76 76

187 82 78 80 76 73 65 62 60

279 72 66 73 66 61 56 52 49

372 63 56 66 58 52 50 45 41

466 55 48 60 51 45 44 39 35

560 49 42 55 46 39 39 34 30

655 44 37 51 41 34 35 30 26

751 40 32 47 37 30 32 26 23

847 36 28 43 33 27 29 23 20

944 32 25 40 30 24 26 21 17

10 40 29 22 37 27 21 23 18 15

Based on a floor reflectance of 0.2

Candela distribution Coefﬁcients of utilization (%)Candela curve

8” (20.32cm)

4”

(10.16cm)

4” (10.16cm)

3.4”

(8.64cm)

4.6” (11.68cm)

4” (10.16cm)

8”

(20.32cm)

4”

(10.16cm)

2,000

700

500

400

200

FOOTCANDLE 20 30 50 70 100

12345710 20 30 40 50 70 100200

ROOM AREA IN SQUARE FEET

NUMBER OF FIXTURES REQUIRED

300

1,000

100

90˚

85˚

95˚

105˚

75˚

65˚

55˚

115˚

125˚

180˚ 175˚ 165˚ 155˚ 145˚ 135˚

0˚ 5˚ 15˚ 25˚ 35˚ 45˚

750

600

450

300

150

300

450

600

750

90˚

0˚

Calculations are for 28 watt T5 lamps, for 54 watt T5 lamps

multiply by 1.7

Quick calculator and ceiling brightness

8” (20.32cm)

4”

(10.16cm)

4” (10.16cm)

3.4”

(8.64cm)

4.6” (11.68cm)

4” (10.16cm)

8”

(20.32cm)

4”

(10.16cm)

2,000

700

500

400

200

FOOTCANDLE 20 30 50 70 100

12345710 20 30 40 50 70 100200

ROOM AREA IN SQUARE FEET

NUMBER OF FIXTURES REQUIRED

300

1,000

100

90˚

85˚

95˚

105˚

75˚

65˚

55˚

115˚

125˚

180˚ 175˚ 165˚ 155˚ 145˚ 135˚

0˚ 5˚ 15˚ 25˚ 35˚ 45˚

750

600

450

300

150

300

450

600

750

90˚

0˚

1. Find room area on vertical axis.

2. Move across chart to footcandle

curve.

3. Move down to horizontal axis and

read number of fixtures required.
