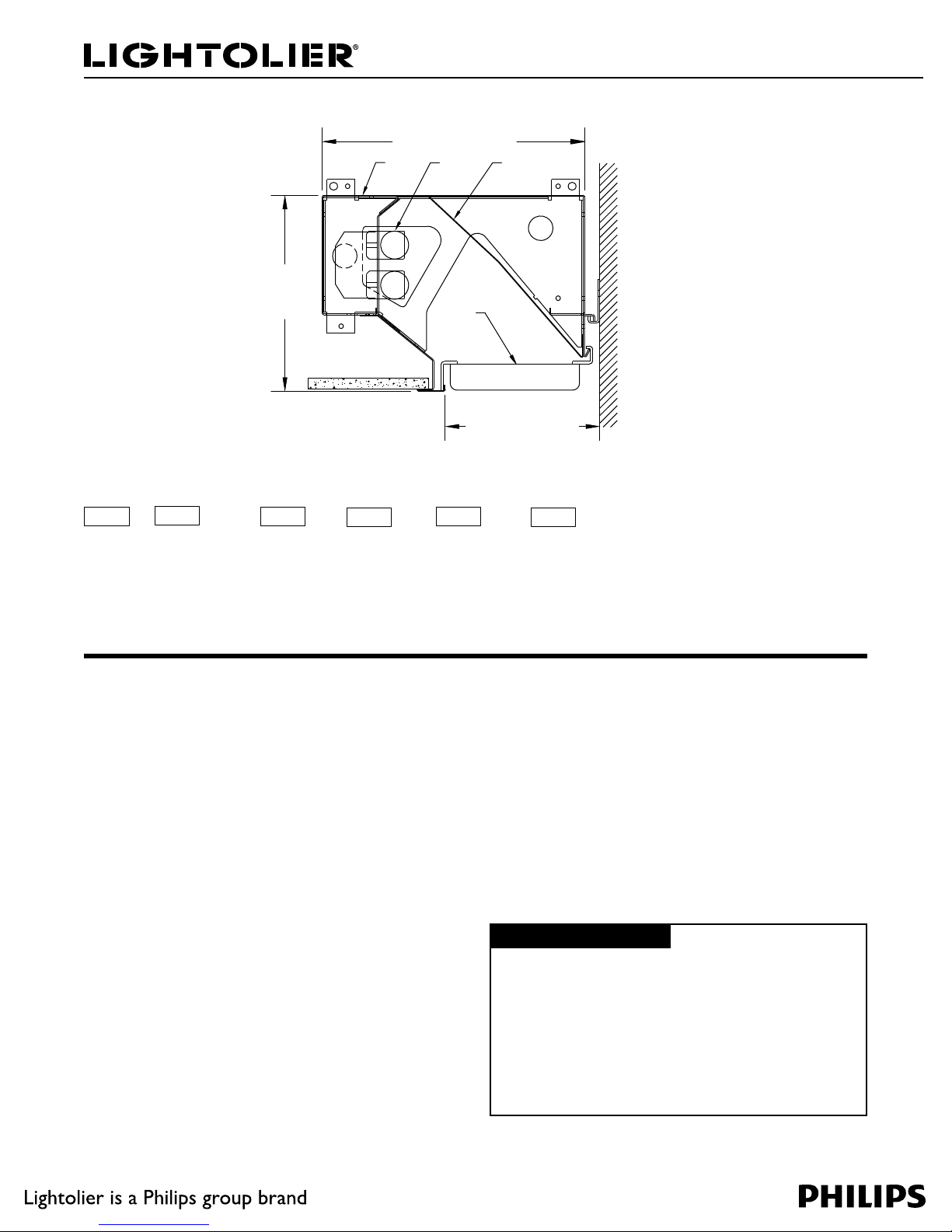

Lighting Systems PTS6-2

1BHFPG 1FSJNFUFS5SPVHI3FDFTTFE-JHIU51FS/PNJOBM4FDUJPO

$

Quarter Scale

Features

1. Housing: Die-formed 20 gauge pre-painted steel. Integral heavy gauge bulk-

heads support housing and trim, permitting modules to be bolted together in

continuous runs and facilitate suspension.

2. Lamping: Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete ROW.

3. Stagger rows must be completed with an adjustable module.

4. Non-stagger rows must be completed with an adjustable module unless row

lengths are in precise 1 foot (30.48cm) intervals.

5. Order one END SET per ROW.

Labels

UL, cUL and IBEW

Ordering Instructions

Individual Fixtures:

1. Order number of MODULES required.

2. Order one END SET per MODULE.

(2-light only)

3. Reflector: Precision die-formed CRS finished in a high reflective baked white

4. Louver: Lift and shift straight blade louver constructed fromdie-formed alu-

minumand painted to match housing. Louver blades are 1” (2.54cm) high on

1-1/8” (2.86cm) centers. (Optional)

powder coat.

Mounting

“J” Rail is first mounted to the wall and the modules connect to the rail for 1/4”

(0.64cm) wall adjustment. Modules are hung fromsuspension wires attached to the

fixture bulkheads and the structure above.

Electrical

Electronic Ballast: Programmed start, 3 conductor, 12 gauge wire. Color-coded

quick connectors allow easy connection for modular fixutres. Factory installed

ballast disconnect allows the ballast to be disconnected fromand reconnected to

incoming power under load without turning the entire circuit off.

Dimming: Advance Mark X, use Advance compatible two-wire control (no extra

Emergency Battery Pack: 450 Lumens @ 90 minimum.

control lead required).

Cross-sectional two linear T8 fluorescent lamps. Provided by others.

Family Lamps Shielding Voltage

PTS6 2

Length Options

Blank = No Options

A= Adjustable*

AS = Adjustable Staggered*

S= Staggered

X4 = 4 thru wires

X5 = 5 thru wires

A4 = Adjustable 4 thru wires*

A5 = Adjustable 5 thru wires*

S4 = Staggered 4 thru wires

S5 = Staggered 5 thru wires

B4 = Adjustable Staggered 4 thru wires*

B5 = Adjustable Staggered 5 thru wires*

2= 2 Lamps O= Open

L= Lens

S= Straight

Blade Louver

1= 120V

2= 277V

3= 347V

D1 = 120V Dim.

D2 = 277V Dim.

E1 = 120V Emerg.

E2 = 277V Emerg.

Module Ordering Information

* only available on Two-Foot, Three-Foot and Four-Foot versions. See length variations of adjustable fixtures on page 2.

2= Two-Foot

3= Three-Foot

4= Four-Foot

6= Six-Foot

8= Eight-Foot

(17.78cm)

9 3/8" (23.81cm)

5 1/2" (13.97cm)

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems PTS6-2

1BHFPG 1FSJNFUFS5SPVHI3FDFTTFE-JHIU51FS/PNJOBM4FDUJPO

$

End Cap Set:

PTSEP

12”

(30.48cm)

1 3/4"

(4.45cm)

90° Inside Corner: 90° Outside Corner:

6 1/4"

(15.88cm)

135° Inside Corner:

PTS6135INCO - Open

PTS6135INCL - Lens

PTS6135INCS - Straight

Blade Louver

(5.08cm)

135° Outside Corner:

PTS6135OTCO - Open

PTS6135OTCL - Lens

PTS6135OTCS - Straight

Blade Louver

PTS69ØINCO - Open

PTS69ØINCL - Lens

PTS69ØINCS - Straight

Blade Louver

PTS69ØOTCO - Open

PTS69ØOTCL - Lens

PTS69ØOTCS -Straight

Blade Louver

End Plate and Corner Block Accessories

Sample Run

For Fixture Using Staggered Lamps

The Four-Foot Adjustable Staggered Fixture has a range of 51”(129.54cm) - 60”(152.40cm).

The Three-Foot Adjustable Staggered Fixture has a range of 39”(99.06cm) - 48”(121.92cm).

The Two-Foot Adjustable Staggered Fixture has a range of 27”(68.58cm) - 36”(91.44cm).

For Fixture Using non-Staggered Lamps

The Four-Foot Adjustable Fixture has a range of 48.75”(123.83cm) - 60”(152.40cm).

The Three-Foot Adjustable Fixture has a range of 36.75”(93.35cm) - 48”(121.92cm).

The Two-Foot Adjustable Fixture has a range of 24.75”(62.87cm) - 36”(91.44cm).

6' (182.88cm)4' (121.92cm)Three-Foot A¹

8' (243.84cm)Three-Foot A¹

6' (182.88cm)

Three-Foot A¹ 3' (91.44cm)

Three-Foot A¹4' (121.92cm)

1 3/4"

(4.45cm)1 3/4"

(4.45cm)

¹ A = Adjustable Fixture or Adjustable Staggered Fixture

21' - 10 3/4" (667.39cm)9' - 3 1/4" (282.58cm)

7' - 10 1/2"

(240.03cm)

7' - 10 1/2"

(240.03cm)

1’ (30.48cm)

Fixture used at

3’ - 10 3/4”

(118.75cm)

Fixture used at

3’ - 3 1/4”

(99.70cm)

Fixture used at

3’ - 10 1/2”

(118.11cm)

Fixture used at

3’ - 10 1/2”

(118.11cm)

Floor cavity reflectance = 20%

Performance & Quick Calculators

1600

1200

800

400

-30

-20

-10

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

% WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

0555555545454 525252

1514847494746 454443

2464239454239 403835

3423734413733 353230

4393329383329 212826

5 36 30 26 5 29 25 28 25 22

6332723322623 262220

7312420302420 232017

8292218282218 211816

9272117262014 201614

10 25 19 15 24 19 15 18 15 13

180 0

175 0

165 0

155 0

145 0

135 0

125 0

115 0

105 0

95 0

90 64 56 0

85 142 96 17 17 0

75 603 241 83 78 33

65 891 401 163 155 130

55 1540 521 262 252 245

45 1608 807 417 372 382

35 1481 957 641 519 516

25 1315 1037 832 695 675

15 1257 1174 997 884 854

5 1207 1193 1113 1066 1042

0 1134 1134 1134 1134 1134

ZONAL LUMEN SUMMARY

ZONE LUMENS % BARELAMP % LUMINAIRE

0-90 2742 46.5 100.0

90-180 0.0 0.0 0.0

0-180 2742 46.5 100.0

Report No: ITL53556

Cat No: PTS62S14

Lamps: 2 F32T8

Lumens: 2950

Efficiency: 46.5%

ROOM CAVITY RATIO

CANDLEPOWER

DEG.

ZONE 0 45 18013590
