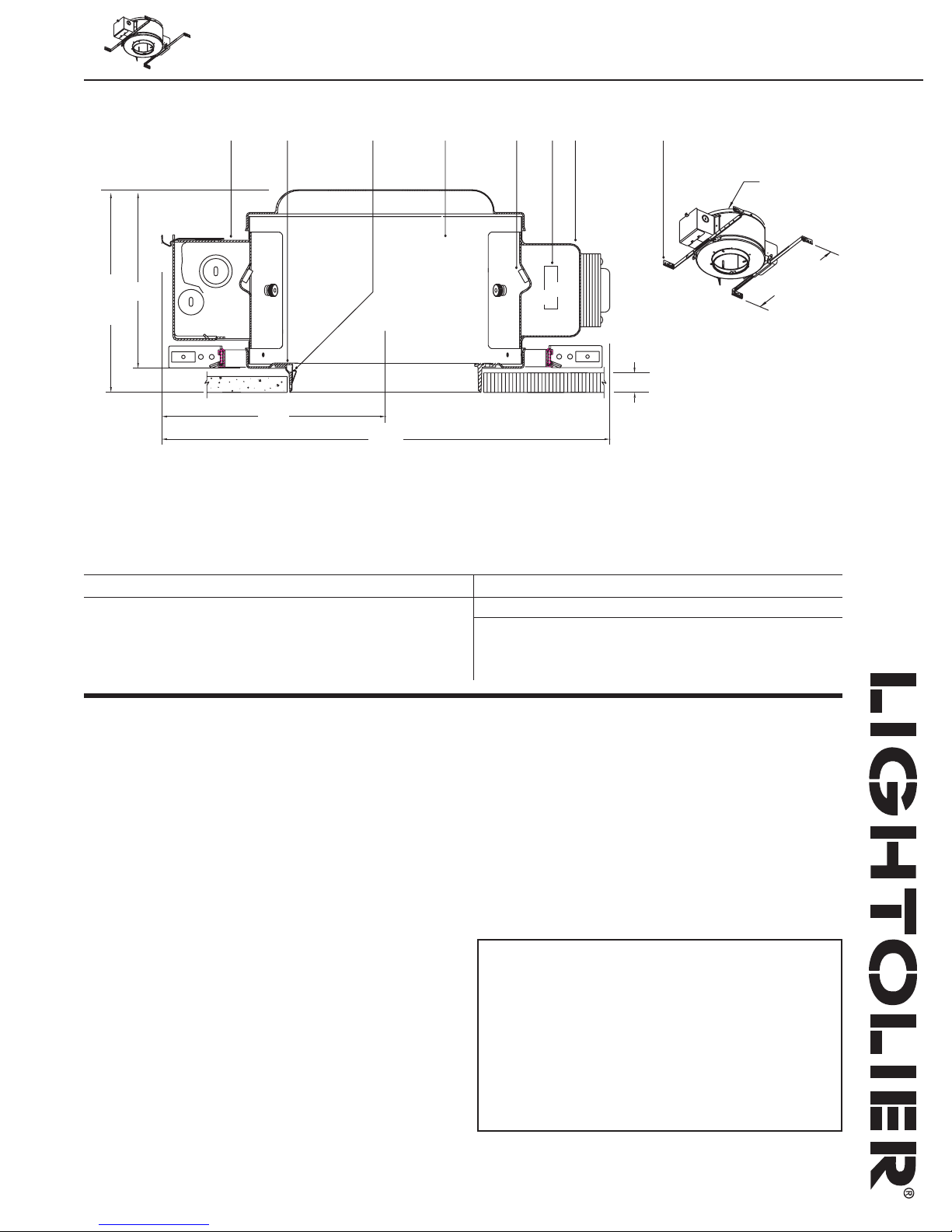

Lightolier Calculite C6ALV Manual de usuario

9 1/2" Dia.

* 6 3/4" min. is for

up to 3/4" thick ceiling.

72 31685

1 1/4" Max. Ceiling Thk.

7 1/4" MAX.

6 3/4" MIN.* 6" Adjustment

(mounting

bars included)

13 3/4" to 24"

7 3/4"

15 3/4"

Ceiling Cutout: 6 11/16" Dia.

Frame-In Kit Reflector Trim

C6ALV Adjustable Accent

C6P36A

35W - 75W PAR36 (12V)

25W PAR36 (5.5V)

35W - 75W AR111 (12V)

Calculite®Evolution Recessed Downlighting C6ALV

Page 1 of 1 6" Aperture PAR36 Low Voltage Non-IC AirSeal®Frame-In Kit

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Housing: Steel, 0.03" (22 ga.). Top Cover: Aluminum, 0.04" (14 ga.). Matte

black finish. AirSeal®housing minimizes air leakage to less than 2CFM at

1.57 PSF (or 75pa).

2. Mounting Frame: Die-cast aluminum for dry or plaster ceilings. Locks into

position along length of mounting bars with locking screws.

3. Retaining Springs: Precision-tooled steel springs secure reflector trim to

mounting frame for quick, tool-less installation.

4. Mounting Bars: Galvanized steel, 0.06" (16 ga.). Bars pivot for easy instal-

lation and wire-in below ceiling line. Bars extend to accommodate 16" to 24"

O.C. joist spacing. Bars can accommodate 12" O.C. joist spacing after a slight

field modification (see instruction sheet). Integral self-tapping screws for

securing to wood or metal construction. Built-in tabs for locking to T-bars

without the need of accessories.

5. Transformer: Magnetic, 120V/277V dual tap primary, nominal 12V and 5.5V

secondary.

6. Snap-In Connectors: Keyed to accept power and socket harnesses which

are provided with reflector trim.

7. Junction Box: Galvanized steel .063" (14 ga.). UL listed for maximum of 8

No. 12 AWG 90°C through branch circuit conductors. Accessible from inside

and outside of fixture. Outside J-Box door is hinged for maximum opening.

Snap-in plug is provided on inside cover for quick connection to power har-

ness.

8. Thermal Protector: Meets NEC and UL requirements. Insulation must be

kept 3" away from fixture sides and wiring compartments and must not be

placed above fixture in a manner which will entrap heat.

9. Reflector Trim: Compatible reflector trims are listed above. See separate

reflector trim specification sheets for complete catalog numbers and details.

Options & Accessories

Chicago Plenum Consult Factory

Labels

UL Listed (suitable for damp locations), I.B.E.W.

Air leakage is less than 2cfm at 75pa, tested in accordance with ASTM E-283.
