Lightolier Calculite ProSpec PB3A1175 Manual de usuario

Ceiling Cutout: 22 1/16" L x 8 3/16" W

Ordering Information: AR 111 Series B

Cat. No. Lamp Ceiling Trim Aperture Finish

PB3A117EBL (3) 75W AR 111 Overlap Black with White Flange

PB3A117EWL (3) 75W AR 111 Overlap White with White Flange

PB3A117EBTL (3) 75W AR 111 Trimless Black

PB3A117EWTL (3) 75W AR 111 Trimless White

Add a “1” for 120v or “2” for 277v at the end of the catalog number for voltage

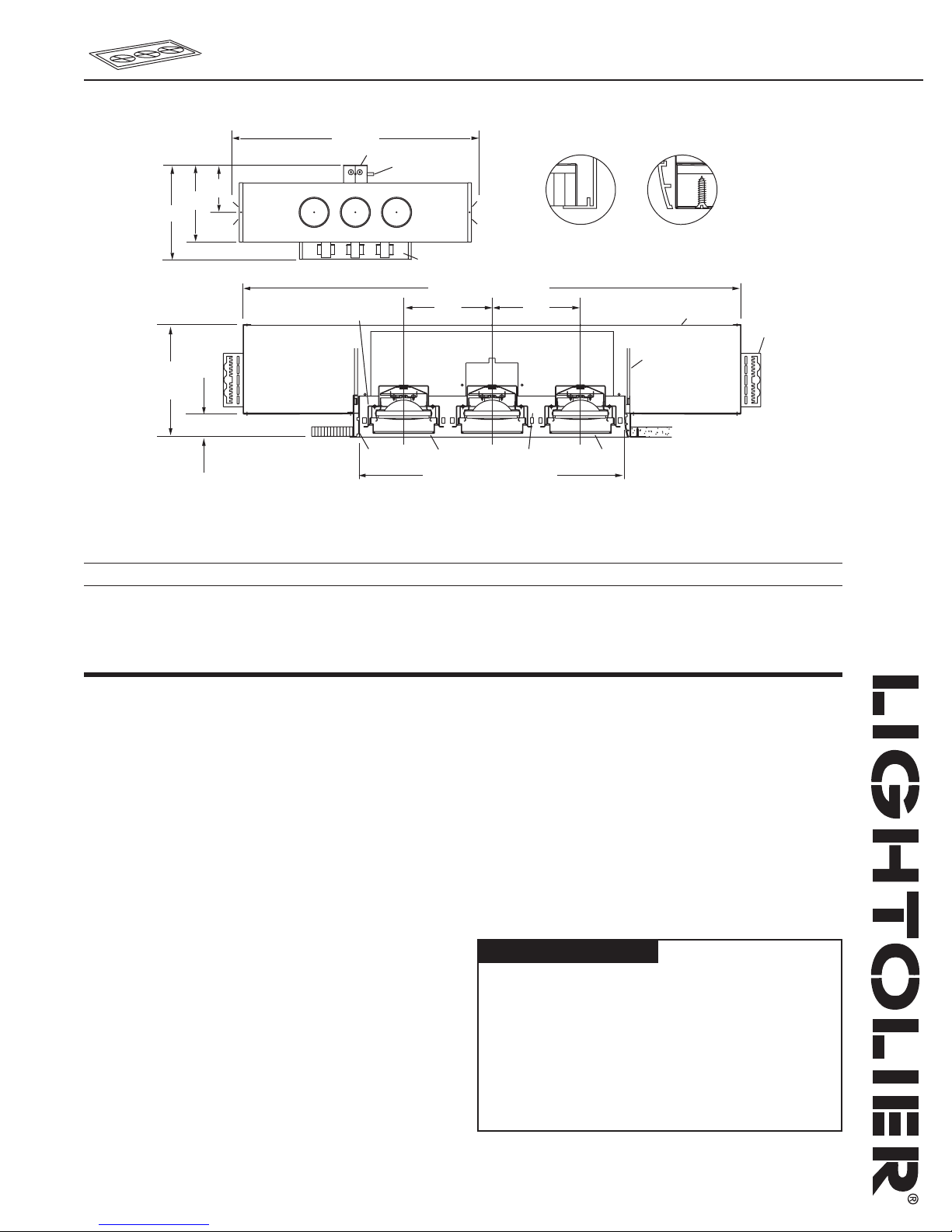

42 1/4"

O.C.O.C.

21" L X 7" W Opening

39 1/2" L X 10" W

16"

1 3/4"

13"

8 3/4"

DEPTH

10 11

12 3

Top View

Flanged Trimless

PB3A117EBL = (Flanged) Black/White

PB3A117EWL = (Flanged) White

PB3A117EBTL = (Trimless) Black

PB3A117EWTL = (trimless) White

Calculite®ProSpec®Linear Downlight PB3A1175

Page 1 of 2 3 Light AR 111 Series B

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping

flange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Media Cartridge: Allows convenient loading and removal of up to one

accessory. Easily installed and removed for lamping with a simple twisting

motion. Constructed of formed aluminum.

3. Adjustable Ring: Allows 360° horizontal and 40° (on width) and 45° (on

diagonal) vertical adjustment.

4. Tortiontite Spring: For easy installation of aperture frame.

5. Housing: Die-formed 22 ga. steel. Finish: Black.

6. Mounting Brackets: Adjustable vertically from outside of housing.

7. Thermal Protector: Meets NEC, UL , and CSA requirements.

8. Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from

below.

9. Lamp and Accessory Support: .032" steel, flared for easy entry of Media

Cartridge.

10. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.

11. Lamp Guard: Heat-resistant clear glass. Lamp manufacturers requirement.

12. Transformer Housing: Die-formed 18 ga. steel.

Electrical

Electronic Transformers: Offer reliable operation and are accessible from

below for servicing. 12V Secondary.

Dimming Controls: Use only dimmers specifically designed for use with

electronic transformers. Low Voltage fixtures may produce audible sound when

used with dimmers, which may be objectionable in acoustically critical areas.

UL/cUL listed for through branch circuit wiring with maximum of (8) no. 12

AWG 90° C.

Finish

All painted finishes are powder coated baked enamel.

Options & Accessories

Accessories: 4 3/4" dia. series, filters, lenses, screens and louvers. (2)

accessories maximum, including lamp cover glass. Lamp guard glass may be

replaced with solid glass accessory.

Labels

UL/cUL (Suitable for Damp Location), I.B.E.W.

Add a “1” for 120v or “2” for 277v at the end of the catalog number for voltage

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

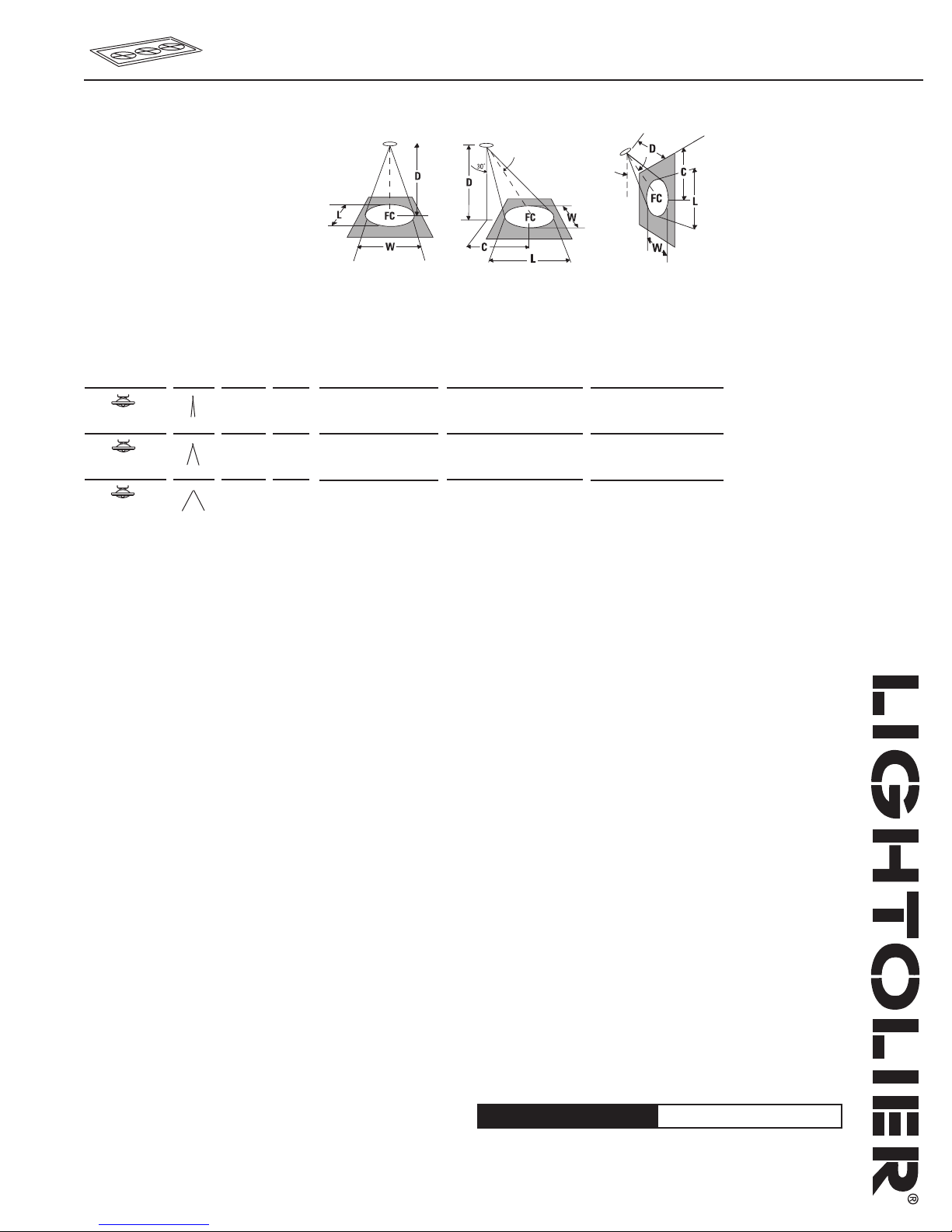

(FC) is initial footcandles at center of beam.

Beam length (L) and beam width (W) are to

where the candlepower is reduced to 50% of

the center beam candlepower.

CBCP is center beam candlepower.

Lamp data shown is typical, and is based

on bare lamp photometrics. Contact

lamp manufacturers for availability and

performance.

10’ 250 1.7’ 1.7’

15’ 111 2.6’ 2.6’

20’ 63 3.5’ 3.5’

25’ 40 4.4’ 4.4’

8’ 4.6’ 254 1.9’ 1.6’

12’ 6.9’ 113 2.8’ 2.4’

16’ 9.2’ 63 3.7’ 3.2’

20’ 11.5’ 41 4.7’ 4.0’

4’ 6.9’ 195 2.9’ 1.4’

6’ 10.4’ 87 4.3’ 2.1’

8’ 13.9’ 49 5.7’ 2.8’

10’ 17.3’ 31 7.2’ 3.5’

25000 2000

75W AR111

SP 10°

3’ 144 3.5’ 3.5’

5’ 52 5.8’ 5.8’

7’ 27 8.1’ 8.1’

9’ 16 10.4’ 10.4’

3’ 1.7’ 94 5.2’ 4.0’

5’ 2.9’ 34 8.7’ 6.7’

7’ 4.0’ 17 12.1’ 9.3’

9’ 5.2’ 10 15.6’ 12.0’

1’ 1.7’ 163 * 2.3’

2’ 3.5’ 41 * 4.6’

3’ 5.2’ 18 * 6.9’

4’ 6.9’ 10 * 9.2’

1300 2000

75W AR111

WFL 60°

6’ 125 3.2’ 3.2’

8’ 70 4.3’ 4.3’

10’ 45 5.4’ 5.4’

12’ 31 6.4’ 6.4’

5’ 2.9’ 117 3.7’ 3.1’

7’ 4.0’ 60 5.1’ 4.3’

9’ 5.2’ 36 6.6’ 5.6’

11’ 6.4’ 24 8.1’ 6.8’

2’ 3.5’ 141 5.5’ 2.1’

3’ 5.2’ 63 8.2’ 3.2’

4’ 6.9’ 35 10.9’ 4.3’

5’ 8.7’ 23 13.7’ 5.4’

4500 2000

75W AR111

FL 30°

MR16 Low Voltage Halogen Bi-Pin lamps

D FC L W D C FC L W D C FC L W

Lamps Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

0° Aiming Angle 30° Aiming Angle 30° Aiming Angle

30°

Calculite®ProSpec®Linear Downlight PB3A1175

Page 2 of 2 3 Light AR 111 Series B

Job Information Type:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.
