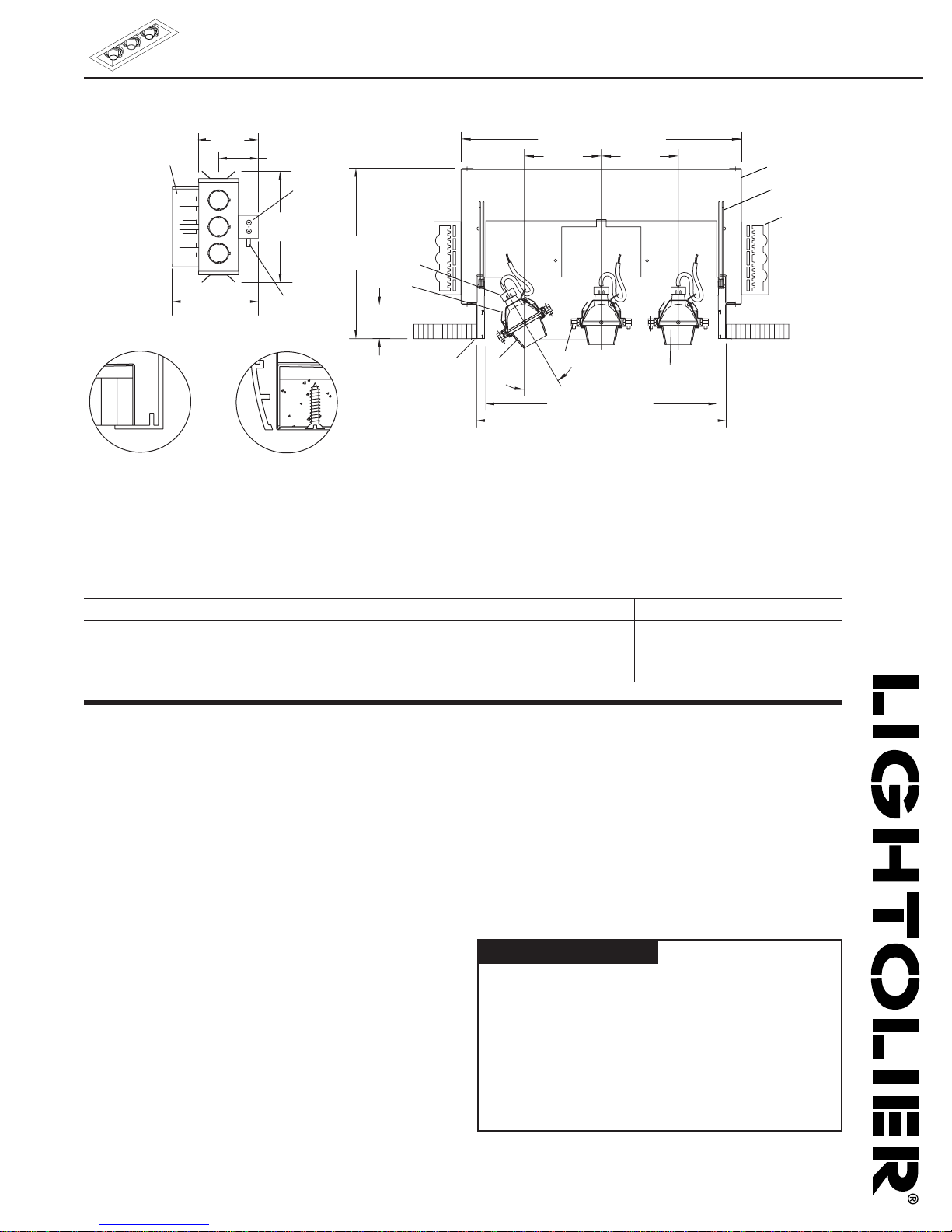

Lightolier ProSpec Linear Downlight PS3M1650 Manual de usuario

12311

10 1/4"

7 1/4"

17 5/16"

14 1/4"

1 3/4"

14 9/16" L x 6 1/16" W

12" L x 3 1/2" W Opening

13" x 4 9/16" Ceiling Cutout

30°

4" O.C. 4" O.C.

8 3/4"

Depth

PS3M165EBL = (Flanged) Black/White

PS3M165EWL = (Flanged) White PS3M165EBTL = (Trimless) Black

PS3M165EWTL = (Trimless) White

Top View

Flanged Trimless

ProSpec®Linear Downlight PS3M1650

Page 1 of 2 3 Light MR 16 Series S

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping

flange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Lamp Shields: Die-formed aluminum. Shields spill light from lamp.

Removable for relamping

3. Adjustable Ring: Die-cast aluminum. 30° vertical adjustment.

4. Tortiontite Spring: For easy installation of aperture frame.

5. Housing: Die-formed NYC 20 ga. steel. Finish: Black.

6. Mounting Brackets: Adjustable vertically from outside of housing.

7. Thermal Protector: Meets NEC, CEC, UL & CSA requirements.

8. Lampholder: Steatite for GX/GY 5.3 Bi-Pin MR-16 lamps. 250° C Teflon®

leads.

9. Heat Shield: Die-formed aluminum.

10.Junction Box: 14 ga. steel, 4" x 3 1/2" x 3" box. Allows inspection

from below.

11.Lamp Guard: Heat resistant Micro prismatic clear glass.

Lamp manufacture’s requirement

12. Transformer Housing: Die-formed steel.

Electrical

Electronic Transformers: Offer reliable operation and are accessible from

below for servicing. 12V. Secondary 50 VA. each lamp.

Dimming Controls: Use only dimmers specifically designed for use with

electronic transformers. Low Voltage fixtures may produce audible sound

when used with dimmers, which may be objectionable in acoustically critical

areas. UL/cUL listed for through branch circuit wiring with maximum of

(4) no. 12 AWG, 90°C.

Ceiling Cutout: 13" L x 4 9/16" W

Ordering Information: MR 16 Series S

Cat. No. Lamp Ceiling Trim Aperture Finish

PS3M165EBL (3) 50W MR 16 Overlap Black with White Flange

PS3M165EWL (3) 50W MR 16 Overlap White with White Flange

PS3M165EBTL (3) 50W MR 16 Trimless Black

PS3M165EWTL (3) 50W MR 16 Trimless White

Finish

All painted finishes are powder coated baked enamel.

Labels

UL/cUL (Suitable for Damp Location), I.B.E.W.

Teflon®is a registered trademark of E.I. DuPont.

Add a “1” for 120v or “2” for 277v at the end of the catalog number for voltage

DFC L W DC FC L W DC FC L W

MR16 Low Voltage Halogen Bi-Pin Lamps

Lamps BeamSpread CBCP Rated

(To 50%CBCP) Life(Hrs.)

(FC) is initial footcandles at center of beam.

Beam length (L) and beam width (W) are to

where the candlepower is reduced to 50%

of the center beam candlepower.

CBCP is center beam candlepower.

Lamp data shown is typical, and is based on

bare lamp photometrics. Contact lamp

manufacturers for availability and

performance.

7’ 167 0.9’ 0.9’

10’ 82 1.2’ 1.2’

13’ 49 1.6’ 1.6’

16’ 32 2.0’ 2.0’

6’ 3.5’ 148 1.0’ 0.8’

9’ 5.2’ 66 1.5’ 1.3’

12’ 6.9’ 37 2.0’ 1.7’

15’ 8.7’ 24 2.3’ 2.1’

2’ 3.5 256 1.0’ 0.5’

3’ 5.2’ 114 1.5’ 0.7’

4’ 6.9’ 64 2.0’ 1.0’

5’ 8.7’ 41 2.5’ 1.2’

8200 3000

20W MR16

VNSP (EZX) 7˚ 6’ 100 1.4’ 1.4’

8’ 56 1.8’ 1.8’

10’ 36 2.3’ 2.3’

12’ 25 2.7’ 2.7’

5’ 2.9’ 94 1.5’ 1.3’

7’ 4.0’ 48 2.1’ 1.8’

9’ 5.2’ 29 2.7’ 2.4’

11’ 6.4’ 19 3.4’ 2.9’

2’ 3.5’ 113 1.9’ 0.9’

3’ 5.2’ 50 2.8’ 1.4’

4’ 6.9’ 28 3.8’ 1.8’

5’ 8.7’ 18 4.7’ 2.3’

3600 5000

20W MR16

NSP (ESX) 13˚

7’ 178 1.5’ 1.5’

10’ 87 2.1’ 2.1’

13’ 51 2.7’ 2.7’

16’ 34 3.4’ 3.4’

6’ 3.5’ 157 1.7’ 1.5’

9’ 5.2’ 70 2.5’ 2.2’

12’ 6.9’ 39 3.4’ 2.9’

15’ 8.7’ 25 4.2’ 3.6’

2’ 3.5’ 272 1.7’ 0.8’

3’ 5.2’ 121 2.6’ 1.3’

4’ 6.9’ 68 3.5’ 1.7’

5’ 6.7’ 44 4.3’ 2.1’

8700 4000

35W MR16

NSP (FRB) 12˚

8’ 205 1.3’ 1.3’

12’ 91 1.9’ 1.9’

16’ 51 2.5’ 2.5’

20’ 33 3.1’ 3.1’

7’ 4.0 174 1.5’ 1.3’

10’ 5.8’ 85 2.1’ 1.8’

13’ 7.5’ 50 2.7’ 2.4’

16’ 9.2’ 33 3.4’ 2.9’

3’ 5.2’ 182 1.9’ 0.9’

4’ 6.9’ 102 2.6’ 1.3’

5’ 8.7’ 66 3.2’ 1.6’

6’ 10.4 45 3.8’ 1.9’

13100 3500

42W MR16

VNSP (EZY) 9˚ 8’ 159 2.0’ 2.0’

12’ 71 2.9’ 2.9’

16’ 40 3.8’ 3.9’

20’ 26 4.9’ 4.9’

7’ 4.0’ 135 2.3’ 2.0’

10’ 5.8’ 66 3.3’ 2.8’

13’ 7.5’ 39 4.3’ 3.7’

15’ 9.2’ 28 5.3’ 4.5’

3’ 5.2’ 142 3.1’ 1.5’

4’ 6.9’ 80 4.1’ 2.0’

5’ 8.7’ 51 5.1’ 2.5’

6’ 10.4’ 35 6.2’ 2.9’

10200 4000

50W MR16

NSP (EXT) 14˚

2’ 131 1.5’ 1.5’

3’ 58 2.2’ 2.2’

4’ 33 2.9’ 2.9’

5’ 21 3.6’ 3.6’

2’ 1.2’ 85 2.0’ 1.7’

3’ 1.7’ 38 3.0’ 2.5’

4’ 2.3’ 21 4.1’ 3.4’

5’ 2.9’ 14 5.1’ 4.2’

1’ 1.7’ 66 4.8’ 1.5’

2’ 3.5’ 16 9.7’ 2.9’

3’ 5.2’ 7 14.5’ 4.4’

4’ 6.9’ 4 19.3’ 5.8’

525 5000

20W MR16

FL (BAB) 40˚

4’ 100 2.9’ 2.9’

6’ 44 4.4’ 4.4’

8’ 25 5.8’ 5.8’

10’ 16 7.3’ 7.3’

3’ 1.7’ 115 3.0’ 2.5’

5’ 2.9’ 42 5.1’ 4.2’

7’ 4.0’ 21 7.1’ 5.8’

9’ 5.2’ 13 9.1’ 7.6’

1’ 1.7’ 200 4.8’ 1.5’

2’ 3.5’ 50 9.7’ 2.9’

3’ 5.2’ 22 14.5’ 4.4’

4’ 6.9’ 13 19.3’ 5.8’

1600 4000

35W MR16

FL (FMW) 40˚

4’ 116 2.9’ 2.9’

6’ 51 4.4’ 4.4’

8’ 29 5.8’ 5.8’

10’ 19 7.3’ 7.3’

3’ 1.7’ 134 3.0’ 2.5’

5’ 2.9 48 5.1’ 4.2’

7’ 4.0’ 25 7.1’ 5.9’

9’ 5.2’ 15 9.1’ 7.6’

1’ 1.7’ 231 4.8’ 1.5’

2’ 3.5’ 58 9.7’ 2.9’

3’ 5.2’ 26 14.5’ 4.4’

4’ 6.9’ 14 19.3’ 5.8’

1850 6000

50W MR16

FL (EXN) 40˚ 3’ 128 3.1’ 3.1’

5’ 46 5.2’ 5.2’

7’ 23 7.3’ 7.3’

9’ 14 9.4’ 9.4’

3’ 1.7’ 83 4.6’ 3.6’

5’ 2.9’ 30 7.6’ 6.0’

7’ 4.0’ 15 10.7’ 8.4’

9’ 5.2’ 9 13.7’ 10.8’

1’ 1.7’ 144 22.3’ 2.1’

2’ 3.5’ 36 44.5’ 4.2’

3’ 5.2’ 16 66.8’ 6.2’

4’ 6.9’ 9 89.1’ 8.3’

1150 4000

50W MR16

WFL (FNV) 55˚

6’ 108 2.1’ 2.1’

8’ 61 2.8’ 2.8’

10’ 39 3.5’ 3.5’

12’ 27 4.2’ 4.2’

5’ 2.9 101 2.4’ 2.0’

7’ 4.0’ 52 3.3’ 2.9’

9’ 5.2’ 31 4.3’ 3.7’

11’ 6.4’ 21 5.2’ 4.5’

2’ 3.5’ 122 3.1’ 1.4’

3’ 5.2’ 54 4.7’ 2.1’

4’ 6.9’ 30 6.2’ 2.8’

5’ 8.7’ 20 7.8’ 3.5’

3900 4000

35W MR16

SP (FRA) 20˚

6’ 94 2.9’ 2.9’

8’ 53 3.8’ 3.8’

10’ 34 4.8’ 4.8’

12’ 24 5.8’ 5.8’

5’ 2.9’ 88 3.3’ 2.8’

7’ 4.0’ 45 4.6’ 3.9’

9’ 5.2’ 27 5.9’ 5.0’

11’ 6.4’ 18 7.2’ 6.1’

2’ 3.5’ 106 4.6’ 1.9’

3’ 5.2’ 47 7.0’ 2.9’

4’ 6.9’ 27 9.3’ 3.6’

5’ 8.7’ 17 11.6’ 4.8’

3400 6000

50W MR16

NFL (EXZ) 27˚



6’ 180 1.4’ 1.4’

12’ 80 2.1’ 2.1’

16’ 45 2.8’ 2.8’

20’ 29 3.5’ 3.5’

7’ 4.0’ 152 1.6’ 1.4’

10’ 5.8’ 75 2.3’ 2.0’

13’ 7.5’ 44 3.0’ 2.8’

16’ 9.2’ 29 3.7’ 3.2’

3’ 5.2’ 160 2.1’ 1.0’

4’ 6.9’ 90 2.9’ 1.4’

5’ 8.7’ 58 3.6’ 1.7’

6’ 10.4’ 40 4.3’ 2.1’

11500 4000

37W MR16 IR

NSP 10˚ 6’ 97 2.7’ 2.7’

8’ 55 3.5’ 3.5’

10’ 35 4.4’ 4.4’

12’ 24 5.3’ 5.3’

5’ 2.9’ 91 3.0’ 2.6’

7’ 4.0’ 46 4.2’ 3.6’

9’ 5.2’ 28 5.4’ 4.6’

11’ 6.4’ 19 6.6’ 5.6’

2’ 3.5’ 109 4.2’ 1.8’

3’ 5.2’ 49 6.2’ 2.7’

4’ 6.9’ 27 8.3’ 3.5’

5’ 8.7’ 18’ 10.4’ 4.4’

3500 4000

37W MR16 IR

NFL 25˚ 4’ 128 2.9’ 2.9’

6’ 57 4.4’ 4.4’

8’ 32 5.8’ 5.8’

10’ 21 7.3’ 7.3’

3’ 1.7’ 148 3.0’ 2.5’

5’ 2.9’ 53 5.1’ 4.2’

7’ 4.0’ 27 7.1’ 5.9’

9’ 5.2’ 16 9.1’ 7.6’

1’ 1.7’ 258 4.8’ 1.5’

2’ 3.5’ 64 9.7’ 2.9’

3’ 5.2’ 28 14.5’ 4.4’

4’ 6.9’ 16 19.3 5.8’

2050 4000

37W MR16 IR

FL 40˚

0° Aiming Angle 30° Aiming Angle 30° Aiming Angle

Accent Lighting Performance Data

ProSpec®Linear Downlight PS3M1650

Page 2 of 2 3 Light MR 16 Series S

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:
