LEGO® LOOP COASTER #10303

LIGHT KIT

INSTALLATION GUIDE

LEGO LOOP COASTER 10303 LIGHT KIT INSTALL GUIDE

INSTALLATION GUIDE 2

Light My Bricks

LEGO LOOP COASTER 10303

INSTALLATION GUIDE

Hi There!

We’re here to help you get started on the LEGO

Loop Coaster 10303 Light Kit.

This PDF details the instructions for the LED light kit only. If

you are wishing to purchase this product, please click here

to view the product page.

If you run into any issues, please refer to the troubleshoot-

ing section towards the end of this guide.

Have fun and enjoy!

LEGO LOOP COASTER 10303 LIGHT KIT INSTALL GUIDE

PACKAGE CONTENTS 3

PACKAGE CONTENTS: ASSORTED BRICKS:

21 x White 30cm Bit Light*

1 x Cool White 30cm Bit Light

1 x Red & Blue 15cm Bit Light

1 x Orange & Green 15cm Bit Light

2 x Rotating Bit Light

12 x Warm White 30cm Large Bit Light*

3 x Cool White 30cm Large Bit Light

2 x 2-Port Expansion Board

8 x 6-Port Expansion Board

2 x 8-Port Expansion Board*

1 x Gun Eects Board

2 x Rotating Sequence Eects Board

20 x Adhesive Squares

• 15 x Round Plate 1x1 w/ Open Stud – Black

• 13 x Mod Plate 1x1 w/ Handle – Black

• 10 x Arm Skeleton, Bent with Clips (Horizontal Grip) - Black

• 13 x Plate 1x2 MW Handle On End - Black

• 3 x Arm Skeleton, Bent with Clips at 90 degrees - Black

• 1 x Round Brick 1x1 - Trans Red

• 2 x Round Plate 1x1 - Trans Red

• 1 x Round Plate 1x1 - Trans Dark Blue

• 1 x Round Plate 1x1 - Trans Green

• 1 x Round Plate 1x1 - Trans Pink

• 1 x Round Plate 1x1 - Trans Clear

• 2 x Plate 2x8 - Black

• 1 x Plate 2x2 W Rounded Bottom - Trans Clear

• 1 x Cone 1 x 1 w/ Top Groove - Trans Orange

• 1 x Bracket 1x1 - Light Grey

4 x 5cm Connecting Cable*

2 x 15cm Connecting Cable

7 x 30cm Connecting Cable

3 x 50cm Connecting Cable*

1x USB Power Cable

(Power Source not Included)

* Indicates components which include spares

LEGO LOOP COASTER 10303 LIGHT KIT INSTALL GUIDE

CONTENTS 4

Contents

Before You Begin

Blueprint

Instructions

Final Product

Troubleshooting

Contact

LEGO LOOP COASTER 10303 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 5

Before You Begin

Laying cables in between

and underneath bricks

Cables can ﬁt in between and underneath

LEGO® bricks, plates, and tiles providing

they are laid correctly between the

LEGO® studs. Do NOT forcefully join

LEGO® together around cables; instead

ensure they are laying comfortably in

between each stud.

CAUTION: Forcing LEGO® to connect over

a cable can result in damaging the cable

and light.

Connecting Cable

Connectors To Expansion

Boards

Take extra care when inserting connectors

to ports of Expansion Boards. Connectors

can be inserted only one way. With the

expansion board facing up, look for the

soldered “=” symbol on the left side of the

port. The connector side with the wires

exposed should be facing toward the

soldered “=” symbol as you insert into the

port. If a plug won’t ﬁt easily into a port

connector, do not force it.

Incorrectly inserting the connector can re-

sult in bent pins inside the port or possible

overheating of the expansion board when

connected.

LEGO LOOP COASTER 10303 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 6

Before You Begin

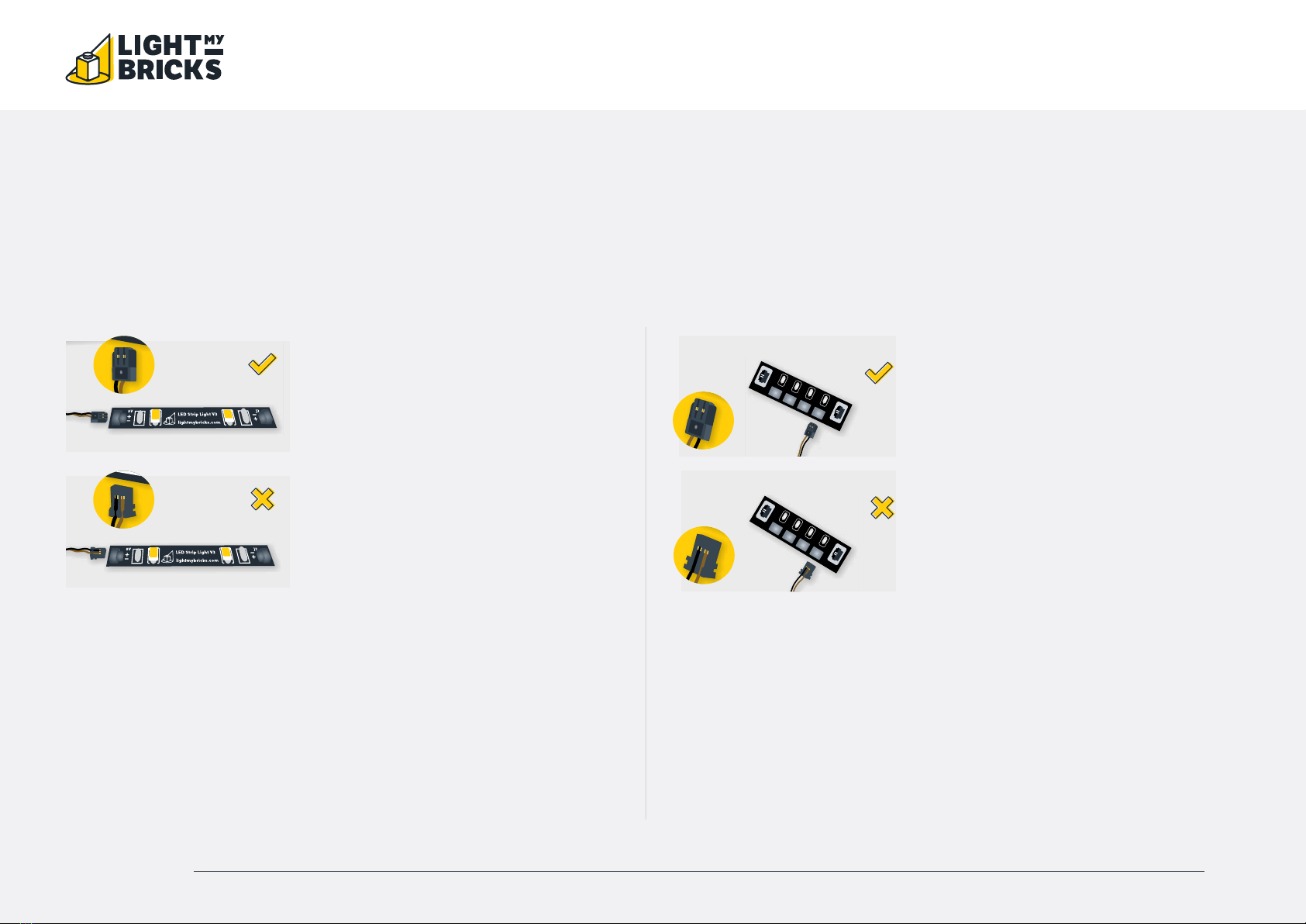

Connecting Cable

Connectors To Strip Lights

Take extra care when inserting connectors

to ports on the Strip Lights. Connectors

can be inserted only one way. With the

Strip Light facing up, ensure the side of

the connector with the wires exposed is

facing down. If a plug won’t ﬁt easily into

a port connector, don’t force it. Doing so

will damage the plug and the connector.

Connecting Micro Cable

Connectors To Micro

Expansion Board Ports

Take extra care when inserting the

micro connectors to micro ports of Micro

Expansion Boards. Connecting Micro Bit

Lights to Micro Expansion Boards is similar

to connecting lights and cables to Strip

Lights. With the expansion board facing

up, ensure the side of the connector with

the wires exposed is facing down. If a plug

won’t ﬁt easily into a port connector, do

not force it. Use your ﬁngernail to push the

plastic part of the connector to the micro

port.

LEGO LOOP COASTER 10303 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 7

Before You Begin

Installing Bit Lights Under

Lego® Bricks And Plates

When installing Bit Lights under LEGO®

pieces, ensure they are placed the correct

way up (Yellow LED component exposed).

You can either place them directly on top of

LEGO® studs or in between.

LEGO LOOP COASTER 10303 LIGHT KIT INSTALL GUIDE

BLUEPRINT 8

BLUEPRINT

LEGO LOOP COASTER 10303 LIGHT KIT INSTALL GUIDE

BLUEPRINT 9

BLUEPRINT

LEGO LOOP COASTER 10303 LIGHT KIT INSTALL GUIDE

INSTRUCTIONS 10

INSTRUCTIONS

To ensure a smooth installation of

your light kit, please read and follow

each step carefully. If you run into

any issues, please refer to the online

troubleshooting guide.
