Lifetime 0040 Guía de inicio rápido

**For U.S. and Canada Customers ONLY:**

IF ASSISTANCE IS NEEDED,

DO NOT CONTACT THE STORE!!!

CALL OUR CUSTOMER SERVICE DEPARTMENT at 1 (800) 225-3865

HOURS: 7:00 a.m. to 5:00 p.m. Monday through Friday, 7:00 a.m. to 12 noon Saturday (Mountain Standard Time)

**Call, or visit our Web site for Saturday hours**

**Customers outside the U.S. or Canada, please contact the store.**

10/01/2006

VISIT THE LIFETIME WEB SITE:

WWW.LIFETIME.COM

4” SQUARE GROUND SLEEVE

MODEL #0040

ASSEMBLY INSTRUCTIONS

AND OWNER’S MANUAL

Save this instruction in the event that the manufacturer has to be contacted for replacement parts.

WARNING

INSTRUCTION #1019202

Failure to comply with any of the warnings

in these instructions may result in serious

personal injuries such as cuts, broken

bones, nerve damage, paralysis, brain

injury, or death. Failure to comply may also

result in property damage. Please heed

all warnings and cautions. To ensure your

safety, do not attempt to assemble this

system without reading and following all

instructions carefully. Identify and inventory

the parts using the Parts List.

Copy

PARTS LIST

ID Part # Description Qty

A 1018911 Ground Sleeve 1

B 500113 4 1/2” Cap 1

C CF01700 Pole Cap 1

D 800054 Ground Sleeve Wedge 1

E 500231 3/4” x 6” Tape 1

TOOLS AND MATERIALS

REQUIRED FOR ASSEMBLY

(Not Included)

1. Concrete mix

(Six 90-lb. bags)

2. Water supply

3. Wheelbarrow

4. Shovel

5. 30” rebar

6. Carpenter’s level

WARNING

Choose the location of your pole carefully! Avoid putting

the pole near overhead power or utility lines. Be sure to

contact the appropriate agency to determine the location

of any underground utilities before digging.

NOTE: is Ground Sleeve is for use with inground poles only. Poles are not included with this product. Use the pole from

your purchased Lifetime®system.

NOTE: If you have a one-piece pole system, your pole will be signicantly longer than the poles pictured. If you have a three-piece pole system, use

only the Bottom Pole Section.

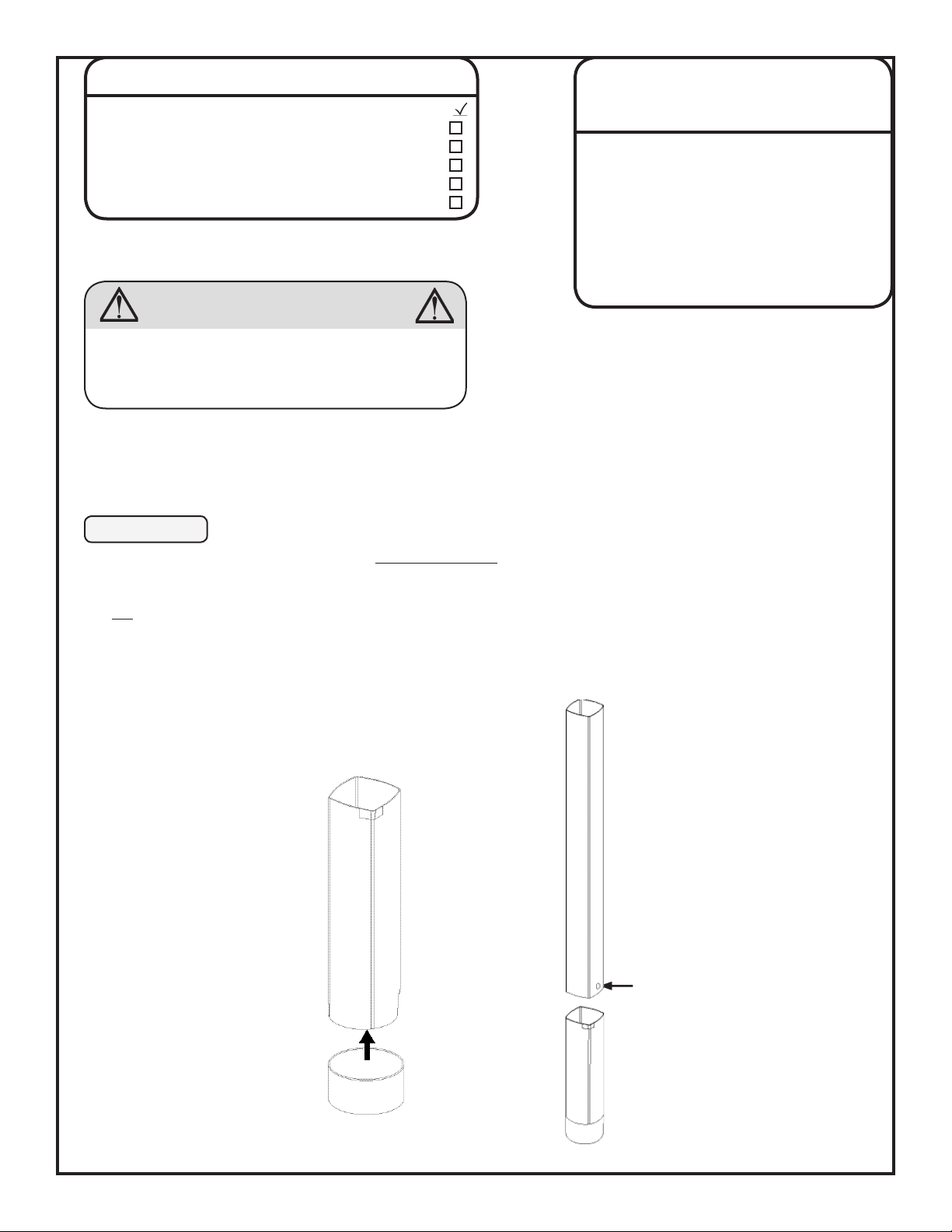

a. Slide the round Ground Sleeve Cap (B) over the bottom of the Ground Sleeve (A). You may have to push fairly hard on the Cap

to slide it over the end of the Sleeve.

b. Insertthelowerendof thepole(theendwiththedimple)intotheGroundSleeve.MakesurethepoletsintotheGroundSleeve

and slides all the way to the bottom of the Sleeve.

Identication

dimple

STEP1A

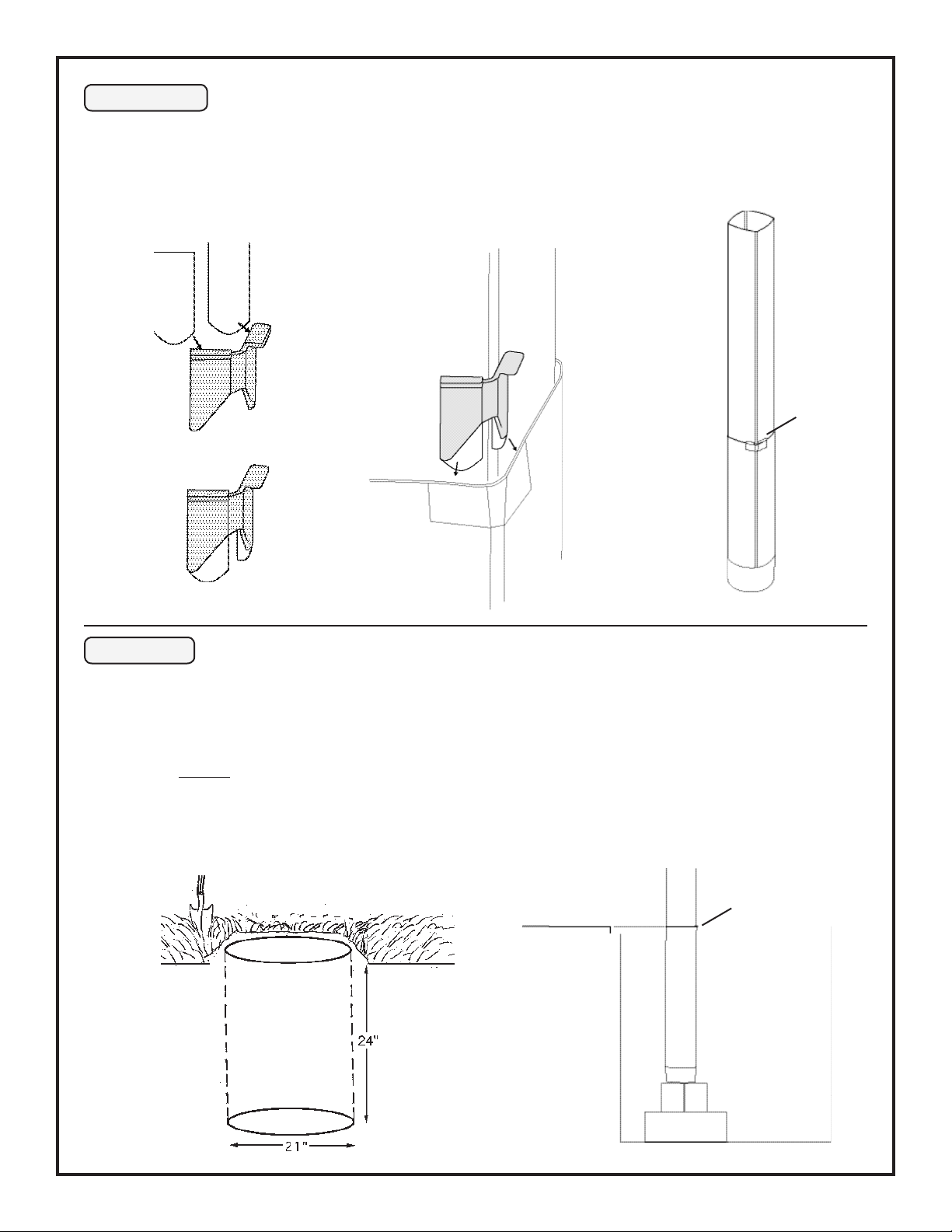

a. Dig a hole 24” deep and 21” in diameter. Stack bricks in the bottom of the hole for the ground sleeve to stand on. Stack enough

bricks in the hole so that the top of the ground sleeve is even with the top edge of the playing surface. If the ground sleeve is not

exactly even with the playing surface, dig the hole deeper or add more bricks as necessary. Position the bricks close to the front

edge of the hole, near the playing surface. The correct distance from the basketball court to the front of the pole is 4 inches.

b. Mixall6bagsof concrete,except1/3of abagwhichwillbeusedlatertolltheinsideof thebottompolesection.

c. Fill the hole half full with concrete. Insert the Ground Sleeve and bottom pole section into the cement, making sure the Ground

Sleeve rests on the bricks at the bottom of the hole. The correct distance from the basketball court to the front of the pole is

4inches.Thetopof theGroundSleeveshouldbeushwiththebasketballcourt.Thebottomof theSleeveshouldberesting

on the bricks in the bottom of the hole. e Wedge between the Sleeve and pole section should be at the back side of the pole,

away from the playing surface.

PLAYING

SURFACE

Bricks

STEP 2

WEDGE

a. Peel off the short piece of the Tape backing and apply the Tape (E) to the inside of the Wedge (D) as shown. Cut the Tape at

the top edge of the Wedge, then remove the backing and apply the remainder to the other side of the Wedge. Cut off the excess

atthetopedgeof theWedge.MakesuretheTapeisrmlyappliedandcannotfoldbackward.

b. Insert the Wedge into one corner of the Sleeve and tap it down until it is all the way in. The Wedge helps to stabilize the pole,

and must be used whenever the pole is inserted into the Sleeve.

STEP 1B

WEDGE

a. Carefully remove the pole from the Ground Sleeve.

b. Mix the remaining 1/3 bag of concrete, making sure to keep the concrete dry enough to be handled. Push the concrete into the

bottomof thepolesothereisenoughtollthebottom30inchesof thepole.

c. Insertthe30”rebarintothemiddleof thepoleuntiltheendisushwiththeendof thepole.

d. Bend the tabs on the Pole Cap (C) and insert it into the bottom of the pole. You may need to hold the Cap in place with some

tape. Leave the pole standing in an upright position until the concrete sets.

e. Continue with step 6.

STEP 5

2ND

POURING

PLAYING

SURFACE

4”

a. Finish lling the hole with concrete. Make sure the

Ground Sleeve is ush with the basketball court and is

not sunk into or positioned above the concrete. If the

top of the Ground Sleeve is not ush with the playing

surface, the system will not be at the regulation

height. Do not allow any concrete to cover the top

edge of the Ground Sleeve or contact the pole.

b. Form the concrete into an upward slope, toward the

GroundSleeve.Thiswillallowanywaterbuilduptoow

away from the Ground Sleeve. Failure to do so may result

in premature rusting of the Ground Sleeve.

a. Usingalevel,checkthepoleseveraltimeswithinthersthourtomakesureall

sides are vertical and that the top of the Sleeve is level with the playing surface.

Readjustif necessarybeforetheconcretebeginstorm.

b. Allow at least four hours for the concrete to set up before continuing assembly.

STEP 4

STEP 3

FOR ONE-PIECE POLES ONLY:

a. Carefully remove the bottom pole section from the Ground Sleeve.

b. Bend the tabs on the Pole Cap (C) and insert it into the bottom of the bottom pole section.

c. Mixtheremaining1/3bagof concrete.Usingafunnel,llthebottompolesectionwithconcretetoadepthof 30”.Insertthe

rebar into the middle of the pole, all the way to the bottom of the pole.

d. Leave the pole standing in an upright position until the concrete sets. Be sure to clean off any concrete from the outside of the

pole section.

e. Continue with step 6.

a. Make a mark 16” from the bottom edge of the pole and insert the bottom

of the pole into the Ground Sleeve.

WARNING: e 16” mark on the pole must reach the upper edge

of the Ground Sleeve. If the pole does not go deep enough, check the

bottom of the Ground Sleeve for debris or concrete. Clean out the

Ground Sleeve and reinstall the pole. If the pole still does not reach

the 16” mark, it may also be necessary to remove the cap from the

bottom of the pole.

b. Insert the Wedge in one of the rear corners of the Sleeve and tap it down

untiltheupperangesrestagainstthetopedgeof theSleeve.

c. Allow the concrete to set for at least 72 hours (3 days) before assembling

the basketball system.

NOTE: Make sure that the Wedge is inserted between the Sleeve and

pole as described in Step 1 whenever the basketball system is in the

Sleeve. e Wedge must be inserted into one of the rear corners, on

the side of the pole away from the playing surface.

30”

16”

STEP 6

WEDGE

FOR THREE-PIECE POLES ONLY:

STEP 5

LIFETIME BASKETBALL EQUIPMENT

5-YEAR LIMITED FACTORY WARRANTY

THE MANUFACTURER RESERVES THE RIGHT TO MAKE SUBSTITUTIONS TO WARRANTY

CLAIMS IF PARTS ARE UNAVAILABLE OR OBSOLETE.

1. Lifetime basketball systems are warranted to the original purchaser to be free from defects in material or

workmanship for a period of ve years from the date of original retail purchase. The word “defects” is dened as

imperfections that impair the use of the product. Defects resulting from misuse, abuse or negligence will void this

warranty. This warranty does not cover defects due to improper installation, alteration or accident. This warranty

does not cover damage caused by vandalism, rusting, “acts of nature” or any other event beyond the control of the

manufacturer.

2. This warranty is nontransferable and is expressly limited to the repair or replacement of defective basketball equipment.

If the equipment is defective within the terms of this warranty, Lifetime Products, Inc. will repair or replace defective

parts at no cost to the purchaser. Shipping charges to and from the factory are not covered and are the responsibility

of the purchaser. Labor charges and related expenses for removal, installation or replacement of the basketball system

or its components are not covered under this warranty.

3. This warranty does not cover scratching or scufng of the product that may result from normal usage. In addition,

defects resulting from intentional damage, negligence, unreasonable use or hanging from the net or rim will void

this warranty.

4. Liability for incidental or consequential damages is excluded to the extent permitted by law. While every attempt

is made to embody the highest degree of safety in all equipment, freedom from injury cannot be guaranteed. The

user assumes all risk of injury resulting from the use of this product. All merchandise is sold on this condition, and

no representative of the company may waive or change this policy.

5. This product is not intended for institutional or commercial use; Lifetime Products, Inc. does not assume any liability for

such use. Institutional or commercial use will void the warranty.

6. This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of merchantability

or tness for use. Neither Lifetime Products, Inc., nor any representative assumes any other liability in connection

with this product.

ALL WARRANTY CLAIMS MUST BE ACCOMPANIED BY A SALES RECEIPT.

To register the product, visit our website at www.lifetime.com

REPORT PRODUCT DEFECTS IN WRITING TO:

Lifetime Products, Inc., PO Box 160010 Cleareld, UT

84016-0010 or call (800) 225-3865 M-F 8 a.m. to 5 p.m. MST.

Please include your dated sales receipt and photographs of damaged parts.
