AC Power System Installation Manual

FlexPower

FlexPower AC Power System Installation Manual

ii iii

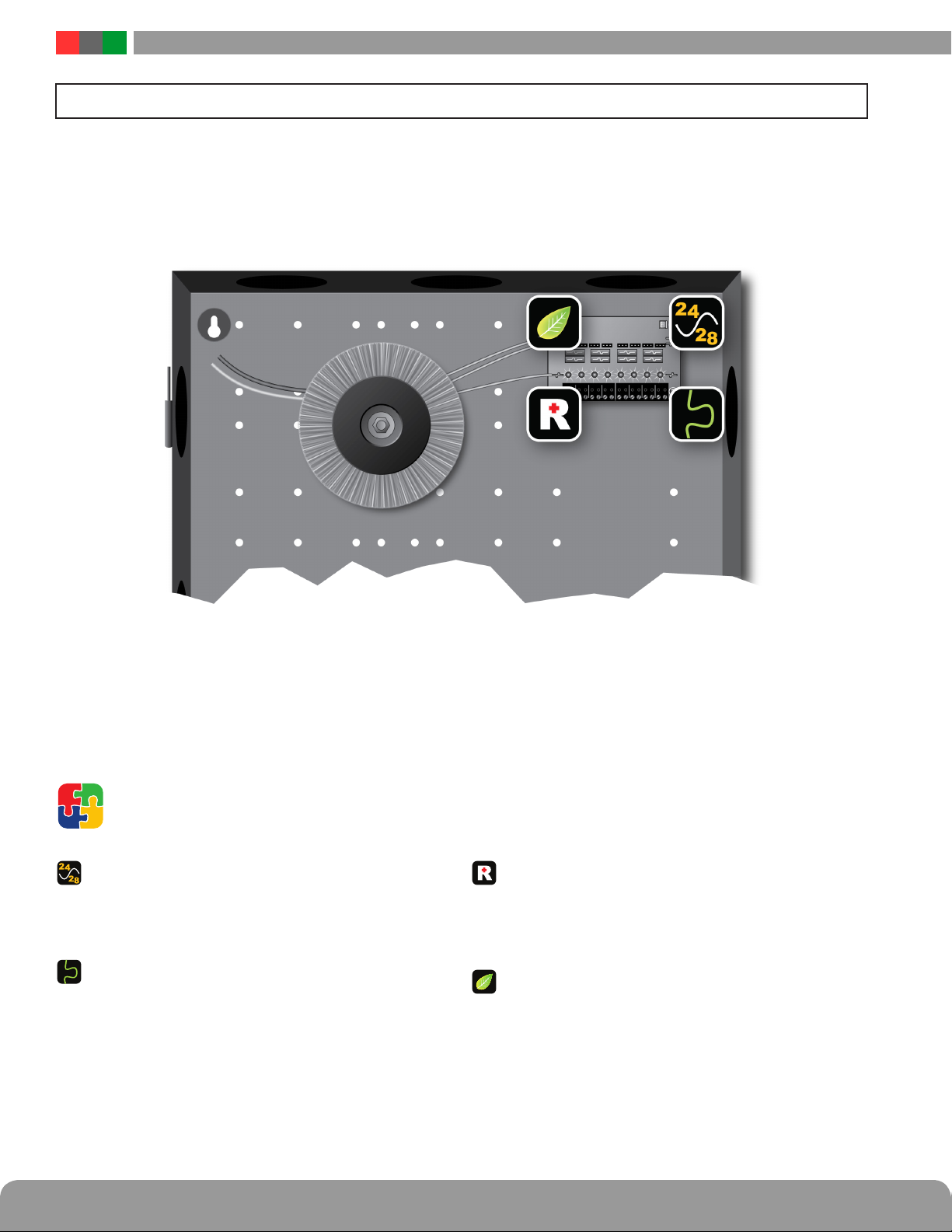

FlexPower Features

VSelect®

Jumper selectable voltage of 24 or 28VAC by zone allows

for the reduction and simplification of service inventory by

eliminating the necessity of stocking units in each voltage.

FlexConnect®

The FlexPower series provides a prewired interconnection

system between the power supplies and accessory boards

of the power system that eliminates inter-module wiring

by the field installer. Field upgrading is as simple as using

common mounting footprints, predrilled mounting holes,

snap-in standoffs, and pluggable wires to add additional

system capability or capacity when needed.

Reliability+®

All power supplies within the FlexPower system are fully

fault protected and feature conformal coating on the elec-

tronic PC boards to protect the electronics from water, dust,

and other corrosive elements found in industrial settings.

GreenSmart®

All members of the FlexPower family are RoHs compliant,

lead-free, and meet the new state and federal requirements

for energy efficiency.

FlexPower Power Management System CCTV Standard Features

FlexPower's advanced feature set provides greater product reliability, increased flexibility, shorter install time, a smaller service

inventory, and an intelligent, economical solution to the problem of reliable system power.

FlexPower AC Power System Installation Manual

ii iii

Symbol Deﬁnitions

The following symbols are used throughout this manual.

hThis symbol is intended to alert the installer of shock haz-

ards within the enclosure. Service should only be per-

formed by qualiﬁed service personel.

iThis symbol is intended to alert the installer of impor-

tant information intended to help the installer avoid

personal injury or property damage.

Warnings

h Installation and service should be performed only by

qualiﬁed service personel and should conform to all

local codes.

h To reduce the risk of electric shock or ﬁre, do not

expose this equipment to rain or moisture.

i This equipment shall be installed in a manner which

prevents unintentional operation by employees,

cleaning personel, or others working in the premesis,

by falling objects, customers, building vibration, or

similar causes.

i This equipment is not intended for use within the pa-

tient care areas of a Health Care Facility.

h Replace fuses only with the same type and rating as indi-

cated in the speciﬁcations section of this manual.

i To prevent impaired operation, ensure that all wiring is

routed and secured to prevent accidental open or short

circuit conditions.

Regulatory Information

The equipment discussed within this manual has been

tested to the following standards:

• UL2044

• UL294

• CSA C22.2 #107.1

Conventions Used Within this Manual

Positional information (eg. top, bottom, up, down, left,

right, etc.) is referenced with the board or enclosure in the

the orientation shown in the illustrations in this manual.

Notes and Warnings

FlexPower AC Power System Installation Manual

iv 1

Quick Install Guide

Table of Contents

FlexPower Features ..................................ii

Notes and Warnings .................................iii

Symbol Deﬁnitions..................................................iii

Warnings .........................................................iii

Regulatory Information ..............................................iii

Conventions Used Within this Manual ...................................iii

Table of Contents ................................... iv

Section 1 - Installation and Operation ......................1

1.1 Mounting...................................................... 1

1.2 Connections and Setup............................................2

1.2.1 Transformer Secondary Wire Colors ............................... 3

1.3 Typical Installation & Wire Routing .................................. 4

1.4 Power-Up and Basic System Veriﬁcation Checklist ...................... 5

Section 2 - Troubleshooting and Maintenance ................6

2.1 Troubleshooting Chart............................................ 6

2.2 Maintenance Instructions ......................................... 6

Section 3 - Speciﬁcations ..............................7

3.1 Electrical Speciﬁcations........................................... 7

3.2 Temperature Speciﬁcations ........................................ 7

3.3 Mechanical Speciﬁcations......................................... 7

3.4 Replacement Parts .............................................. 8

FlexPower AC Power System Installation Manual

iv 1

Quick Install Guide

Enclosure-Level Products

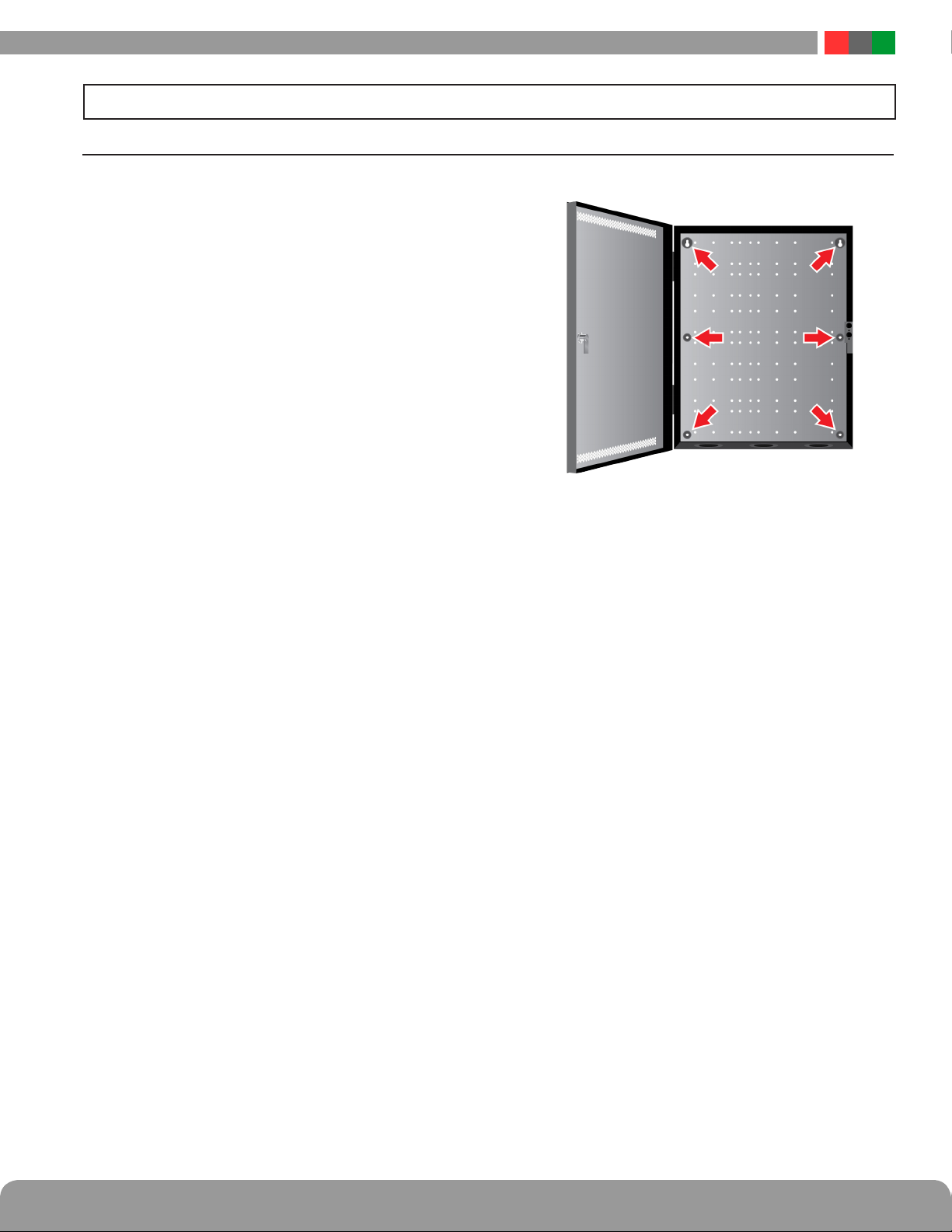

Mounting an enclosure to a wall is via the two recessed

keyholes and two recessed mounting holes in the back of

the enclosure.

1. (Optional) Remove the enclosure’s cover.

2. Locate the top keyhole mounting holes in the back of the

enclosure.

3. Mark and pre-drill the locations for the keyholes in the

mounting surface.

4. Partially install two fasteners appropriate for the sur-

face on which the enclosure is being installed. Leave the

heads of the fasteners approximately ¼" out from the

surface. Minimum fastener size should be #10 or larger.

5. Hang the enclosure on the two fasteners and mark the

locations of the two bottom mounting holes.

6. Remove the enclosure and pre-drill the locations for the

two bottom mounting holes.

7. Re-hang the enclosure on the top mounting fasteners,

start the bottom two fasteners and tighten all fasteners.

8. Reinstall the enclosure’s cover, if removed in step 1.

i It is the installer’s responsibility to determine the ap-

propriate fastening system for use with the surface to

which the enclosure is being mounted.

Section 1 - Installation and Operation

1.1 Mounting

FlexPower AC Power System Installation Manual

2 3

Quick Install Guide

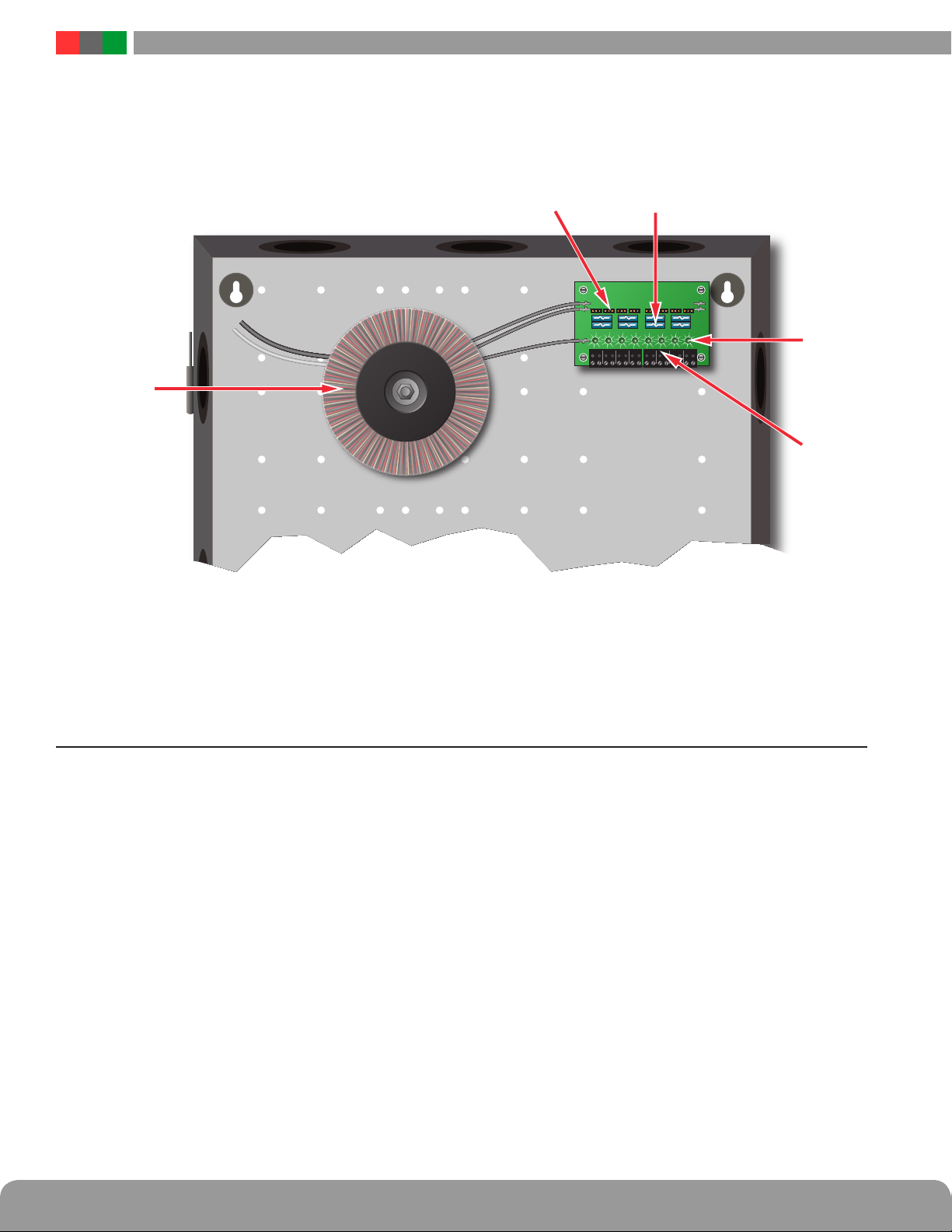

1AC Input (J9)

The primary AC input for the FPA Series power supplies. Multi-trans-

former supplies should have all transformer primaries connected to-

gether then connect to the AC Line. Input must be 120VAC 60Hz.

• White - Neutral

• Black - Hot

• Green/Yellow - Earth Ground

HAlways connect Earth Ground ﬁrst and remove last

2A8(P) Board Zone Outputs

The zone outputs on the A8 boards distribute the transformer power

to the devices to be powered. These terminal strips are removable

and accept wire sizes from AWG14 - AWG22. Phasing is indicated on

the PC Board.

3Output Selection Jumpers (JP1 - JP8)

These jumpers select which voltage buss input is selected for the out-

put. Jumper numbers correspond with the zone number (eg. JP1 is

the jumper for OUT1). Possible settings are as follows:

• Position 2 (Left) - 28VAC (18V for 16.5/18V FPA models)

• Position 1 (Right) - 24VAC (16.5V for 16.5/18V FPA models)

• Removed - Disable Output

4Output Fuses (F1 - F8) - Optional

When using the fused version of the A8, these are the fuses for each

zone output. Fuse numbers correspond with the zone number (eg. F1

is the fuse for OUT1). When using the PTC version of the A8, the fuse

will be replaced with a soldered-in PTC.

5Output LEDs (D1 - A8) - Green

These LEDs indicate the availability of voltage on a zone’s output.

When voltage is available on the output terminals, the LED is lit. LED

numbers correspond with the zone number (eg. D1 is the LED for

OUT1).

1.2 Connections and Setup

HEnsure all power is disconnected before wiring.





 



FlexPower AC Power System Installation Manual

2 3

Quick Install Guide

1.2.1 Transformer Secondary Wire Colors

Brown

Common Voltage Current Voltage Current

FPA100A 0V 24V 4.17A 28V 3.57A

FPA150A 0V 24V 6.25A 28V 5.4A

FPA300A 0V 24V 12.5A 28V 10.7A

Brown

Common Voltage Current Voltage Current

FPA200A 0V 16.5V 6.06 18V 5.56A

Black

Common Voltage Current Voltage Current

0V 16.5V 6.06 18V 5.56A

FPA100/150/300AWinding1

FPA200AWinding2

White

Blue

Blue Orange

Yellow

FPA200AWinding1

Green

FlexPower AC Power System Installation Manual

4 5

Troubleshooting

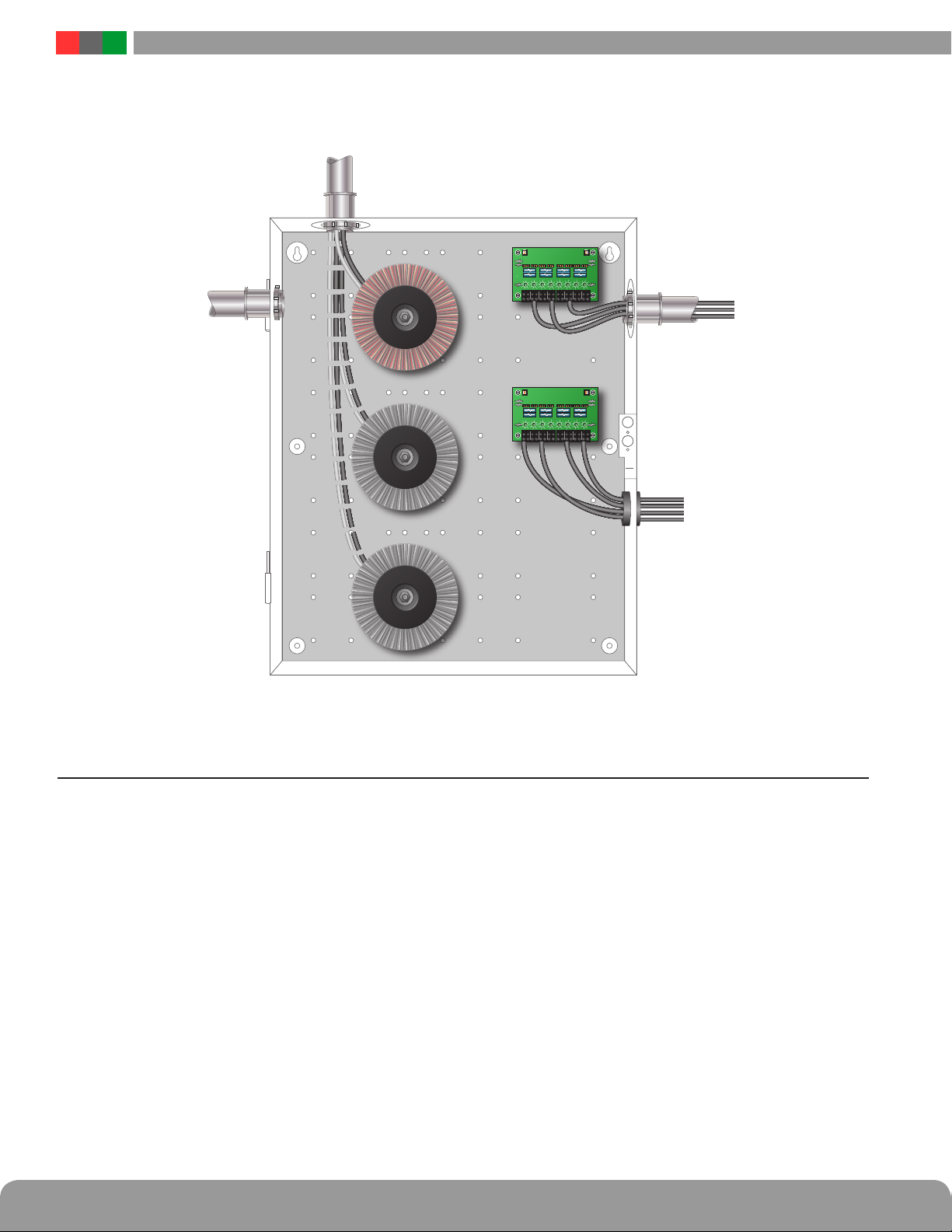

1.3 Typical Installation & Wire Routing

The drawing above shows a typical installation. Actual con-

ﬁguration and wire routing will vary based on the compo-

nents installed in your system. The following guidelines

should be followed for installation.

• Class 2 Power limited wiring must be separated from

non-power limited wiring by a minimum of 1/4 inch and

must use separate knockouts.

• AC Input Power must enter the enclosure via one of the

3/4" single knockouts

• The installation and all wiring methods shall be in ac-

cordance with ANSI/NFPA70 and all local codes.

• For Canadian Installations - For permanently connected

equipment, a readily accessible disconnect device shall

be incorporated external to the equipment. Output cir-

cuits not connected to removable terminal strips shall

also utilize a readily accessible disconnect device.

• Any wiring passing through knockouts in the bottom or

top surfaces of the enclosure must be enclosed in rigid

or ﬂexible metal conduit.

AC Input

Class 2

Alternate

AC Input

FlexPower AC Power System Installation Manual

4 5

Troubleshooting

1.4 Power-Up and Basic System Veriﬁcation Checklist

Q 1. Ensure proper conﬁguration of all jumpers.

Q 2. Apply AC power to the FPA power supply.

Q 3. Ensure all green Zone LEDs are lit.

Q 4. Verify zone output voltage with a meter.

a. If the zone's jumper is set in position 1 , the

voltage should be approximately 24VAC

b. If the zone's jumper is set in position 2, the

voltage should be approximately 28VAC

Note that the exact voltage will vary with the

AC line voltage and loading

FlexPower AC Power System Installation Manual

6 7

Speciﬁcations

2.1 Troubleshooting Chart

Symptom Possible Problem Information / Possible Solution

No voltage on ALL Zones AC Input voltage missing Verify that 120VAC is present on the input of the transformer

Wire disconnected Verify that all wires are connected between the transformer and

the A8 board(s) in the system. Ensure that all crimp connections

are secure.

Transformer problem Verify that 24 and 28V (or 16.5 and 18V for 16.5/18V FPA Models)

are being output from the transformer. If not, the transformer's

internal protection may have opened. Contact LifeSafety Power.

A8 Board Problem Verify all jumpers and fuses are in place and intact. Contact Life-

Safety Power.

Incorrect voltage out of zone Zone jumper set incorrectly Verify the proper setting of the zone jumper

AC Input voltage incorrect Verify AC input is 120VAC

Improper wiring between

transformer and A8 board(s)

Verify the proper wiring between the transformer and A8 boards.

Contact LifeSafety Power for assistance.

2.2 Maintenance Instructions

The following are the maintenance instructions for the FPA

Series power supply system.

• Disconnect AC power prior to servicing

• Verify the integrity of all fuses (if used) and replace as

necessary using the fuse ratings supplied in the Speci-

ﬁcations section of this manual.

• Verify that all output voltages are within range as speci-

ﬁed in the Speciﬁcations section of this document

Section 2 - Troubleshooting and Maintenance

Otros manuales para FlexPower

Tabla de contenidos

Otros manuales de Fuente de alimentación de LifeSafety Power

LifeSafety Power

LifeSafety Power FLEXPOWER iSCAN RS Series Manual de usuario

LifeSafety Power

LifeSafety Power FLEXPOWER RC75 Series Manual de usuario

LifeSafety Power

LifeSafety Power FlexPower Vantage FPV4 Manual de usuario

LifeSafety Power

LifeSafety Power FlexPower RA150 Series Manual de usuario

LifeSafety Power

LifeSafety Power FlexPower Manual de usuario

LifeSafety Power

LifeSafety Power Helix Manual de usuario

LifeSafety Power

LifeSafety Power FlexPower Generation 2 Manual de usuario

LifeSafety Power

LifeSafety Power Helix RH150 Series Manual de usuario

LifeSafety Power

LifeSafety Power FlexPower Vantage R8 series Manual de usuario

LifeSafety Power

LifeSafety Power B100 Manual de usuario

Manuales populares de Fuente de alimentación de otras marcas

Monacor

Monacor PS-12CCD Manual de usuario

VOLTIMA

VOLTIMA MagicBox 15 Manual de usuario

Agilent Technologies

Agilent Technologies 6032A Manual de usuario

Miller

Miller Auto Deltaweld 452 Manual de usuario

BCP

BCP PUOUBK Hoja de instrucciones

HC 2210 Manual de usuario

Puls

Puls CT5.241 Manual de usuario

OCZ

OCZ ZX1250W Manual de usuario

iseg

iseg ECH 238 Manual de usuario

Power

Power XXL A Series Manual de usuario

Agilent Technologies

Agilent Technologies 6631B Manual de usuario

Renogy

Renogy PHOENIX 300 Manual de usuario

HP 6200B Manual de servicio

Epson

Epson Stylus Scan 2500 Manual de funcionamiento

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manual de usuario

Puls

Puls MiniLine ML50.100 Manual de usuario

Puls

Puls AS-Interface SLA4.100 Manual de usuario

Kenwood

Kenwood PS-60 Manual de usuario
