Lifecycle LC8500 Guía de configuración
LifeCycle LC8500 LC85-0100-35
General Assembly S/N CBH100000
Console
Overlay
Final Frame
Assembly
Alternator
w/Pulley
Crank Shaft
Assembly
Intermediate
Pulley/Shaft
Assembly
Seat Latch
Assembly
Seat Post
Assembly
Seat Post
Shrouds
Idler Bracket
Assembly
Console Support
Assembly
Left Side Shroud
and Crankarm
Right Side Shroud
and Crankarm
PCB Mounting
Bracket Assembly
Front Wheels
Resistor
Assembly
Handlebar
Assembly
Belts
Cables
Polar Cover Top
0K63-01145-0000
Polar Cover Bottom
0K63-01146-0000
Operator Manual
M051-001163-B008
revised 29 Feb 2008
2
LifeCycle LC8500 LC85-0100-35
Console Overlay Bezel Assembly
Console Assembly Overlay Bezel
AK63-00072-0001 Eng Met AK63-00080-0001 Eng Met
AK63-00072-0003 Ger Met AK63-00080-0003 Ger Met
AK63-00072-0004 Spn Met AK63-00080-0004 Spn Met
AK63-00072-0006 Jap Met AK63-00080-0006 Jap Met
AK63-00072-0007 Frn Met AK63-00080-0007 Frn Met
AK63-00072-0008 Itl Met AK63-00080-0008 Itl Met
AK63-00072-0009 Itl Met AK63-00080-0009 Itl Met
AK63-00072-0010 Por Met AK63-00080-0010 Por Met
Console Board - Upper
A084-92220-A002
Console Case Assembly
AK63-00121-0000
Battery Door
0K63-01029-0000
Phillips Pan Screws(13)
0017-00101-1650
Upper Overlay
Lower Overlay
9V Alkaline Battery
0017-00003-0757
(includes 9VDC connection)
3
LifeCycle LC8500 LC85-0100-35
Final Frame Assembly
Clutch Assembly
AK63-00026-0000
Crank Disc
0K63-01095-0001
Crank Pulley Assembly
AK63-00051-0000
Idler Pulley Assembly
AK63-00021-0000
PCB Bracket
AK63-00094-0000
Grommet
0017-00042-1134
Frame Gasket
0K63-01007-0002
Resistor Assembly
AK63-00114-0000
Alternator w/Pulley
AK63-00093-0000
Seat Latch Assembly
AK63-00043-0000
Leg Leveler
AK61-00035-0000
End Cap
0K63-01219-0000
4
LifeCycle LC8500 LC85-0100-35
Alternator w/Pulley - AK63-00093-0000
Alternator Pulley
0K61-02500-0001
Alternator
0017-00009-0841
Locking Nut
0017-00103-0117 Washer
0017-00104-0044
Bolt
0017-00101-0956
5
LifeCycle LC8500 LC85-0100-35
Crank Shaft and Crank Bearing Assembly – GK63-00002-0006
Bowed Retainer Ring(2)
0017-00100-0243
Large Thrust
Washer (2)
0K63-01129-0001
Small Retaining
Ring(2)
0017-00100-0241
Small Thrust
Washer(2)
0K63-01129-0000
Needle Bearing(2)
0K63-01128-0000
6
LifeCycle LC8500 LC85-0100-35
Intermediate Shaft and Bearing Assembly – GK63-00002-0007
Spacer
Clutch Assembly
AK63-00026-0000
DELRIN Washers
0017-00104-0455
Retaining Ring
0017-00100-0242
7
LifeCycle LC8500 LC85-0100-35

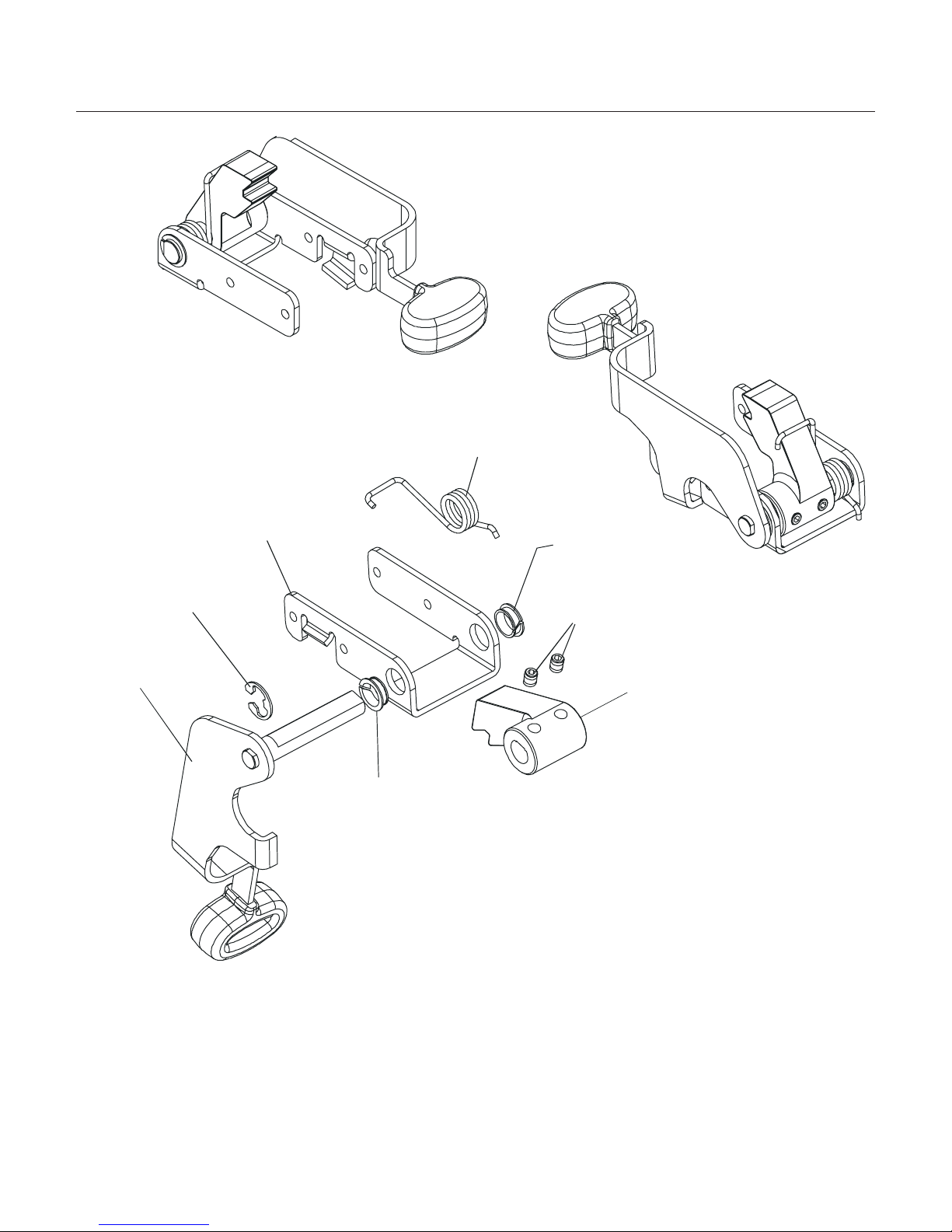

Seat Latch Assembl y - AK63-00043-0000
Set Screws (2)
0017-00101-0333
NYLINER
0017-00042-1129
Latch Spring
0K63-01117-0000
Latch Bracket
0K63-01064-0000
E-Ring
0017-00100-0050
NYLINER
0017-00042-1129
Latch Rack
0K63-01061-0000
Link Shaft
AK63-00113-0000
8
LifeCycle LC8500 LC85-0100-35
Seat Post Assembly - AK63-00232-0001
Seat-Standard
AK63-00229-0002
Lock Washer(4)
0017-00104-0064
Hex Bolt(4)
0017-00101-1121
Extrusion
Guide Cap
0K63-01044-0000
Seat Post Assembly
AK63-00099-0001
Spring Support Bracket
0K63-01210-0000
Guide Base
0K63-01045-0000
Polylastomer Bumper
0017-00042-1131
Pan Screws(3)
0017-00101-1614
Seat Adjustment Rack
0K63-01049-0000
Screw
0017-00101-1623
Seat Post Decal
0K63-01151-0000
9
LifeCycle LC8500 LC85-0100-35
Seat Post Shrouds
Left Seat Post Shroud
0K63-01092-0001
Right Seat Post Shroud
0K63-01092-0002
Screw
0017-00101-0991
10
LifeCycle LC8500 LC85-0100-35
Idler Bracket Assembly - AK63-00021-0000
Idler Bracket
0K63-01050-0000
Idler Bearing
AK63-00008-0000
Lock Nut
0017-00103-0218
