Life Gear 97640 Manual de usuario

DYNA TRACK PROGRAMMABLE

MOTORIZED TREADMILL

OWNER’S MANUAL

MODEL# 97640

2009, Feb.

TABLE OF CONTENTS

ONE YEAR LIMTED WARRANTY

LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose

intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under

this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use. This warranty

does not include any damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1 (one) year. This warranty is extended only to the original owner

and is not transferable. When ordering replacement parts please have the following information ready:

WARRANTY 1

SAFETY INSTRUCTIONS 2

OVERVIEWDRAWING 4

PARTS LIST 5

HARDWARE PACKING LIST 7

ASSEMBLY INSTRUCTIONS 8

FOLDINGUP& SETTING DOWNTHETREADMILL 9

COMPUTER OPERATION 10

TROUBLE SHOOTINGGUIDE 14

RUNNINGBELTADJUSTMENT

ANDLUBRICATION 15

WARM UP AND COOLDOWN ROUTINE 16

1. Owner's Manual

2. Model Number

3.Description of Parts

4.Part Number

5.Date of Purchase

SAFETY INSTRUCTIONS

Basic precautions should always be followed, including the following safety instructions when using this treadmill: Read all

instructions before using this treadmill.

DANGER: To reduce the risk of electric shock, please read the following:

zAlways unplug the treadmill from the electrical outlet immediately after using and befor cleaning, assembling, or servicing.

NOTE: Failure to follow these instructions may lead to personal injury and cause damage to the treadmill.

WARNING: To reduce the risk of burns, fire, electric shock or injury to any persons, please read the following:

zNever leave the treadmill unattended when plugged in. Disconnect by turning off the master power switch, and unplugging from

outlet when not in use and before putting on or taking off parts.

zUse this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the

manufacturer.

zNever operate this treadmill if it has a damaged cord or plug, or if it is not working properly. If it has been dropped or damaged, or

been exposed to water, return the appliance to a service center for examination and repair.

zDo not attempt any maintenance or adjustments other than those described in this manual. Should any problems arise, discontinue

use and consult an Authorized Service Representative.

zNever operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.

zDo not use the treadmill outdoors.

zDo not pull the treadmill by its power cord or use the cord as a handle.

zKeep children and pets away from the equipment while in use. This machine is designed for adults only.

zDo not operate where aerosol (spray) products are being used or where oxygen is being administered.

zKeep Dry - do not operate in a wet or moist condition. Save these instructions.

zDo not operate the treadmill near a blanket. Excessive heating can occur and cause fire, electrical shock, or injury to user.

zKeep electrical cord away from heated surfaces.

zNever insert any object into any opening.

zKeep the treadmill on a solid, level surface with the minimum safety area clearance of 2000mm x 1000mm of the treadmill. Be sure

the area around the treadmill remains clear during use and has adequate clearance.

zThis treadmill is for household use only.

zWear comfortable and suitable clothing when using the treadmill. Do not use the treadmill barefoot, in only socks or in sandals,

always wear athletic shoes. Never wear loose clothing because it could run the risk of getting caught in the treadmill.

zOnly one person should be on the treadmill while in use.

zAlways hold on to the handrails while using the treadmill.

SAFETY INSTRUCTIONS

zAlways make sure the storage latch is in place when folding and moving the treadmill.

zDo not leave children who are under 12 year-old unsupervised near or on the treadmill.

zThis appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible

for their safety. Children should be supervised to ensure that they do not play with the appliance.

zPull up the Safety Tether Key for emergency stop. Reinstall the Safety Tether Key onto the Computer Console. Press the START/STOP

button to begin exercise again.

Note: It is the obligation of the owner to review and explain these safety precautions to all users of this treadmill.

WARNING: Connect the treadmill to a properly grounded outlet only.

SAVE THESE INSTRUCTIONS

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current

reducing the risk of electric shock. * This treadmill is equipped with a cord having equipment grounding connector and a

grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance

with all local codes and ordinances.

DANGER: Improper connection of the treadmill grounding connector can result in the risk of electric shock. Check with a qualified

electrician, if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the treadmill. If it

will not fit your outlet, have a properly grounded outlet installed by a qualified electrician.

This product is for use on a nominal 220 volt circuit and has a grounding plug. Make sure that the product is connected to an outlet

having the same configuration as the plug.

zThis unit must be plugged into a nominal 220 volt 50/60 hz, which has a grounding.

zKeep hands clear of all moving parts. Never place hands, feet under the treadmill.

zDo not use the treadmill on a carpet that is greater than 1/2 inch in height.

zBefore using the treadmill, check that the running belt is aligned and centered on the treadmill bed and all visible fasteners on the

treadmill are sufficiently tightened and secure.

WARNING: Before beginning any exercise program consult your physician. This is especially important for the

persons who are over 35 years old or who have pre-existing health problems. Read all instructions before using any fitness equipment.

We assume no responsibility for personal injury or property damage sustained by or through the use of this product. Do not operate this

exercise equipment without properly fitted guards, as the moving parts can present a risk of serious injury to young children.

CAUTION: Read all instructions carefully before operating this product. Retain this Owner's Manual for future reference.

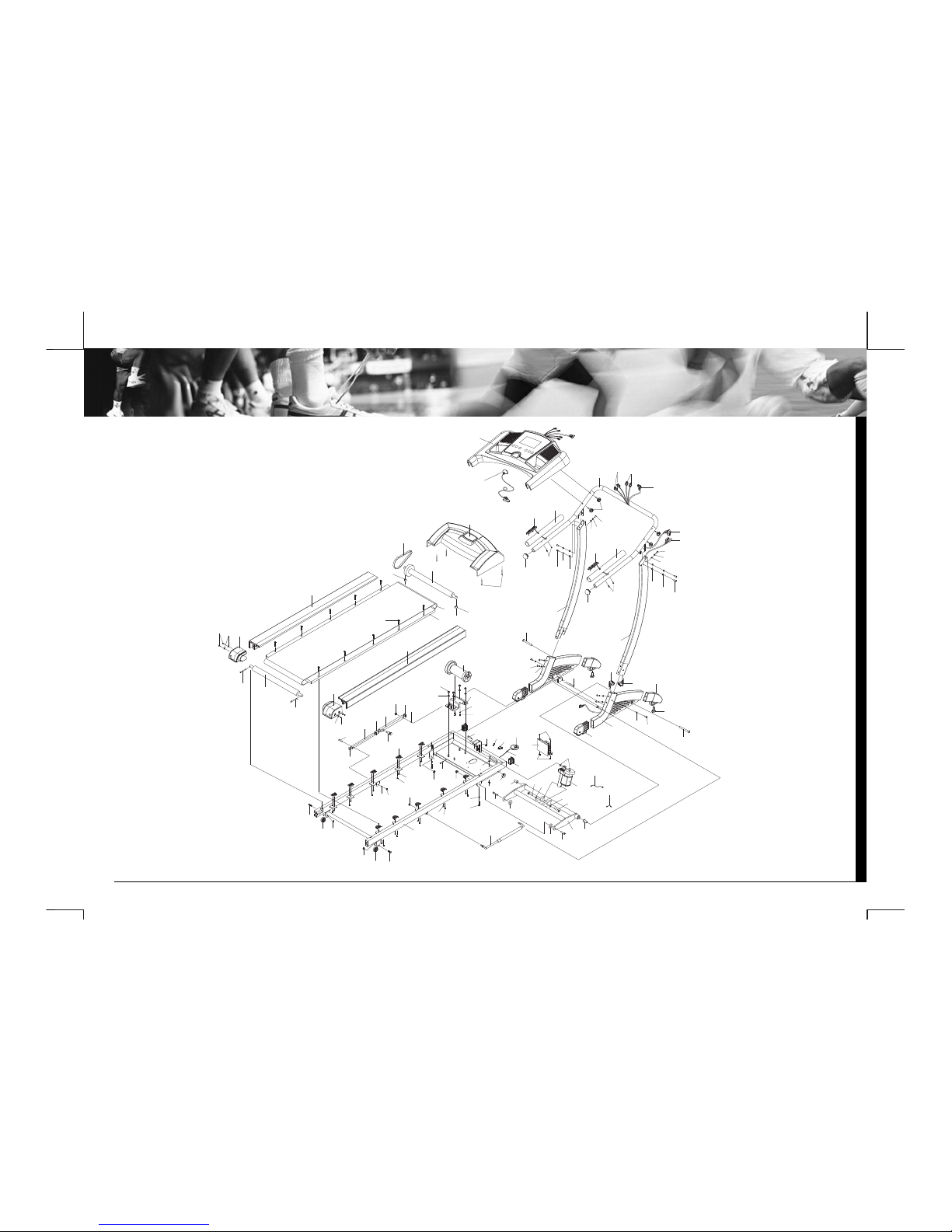

OVERVIEWDRAWING

34L

34R

37R

37L

12 59

12 61

73 68

PARTS LIST

Part # Description Quantity Part # Description Quantity

001 Main Frame 1

002 Stabilizer 1

003 End Cap for Stabilizer 2

004 Adjustable Leveler (M8) 2

005 Transportation Wheel 2

006 Running Belt 1

007 Running Deck 1

008 Front Roller 1

009 Rear Roller 1

010 Motor 1

011 Motor Bracket 1

012 Wheel Cap (Ø50xØ8.5x23mm) 2

013 Spacer (Ø25xØ12.1x30.5mm) 2

014 Wire Cap 1

015 Belt 180J5 1

016 Lift Motor 1

017 Power Control Board 1

018 Switch, AC Power (KB97) 1

019 Power Cord 1

020 Fuse Box 1

021 Wire Cap 1

022 Sensor Cable I 1

023 Sensor Cable II 1

024 Sensor Cable III 1

025 Computer Knob (M5) 4

026 Wire for PCB Switch (CM-90) 1

027 Wire for Fuse Box 1

028 Incline Bracket 1

029 Incline Button Wire with Hand

Pulse Sensor 1

030 Spacer (Ø14xØ10.5x5.5mm) 2

031 Deck Bumper 10

032 End Cap 2

033 Side Rail 2

034R Right Rear Cap 1

034L Left Rear Cap 1

035 Dust Cover 1

036 Bolt (M4x18mm) 2

037R Right Handlebar Support 1

037L Left Handlebar Support 1

038 Handlebar 1

039 Foam Grip (Ø30xØ37x410) 2

040 Speed Button Wire with Hand

Pulse Sensor 1

041 Tapping Screw (ST3x20mm) 4

042 End Cap for Handlebar 2

043 Computer 1

044 Safety Tether Key 1

045 Safety Tube A 1

046 Bushing 1

047 Spring Knob 1

048 Safety Tube B 1

049 Square End Cap ( 25.4) 1

050 Square End Cap ( 20) 1

PARTS LIST

51 Spacer (Ø12xØ8.5x12mm) 2

52 Spring Washer (M8) 16

53 Hex Socket Head Cap Bolt

(M8x48mm) 2

54 Nylon Nut (M6) 10

55 Tapping Screw (M4x16mm) 10

56 Bolt (M6x33mm) 10

57 Bolt (M8x60mm) 2

58 Gas Spring 1

59 Hex Socket Button Head Cap

Bolt (M8x40mm) 3

60 Nylon Washer (M8) 2

61 Nylon Nut (M8) 9

62 Bolt (M8x35mm) 1

63 Bolt (M10x35mm) 4

64 Nylon Nut (M10) 3

65 Screw (M4x50mm) 4

66 Bolt (M8x12mm) 2

67 Bolt (M10x100mm) 2

68 Bolt (M4x12) 5

69 Nylon Nut (M4) 3

70 Bolt (M8x16mm) 12

71 Bolt (M10x55mm) 1

72 Washer (Ø8.5xØ16x1.5) 10

73 Washer (Ø4.2xØ12x0.8) 4

74 Washer (Ø10.5xØ21x1.8) 4

Part # Description Quantity Part # Description Quantity

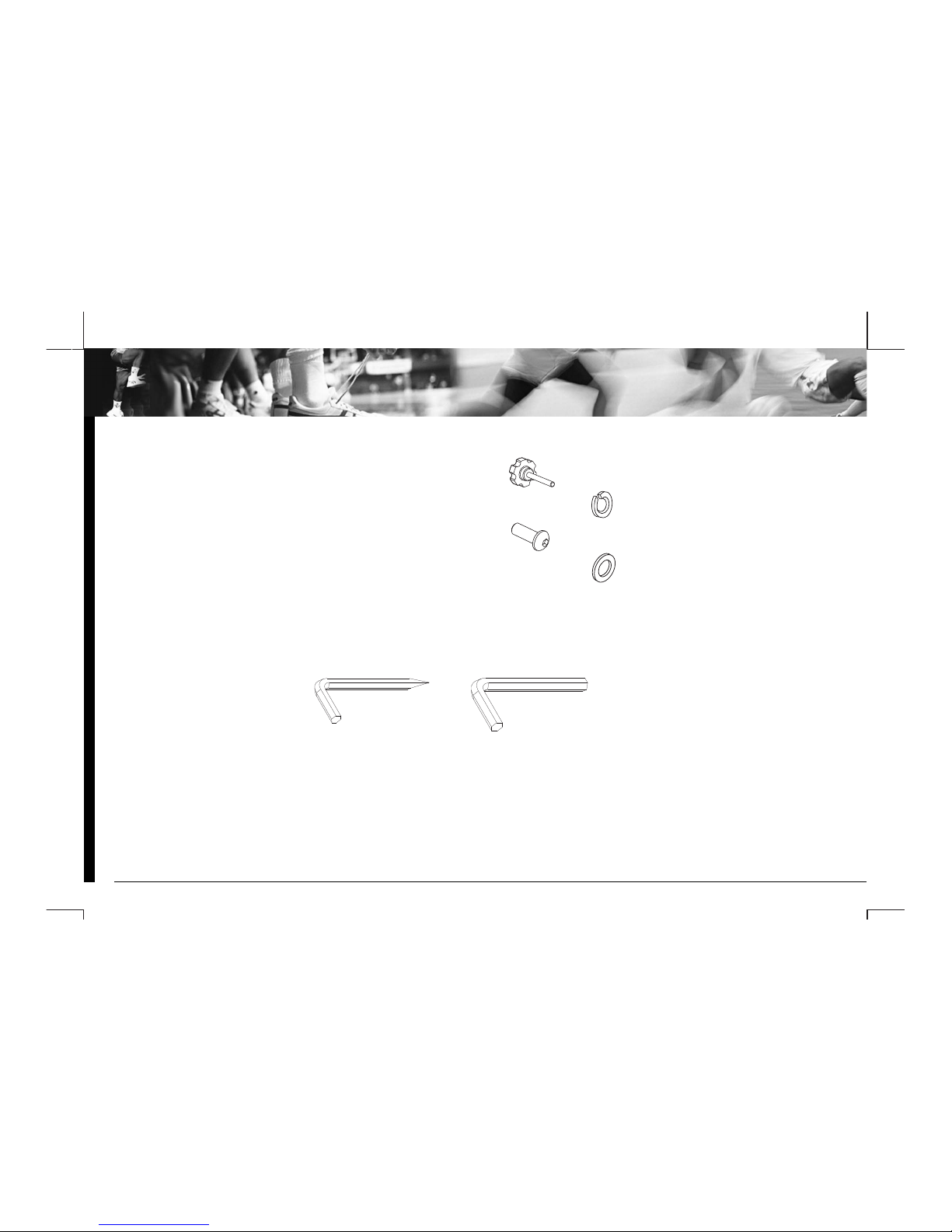

HARDWARE PACKING LIST & TOOLS

Part # Description Quantity

25 Computer Knob (M5)-------------------------------------------------------------------------------4

52 Spring Washer (M8)----------------------------------------------------------------------------------------12

70 Bolt (M8x16mm) ------------------------------------------------------------------------------------12

72 Washer (Ø8.5xØ16x1.5)--------------------------------------------------------------------------6

Allen Wrench/Screwdriver

1 PC Allen Wrench

1PC

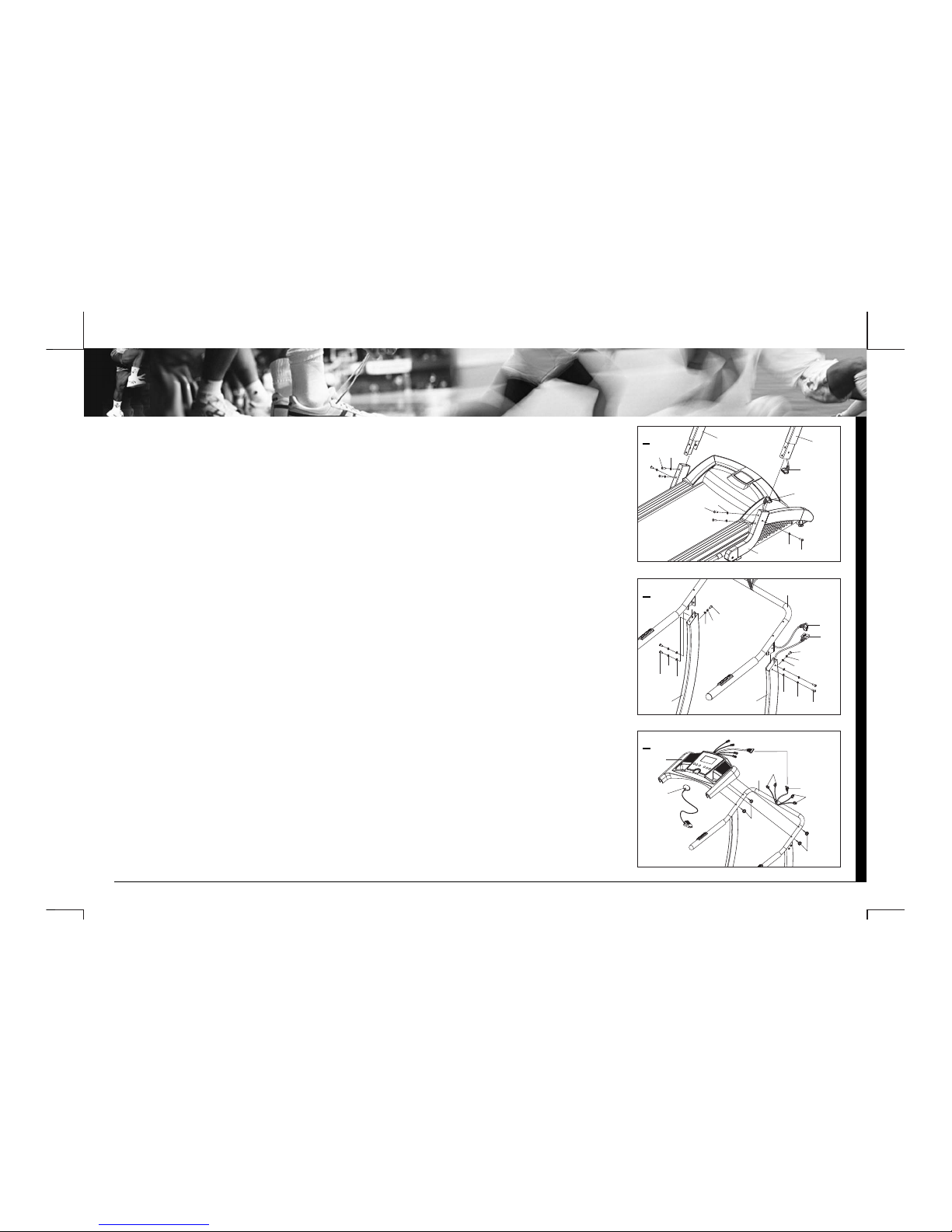

ASSEMBLY INSTRUCTIONS

Step 1

Connect the Sensor Cable III (24) from the Stabilizer (2) to the Sensor Cable II (23) from the

Right Handlebar Support (37R). Then attach the Right and Left Handlebar Supports

(37R, 37L) to the Stabilizer (2) with six M8x16mm Bolts (70) and M8 Spring Washers (52).

Step 2

Connect the Sensor Cable II (23) from the Right Handlebar Support (37R) to the Sensor Cable I

(22) from the Handlebar (38). Then attach the Handlebar (38) onto the Right and Left Handlebar

Supports (37R, 37L) with six M8x16mm Bolts (70), M8 Spring Washers (52), andØ 8.5xØ16x1.5

Washers (72).

Step 3

Connect the Speed Button Wires (40), Sensor Cable I (22), and Incline Button Wires (29) from

the Handlebar (38) to the wires that come from the Computer (43). Then attach the Computer (43)

onto the Handlebar (38) with four M5 Computer Knobs (25). Finally, install the Safety Tether

Key (44) onto the Computer (43).

37R

70 52

37L

37R

37L

72 22

44 40

FOLDING UP & SETTING DOWN THE TREADMILL

Folding Up the Treadmill:

Lift the deck up from the rear of treadmill until the Spring Knob "pops" down into the locked position.

Check the Spring Knob is "pop" down into the locked position before moving the treadmill. (See diagrams A and B.)

Setting Down the Treadmill:

Place one hand on the rear end of deck and the other hand to pull the Spring Knob, then lower the deck down from the rear of

treadmill until the Spring Knob "pops" down into the locked position. (See diagrams C and D.)

TO PREVENT INJURY PLEASE MAKE SURE YOU HAVE A FIRM HOLD WHEN LIFTING UP OR SETTING DOWN THE DECK.
