WASHING MACHINE

SERVICE MANUAL

MODELS : WF-T(F,C,S)510(~2)1(~5)PC(H,P,D,E,F)(K,X,S)

WF-T(F,C,S)520(~2)1(~7)PC(H,P,D,E,F)(K,X,S)

WF-T(F,C,S)530(~2)1(~7)TC(H,P,D,E,F)(K,X,S)

WF-T(F,C,S)540(~2)1(~5)TC(H,P,D,E,F)(K,X,S)

WF-T(F,C,S)570(~2)0PC(H,P,D,E,F)(K,X,S)

WF-T(F,C,S)610(~2)1(~5)TC(H,P,D,E,F)(K,X,S)

WF-T(F,C,S)620(~2)1(~7)TC(H,P,D,E,F)(K,X,S)

WF-T(F,C,S)670(~2)0(~5)TC(H,P,D,E,F)(K,X,S)

WF-T(F,C,S)7408(9)T(P)C(H,P,D,E,F)(K,X,S)

WF-T(F,C,S)8301TC(H,P,D,E,F)(K,X,S)

WF-T(F,C,S)840(1)8(9)TC(H,P,D,E,F)(K,X,S)

WF-95T/98XV/99TV/100TVS/1857TVS/F60PC

WF-F62PC/F63PC/T66PC/S5258PH/S5788PCX

WF-F6007PC/F8458PP/S1002TP/S1051TP/6027PC

WF-F608TC/T6000PP/WF-S8618(9)TP(H,C)

WF-S1031TP, WF-6022PCK, WF-T68PC, WF-92CV

WF-7020TC, WF-T8619TP, WF-T7014PP,

WF-S(F/C)8608(9)TP(H,C), WF-80TL, WF-T6605TD, WF-S7601TP

WF-F655TC/F656TC/S5500PC/F611PC/F612PC/F6012

WF-S5800PPK/S5700PPM/S1003TP, WF-S6702PP

WF-F613PC/WF-F610PC/WF-S1041TP/S1000TP/WF-T8617TP

WF-T1051TM/S1051TP/S1061TP

CAUTION

Before servicing the washer, Read the safety precautions in the manual.

SAFETY PRECAUTION!

DISASSEMBLE POWER CORD BEFORE SERVING

RECONNECT ALL GROUNDING DEVICES

IMPORTANT SAFETY NOTICE !

This service information is intended for individuals

possessing adequate backgrounds of electrical,

electronic and mechanical experience.

Any attempt to repair this appliance may result in

personal injury or property damage.

The manufacturer or seller can not be responsible

for the interpretation of this information, nor can it

assume any liability in connection with its use.

CONTENTS

1. Specifications..................................................................................................................................................3

2. Installation Instructions....................................................................................................................................4

3. Operating Instructions

3-1. Identification of Parts...........................................................................................................................10

3-2. Before Starting to Wash......................................................................................................................11

3-3. Function of Each Button......................................................................................................................16

3-4. Washing Programs..............................................................................................................................22

3-5. Other Functions...................................................................................................................................26

3-6. Care and Maintenance........................................................................................................................29

4. Service Information

4-1. Schematic Diagram.............................................................................................................................30

4-2. Wiring Diagram ...................................................................................................................................31

4-3. Program Time Chart............................................................................................................................34

4-4. Adjustment..........................................................................................................................................39

4-5. Disassembly Instruction......................................................................................................................40

4-6. Test Running without water.................................................................................................................43

4-7. Trouble Shooting against Common Washing Problems .....................................................................44

4-8. Trouble Shooting According to Error Message...................................................................................45

4-9. How to Diagnose and Repair by Symptom.........................................................................................46

5. Exploded View ............................................................................................................................................58

6. Replacement Part List...................................................................................................................................62

1. SPECIFICATIONS

WF-T(F,C,S)8301 Series

WF-100TVS / 1857TVS / S1051TP / S1003TP /

S1041TP / S1000TP

WF-T1051TM / S1051TP / S1061TP

Refer to rating label on the back of Washer

Stainless

0.3kgf/cm2~ 8kgf/cm2

250V, 6A for 220~240V/50Hz

125V, 12A for100~127V/60Hz

50Hz : 700 50

60Hz : 740 50

Refer to rating label on the back of Washer

Fuzzy, Economy, Jean, Wool

4 Stages

6,9 or 15 Hrs

B.P Sensor

Magnet Sensor

Applied

Double

Applied

Model

Power Sourse

Input

Capacity

Inner Tub

Inlet Water

Pressure

Rating of

Fuse

Spin Speed

Dim.

Weight

Program

Water Level

Reservation

Unbalance

Switch

Lid Interlock

Switch

Child Lock

Lint Filter

Softener

Dispenser

Detergent

Dispenser

Bleach Inlet

Auto Power

Off

Refer to rating label on the back of Washer

Plastic / Stainless

0.3kgf/cm2~ 8kgf/cm2

250V, 6A for 220~240V/50Hz

125V, 12A for100~127V/60Hz

50Hz : 700 50

60Hz : 740 50

Refer to rating label on the back of Washer

Fuzzy, Economy, Jean, Wool

4 Stages

6,9 or 15 Hrs

B.P Sensor

Magnet Sensor

Applied

Single

Applied

WF-T(F,C,S)7408(9) Series

WF-T(F,C,S)840(1)8(9) Series

WF-95T/98XV/99TV/F8458PP

WF-S1002TP

WF-S8618(9) Series

WF-S1031TP/8619TP

WF-S(F/C)8608(9)TP(H,C)/T8617TP

Refer to rating label on the back of Washer

Plastic / Stainless

0.3kgf/cm2~ 8kgf/cm2

250V, 6A for 220~240V/50Hz

125V, 12A for100~127V/60Hz

50Hz : 700 50

60Hz : 740 50

Refer to rating label on the back of Washer

Fuzzy, Economy, Jean, Wool

4 Stages

6,9 or 15 Hrs

B.P Sensor

Magnet Sensor

Applied

Single / Double

Applied

WF-T(F,C,S)51(~4,7)0(~2)0(~7)Serie

WF-T(F,C,S,)61(2,7)0(~2)0(~7) Series

WF-92CV/T68PC, WF-6022PCK

WF-F60(2,3)PC/T66PC/T6000PP

WF-S5258PH/S5788PCX

WF-F6007PC/6027PC/F608TC/F6012

WF-7020TC/T7014PP/80TL/T6605TD/S7601TP

WF-T(F,C,S)670(~2)1(~5)P(T)C(H,P,D,E,F)

WF-F655TC/F656TC/S5500PC/F611PC/F612PC

WF-S5800PPK/5700PPM/S6702PP

2. INSTALLATION INSTRUCTIONS

2-1. HOW TO ADJUST LEVEL

How to use the adjusting plates

∙

Use the adjusting plates to level the washer when the

adjustable legs cannot cover the gap.

Adjustable leg

Turn the adjustable legs to set the washer

horizontal (2 EA).

Installation area

∙Install the washer on flat and firm

surface.

Improper installation of the washer may cause noise and malfunctioning.

1. The ventilating openings in the base area must not be obstructed be carpeting

when the washing machine is installed on a carpeted floor.

2. Install the washing machine on a level and firm surface, any tilt should be

less than 1��

CAUTION

Checking level

∙Open the lid, and check if the washer is

correctly leveled by looking down from

the top.

More than 10cm

More than 2cm

Horizontal setting

∙Lift up the front of the washer and

adjust level by turning the adjustable

legs clockwise or using the adjusting

plate.

Confirming level

Distance between drain hose and the wall

Checking slope

∙If installation surface is tilted, the

washer will be shaken.

∙Place the washer to original position

and confirm the level.

∙

Distance between drain hose and the wall

should be more than 10 cm, and the distance

between the other part and the wall should be

more than 2 cm.

2-2. CONNECTING WATER SUPPLY HOSE

Before connecting Water Supply Hose to water tap, check your hose type

and choose correct instruction. Water Supply Hose may vary according to

the country.

Make sure connect blue inlet hose to cold water tab, and orange inlet hose

to hot water tab.

Connecting Water Supply Hose to water tap

Rubber packing

Water supply hose

Connector

Untighten the screw

Untighten the screw of the connector so

that the tap can be placed in the middle.

Fixing the connector to the tap

Push the upper connector up till the rubber

packing is in tight contact with the tap. Then

tighten the 4 screws.

Attach the water supply hose to the connector

Push the water supply hose vertically

upwards so that the rubber seal within the

hose can adhere completely to the tap.

Check the connection of water supply hose and the connector

After connecting the hose, open the tap to

check for any water leakage.

In case of water leakage, close the tap and

start again from step 1

Fixing the connector of connector and water supply hose

Attach the water supply hose to the

connector and then tighten it by screwing it

to the right.

Normal Type

Normal tab without thread & screw type inlet hose.)

Rubber packing

Screw

Fixed sticker

Rubber packing

Guide plate

Connector

Fixed sticker

Middle

Connector Middle

Connector

Water Supply Hose

Pressing rod Pressing handle

Connector

Middle

connector Fixed Stiicker

Pressing Handle

Pressing Rod

Water Supply Hose

Separate Middle connector from Water Supply Hose

Separate Middle connector from the Water

Supply Hose by pulling the Pressing Rod and

the Pressing Handle that is attached to the

Water Supply Hose while pressing them.

Loosen the fixed nuts to connect the connector to the tap

Untighten the screw of the connector so that

the tap can be placed in the middle.

Fixing Connectors to the Tap

Push the upper connector up till the rubber

packing is in tight contact with the tap. Then

tighten the 4 screws.

Fixing Upper Connector and Middle Connector

Remove the fixed sticker in between the

Upper and Middle Connectors. Tighten the

connectors by holding one connector and

twist middle connector to the right.

Connecting Middle Connector and Water Supply Hose

Press down the pressing rod of the Water

Supply Hose which was separated from

middle connector(refer to Step1) and then

join it to the middle connector.

One Touch Type

If the tap diameter is too large or is square,

open the 4 screw and take out the guide

plate and follow step 1.

In case the tap is large.

Note

Checking the water leakage

After connecting the hose, open the tap to

check for any water leakage.

In case of water leakage, close the tap and

start again from step 1.

If you skip step1, it may cause water leakage.

(NORMAL TAB WITHOUY THREAD & ONE TOUCH TYPE INLET HOSE.)

Attach the water supply hose to the tap.

Push the water supply hose up so that the

rubber packing within the hose can adhere

completely to the tap.

Connect the water supply hose to the tap.

Connect the water supply hose to the tap and

then tighten it by screwing it to the right.

Check water leakage.

After connecting the hose, open the faucet to

check for any water leakage.

Connect the water supply hose to inlet valve

of the washing machine, and then lock it by

turning the hose connecting part.

Check to see if there is a rubber seal inside

the connector.

Screw Type

Water Supply Hose

Rubber Packing

Rubber seal

Water

tap

Connecting Water Supply Hose to the machine

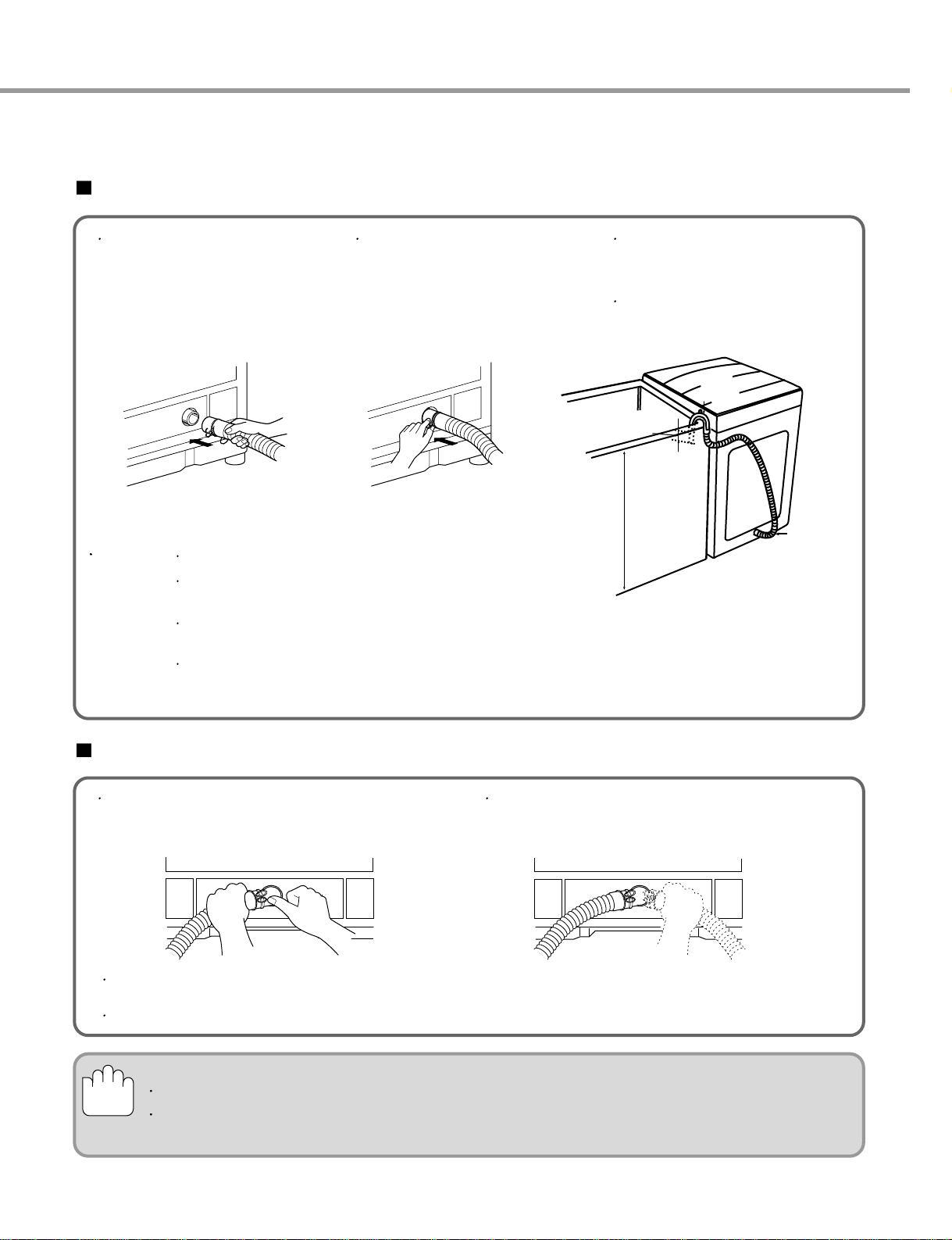

2-3. CONNECT THE DRAIN HOSE

CAUTION

Hose

Guide

0.9~1.2m Drain Hose

Within 50mm

Connect the drain hose to

the outlet of the drain pump

located at the rear of the

washing machine.

Attach the clip to the drain

hose. And then push it toward

the body of the washing

machine as indicated by the

arrow.

Check that the drain hose is

hung up over the edge of the

laundry tub.

Do not use an extension hose.

Connect the drain hose to the outlet of the

drain located at the back side of the

washing machine.

Fix the drain hose with the clip.

And then push it toward the body as in the

figure.

Keep it downward while the washing machine

is working.

Ensure the hose is free from kinking.

Never lay down the drain hose, as water will be discharged.

Be sure the drain hose is properly routed so it will not kink

or lift from the sink.

The discharge height should be approximately 0.9~1.2m from

the floor.

Connect the drain hose adjusting the length of it not to be

dropped. If drain hose is dropped the drainage could be poor

because of blockage in the hose.

NOTE

Do not install the washer where it is directly exposed to sunlight, wind, rain etc.

Plug the power cord of this washer into a properly installed standard electrical outlet

that is switched & earthed.

For pump model

For non - pump model

3. OPERATING INSTRUCTION

3-1. IDENTIFICATION OF PARTS

SOFTENER DISPENSER

• Softener will automatically

flow into the tub.

(Softener dispenser for

WF-#83 Series is located in

detergent box of top cover.)

BLEACH INLET

DETERGENT DISPENSER

FUNCTION

SELECTORS

PULSATOR

ANTI RAT BASE

ADJUSTABLE LEG

SPINDLE

DRAIN HOSE

For non Pump Model

• Keep downward while the

washing machine is

working.

DRAIN HOSE

For Pump Model

• Check out if the drain hose is

hung up before operating the

washing machine.

POWER SUPPLY

CORD

WATER SUPPLY HOSE

• Make sure that water does

not leak.

• In case of one valve model

water supply hose is one.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de LG

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario

Beko

Beko WKB 51231 PTMA Manual de usuario

Samsung

Samsung WF16J9800K Series Manual de usuario
