roduct Feature
P
ontents
C
2
■
Protection against creases
With the alternate rotation of the drum,creasing in the laundry
is minimized.
■
More economical by Fuzzy Logic System
FUZZY Logic System detects the amount of load and water
temperature, and then determines the optimum water level
and washing time to minimize energy and water consumption.
■
Child-Lock
he Child-Lock system has been developed to prevent
children from pressing any button (except Power button) to
change the programme during operation.
■
Low noise speed control system
By sensing the amount of load and balance, automatical
distributes load evenly to minimize the spinning noise level.
■
Auto Restart
Although the washing machine is turned off by a power failure,
it restarts automatically where it stopped when power is
supplied again and it will be the same the machine is
unplugged and is plugged in again.
추가선택, 예약,
Warnings....................................................................................3
Specification ..............................................................................4
Installation..................................................................................5
Care before washing................................................................11
Adding detergent .....................................................................12
Function ...................................................................................13
How to use washer ..................................................................14
Maintenance ............................................................................21
roubleshooting guide .............................................................24
erms of Warranty ...................................................................27
arnings
W
3
For your safety, the information in this manual must be followed to minimize
the risk of fire or explosion, electric shock, or to prevent property damage,
personal injury, or loss of life.
READ ALL INSTRUCTIONS BEFORE USE
WARNING!
• Do not install or store the washer where it will
be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the washer
or attempt any servicing unless specifically
recommended in the user-maintenance
instructions or published user-repair instructions
that you understand and have the skills to carry
out.
• Keep the area underneath and around your
appliances free of combustible materials such as
lint, paper, rags, chemicals, etc.
• Close supervision is necessary if this appliance
is used by or near children.
Do not allow children to play on, with, or inside
this or any other appliance.
• Do not leave the washer door open.
An open door could entice children to hang on
the door or crawl inside the washer.
• Never reach into washer while it is moving. Wait
until the drum has completely stopped.
• he laundry process can reduce the flame
retardant of fabrics.
• Do not wash or dry articles that have been
cleaned in, washed in, soaked in, or spotted with
combustible or explosive substances (such as
wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) which may ignite or
explode.
• o avoid such a result, carefully follow the
garment manufacturer’s wash and care
instructions.
• Do not slam the washer door closed or try to
force the door open when locked. his could
result in damage to the washer.
• o minimize the possibility of electric shock,
unplug this appliance from the power supply or
disconnect the washer at the household
distribution panel by removing the fuse or
switching off the circuit breaker before
attempting any maintenance or cleaning.
• Never attempt to operate this appliance if it is
damaged, malfunctioning, partially disassembled,
or has missing or broken parts, including a
damaged cord or plug.
GROUNDING INSTRUCTIONS
his appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. his appliance is equipped with
a cord having an equipment-grounding conductor and grounding plug. he plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinance.
• Do not use an adapter or otherwise defeat the grounding plug.
• If you don’t have the proper outlet, consult an electrician.
IMPORTANT SAFETY INSTRUCTIONS
WARNING :o reduce the risk of fire, electric shock, or injury to persons when using
the washer, follow basic precautions, including the following:
SAVE THESE INSTRUCTIONS
WARNING :
Improper connection of the equipment-grounding conductor can result in risk of electric
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is
properly grounded. Do not modify the plug provided with the appliance - if it does not fit the outlet, have a
proper outlet installed by a qualified electrician.
pecification
S
4
■
Accessories
WD-10264(8)S WD-10264(8)N WD-10264(8)T
WD-80264(8)S WD-80264(8)N WD-80264(8)T
Name
Front loading washing machine
Power supply
220-240V~, 50Hz
Size
600mm(W)x360mm(D)x850mm(H) 600mm(W)x440mm(D)x850mm(H) 600mm(W)x550mm(D)x850mm(H)
Wash Capacity
Refer to the Rating Label
Weight / Max. Watt
52kg / 2100W 57kg / 2100W 64kg / 2100W
Wash capacity
3.5 5 7
Water
42
l
55
l
69
l
consumption
Permissible water
0.3 - 10kgf/cm2 ( 30 ~ 1000kPa )
Pressure
Spin Speed
No Spin/
400/600/800 [WD-80264(8)S/80264(8)N/80264(8) ]
No Spin/400/800/1000 [WD-10264(8)S/10264(8)N/10264(8) ]
❋he appearance and specifications may be varied without notice to raise the units quality.
5
nstallation
I
■Transit bolts
Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.
Properly ground washer to conform with all governing codes and ordinances.
The base opening must not be obstructed by carpeting when the washing machine is installed on a
carpeted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other vermin,
pay particular attention to keeping the appliance and its surroundings in clean condition at all times.
Any damage which may be cause by cockroaches or other vermin will not be covered by the appliance
guarantee.
■Removing transit bolts
1. o prevent internal damage during
transport, the special 4 bolts are
locked. Before operating the washer,
remove
the bolts along with the rubber bungs.
• If they are not removed, it may cause
heavy vibration, noise and malfunction.
2. Unscrew the 4 bolts with
the spanner supplied.
3. ake out the 4 bolts along with the
rubber bungs by slightly twisting the
bung. Keep the 4 bolts and the
spanner for future use.
• Whenever the appliance is transported,
the transit bolts must be refitted.
4. Close the holes with the caps supplied.
he appliance is fitted with transit bolts to prevent internal damage during transport.
• Packing and all transit bolts must
be removed before using the
washer.
When unpacking the base, be
sure to remove the additional
packing support in the middle
of the base packing.
nstallation
I
6
Level floor :
Allowable slope under entire washer is 1˚
Power outlet :
Must be within 1.5 meters of either side of location of
washer. Do not overload the outlet with more than one
appliance.
Additional Clearance :
For wall, door and floor modeling is required.
(10cm : rear /2cm:right & left side)
Do not place or store laundry products on top of washer at
any times.
hey can damage the finish or controls.
■
Installation place requirement
Laundry
ub
Washer
approx.
2cm
Drain Hose
■
Positioning
Install the washer on a flat hard floor.
Make sure that air circulation around the washer is not impeded by carpets, rug etc.
• Never try to correct any unevenness in the floor with pieces of wood, cardboard or similar materials under
the washer.
• If it is impossible to avoid positioning the washer next to a gas cooker or coal burning stove, an
insulating(85x60cm) covered with aluminum foil on the side facing the cooker or stove, must be inserted
between the two appliance.
• he washer must not be installed in rooms where the temperature can drop below 0 ˚C
• Please ensure that when the washer is installed, it is easily accessible for the engineer in the event of a
breakdown.
• With the washer installed adjust all four feet using the transit bolt spanner provided ensuring the appliance
is stable, and a clearance of approximately 20mm is left between the top of the washer and the underside
of the work-top.
IMPORTANT
HE WIRES IN HIS MAINS LEAD ARE COLOURED IN
ACCORDANCE WI H HE FOLLOWING CODE:
GREEN AND YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
his appliance must be earthed
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
he wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter
E or by the earth symbol or coloured Green or Green and Yellow.
he wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black.
he wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red.
If a 13 amp (BS 1363) plug is used, fit a 13 amp BS 1362 fuse.
■
BS Plug Safety Details (For U.K. User)
Green and Yellow(Earth)
Brown(Live)
Blue(Neutral) Fuse
Cord
grip
E
L
N
7
nstallation
I
Water supply pressure must be between 30kPa
and 1000kPa (0.3~10kgf/cm2)
Don’t strip or crossthread when connecting
Inlet hose to the valve.
If the water supply pressure is more than 1000kPa, a
ecompression device should be installed.
• wo rubber seals are supplied with the water inlet
hoses. hey are used for preventing water leaks.
• Make sure the connection to taps is tight enough.
• Periodically check the condition of the hose and
eplace the hose if necessary.
• Make sure that there is no kink on the hose and that
it is not crushed.
When your washer has two valves,
• he Inlet hose which has red connector is for the hot
water tap.
• If the washer has two valves, the energy is saved by
using hot valve.
■Washing Machine is to be connected to the water mains using new hose-sets and that
old hose-sets should not be used.
■Connecting water supply hose
1. Do not use an extension cord or double adapter.
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or
similarly qualified person in order to avoid a hazard.
3. Always unplug the machine and turn off the water supply after use.
4. Connect the machine to an earthed socket in accordance with current wiring regulations.
5. he appliance must be positioned so that the plug is easily accessible.
• Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by
inexperienced persons may cause injury or serious malfunctioning. Contact your local service center
•
Do not install your washing machine in rooms where temperatures below freezing may occur. Frozen hoses may
burst under pressure. he reliability of the electronic control unit may be impaired at temperatures below freezing
point.
• If the appliance is delivered in the winter months and temperatures are below freezing : Place the washing
machine at room temperature for a few hours before putting it into operation.
■Electrical connection
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit
which powers only that appliance and has no additional outlets or branch circuits. Check the
specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions
could result in electric shock or fire. Periodically examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have
the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twised, kinked, pinched,
closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where
the cord exits the appliance.
CAUTION
8
nstallation
I
■
Normal Tap without thread & screw type inlet hose
■
Normal Tap without thread & one touch type inlet hose (Single inlet models)
1.Unscrew the fixing screw to
attach the tap.
2.Push the connector up till the
rubber packing is in tight contact
with the tap. hen tighten the 4
screws.
3.Push the water supply hose
vertically upwards so that the
rubber packing within in the
hose can adhere completely to
the tap and then tighten it by
screwing it to the right.
1.Untighten the upper connector
screw.
2.Push the upper connector up till
the rubber packing is in tight
contact with the tap. hen
tighten the 4 screws.
3. Connect the water supply hose
to the middle connector,
pushing the plate down.
• Your machine comes with only
cold water connection.
• Make sure that there are no
kinks in the hose and that it is
not crushed.
• Make sure that the rubber seal
is inside the hose connector.
Upper
Connector Rubber
packing
Middle
connector
Fixing screw
Guide plate
Connector
Rubber seal
Hose connector
Used the horizontal tap
Horizontal tap
Extension tap
Square tap
Rubber packing
Upper
Connector
Middle
connector
Plate
Upper
Connector
Water supply
hose
• In case the diameter of the tap is
large remove the guide plate.
• urn the middle connector not
to have water leaked.
• o separate the water supply
hose from the middle connector
shut off the tap. hen pull the
inlet hose down, pushing the
plate down.
9
nstallation
I
■

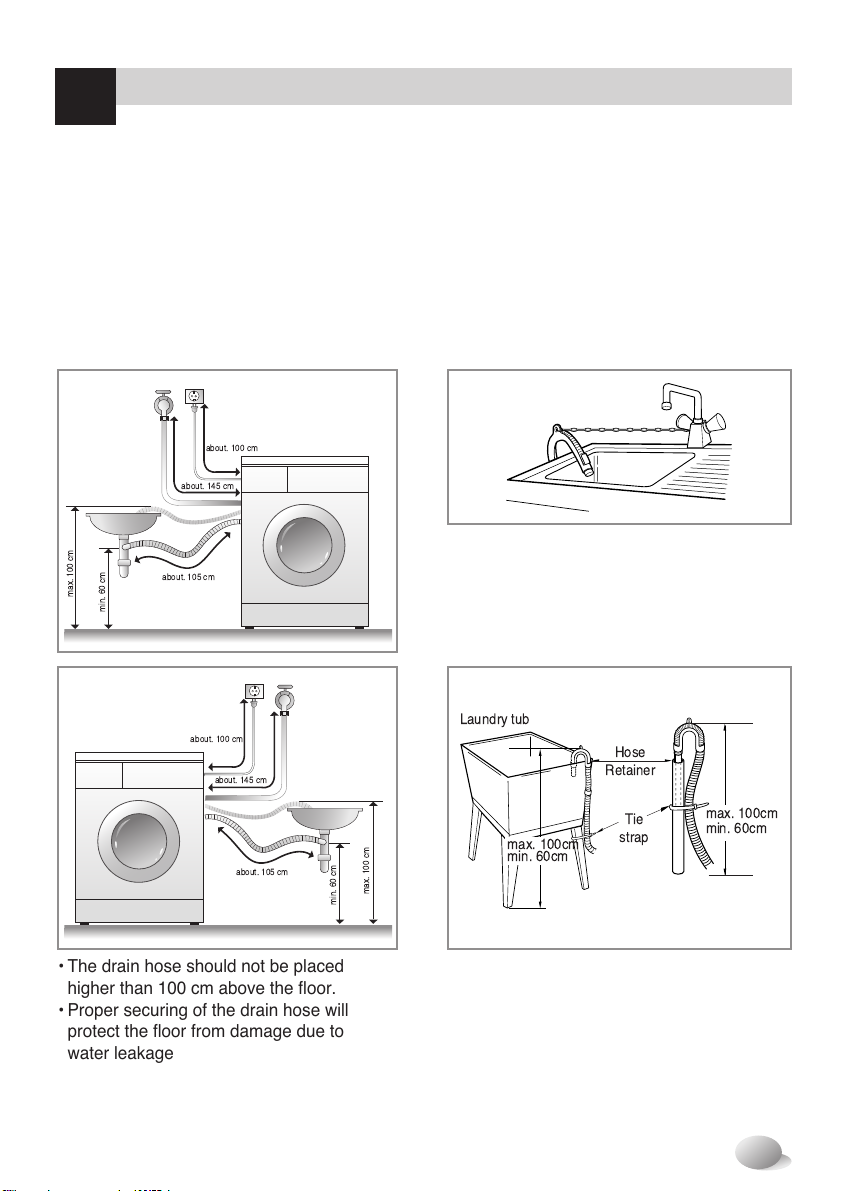

Installation of drain hose
max. 100 cm
min. 60 cm
about. 105 cm
about. 145 cm
about. 100 cm
max. 100cm
min. 60cm
Hose
Retainer
Laundry tub
Tie
strap
max. 100cm
min. 60cm
max. 100 cm
about. 105 cm
about. 145 cm
about. 100 cm
min. 60 cm
• he drain hose should not be placed
higher than 100 cm above the floor.
• Proper securing of the drain hose will
protect the floor from damage due to
water leakage.
• When the drain hose is too long, do
not force back into the washer. his
will cause abnormal noise.
• When installing the drain hose sink,
secure it tightly with a string.
• Proper securing of the drain hose will
protect the floor from damage due to
water leakage.
his equipment is not designed for maritime use or for use mobile installations such as caravans,
aircraft etc.
urn off the stopcock if the machine is to be left for any length of timt (e.g. holiday),
especially if there is no floor drain(gully) in the immediate vicinity.
When disposing of the appliance, cut off the mains cabie, and destroy the plug Disable the door lock
to prevent young children being trapped inside.
Packaging material (e.g. Films, Styrofoam) can be dangerous for children. here is a risk of
suffocation ! Keep all packaging well away from children.
Este manual sirve para los siguientes modelos
15
Tabla de contenidos
Otros manuales de Arandela de LG
LG
LG FH0C9CDHK72 Manual de usuario
LG
LG FV7S90V2 Manual de usuario
LG
LG WD-14276BD Manual de usuario
LG
LG TH2722SSAK Manual de usuario
LG
LG M-35700W Manual de usuario
LG
LG P961RONL Manual de usuario
LG
LG T1993EFHSK5 Manual de usuario
LG
LG F1261FD Manual de usuario
LG
LG F2WT108N0E Manual de usuario
LG
LG WD20VV2S6 Manual de usuario
LG
LG FH0J3HDNP5P Manual de usuario
LG
LG WD-12500RD Manual de usuario
LG
LG WD3632HW Manual de usuario
LG
LG WM3400CW Manual de usuario
LG
LG WT901CF Manual de usuario
LG
LG T1049TEFT Manual de usuario
LG
LG FT614G1SS Manual de usuario
LG
LG F4V510 SEH Series Manual de usuario
LG
LG T1532AFF6 Manual de usuario
LG
LG WD1475NPW Manual de usuario
