OWNER’S MANUAL
WASHING MACHINE
F1210RDSU
P/No.:MFL51768173 www.lg.com
Please read this manual carefully before operating
your washing machine and retain it for future reference.
roduct Feature
P
ontents
C
2
Warnings ......................................................................................................................3
Specification...................................................................................................................5
Installation......................................................................................................................6
Care before washing....................................................................................................13
Adding detergent..........................................................................................................14
Function ....................................................................................................................16
ow to use washer ......................................................................................................17
Maintenance ................................................................................................................28
Troubleshooting guide .................................................................................................32
Terms of Warranty .......................................................................................................36
Direct Drive System
The advanced Brushless DC motor directly drives the drum without
belt and pulley.
Water Circulation
Sprays detergent solution and water onto the load over and over.
Clothes are soaked more quickly and thoroughly during wash cycle.
The detergent suds can be removed more easily by the water shower during rinse
cycle. The water circulation system uses both water and detergent more efficiently.
Tilted Drum and Extra Large Door Opening
Tilted drum and extra large opening make it possible to load
and unload clothing more easily.
Steam Washing and Refresh
Steam Washing features upgraded washing performance with low energy and
water consumption. Refresh cycle removes wrinkles from dry clothes.
Free Up Design with user friendly
It’s very useful to put in and out the clothes with higher door position and can
stored accessory neatly.
Embossing drum & waved lifter
Embossing drum enhances the washing performance and reduces clothes
damage.The waved lifter spray and help clothes to enhance washing performance
during the washing cycle.
Automatic Wash Load Detection
Automatically detects the load and optimizes the washing time.
Built-in Heater
Internal heater helps to maintain water temperature at its optimum level for
selected cycles.
Child Lock
The Child lock prevents children from pressing any button to change the settings
during operation.
추가선택, 예약,
arnings
W
3
For your safety, the information in this manual must be followed to minimize
the risk of fire or explosion, electric shock, or to prevent property damage,
personal injury, or loss of life.
!
READ ALL INSTRUCTIONS AND EXPLANATION OF THE INSTALLATION BEFORE USE
WA NING!
❊ Do not push down the door excessively, when washer door open.
This could topple over the washer.
• Before installation, check exterior damages. If it has,
do not install.
• Do not install or store the washer where it will
be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the washer
or attempt any servicing unless specifically
recommended in the user-maintenance instructions
or published user-repair instructions that you
understand and have the skills to carry out.
• Keep the area underneath and around your
appliances free of combustible materials such as
lint, paper, rags, chemicals, etc.
• Close supervision is necessary if this appliance is
used by or near children. Do not allow children to
play on, with, or inside this or any other appliance.
• Keep small animals away from the appliance.
• Do not leave the washer door open.
An open door could entice children to hang on the
door or crawl inside the washer.
• Never reach into washer while it is moving. Wait
until the drum has completely stopped.
• The laundry process can reduce the flame retardant
of fabrics.
• To avoid such a result, carefully follow the garment
manufacturer’s wash and care instructions.
• Do not wash or dry articles that have been cleaned
in, washed in, soaked in, or spotted with
combustible or explosive substances (such as wax,
oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) which may ignite or
explode. Oil may remain in the tub after a whole
cycle resulting in fire during drying. So, do not load
oiled clothes.
• Do not slam the washer door closed or try to force
the door open when locked. This could result in
damage to the washer.
• When the machine runs high temperature, the front
door may be very hot. Don’t touch it.
• To minimize the possibility of electric shock, unplug
this appliance from the power supply or disconnect
the washer at the household distribution panel by
removing the fuse or switching off the circuit breaker
before attempting any maintenance or cleaning.
• When unplugging power cord, do not pull out by
grasping the cord. Otherwise, the power cord may
be damaged.
• Never attempt to operate this appliance if it is
damaged, malfunctioning, partially disassembled, or
has missing or broken parts, including a damaged
cord or plug.
• Before discarding an old machine unplug it. Render
the plug useless. Cut off the cable directly behind
the appliance to prevent misuse.
• When a product was under water, Please call
service center. The risk of electric shock and fire.
G OUNDING INST UCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path
of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinance.
• Do not use an adapter or otherwise defeat the grounding plug.
• If you don’t have the proper outlet, consult an electrician.
IMPO TANT SAFETY INST UCTIONS
WA NING :To reduce the risk of fire, electric shock, or injury to persons when using
the washer, follow basic precautions, including the following:
SAVE THESE INST UCTIONS
WA NING :
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with
a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify
the plug provided with the appliance - if it does not fit the outlet, have a proper outlet installed by a qualified electrician.
arnings
W
4
To minimize the risk of fire in a tumble dryer, the following should be observed:
• Items that have been spotted or soaked with vegetable or cooking oil constitute a fire
hazard and should not be placed in a tumble dryer.
Oil-affected items can ignite spontaneously, especially when exposed to heat
sources Such as in a tumble dryer. The items become warm, causing an oxidation
reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can
become hot enough to catch fire. Piling, stacking or storing oil-affected items can
prevent heat from escaping and so create a fire hazard.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been
contaminated by hair care products be placed in a tumble dryer they should first be
washed in hot water with extra detergent-this will reduce, but not eliminate, the
hazard. Washed in hot water with extra detergent-this will reduce, but not
eliminate, the hazard. The ‘cool down’ cycle of tumble dryers should be used to
reduce the temperature of the items. They should not be removed from the tumble
dryer or piled or stacked while hot.
• Items that have been previously cleaned in, washed in, soaked in or spotted with
petrol/gasoline, dry-cleaning solvents or other flammable or explosive substances
should not be placed in a tumble dryer.
ighly flammable substances commonly used in domestic environments include
acetone, denatured alcohol, petrol/gasoline, kerosene, spot removers (some
brands), turpentine, waxes and was removers.
• Items containing foam rubber (also known as latex foam) or similarly testured rubber.
like materials should not be dried in a tumble dryer on a heat setting.
Foam rubber materials can, when heated, produce fire by spontaneous combustion.
• Fabric softeners or similar products should not be used in a tumble dryer to eliminate
the effects of static electricity unless this practice is specifically recommended by the
manufacturer of the fabric softener or product.
• Undergarments that contain metal reinforcements should not be placed in a tumble
dryer.
Damage to the tumble dryer can result if metal reinforcements come loose during
drying. When available a drying rack could be used for such items.
• Plastic articles such as shower caps or babies waterproof napkin covers should not
be placed in a tumble dryer.
• Rubber-backed articles, clothes fitted with foam rubber pads, pillows, galoshes and
rubber-coated tennis shoes should not be placed in a tumble dryer.
5
pecification
S
Name : Front loading washing machine
Power supply : 220 V~, 50 Hz
ize : 635 mm(W) x 735 mm(D) x 1122 mm(H)
Weight : 99 kg
Wash capacity (Max. Watt) : 12 kg(2200 W)
Dry capacity (Max. Watt) : 7 kg(2200 W)
pin speed : No pin/400/800/1000/1200
Water consumption : 96
l
Permissible water pressure : 1.0 - 10.0 kgf/cm
2
(100 - 1000 kPa)
❋The appearance and specifications may be varied without notice to improve the units quality.
❋pecifications subject to change by manufacturer.

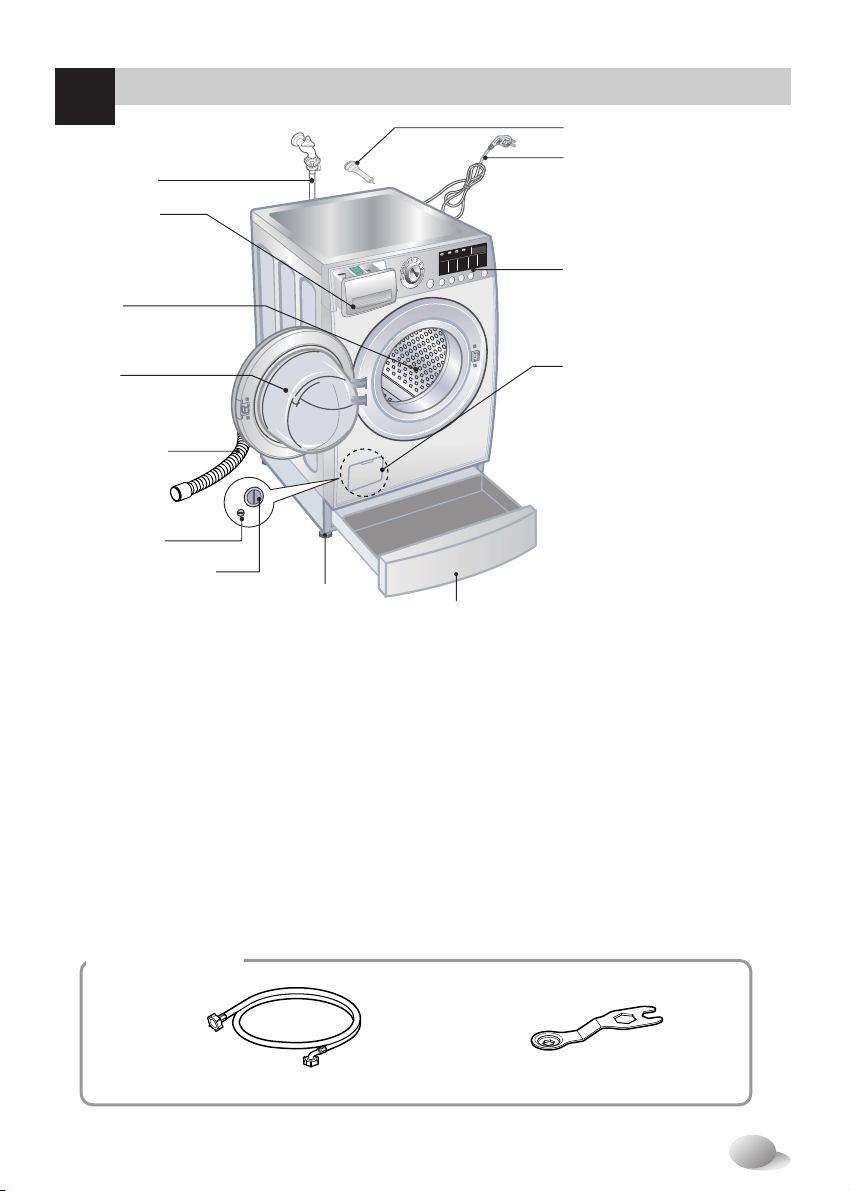

Accessories
Drum
Drain Plug
Drain Pump Filter
Pedestal
Door
Adjustable Feet
Drain Hose
Control Panel
Lower cover cap
Shipping Bolts
Power Plug
• If the supply cord is damaged,
it must be replaced by the
manufacturer or its authorized
service technician in order to
avoid a hazard.
Inlet Hose
Dispenser
Inlet hose (1EA) panner
6
nstallation
I
1. To prevent internal damage during
transport, the special 4 bolts are locked.
Before operating the washer, remove
the bolts along with the rubber bungs.
• If they are not removed, it may cause
heavy vibration, noise and malfunction.
3. Take out the 4 bolts along with the
rubber bungs by slightly twisting the
bung. Keep the 4 bolts and the spanner
for future use.
• Whenever the appliance is transported,
the transit bolts must be refitted.
The appliance is fitted with transit bolts to prevent internal damage during transport.
• Packing and all transit bolts must be
removed before using the washer.
When unpacking the base, be sure to
remove the additional packing support
in the middle of the base packing.
2. Unscrew the 4 bolts with
the spanner supplied.
4. Close the holes with the caps supplied.
Transit bolts
Install or store where it will not be ex osed to tem eratures below freezing or ex osed to the
weather.
Pro erly ground washer to conform with all governing codes and ordinances.
The base o ening must not be obstructed by car eting when the washing machine is installed on
a car eted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other
vermin, ay articular attention to kee ing the a liance and its surroundings in clean
condition at all times.
Any damage which may be cause by cockroaches or other vermin will not be covered by the
a liance guarantee.
Removing transit bolts
Washer
Base Packing
Packing Support
7
nstallation
I
Level floor :
Allowable slope under entire washer is 1°
Power outlet :
Must be within 1.5 meters of either side of location of
washer. Do not overload the outlet with more than one
appliance.
Additional Clearance :
For wall, door and floor modeling is required.
(10cm : rear / 2cm : right & left side)
Do not place or store laundry products on top of
washer at any times.
They can damage the finish or controls.
Installation place requirement
Positioning
Install the washer on a flat hard floor.
Make sure that air circulation around the washer is not impeded by carpets,rug etc.
• Before placing the washer on tiles, apply a rubber mat under the feet.
• Never try to correct any unevenness in the floor with pieces of wood, cardboard or similar
materials under the washer.
• If it is impossible to avoid positioning the washer next to a gas cooker or coal burning stove,an
insulating covered with aluminum foil on the side facing the cooker or stove,must be inserted
between the two appliance.
• The washer must not be installed in rooms where the temperature can drop below 0°C.
• Please ensure that when the washer is installed, it is easily accessible for the engineer in the
event of a breakdown.
• With the washer installed adjust all four feet using the transit bolt spanner provided ensuring the
appliance is stable, and a clearance of approximately 20mm is left between the top of the washer
and the underside of the work-top.
• The installation instructions shall state that the openings must not be obstructed by a carpet if it
has ventilation openings in the base.
Washer
Drain ose
Laundry
Tub
approx.
2cm
8
nstallation
I
1. Do not use an extension cord or double adapter.
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or
similarly qualified person in order to avoid a hazard.
3. Always unplug the machine and turn off the water supply after use.
4. Connect the machine to an earthed socket in accordance with current wiring regulations.
5. The appliance must be positioned so that the plug is easily accessible.
• Repairs to the washing machine must only be carried out qualified personnel. Repairs carried out by
inexperienced persons may cause injury or serious malfunctioning. Contact your local service center
• Do not install your washing machine in rooms where temperatures below freezing may occur. Frozen
hoses may burst under pressure. The reliability of the electronic control unit may be impaired at
temperatures below freezing point.
• If the appliance is delivered in the winter months and temperatures are below freezing : Store the
washing machine at room temperature for a few hours before putting it into operation.
Electrical connection
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit
which powers only that appliance and has no additional outlets or branch circuits. Check the
specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions
could result in electric shock or fire. Periodically examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have
the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched,
closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where
the cord exits the appliance.
If this appliance is supplied from a cord extension set or electrical portable outlet device, the cord
extension set or electrical portable outlet device must be positioned so that it is not subject to
splashing or ingress of moisture.
CAUTION
This appliance is not intended for use by young children or infirm persons without supervision.
Young Children should be supervised to ensure that they do not play with appliance.
CAUTION
9
nstallation
I
1. Unscrew the adapter ring plate and the 4
adapter retaining screws.
2. Push the adapter onto the end of the tap
so that the rubber seal forms a watertight
connection. Tighten the adapter ring plate
and the 4 screws.
3. Push the water supply hose vertically
upwards so that the rubber packing within
the hose can adhere completely to the
tap and then tighten it by screwing it to
the right.
• Water supply pressure must be between 1 kPa and 1 kPa (1. ~ 1 . kgf / cm
2
)
• Do not strip or crossthread when connecting inlet hose to the valve.
• If the water supply pressure is more than 1 kPa, a decompression device should be
installed.
• Periodically check the condition of the hose and replace the hose if necessary.
Type-A : Connecting Screw-type hose to tap with thread
• Screw the hose connector onto water
supply tap.
■Connecting water supply hose
Step1 : Check rubber seal inlet hose
Step2 : Connect hose to water tap
• Two rubber seals are supplied with the
water inlet hoses.
They are used for preventing water leaks.
Make sure the connection to taps is
sufficiently tight.
Upper
connector Rubber
packing
Plate
Water supply
hose
Fixing screw
Hose
connector
Rubber
seal
Type-B : Connecting Screw-type hose to tap without thread
nstallation
I
10
1. Unscrew the adapter ring plate and
the 4 adapter retaining screws.
2. Remove the guide plate if the tap is
too large to fit the adapter.
3. Push the adapter onto the end of
the tap so that the rubber seal forms
a watertight connection.
Tighten the adapter ring plate and
the 4 screws.
4. Pull the connector latch plate down,
push the inlet hose onto the adapter,
and release the connector latch plate.
Make sure the adapter locks into place.
After completing connection, if water leaks from the hose, repeat the same steps.
Use the most conventional t pe of faucet for water suppl . In case the faucet is square
or too big, remove the spacing ring before inserting the faucet into the adaptor.
Use the horizontal tap
Horizontal tap Extension tap Square tap
Ring plate
Guide plate
Latch plate
Type-C : Connecting one touch type hose to tap without thread
Step3: Connect hose to washer
• Make sure that there are no kinks in the
hose and that the are not crushed.
After connecting inlet hose to
water tap, turn on the water taps
to flush out foreign substances
(dirt, sand or sawdust) in the
water lines. Let water drain into a
bucket, and check the water
temperature.
Tabla de contenidos
Otros manuales de Arandela de LG
LG
LG T1993EFHSK5 Manual de usuario
LG
LG WTG1434 HF Series Manual de usuario
LG
LG F1252RD7 Manual de usuario
LG
LG WFV1114XMT Manual de usuario
LG
LG WD-SR1709VM Manual de usuario
LG
LG MFL69482503 Manual de usuario
LG
LG WT21VSS6 Manual de usuario
LG
LG FHD1107 T Series Manual de usuario
LG
LG F4V509W Series Manual de usuario
LG
LG F2V5GYP2TE Manual de usuario
LG
LG WM3270CW Manual de usuario
LG
LG F2V3PYP3WE Manual de usuario
LG
LG TS1205DPN Manual de usuario
LG
LG T1733AFPS5 Manual de usuario
LG
LG FH4G7TDY Manual de usuario
LG
LG WT2116NHEG Manual de usuario
LG
LG P7001R3F Manual de usuario
LG
LG F1495BDN0H Manual de usuario
LG
LG WD-16220FD Manual de usuario
LG
LG F1480RD Manual de usuario
