LG 42LB630V-ZA Manual de usuario
www.lg.com
LED TV*
Please read this manual carefully before operating your set and retain
it for future reference.
* LG LED TV applies LCD
screen with LED backlights.
LB63** LB69** LB87**
LB65** LB72**
LB67** LB73**
LB68** LB86**
OWNER’S MANUAL
Click! User Guide
P/NO : MFL68027014(1402-REV00)
Printed in Korea
*MFL68027014*
A-2 TABLE OF CONTENTS
COMMON
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-8 Attaching the Sound Bar Supporter
A-9 Tidying cables
A-11 MAKING CONNECTIONS
A-11 Antenna connection
A-11 Satellite dish connection
A-12 HDMI connection
A-13 - ARC (Audio Return Channel)
A-13 DVI to HDMI connection
A-15 Component connection
A-16 Composite connection
A-17 MHL connection
A-18 Audio connection
A-18 - Digital optical audio connection
A-19 USB connection
A-20 CI module connection
A-21 Headphone connection
A-22 Euro Scart connection
LANGUAGE
LANGUAGE List
English
Türkçe
COMMON
B-1 SPECIFICATIONS
A-3
SETTING UP THE TV
SETTING UP THE TV
Image shown may differ from your TV.
Attaching the stand
LB63**-ZA, 32/39/42/47/50/55LB65**-ZA
B stand base
A stand base
1
2
1
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
2
4EA
M4 x L14
M4 x L20
(Only 32LB65**-
ZA)
70LB65**-ZA, LB67**, LB68**, LB69**, LB72**,
LB73**-ZA
B stand Assy
A stand Assy
1
2
1
Stand Body
Stand Base
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.

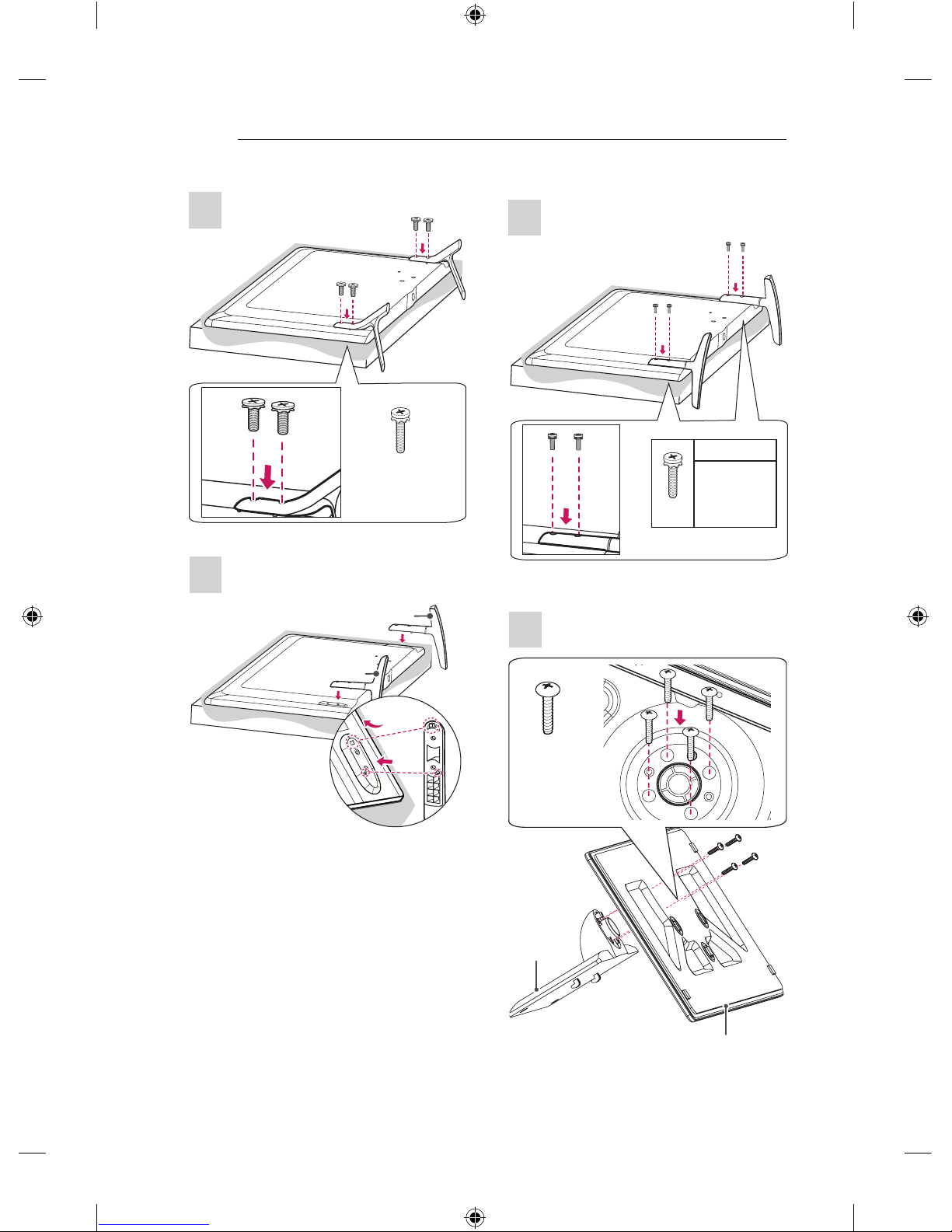

A-4 SETTING UP THE TV
2
4EA
M4 x L14
LB63**-ZL, LB65**-ZK
2
1
A stand base
B stand base
2
1
1
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
2
2
1
2
1
4EA
M4 x L14
M4 x L20
(Only
32LB65**-
ZK)
32/39LB65**-ZE/ZN
1
Stand Body
Stand Base
4EA
M4 x L20
1
A-5
SETTING UP THE TV
2
3
2EA
M4 x L20
42/47/50/55/60LB65**-ZE/ZN
1
Stand Body
Stand Base
4EA
M4 x L20
1
2
A-6 SETTING UP THE TV
3
4EA
M4 x L14
LB73**-ZD/ZE
1
A Stand
Supporter
B Stand
Supporter
Stand Front
2
4EA
M4 x L10
1
2
3
1 Attach the stand to the TV using the upper
mounting hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
4
4EA
M4 x L14
A-7
SETTING UP THE TV
LB86**, LB87**
1
Sound Bar
4EA
M4 x L14
Stand Assy Right
Stand Assy Left
2
3
4EA
M4 x L14
4
Screw Cover
A-8 SETTING UP THE TV
CAUTION
yWhen attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
yMake sure that the screws are inserted
correctly and fastened securely. (If they
are not fastened securely enough, the TV
may tilt forward after being installed.)
Do not use too much force and over
tighten the screws; otherwise screw may
be damaged and not tighten correctly.
NOTE
yRemove the stand before installing the
TV on a wall mount by performing the
stand attachment in reverse.
yScrew Cover will protect the opening from
accumulating dust and dirty.
yRubber will protect the opening from
accumulating dust and dirt. When
installing the wall mounting bracket, use
the Rubber. (Only LB65**-ZE/ZN)
Rubber
Attaching the Sound Bar
Supporter
(In case of mounting on a wall)
LB86**, LB87**
1
Sound Bar
4EA
M4 x L14
Sound Bar Supporter Right
Sound Bar Supporter Left
2
A-9
SETTING UP THE TV
3
4EA
M4 x L14
4
Screw Cover
CAUTION
yWhen attaching the sound bar supporter
to the TV set, place the screen facing
down on a cushioned table or flat surface
to protect the screen from scratches.
yMake sure that the screws are inserted
correctly and fastened securely. (If they
are not fastened securely enough, the TV
may tilt forward after being installed.)
Do not use too much force and over
tighten the screws; otherwise screw may
be damaged and not tighten correctly.
yThe sound bar supporter only uses for
wall mounting.
NOTE
yRemove the sound bar supporter before
installing the stand by performing the
stand attachment in reverse.
yThe Screw Cover will protect the opening
from accumulating dust and dirty.
Tidying cables
Image shown may differ from your TV.
1 Gather and bind the cables with the cable
holder. (Depending on model)
2 Fix the Cable Management rmly to the TV.
(Only 32LB65**-ZA)
Cable Management
(Only LB63**-ZA, 39/42/47/50/55/60LB65**-ZA,
LB67**, LB68**, LB69**, LB72**, LB73**-ZA)
Cable Holder
Cable Management
A-10 SETTING UP THE TV
(Only 32LB65**-ZK)
Cable Management
(Only LB63**-ZL, 39/42/47/50/55/60/70LB65**-
ZK/ZL)
Cable Holder
Cable Management
(Only LB65**-ZE/ZN)
Cable Holder
(Only 70LB65**)
Cable Holder
Cable Management
(Only LB73**-ZD/ZE)
Cable Holder
Cable Management
(Only LB86**, LB87**)
Cable Holder
Cable Management
CAUTION
yDo not move the TV by holding the cable
holders, as the cable holders may break,
and injuries and damage to the TV may
occur.
