SIMPLE MANUAL
Wireless
Sound Bar
Please read this manual carefully before operating your set
and retain it for future reference.
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner's Manual.
Some of the content in this manual may differ from your unit.
SJ2
MODEL
SLOVENŠČINA SHQIP
BOSANSKI
SVENSKA
DANSK NORSK SUOMI
MAGYAR
SRPSKIHRVATSKILATVIEŠUROMÂNĂPOLSKI
SLOVENČINA
ČESKY
ENGLISH
PORTUGUÊS
ΕΛΛΗΝΙΚΑ
ESPAÑOLITALIANO
NEDERLANDS
FRANÇAISDEUTSCH
БЪЛГАРСКИ
МАКЕДОНСКИ
www.lg.com
MFL70585615
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
1808_Rev01
SJ2.DEUSLLK_SIM_ENG_MFL70585615.indd 1 2018-08-24 4:31:26
Front Panel
Rear Panel
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Standby
······························Selects Function.
/ ························· Adjusts Volume.
(USB) ··············· Connect to a USB device.
PORT. IN (Portable) ··· Connect to a Portable device.
OPT. IN (Optical) ······ Connect to an Optical device.
Subwoofer Connection1
Place the wireless subwoofer near the sound bar and
follow steps below.
aConnect the power cord of the sound bar and
the wireless subwoofer to the outlet.
bTurn on the sound bar.
cThe sound bar and wireless subwoofer will be
automatically connected. The subwoofer's
green LED turns on.
Manual Subwoofer Connection
If the subwoofer does not make sound, try to
connect manually.
aPress Pairing button on the rear of the wireless
subwoofer.
yThe green LED on the rear of the wireless
subwoofer blinks quickly.
(If the green LED does not blink, press and
hold the Pairing button.)
bTurn on the sound bar.
cPairing is completed.
yThe green LED on the rear of the wireless
subwoofer turns on.
Keep the sound bar and the subwoofer away
from the device (ex. wireless router, microwave
oven, etc.) over 1 m to prevent wireless
interference.
!
1 m
The buttons are located on the rear.
SJ2.DEUSLLK_SIM_ENG_MFL70585615.indd 2 2018-08-24 4:31:28
STANDARD/BASS BLAST: Selects the sound effect.
DRC ON/OFF:
Dynamic Range Control optimizes the volume
level of compatible Dolby Digital content.
WOOFER LEVEL +/-: Adjusts the volume level of
subwoofer.
AUTO POWER ON/OFF: Automatically turns on by an
input source.
Replacement of battery
Remote controlTV Connection2
TV
aConnect the sound bar to the TV using
an Optical cable.
bSet up [External Speaker (Optical)] on
your TV setting menu.
Additional Device Connection
aConnect to the external device as follows.
TV
(Set-top
Box, Player
etc.)
bSet the input source by pressing OPTICAL on
the remote control or pressing Frepeatedly.
SJ2.DEUSLLK_SIM_ENG_MFL70585615.indd 3 2018-08-24 4:31:29
Additional Information
Specication
Power requirements Refer to the main label.
Power
consumption
Refer to the main label.
Networked standby : 0.5 W
(If all network ports are
activated.)
Dimensions
(W x H x D)
Approx.
660.0 mm x 56.0 mm x 99.0 mm
With foot
Bus Power Supply
(USB) 5 V 0 500 mA
Amplier
(Total RMS
Output power)
160 W RMS
Design and specications are subject to change without
notice.
How to disconnect the wireless network
connection or the wireless device
Set up the AUTO POWER ON/OFF function to off and
turn off the unit.
Declaration of Conformity
Hereby, LG Electronics declares that the radio equipment
type Wireless Sound Bar is in compliance with Directive
2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address:
http://www.lg.com/global/support/cedoc/cedoc#
For consideration of the user, this device should be
installed and operated with a minimum distance of
20 cm between the device and the body.
Frequency range Output power (Max.)
2402 to 2480 MHz 10 dBm
5730 to 5821 MHz 13 dBm
About Ferrite Core (Optional)
Wind power cord cable around the ferrite core twice.
SJ2.DEUSLLK_SIM_ENG_MFL70585615.indd 4 2018-08-24 4:31:30
Otros manuales para SJ2
7
Otros manuales de Sistema de altavoces de LG
LG
LG SN6 Manual de usuario
LG
LG SK8Y Manual de usuario
LG
LG LGHTW316 Manual de usuario
LG
LG RK7 Hoja de especificaciones
LG
LG RNC5 Hoja de especificaciones
LG
LG SP7 Manual de usuario
LG
LG LAS551H Hoja de especificaciones
LG
LG GX Manual de usuario
LG
LG SH2 Hoja de especificaciones
LG
LG NB5540 Hoja de especificaciones
LG
LG RL4 Manual de usuario
LG
LG SN11RG Hoja de especificaciones
LG
LG SL4 Manual de usuario
LG
LG Wowcast WTP3 Manual de usuario
LG
LG SJ2 Hoja de especificaciones
LG
LG LH62B Manual de usuario
LG
LG S75QR Hoja de especificaciones
LG
LG S90QY Manual de usuario
LG
LG SP11RA Hoja de especificaciones
LG

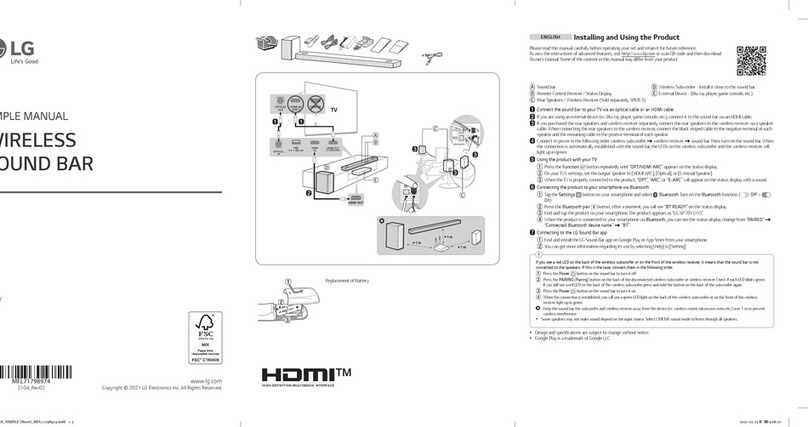

LG SP70Y Hoja de especificaciones
