* Subject: Unit dead because of an open thermostat generally after a self clean.

* Bulletin Registration Date: 30th. Mar. 2011 * Effective from Date: 1st. Apr. 2011

Service Bulletin

Electric Range

Bulletin Number: 0ETO20110061

1/3

*Applicable for models:

General information

Technical information

Applicable in warranty: YES NO Also applicable outside YES NO

of warranty:

Applicable only with symptoms YES NO

below:

Applicable with every repair: YES NO

*2) Problem / Cause:

1. The connector on the oven thermostat is not tight enough causing excessive

heat in the area causing the thermostat to open.

2. Vent trim not installed or not installed properly.

*1) Symptoms / Customer Complaint:

Unit is dead after customer runs a self clean cycle in the oven.

*Applicable Serial Number:

Buyer Model : LWD3081ST, LWS3081ST, LWD3010ST, LWS3010ST

LSWD305ST, LSWS305ST

LWD3081ST: 807KMxx00001 ~ 103KMxx00063

LWS3081ST: 809KMxx00001 ~ 102KMxx00135

LWD3010ST: 007KMxx00001 ~ 101KMxx00063

LWS3010ST: 008KMxx00001 ~ 102KMxx00082

LSWD305ST: 003KMxx00001 ~ 007KMxx00100

LSWS305ST: 003KMxx00001 ~ 007KMxx00110

< EBG51439301 >

Melted thermostat

1. USA

LWD3081ST: 810KMxx00001 ~ 103KMxx00020

LWS3081ST: 810KMxx00001 ~ 103KMxx00210

2. Canada

Service Bulletin

Electric Range

Bulletin Number: 0ETO20110061

*3) Solution:

Replace both the open thermostat and the main wiring harness, and verify the vent trim is installed

properly. After replacing the thermostat the oven will operate. However if the customer runs

another self clean the issue may occur again. Both The updated harness and verification of the vent

trim prevents this issue from occurring multiple times.

2/3

No. buyer Model Location

Number Before(P/no.) After(P/no.)

Order this Part Description

1 LWD3081ST 5014 EAD51438701 EAD51438703 Main Harness

2 LWS3081ST 5014 EAD51439101 EAD51439103 Main Harness

3 LWD3010ST 5014 EAD51438702 EAD51438704 Main Harness

4 LWS3010ST 5014 EAD51439102 EAD51439104 Main Harness

5 LSWD305ST 5014 EAD51438701 EAD51438703 Main Harness

6 LSWS305ST 5014 EAD51439101 EAD51439103 Main Harness

a. Replace all open thermostats. There are 4 thermostats on the double oven and 2

thermostats on the single wall oven. Refer to page 3 table “Thermostats” of this document

for applicable part numbers.

b. Replace the main wiring harness. See table below for updated part #’s for each

model.

[Before] [After]

* Explanation of the differences between harness

- Before the harness had 2 wires coming off the

Thermostat with the new harness there is only a

single wire coming off the thermostat.

- Some receptacles and sleeves are changed.

2 1 1 1

[Before] [After]

Service Bulletin

Electric Range

Bulletin Number: 0ETO20110061

*3) Solution:

3/3

*4) SVC Bulletin History:

Prior Bulletins: Bulletin number: Date: Content: M/S:

1.

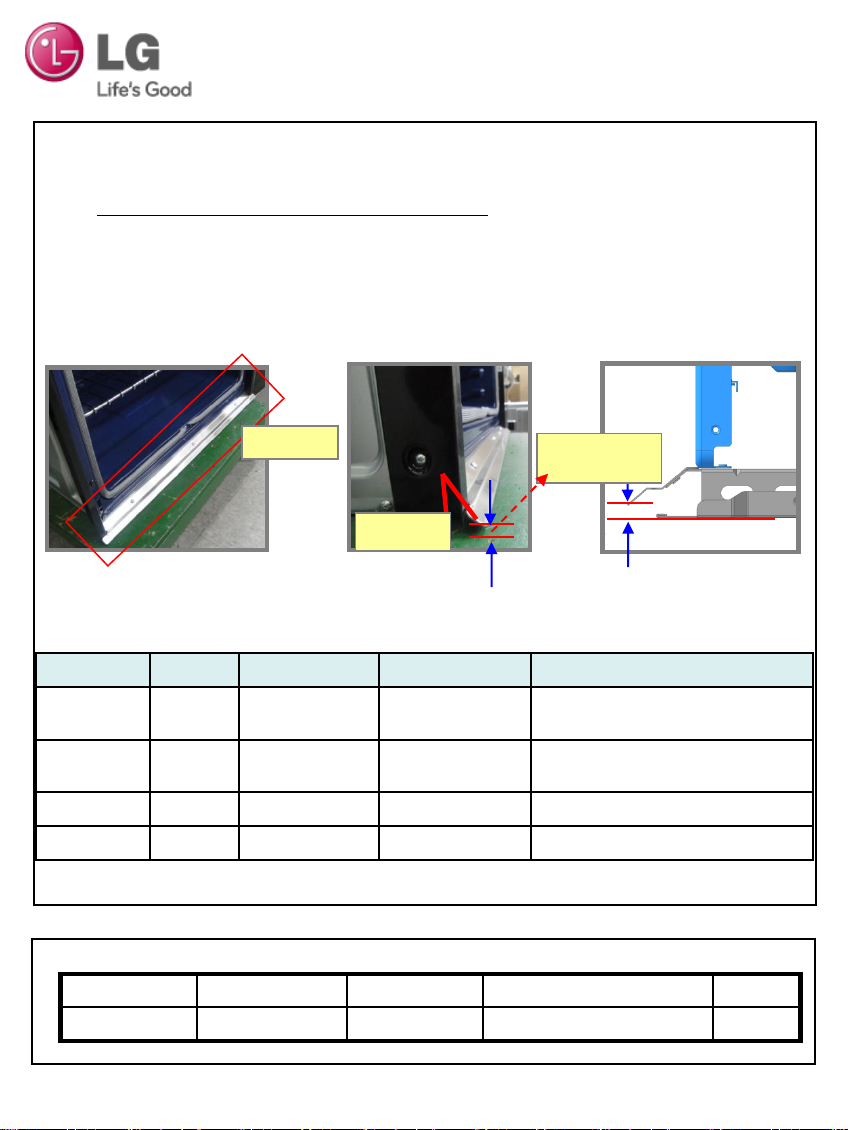

c. Verify the vent trim is installed properly:

- Vent trim: Location No 5527, P/no MJZ41753801

The vent trim should be properly assembled on the front bottom of the oven. In addition,

check the angle between the vent trim and the front bottom of oven (the angle should be

50˚). The angle can be checked by measuring distance between the vent trim and the

bottom. If the distance is shorter than 0.31inch(8mm) or there is no vent trim installed,

the temperature at the electric components (such as thermostat) will overheat during

operation.

Metal trim

Angle:

50˚

Distance:

0.31inch(8mm)

*Thermostat

Description Loc/No. P/No Location Remark

Thermostat 5116 6930W1A003X Upper/Single

Cavity_Up LWD3081ST,LWD3010ST,LSWD305ST

LWS3081ST,LWS3010ST,LSWS305ST

Thermostat 5117 EBG51439301 Upper/Single

Cavity_Lo LWD3081ST,LWD3010ST,LSWD305ST

LWS3081ST,LWS3010ST,LSWS305ST

Thermostat 5118 6930W1A003D Lower Cavity_Lo LWD3081ST,LWD3010ST,LSWD305ST

Thermostat 5119 EBG51439302 Lower Cavity_Up LWD3081ST,LWD3010ST,LSWD305ST
