LG Flatron M237WD Manual de usuario

Order Number : GETEC-C1-08-159

Test Report Number : GETEC-E3-08-069 FCC Class B Certification

EUT Type: LCD TV/Monitor

FCC ID.: BEJM237WDJ

APPENDIX H

: USER’S MANUAL

Please read this manual carefully before operating

your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the back cover and quote

this information to your dealer when you require

service.

OWNER’S MANUAL

M237WD

PREPARATION

FRONT PANEL CONTROLS

■

This is a simplified representation of the front panel. The image shown may be somewhat different from your

set.

INPUT MENU VOL CHENTER

PROGRAMME

Buttons

VOLUME

Buttons

Button

ENTER

Button

INPUT

Button

Power

Button

Headphone

Button

PREPARATION

BACK PANEL INFORMATION

■

This is a simplified representation of the back panel. The image shown may be somewhat different from your

set.

AUDIO IN

(RGB/DVI)

OPTICAL

DIGITAL

AUDIO OUT

VIDEO

COMPONENT

AV-IN

VIDEO

S-VIDEO

AUDIO

RS-232C IN

(CONTROL & SERVICE)

SERVICE

ONLY

RGB IN (PC)

DVI-D IN (PC)

HDMI IN

ANTENNA/

CABLE IN

AUDIO

(MONO) LR

910 11

87 12

3 4

Power Cord Socket

This set operates on AC power. The voltage is indicat-

ed on the Specifications page. Never attempt to

operate the set on DC power.

HDMI Input

Connect a HDMI signal to HDMI IN.

Or DVI (VIDEO) signal to HDMI IN with DVI to HDMI

cable.

RGB/DVI Audio Input

Connect the audio from a PC.

Optical Digital Audio Out

Connect digital audio from various types of eguip-

ment

RGB INPUT (PC)

Connect the output from a PC.

S-Video Input

Connect S-Video out from an S-VIDEO device.

SERVICE ONLY PORT

DVI-D Input

Connect the output from a PC.

RS-232C IN (CONTROL & SERVICE) PORT

Connect to the RS-232C port on a PC.

Component Input

Connect a component video/audio device to these

jacks.

Audio/Video Input

Connect audio/video output from an external device

to these jacks.

Antenna Input

Connect over-the-air signals to this jack.

PREPARATION

STAND INSTALLATION

■

The image shown may be somewhat different from your set.

Carefully place the product screen side down on a

cushioned surface that will protect product and

screen from damage.

Insert the stand base into the product

Attach the monitor to the Stand Base by turning

the screw to the right.

* Turn the screw by using the screw handle

Screw

PREPARATION

DETACHING STAND

Place the set screen side down on a cushion or

soft cloth.

Detach the monitor to the Stand Base by turn-

ing the screw to the left.

Turn the screw by using the screw handle 4

Pull the stand base.

■

The image shown may be somewhat different from your set.

PREPARATION

DESKTOP PEDESTAL INSTALLATION

For proper ventilation, allow a clearance of 4 inches on each side and from the wall.

4 inches

WALL MOUNT: HORIZONTAL INSTALLATION

For proper ventilation, allow a clearance of 4 inches on each side and from the wall. Detailed installation

instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

4 inches

4 inches 4 inches

4 inches

PREPARATION

POSITIONING YOUR DISPLAY

■

The image shown may be somewhat different from your set.

Adjust the position of the panel in various ways for maximum comfort.

• Tilt range

LOCATION

Position your set so that no bright light or sunlight falls directly onto the screen. Care should be taken not to

expose the set to any unnecessary vibration, moisture, dust or heat. Also, ensure that the set is placed in a posi-

tion to allow a free flow of air. Do not cover the ventilation openings on the back cover.

If you intend to mount the set to a wall, attach Wall mounting interface (optional parts) to the back of the set.

When you install the set using the wall mounting interface (optional parts), attach it carefully so it will not drop.

- Be sure to use screws and a wall mount that meet VESA standards.

- Using screws longer than those recommended might damage the product.

- Using screws that do not meet VESA standards might either damage the product or result in it coming away from

the wall. We will not be held responsible for any damage resulting from failure to follow these instructions.

< Screw Mounting Interface Dimension >

* 75mm x 75mm hole spacing

* Wall mount interface(LG) : RW120

-6

~ -2

~ 18

Warning:

When adjusting the angle of the

screen,do not put your

finger(s)in between the head of the

monitor and the stand

body.You can hurt your finger(s).

RW120

PREPARATION

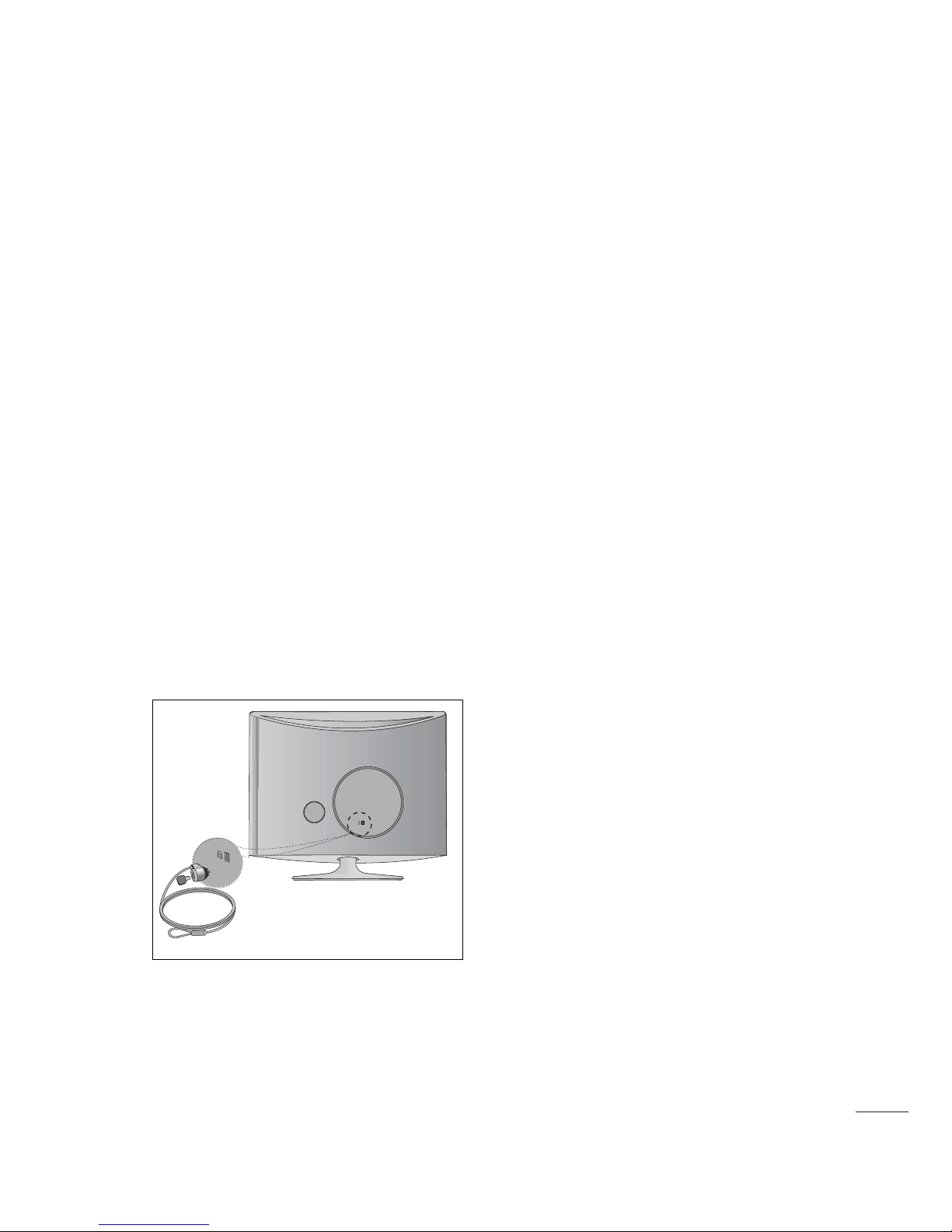

KENSINGTON SECURITY SYSTEM

- The product is equipped with a Kensington Security System connector on the back panel. Connect the

Kensington Security System cable as shown below.

- For detailed installation and use of the Kensington Security System, refer to the user’s guide provided with

the Kensington Security System.

For further information, contact http://www.kensington.com, the internet homepage of the

Kensington company. Kensington sells security systems for expensive electronic equipment such as note-

book PCs and LCD projectors.

NOTE

- The Kensington Security System is an optional accessory.

NOTES

a. If the product feels cold to the touch, there may be a small “flicker” when it is turned on.

This is normal, there is nothing wrong with product.

b. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots.

However, they have no adverse effect on the monitor's performance.

c. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.

Doing so may produce some temporary distortion effects on the screen.

PREPARATION

■For optimum picture quality, adjust antenna direction.

■An antenna cable and converter are not supplied.

■To prevent equipment damage, never plug in any power cords until you have finished connecting all equipment.

Multi-family Dwellings/Apartments

(Connect to wall antenna socket)

Single-family Dwellings /Houses

(Connect to wall jack for outdoor antenna)

Outdoor

Antenna

(VHF, UHF)

Wall

Antenna

Socket

RF Coaxial Wire (75 ohm)

ANTENNA CONNECTION

Antenna

UHF

VHF

■In poor signal areas, to get better picture quality, install a signal amplifier to the antenna as shown above.

■If signal needs to be split for two TVs, use an antenna signal splitter for connection.

ANTENNA/

CABLE IN

ANTENNA/

CABLE IN

Signal

Amplifier
