OWNER’S MANUAL

LED LCD MONITOR

Please read this manual carefully before operating

your set and retain it for future reference.

LED LCD MONITOR MODELS

ENGLISH

E1951T

E2051T

E2251T

E2351T

E2351TC

E1951S

E2051S

E2251S

E2251VQ

E2351VQ

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3ASSEMBLING AND

PREPARING

3 Unpacking

4 Parts and buttons

6 Setting up the Monitor

6 - Assembling the Stand Body and Base

7 - Mounting on a table

8 - Detaching the Stand Base and the

Stand Body

9- Mounting on a wall

11 USING THE MONITOR

11 Connecting to a PC

11 - D-SUB connection

12 - DVI-D connection

13 - HDMI connection

14 CUSTOMIZING SETTINGS

14 Accessing The Main Menus

15 Customizing Settings

15 - MENU Settings

16 - SUPER ENERGY SAVING Settings

17 - SUPER+ RESOLUTION Settings

17 - VOLUME Settings (Only supported in

HDMI)

18 - DUAL MONITOR Settings

18 - DUAL WEB Settings

19 TROUBLESHOOTING

21 SPECIFICATIONS

26 Preset Modes (Resolution)

27 - HDMI Video Timing

27 Indicator

28 PROPER POSTURE

28 Proper posture for using the Monitor.

29 LICENSES

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

yUser should use shielded signal interface cables (RGB cable/ DVI-D cable) with ferrite cores to

maintain standard compliance for the product.

CAUTION

NOTE

CD(Owner's Manual) /

Card

D-SUB Cable

(This signal cable may be attached

to this product before shipping out.)

DVI-D Cable

(In some countries, this

accessory may not be provided.)

Stand Base

Power Cord AC-DC Adapter

Stand Body

Screws for Assembly

2 EA

ENG

ENGLISH

ASSEMBLING AND PREPARING

HDMI

D-SUBDVI-D

DC-IN /

䏳㵎幑‣

D-SUBDVI-D

DC-IN /

䏳㵎幑‣

D-SUB

DC-IN /

䏳㵎幑‣

Parts and buttons

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Connection panel (See p.11)

Button ("CUSTOMIZING SETTINGS" on page 14)

(Power Button)

E2251VQ

E2351VQ

E2251VR

E2351VR

E1951S

E1951C

E2051S

E2051C

E2251S

E2251C

E1951T

E2251T

E2051T

E2351T E2351TC

ENG

ENGLISH

ASSEMBLING AND PREPARING

Button Description

MENU Accesses the main menus.(See p.15)

Left First Button OSD LOCKED/

UNLOCKED

This function allows you to lock the current control settings, so

that they cannot be inadvertently changed.

Press and hold the Left First Button for several seconds.

The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing the

Left First Button for several seconds. The message "OSD

UNLOCKED" should appear.

SUPER+ RESOLUTION Use this button to enter the SUPER+ RESOLUTION menu. For more information.(See p.17)

DUAL Use this button to enter the DUAL menu.

For more information.(See p.18)

AUTO Press the AUTO button on the MONITOR SETUP OSD menu to automatically adjust the

screen.

(Only supported in Analog Mode)

The best display mode

E1951S/ E1951T/

E1951C

1366 x 768

E2051S/ E2051T/

E2051C

1600 x 900

E2251S/ E2251T/

E2251C/ E2251VR/

E2251VQ/ E2351TC

E2351T/ E2351VR

E2351VQ

1920 x 1080

VOLUME (Only HDMI mode) E2251VR/ E2351VR/ E2251VQ/ E2351VQ

Adjust the volume of the Monitor.(See p.17)

INPUT You can choose the input signal.

yWhen two input signals are at least are connected, you can select the input signal

(D-SUB/ DVI-D/ HDMI) you want.

yWhen only one signal is connected, it is automatically detected. The default setting is

D-SUB.

EXIT Exit the OSD(On Screen Display).

(Power Button) Turns the power on or off.

Power Indicator The power indicator stays blue if the display is running

properly (On Mode). If the display is in Sleep Mode, the power

indicator blinks blue.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Stand Body

Stand Base

Setting up the Monitor

Assembling the Stand Body and Base

1Place the Monitor with the screen side down on

a flat and cushioned surface.

3Secure the Stand Body the monitor using 2

screws.

Coin

2Attach the Stand Body from the Monitor.

Insert the two Lockers of the Stand Body right

into the groove of the Monitor head and secure

them by pressing the left and right bottom

sides.

Locker

4Check the direction of the Stand Base and

assemble it with the Stand Body. Using a

coin, turn the screw clockwise to secure the

Stand Base.

yIf you do not fasten the screws, the monitor

may fall, which may result in damage to the

product.

yThis illustration depicts the general type of

connection. Your monitor may differ from the

items shown in the picture.

yDo not carry the product upside down

holding only the stand base. The product

may fall and get damaged or injure your foot.

yApplying excessive force when fastening

screws may cause damage to the monitor.

Damage caused in this way will not be

covered by the product warranty.

CAUTION

WARNING

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a table

1Lift and tilt the Monitor into its upright position

on a table.

Leave a 10 cm (minimum) space from the wall

for proper ventilation.

10 cm

Disconnect the power cord first, and then move

or install the Monitor. Otherwise electric

shock may occur.

CAUTION

2Connect the AC-DC Adapter and Power Cord

to a wall outlet.

DC-IN /

䏳㵎幑‣

DC-IN /

䏳㵎幑‣

When you adjust the angle, do not hold the

bottom of the Monitor frame as shown on

the following illustration, as it may injure your

fingers.

Do not touch or press the screen when

adjusting the angle of the monitor.

WARNING

Tilt from +15 to -5 degrees up or down to adjust

the angle of the Monitor to suit your view.

NOTE

Front Rear

15- 5

ENG

ENGLISH

ASSEMBLING AND PREPARING

Using the Kensington security system

The Kensington security system connector is

located at the back of the Monitor. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the Monitor and a table.

The Kensington security system is optional.

You can obtain it from most electronics stores.

NOTE

Detaching the Stand Base and the

Stand Body

1Place the Monitor with the screen side down on

a flat and cushioned surface.

2Using a coin, turn the screw in the Stand Base

counterclockwise. Detach the Stand Base from

the Stand Body.

3Remove the 2 screws and detach the Stand

Body from the monitor.

ENG

ENGLISH

ASSEMBLING AND PREPARING

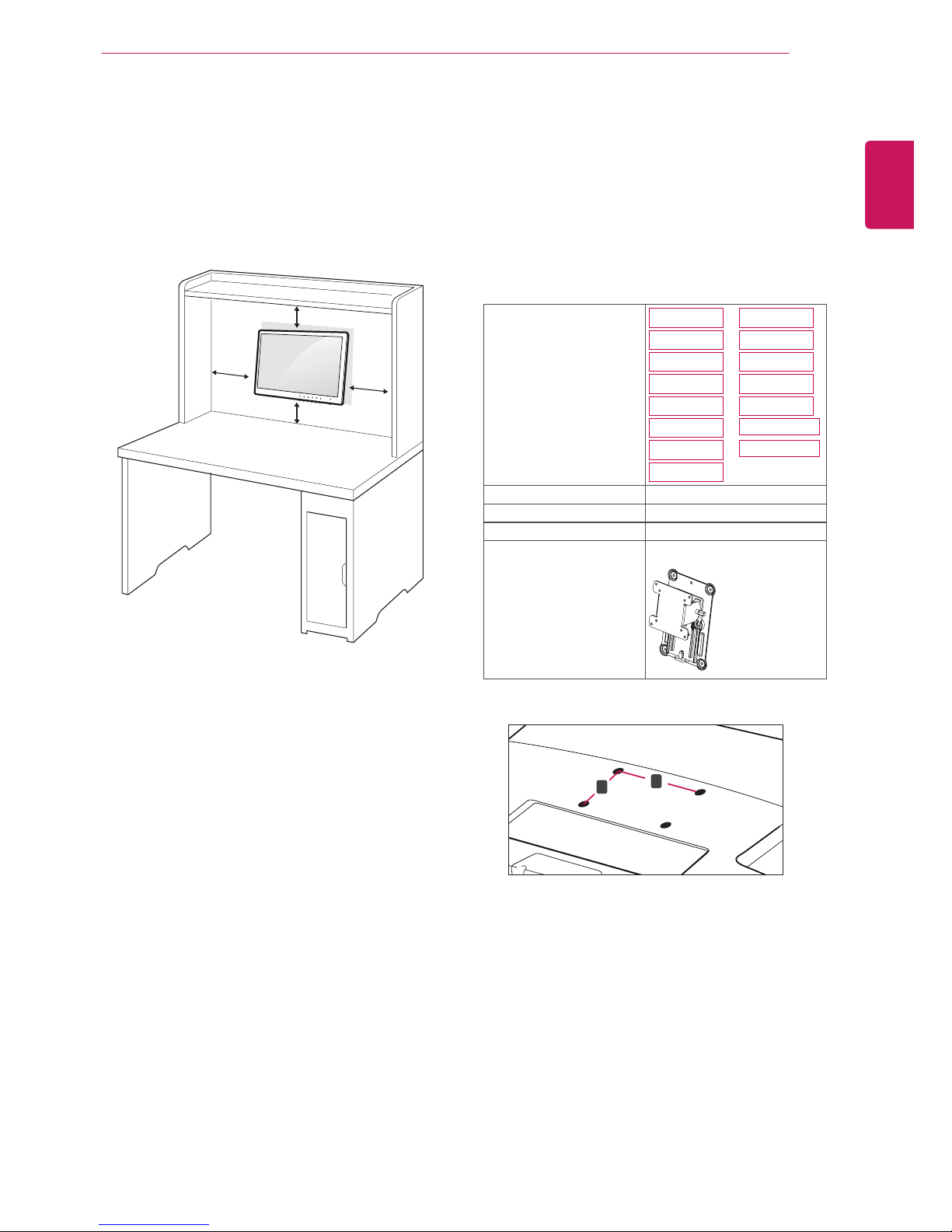

Mounting on a wall

For proper ventilation, allow a clearance of 10 cm

on each side and from the wall. Detailed

instructions are available from your dealer, see the

optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

10 cm

Model E1951S

E2051S

E2251S

E1951T

E2051T

E2251T

E2351T

E2351TC

E1951C

E2051C

E2251C

E2251VR

E2351VR

E2251VQ

E2351VQ

VESA (A x B) 75 x 75

Screw Size M4

Number of screws 4

Wall mount bracket

(optional)

RW120

If intend to mount the Monitor to a wall, an optional

third-party wall mount must be purchased.

When you install the Monitor using the wall

mounting interface (optional parts), attach it

carefully so it will not fall.

1Please use screws and a wall mount interface

in accordance with VESA Standards.

2If you use screws longer than standard, the

monitor might be damaged internally.

3If you use improper screws, the product might

be damaged and drop from mounted position.

In this case, LG Electronics is not responsible

for it.

4VESA compatible only with respect to screw

mounting interface dimensions and mounting

screw specifications.

5Please use a VESA standard as below.

y784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ4.0 mm x Pitch 0.7 mm x

Length 10 mm

y787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad

and screws.

yVESA (A x B)

ENG

ENGLISH

ASSEMBLING AND PREPARING

yDisconnect the power cord first before

moving or installing the Monitor. Otherwise

electric shock may occur.

yIf you install the Monitor on a ceiling or

slanted wall, it may fall and result in severe

injury.

yUse only an authorized LG wall mount and

contact a local dealer or qualified personnel.

yDo not over tighten the screws as this may

cause damage to the Monitor and void your

warranty.

yUse only screws and wall mounts that

meet the VESA standard. Any damages

or injuries by misuse or using an improper

accessory are not covered by the warranty.

yOnly use screws that are listed on the VESA

standard screw specifications.

yThe wall mount kit will include an installation

manual and necessary parts.

yThe wall mount bracket is optional. You can

obtain additional accessories from your local

dealer.

yThe length of screws may differ depending

on the wall mount. Be sure to use the proper

length.

yFor more information, refer to the

instructions supplied with the wall mount.

CAUTION

NOTE

Otros manuales para E1951S

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de LG

LG UltraGear 32GP850B Manual de usuario

LG 32BP95E Manual de usuario

LG 27BK550Y-W Manual de usuario

LG UltraGear 27GL650F Manual de usuario

LG Monitor Manual de usuario

LG M3702C-BA-US - - 37" LCD Flat Panel Display Guía de inicio rápido

LG 29WP500-B.AAU Manual de usuario

LG W2340V-PN Manual de usuario

LG 34BP88CN Manual de usuario

LG W1952S Manual de usuario

LG FLATRON L2320A Manual de usuario

LG 22MP410 Manual de usuario

LG 32MN60TB Manual de usuario

LG 32UL950-W.AUS Manual de usuario

LG One:Quick Flex 43HT3WJ Manual de usuario

LG 42PC1M Series Manual de usuario

LG 40WP95C Manual de usuario

LG 29UM58 Manual de usuario

LG FLATRON 24MB35PB Manual de usuario

LG 22MP67VQ Manual de usuario

LG UltraGear 27GP850P Manual de usuario

LG E2050S Manual de usuario

LG Flatron W2242T Manual de usuario

LG W2220P-BF Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación

Sceptre

Sceptre D40 Manual de usuario
