OWNER’S MANUAL

CINEMA 3D MONITOR

D2242P

D2342P

D2542P

Please read this manual carefully before operating

your set and retain it for future reference.

CINEMA 3D MONITOR MODEL

ENGLISH

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3ASSEMBLING AND

PREPARING

3 Unpacking

4 Parts and buttons

6 Setting up the Monitor set

6 - Attaching the Stand Base

6 - Detaching the Stand Base and Body

7 - Mounting on a table

8 - Mounting on a wall

10 USING THE MONITOR SET

10 Connecting to a PC

10 - D-SUB connection

10 - DVI-D connection

10 - HDMI connection

12 CUSTOMIZING SETTINGS

12 Accessing The Main Menus

13 Customizing Settings

13 - Menu Settings

14 - Things you need to check before

installing TriDef 3D

14 - 3D Settings(Only 3D mode)

15 - Volume Settings (Only supported in

HDMI)

15 - SUPER ENERGY SAVING Settings

16 TROUBLESHOOTING

18 TROUBLESHOOTING WHEN

USING 3D MODE

19 SPECIFICATIONS

22 Preset Modes (Resolution)

22 HDMI 3D TIMING

22 Indicator

23 SAFETY PRECAUTIONS

24 PROPER POSTURE

24 Proper posture for using the Monitor set.

24 Precautions to take when viewing 3D

images

ENG

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

yUser should use shielded signal interface cables (RGB cable / DVI-D cable) with ferrite cores to

maintain standard compliance for the product.

CAUTION

NOTE

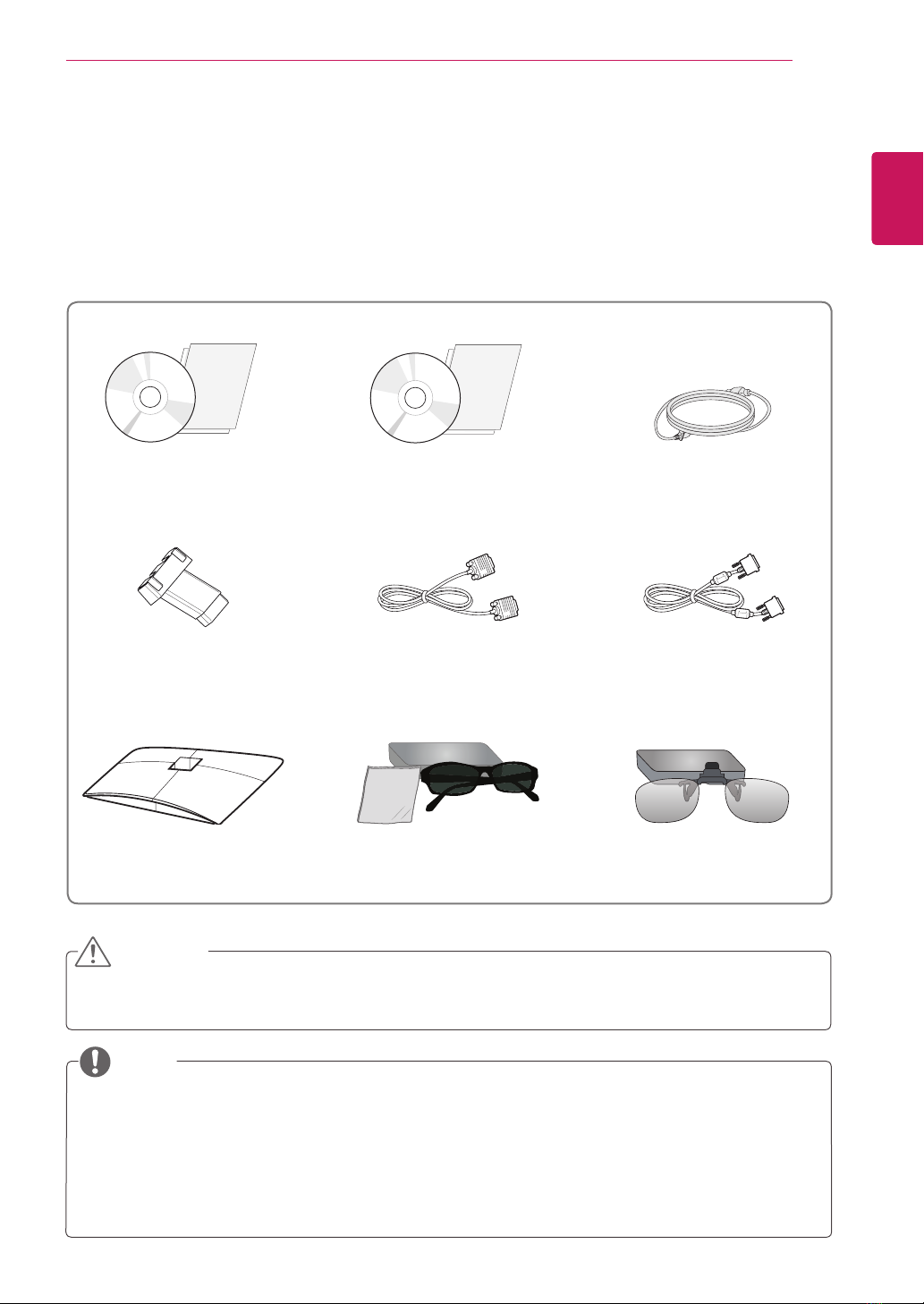

Stand Base

Stand Body

Power Cord

CD(Owner's Manual) /

Card

TriDef 3D software Program CD /

Quick Installation Guide

D-SUB Cable

(This signal cable may be attached

to this product before shipping out.)

DVI-D Cable

(This cable is not included in all

countries.)

3D Glasses

(Normal type)

3D Glasses

(Clip-on type)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

HDMID-SUB

AC-IN/

䔜㹷彺⅌ DVI-D

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Connection panel (See p.10)

Button (See p.12)

(Power Button)

ENG

ENGLISH

ASSEMBLING AND PREPARING

Button Description

MENU Accesses the main menus.(See p.13)

OSD LOCKED/

UNLOCKED

This function allows you to lock the current control settings, so

that they cannot be inadvertently changed.

Press and hold the MENU button for several seconds.

The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing

the MENU button for several seconds. The message "OSD

UNLOCKED" should appear.

SUPER ENERGY

SAVING Button

Use this button to enter SUPER ENERGY SAVING menu.For

more information.(See p.15)

3D 3D display settings.(See p.14)

AUTO When adjusting your display settings, always press the AUTO button on the MONITOR

SETUP OSD. (Only supported in Analog Mode)

The best display mode 1920 x 1080

VOLUME (Only HDMI mode) Adjust the volume of the Monitor set.(See p.15)

INPUT You can choose the input signal.

yWhen two input signals are at least are connected, you can select the input signal

(D-SUB/DVI/HDMI) you want.

yWhen only one signal is connected, it is automatically detected. The default setting is

D-SUB.

EXIT Exit the OSD(On Screen Display).

(Power Button) Turns the power on or off.

Power Indicator The power indicator stays blue if the display is running

properly (On Mode). If the display is in Sleep Mode, the power

indicator blinks blue.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

yThis illustration depicts the general model of

connection. Your monitor may differ from the

items shown in the picture.

yDo not carry the product upside down holding

only the stand base. The product may fall

and get damaged or injure your foot.

CAUTION

Detaching the Stand Base and Body

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

2Pull out the Stand Base and Stand Body from

the Monitor set.

3Attach the Stand Base and then tighten the

screw to the right with a Coin.

2Assemble the Stand Body into the product in

the correct direction as shown in the picture.

Make sure you push it until you hear it “click”.

3Turn the screw to the left with a Coin, and then

pull out the Stand Base from the Stand Body.

Stand Body

Stand Base

Hinge Body

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a table

1Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall

for proper ventilation.

2Connect the Power Cord to a wall outlet.

3Press (Power) button on the front switch

panel to turn the power on.

10 cm

When you adjust the angle, do not hold the

bottom of the Monitor set frame as shown on

the following illustration, as may injure your

fingers.

Do not touch or press the screen when

adjusting the angle of the monitor.

WARNING

Unplug the power cord before moving the

Monitor to another location. Otherwise electric

shock may occur.

CAUTION

NOTE

Front Rear

18- 5

Tilt from +18 to -5 degrees up or down to adjust

the angle of the Monitor set to suit your view.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Mounting on a wall

For proper ventilation, allow a clearance of 10 cm

on each side and from the wall. Detailed

instructions are available from your dealer, see the

optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

If you intend to mount the Monitor set to a wall,

attach Wall mounting interface (optional parts) to

the back of the set.

When you install the Monitor set using a wall

mounting interface (optional parts), attach it

carefully so it will not drop.

1Please, Use the screw and wall mount interface

in accordance with VESA Standards.

2If you use screw longer than standard, the

monitor might be damaged internally.

3If you use improper screw, the product might be

damaged and drop from mounted position. In

this case, LG Electronics is not responsible for

it.

4VESA compatible.

5Please use VESA standard as below.

y784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x

Length 10 mm

y787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad

and screws.

10 cm

Using the Kensington security system

The Kensington security system connector is

located at the back of the Monitor set. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the Monitor set and a table.

The Kensington security system is optional.

You can obtain it from most electronics stores.

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

yDisconnect the power cord first, and then

move or install the Monitor set. Otherwise

electric shock may occur.

yIf you install the Monitor set on a ceiling or

slanted wall, it may fall and result in severe

injury.

yUse only an authorized LG wall mount

and contact the local dealer or qualified

personnel.

yDo not over tighten the screws as this may

cause damage to the Monitor set and void

your warranty.

yUse only screws and wall mounts that

meet the VESA standard. Any damages

or injuries by misuse or using an improper

accessory are not covered by the warranty.

CAUTION

Model D2242P

D2342P

D2542P

VESA (A x B) 75 x 75 200 x 100

Standard screw M4 M4

Number of screws 4 4

Wall mount bracket

(optional)

RW120 RW240

yUse the screws that are listed on the VESA

standard screw specifications.

yThe wall mount kit will include an installation

manual and necessary parts.

yThe wall mount bracket is optional. You can

obtain additional accessories from your local

dealer.

yThe length of screws may differ depending

on the wall mount. Be sure to use the proper

length.

yFor more information, refer to the

instructions supplied with the wall mount.

NOTE

VESA (A x B)

ENG

ENGLISH

USING THE MONITOR SET

Connecting to a PC

yYour Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected

device that users connect to a PC and turn

on, without device configuration or user

intervention.

D-SUB connection

Transmits analog video from your PC to the

Monitor set. Connect the PC and the Monitor set

with the supplied D-sub 15 pin signal cable as

shown in the following illustrations.

yMac adapter

For Apple Macintosh use, a separate plug

adapter is needed to change the 15 pin

high density (3 row) D-SUB VGA connector

on the supplied cable to a 15 pin 2 row

connector.

yWhen using a D-Sub signal input cable

connector for Macintosh

yIf you use HDMI PC, it can cause compatibility

problem.

NOTE

D-SUB

DVI

-D

RGB OUT

DVI OUT

DVI-D

HDMI

HDMI OUT

DVI

-D

HDMI OUT

DVI-D connection

Transmits a digital video signal from your PC to

the Monitor set. Connect the PC and the Monitor

set with a DVI cable as shown in the following

illustrations.

HDMI connection

Transmits the digital video and audio signals from

your PC or A/V to the Monitor set. Connect the PC

or A/V and the Monitor set with the HDMI cable as

shown in the following illustrations.
