LG 32MA70HY-P Manual de usuario

www.lg.com

LED MONITOR MODEL

32MA68HY

32MA70HY

Please read this manual carefully before operating

your set and retain it for future reference.

Owner's Manual

LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

ENGLISH

TABLE OF CONTENTS

CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

5 Supported Drivers and Software

6 Parts and buttons

6 - How to Use the Joystick Button

7 - Input Connector

8 Moving and Lifting the Monitor

9 Setting up the Monitor set

9 - Attaching the Stand Base

10 - Detaching the Stand Base

11 - Mounting on a table

12 - Using the cable holder

13 - Installing the wall mount

14 - Mounting on a wall

15 USING THE MONITOR SET

15 Connecting to a PC

15 - D-SUB connection

15 - HDMI connection

16 - DisplayPort connection

16 Connecting to AV Devices

16 - HDMI connection

17 Connecting Peripherals

17 - USB Cable connection - PC

(32MA68HY)

17 Connecting to External Devices

17 - Peripheral device connection

18 CUSTOMIZING SETTINGS

19 Customizing settings

19 - Menu Settings

19 - -Quick Settings

20 - -Picture

23 - -General

24 - -Auto Configuration

25 - -Reset

26 - -Picture mode

27 TROUBLESHOOTING

29 SPECIFICATIONS

31 Preset Modes (Resolution)

31 Indicator

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

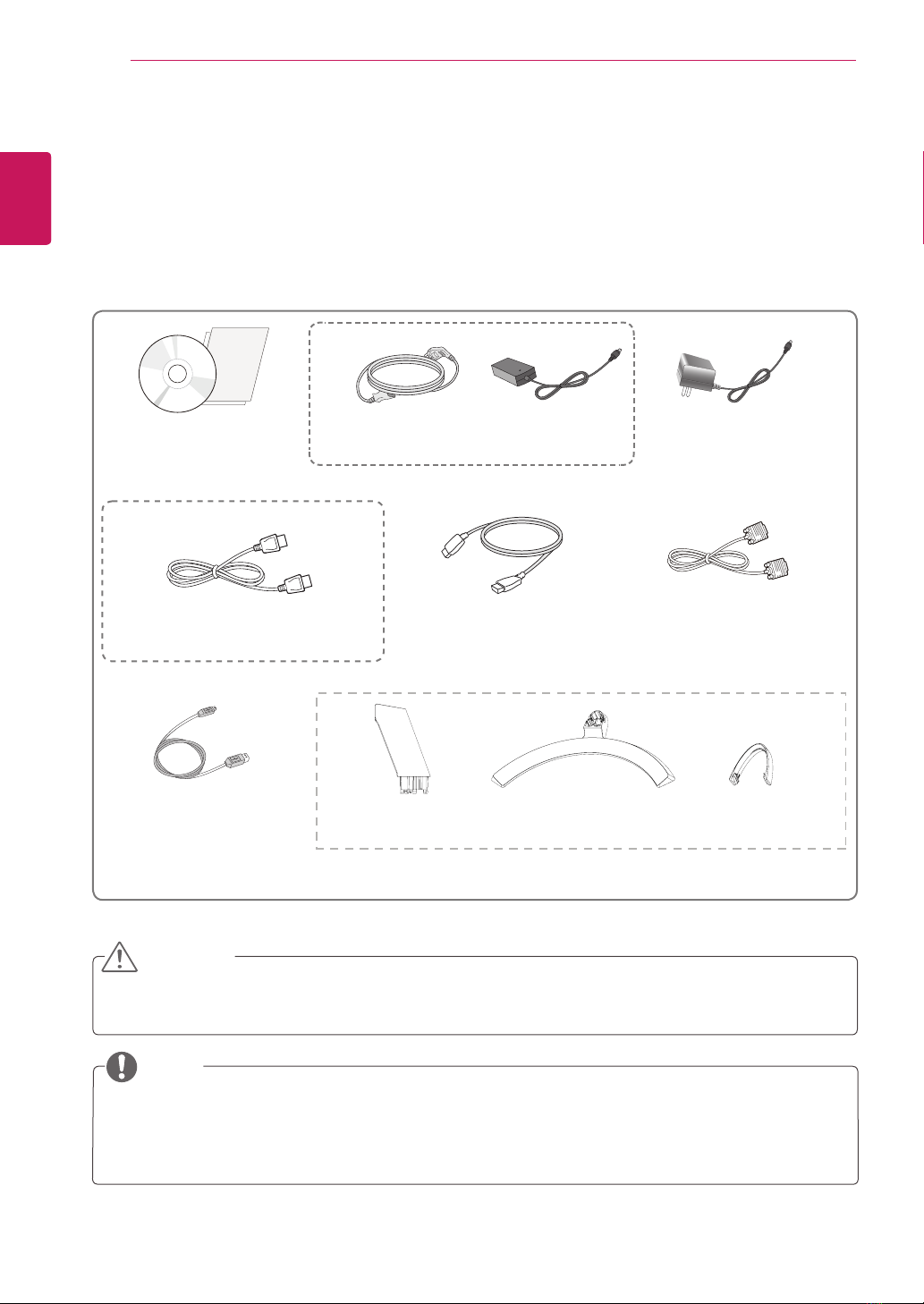

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

CD(Owner's Manual) /

Card ( Depending on the country ) ( Depending on the country )

Power Cord AC-DC Adapter AC-DC Adapter

D-SUB Cable

( This cable is not included

in all countries. )

USB Cable

( This cable is not included

in all countries. )

(32MA68HY)

Stand Body Stand Base

HDMI Cable

( This cable is not included in

all countries. )

Cable Holder

OPTIONAL ACCESSORIES

DisplayPort Cable

( This cable is not included in all countries. )

ENG

ENGLISH

ASSEMBLING AND PREPARING

Supported Drivers and Software

Check the drivers and software supported by your product and refer to the manuals on the CD enclosed in

the product package.

yRequired and Recommended: You can download and install the latest version from the enclosed CD

or from the LGE website

(www.lg.com)

Drivers and Software Installation Priority 32MA68HY / 32MA70HY

Monitor Driver Recommended O

OnScreen Control Recommended O

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

Joystick Button/

Power Indicator

yOn: power is on

yOff: power is off

yThe joystick button is located at the bottom of the monitor.

NOTE

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

ENG

ENGLISH

ASSEMBLING AND PREPARING

32MA68HY 32MA70HY

Parts and buttons

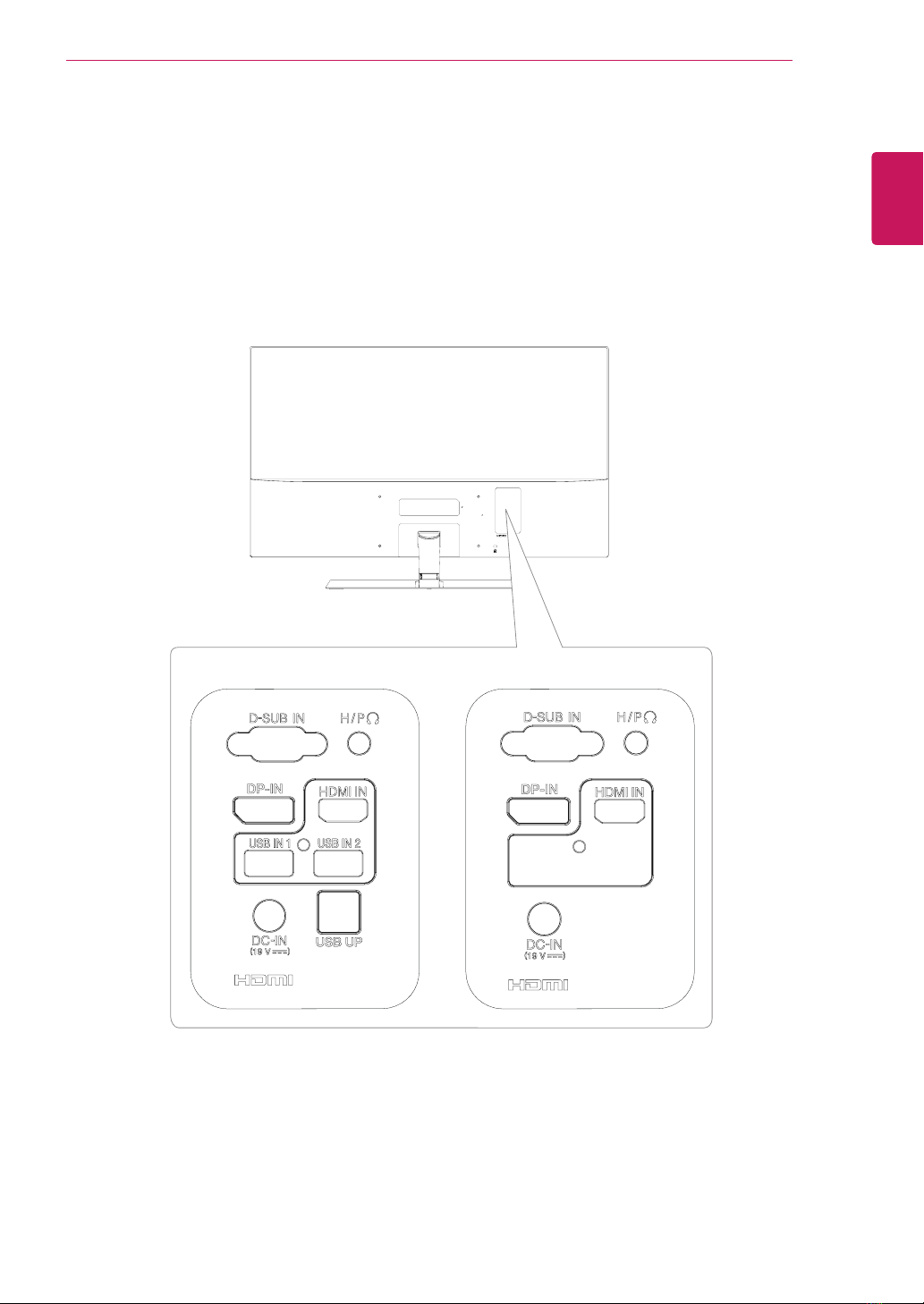

Input Connector

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Setting up the Monitor set

Attaching the Stand Base

1 Please put a soft cloth on a low table or box

to protect the screen of the monitor.

Please put the monitor on the soft cloth with

the screen facing down.

2 Please grab the Stand body in one hand, and

push it in the direction of the arrow to hinge

body.After assembling, you must check if the

Stand body latched in or not.

3 Please push the Stand Base in the direction

of the arrow as shown below and assemble

together.

Please use a driver(-) or coin to insert thumb

screw and turn right arrow direction lock.

* It is necessary to thoroughly tighten it with

Thumb Screw, or the monitor will shake.

4Please set the Monitor upright, and install the

necessary cable.

* Must use one type input cable. Don't use

more than two types cable together.

Stand body

Stand Base

ENG

ENGLISH

ASSEMBLING AND PREPARING

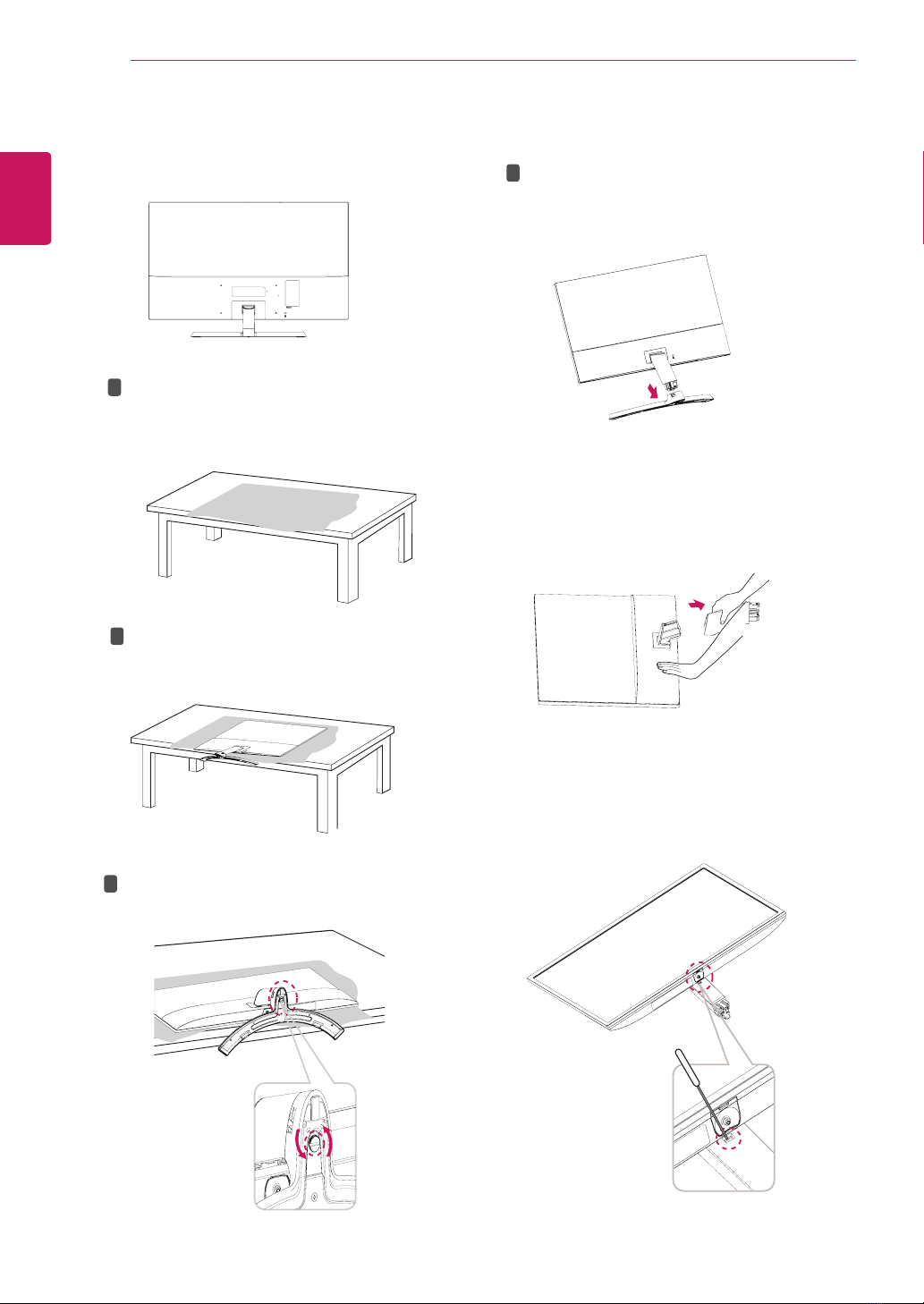

1 Please remove the cable installed to the monitor.

2 Please put a soft cloth on a low table or box to

protect the screen of the monitor.

Please put the monitor on the soft cloth with

the screen facing down.

3 Please use the driver(-) or coin insert thumb

screw and turn left arrow direction unlock.

Please pull the Stand Base in the direction of

the arrow as shown below and disassemble

as shown below.

4After fixing the monitor in one hand, remove the

Stand body by pulling it strongly in the direction

of the arrow as shown below.

*If it is difficult to remove, you can push the

Latch with a small flat-head screw driver or a

flat-headed tool and disassemble as shown

below.

Detaching the Stand Base
