LG 29UM68-P Manual de usuario

www.lg.com

Please read the safety information carefully before using the

product.

IPS LED Monitor (LED Monitor) Model List

Owner's Manual

IPS LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

29UM68

34UM68

ENG

ENGLISH

Contents

CONTENTS

17 USER SETTINGS

18 Customizing settings

18 - Menu Settings

18 - -Quick Settings

19 - -PBP

20 - -Picture

22 - -Sound

23 - -General

24 - -Reset

25 TROUBLESHOOTING

27 SPECIFICATIONS

27 29UM68

28 34UM68

29 Factory support mode

(HDMI/ DisplayPort)

29 HDMI Timing (Video)

29 Indicator

3LICENSE

4ASSEMBLING AND

PREPARING

4Product Components

5Component and Button Description

5- How to Use the Joystick Button

7Moving and Lifting the Monitor

8Installing the Monitor

8- Assembling the stand base

10 - Using the cable holder

10 - Adjusting the stand height

11 - Installing onto a table

12 - Adjusting the angle

13 - Using the Kensington lock

13 - Installing the wall mount plate

14 - Installing to a wall

15 USING THE MONITOR

15 Connecting to a PC

15 - HDMI connection

15 - DisplayPort connection

16 Connecting to AV Devices

16 - HDMI connection

16 Connecting to External Devices

16 - Connecting Headphones

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

VESA, VESA logo, DisplayPort Compliance Logo and DisplayPort

Compliance Logo for dual-mode source are all registered trademarks of the

Video Electronics Standards Association.

MaxxAudio and additional MAXX trademarks are trademarks and/or

registered trademarks of Waves Audio Ltd.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet

the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image

noises.

CAUTION

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to im-

prove the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the

retail store where you purchased the product.

NOTE

CD(Owner's Manual) /

Card

DisplayPort Cable

Stand Base

Stand Body

HDMI Cable

( This cable is not in-

cluded in all countries. )

( This cable is not in-

cluded in all countries. )

( Depending on the country ) ( Depending on

the country )

Power Cord AC-DC Adapter AC-DC Adapter

Cable Holder Screw Cover

Cable Holder 4 Screws

2 Screws

Clear sheet

OPTIONAL ACCESSORIES

ENG

ENGLISH

ASSEMBLING AND PREPARING

Component and Button Description

Power Indicator

yOn: power is on

yOff: power is off

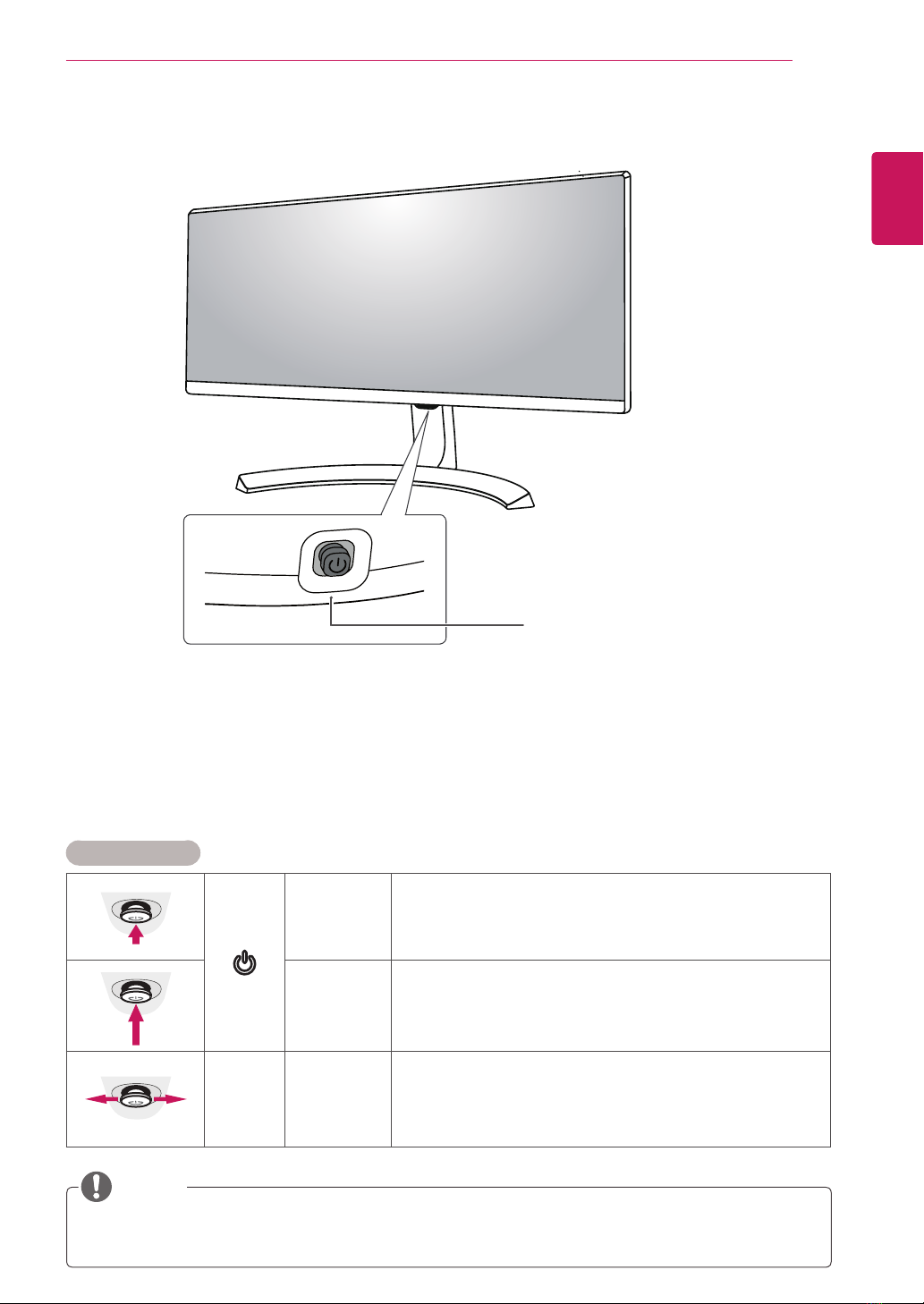

Joystick Button

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

yThe joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

Input Connector

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

yIf you use the monitor panel without the

stand base, its joystick button may cause

the monitor to become unstable and fall,

resulting in damage to the monitor or human

injury. In addition, this may cause the joystick

button to malfunction.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the stand base

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

1Place the screen face down.

29UM68

2Check the direction of the stand body

(front, back) and then mount the stand body

onto the stand hinge.

Tighten two screws into the back of the stand

body.

Stand Body

Stand Base

Screw Cover

Stand Hinge

yYou can disassemble the stand in the

reverse order of the assembly.

NOTE

Attach the Stand Base to Stand Body.

Using a coin, turn the screw clockwise to

secure the stand base.

4Attach the screw cover.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Stand Body

Stand Base

1 Place the screen face down.

34UM68

yYou can disassemble the stand in the

reverse order of the assembly.

NOTE

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

Attach the Stand Base to Stand Body.

Tighten the screw to the right.

Use a tool to attach the stand body as shown

in the figure.

It may hurt your foot off the stand, so be

careful.

CAUTION

yIllustrations in this document represent typi-

cal procedures, so they may look different

from the actual product.

yApplying excessive force when tightening

screws may cause damage to the monitor.

Damage caused in this way will not be cov-

ered by the product warranty.

yBe careful not to hurt your hand on the edges

of the screw covers.

yDo not carry the monitor upside down by just

holding the base. This may cause the moni-

tor to fall off the stand and could result in

personal injury.

yWhen lifting or moving the monitor, do not

touch the monitor screen. The force applied

to the monitor screen may cause damage to

it.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

Using the cable holder Adjusting the stand height

1Handle the monitor with both hands for safety.

2The height can be adjusted up to 4.72 inches.

Cable Holder

4.72 inches

Cable Holder

Arrange the cables using the cable holder as

shown in the illustration.

yDo not put your fingers or

hand between the screen

and the base (chassis) when

adjusting the screen's height.

WARNING
