Please read the safety information carefully before using the

product.

IPS LED Monitor (LED Monitor) Model List

Owner's Manual

IPS LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

ENG

ENGLISH

Contents

CONTENTS

23 INSTALLING LG MONITOR

SOFTWARE

26 Installing The Dual Controller

28 USER SETTINGS

29 Customizing settings

29 - Menu Settings

29 - -Quick Settings

30 - -PBP

31 - -Picture

33 - -Sound

34 - -General

35 - -Reset

36 - -Picture mode

37 TROUBLESHOOTING

39 SPECIFICATIONS

39 29UM67

40 29UB67

41 34UM67

42 34UB67

43 Factory support mode

(DVI-D/ HDMI/ DisplayPort)

43 HDMI Timing (Video)

43 Indicator

44 PROPER POSTURE

44 Proper Posture for Using the Monitor

3LICENSE

4ASSEMBLING AND

PREPARING

4Product Components

5Component and Button Description

8- How to Use the Joystick Button

9Moving and Lifting the Monitor

10 Installing the Monitor

10 - Assembling the stand base

12 - Using the cable holder

13 - Installing onto a table

14 - Adjusting the stand height

15 - Adjusting the angle

16 - Pivot feature

17 - Using the Kensington lock

17 - Installing the wall mount plate

18 - Installing to a wall

19 USING THE MONITOR

19 Connecting to a PC

19 - DVI connection

20 - DisplayPort connection

20 - HDMI connection

21 Connecting to AV Devices

21 - HDMI connection

22 Connecting to External Devices

22 - USB Cable connection - PC

22 - Connecting Headphones

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

VESA, VESA logo, Display Port Compliance Logo and Display Port

Compliance Logo for dual-mode source are all registered trademarks of the

Video Electronics Standards Association.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet

the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to im-

prove the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the

retail store where you purchased the product.

yThe DisplayPort cable may not be available in some areas.

CAUTION

NOTE

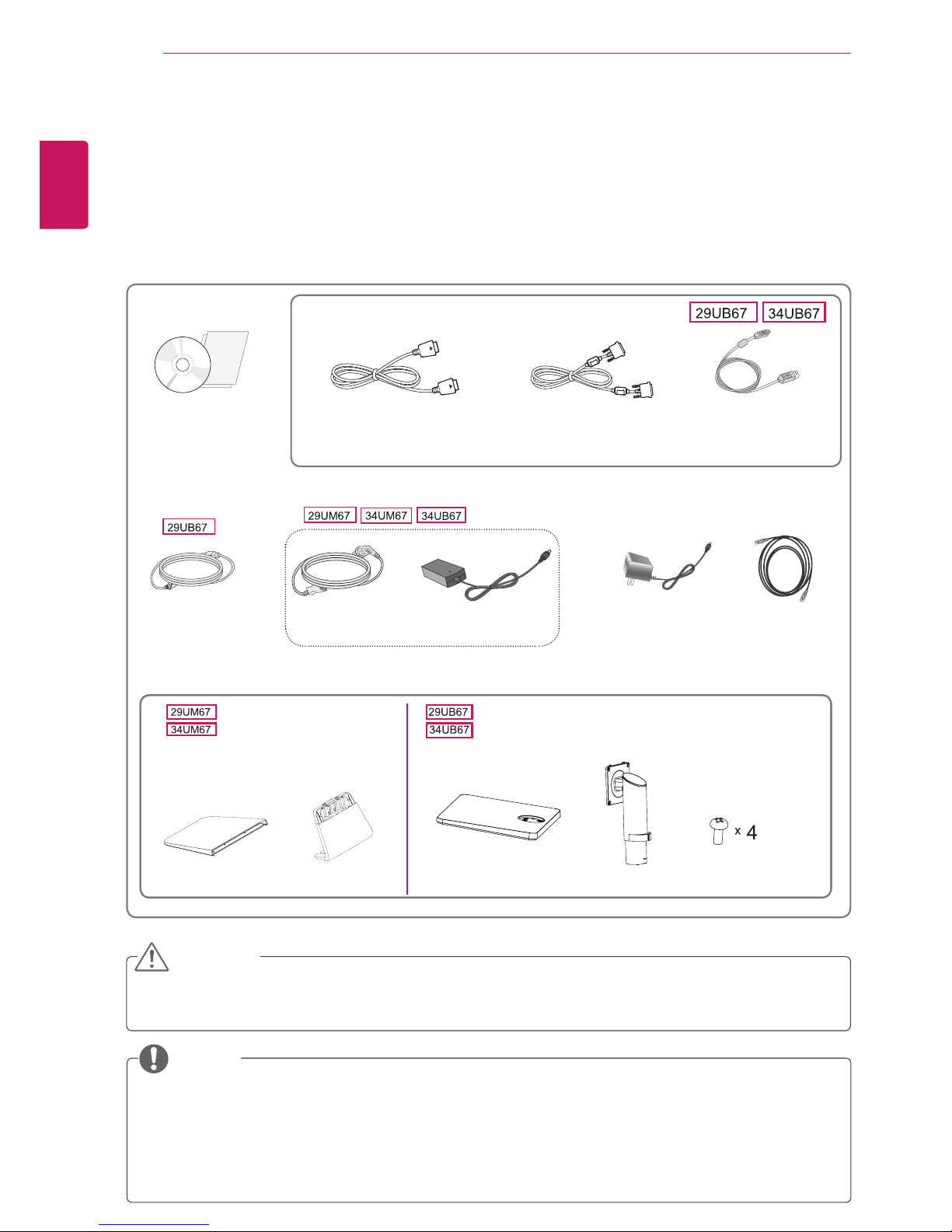

CD(Owner's Manual) /

Card

OPTIONAL ACCESSORIES

The DisplayPort cable may not be

available in some areas.

Display Port Cable

Stand Base Stand Body Screws

HDMI Cable

( This cable is not in-

cluded in all countries. )

( Depending on the country ) ( Depending on

the country )

Power Cord AC-DC Adapter AC-DC Adapter

DVI-D Dual Cable

( This cable is not included in

all countries. )

USB Cable

( This cable is not included

in all countries. )

Power Cord

Stand Base Stand Body

ENG

ENGLISH

ASSEMBLING AND PREPARING

Component and Button Description

Power Indicator

yOn: power is on

yOff: power is off

Joystick Button

Input Connector

ENG

ENGLISH

ASSEMBLING AND PREPARING

Joystick Button /

Power LED

yOn: power is on

yOff: power is off

Ports

Input Connector

ENG

ENGLISH

ASSEMBLING AND PREPARING

Power Indicator

yOn: power is on

yOff: power is off

Ports

Joystick Button

Input Connector

ENG

ENGLISH

ASSEMBLING AND PREPARING

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

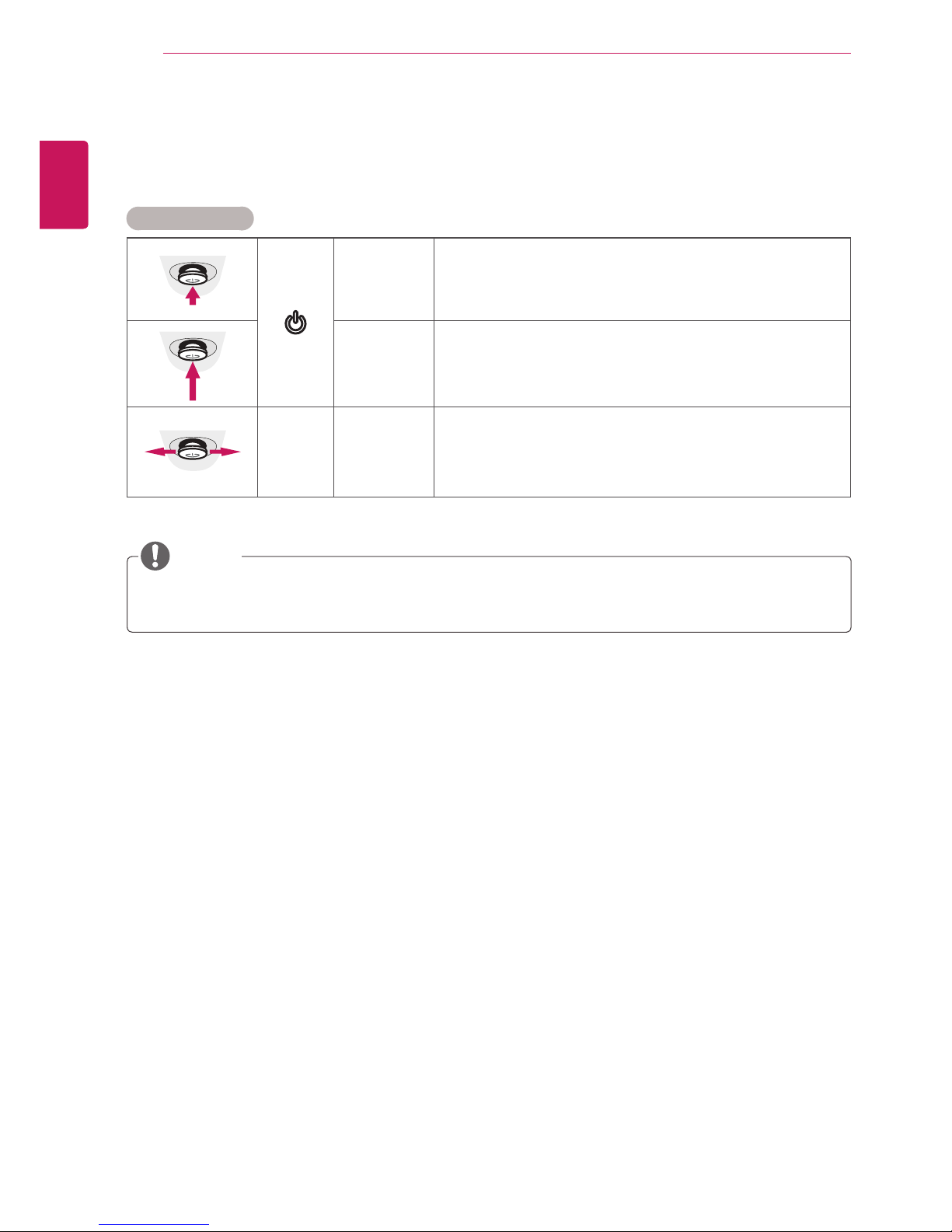

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

yThe joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

yIf you use the monitor panel without the

stand base, its joystick button may cause

the monitor to become unstable and fall,

resulting in damage to the monitor or human

injury. In addition, this may cause the joystick

button to malfunction.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Applying excessive force when tightening

the screws may cause damage to the moni-

tor. Damage caused in this way will not be

covered by the product warranty.

CAUTION

It may hurt your foot off the stand, so be

careful.

CAUTION

Installing the Monitor

Assembling the stand base

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

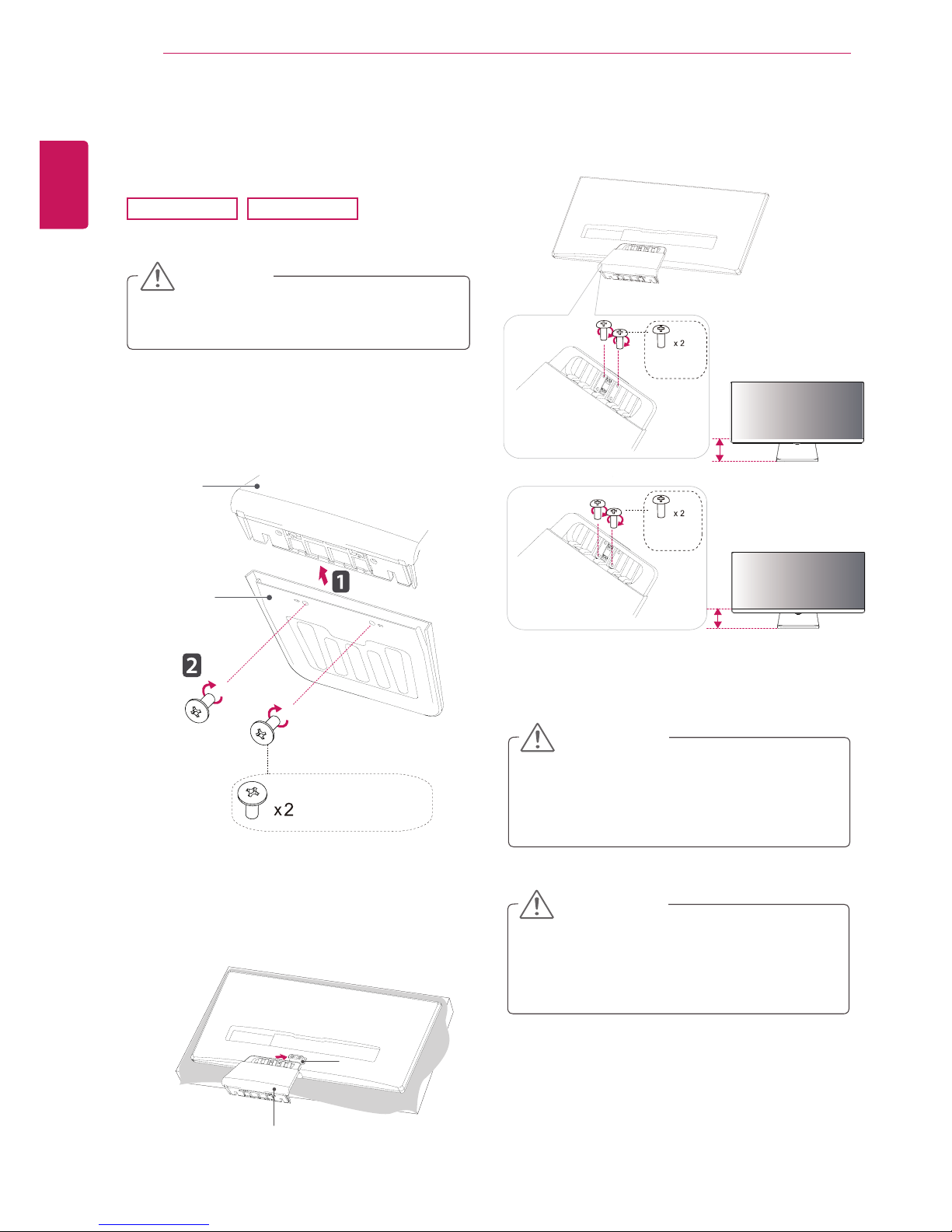

2First, please insert Stand Body to Stand Base,

Then tighten two screws into the back of the

stand base.

1Place the screen face down.

29UM67 34UM67

4Tighten two screws into the back of the stand

body .

3Check the direction of the stand body

(front, back) and then mount the stand

body onto the stand hinge.

Stand Body

Stand Base

(Silver)

(Black)

120 mm

100 mm

(Black)

Stand Hinge
