LG 27UD59P Manual de usuario

www.lg.com

Please read the safety information carefully before using the product.

LED LCD Monitor (LED Monitor) Model List

Owner's Manual

LEDLCDCOMPUTER

MONITOR

(LED COMPUTER

MONITOR*)

*Disclaimer: LG LED Monitor applies LCD screen with LED backlights.

This product is a computer monitor and not for television purpose.

27UD59

27UD59P

ENG

ENGLISH

CONTENTS

22 USER SETTINGS

23 Customizing settings

27 TROUBLESHOOTING

29 SPECIFICATIONS

29 27UD59

30 27UD59P

31 Factory Support Mode (Preset Mode, PC)

31 HDMI

31 DisplayPort

32 HDMI Timing (Video)

32 Power LED

3LICENSE

4ASSEMBLING AND PREPARING

4 Product Components

5 Supported Drivers and Software

6 Component and Button Description

6 - How to Use the Joystick Button

8 Input Connector

10 Moving and Lifting the Monitor

11 Setting up the Monitor set

11 - Attaching the Stand Base

13 - Installing onto a table

14 - Using the cable holder

14 - Adjusting the Stand Height

15 - Adjusting the angle

15 - Swivel stand

16 - Pivot Feature

18 - Using the Kensington lock

18 - Installing the wall mount plate

19 - Installing to a wall

20 USING THE MONITOR

20 Connecting to a PC

20 - HDMI connection

20 - DisplayPort connection

21 Connecting to External Devices

21 - Connecting Headphones

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit

www.lg.com

for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the

United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP

Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to

display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

27UD59

27UD59P

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are missing com-

ponents, contact the retail store where you purchased the product. Note that the product and components may look

different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve the

performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store

where you purchased the product.

CAUTION

NOTE

CD / Card

DisplayPort Cable

( This cable is not included in

all countries. )

HDMI Cable

( This cable is not included

in all countries. )

Power Cord

Stand Base Stand Body

Stand Body Stand Base Cable Holder

Screw Cover Cable Holder 2 Screws

ENG

ENGLISH

Supported Drivers and Software

You can download and install the latest version from the LGE website (

www.lg.com

Drivers and Software Installation Priority 27UD59,27UD59P

Monitor Driver Recommended O

OnScreen Control Recommended O

Dual Controller Optional O

ENG

ENGLISH

27UD59

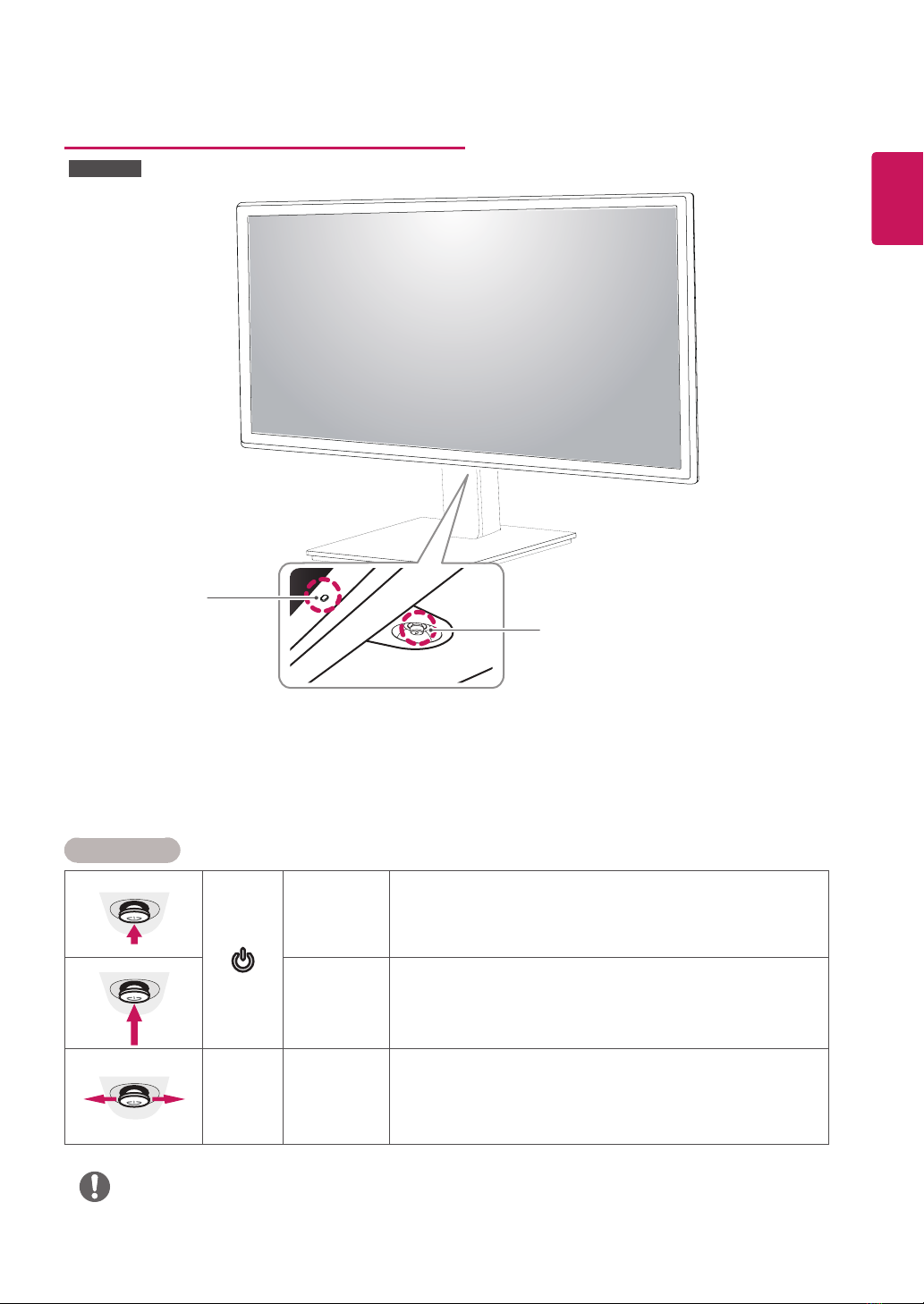

Component and Button Description

Power LED

yOn: power is on

yOff: power is off Joystick Button

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your

finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off the

monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

yThe joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

27UD59P

Component and Button Description

Power LED

yOn: power is on

yOff: power is off Joystick Button

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your

finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off the

monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

yThe joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

Input Connector

27UD59

ENG

ENGLISH

Input Connector

27UD59P

ENG

ENGLISH

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these in-

structions to prevent the monitor from being scratched

or damaged and to ensure safe transportation regard-

less of its shape or size.

yAs far as possible, avoid touching the monitor

screen. This may result in damage to the screen or

some of the pixels used to create images.

yIt is advisable to place the monitor in the original

box or packing material before attempting to

move it.

yBefore moving or lifting the monitor, disconnect

the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the screen itself.

yWhen holding the monitor, the screen should face

away from you to prevent it being scratched.

yWhen moving the monitor, avoid any strong shock

or vibrations to the product.

yWhen moving the monitor, keep it upright, never

turn the monitor on its side or tilt it sideways.

CAUTION

yIf you use the monitor panel without the stand

base, its joystick button may cause the monitor to

become unstable and fall, resulting in damage to

the monitor or human injury. In addition, this may

cause the joystick button to malfunction.
