OWNER’S MANUAL

IPS LED MONITOR

23MB35PH

24MB35PH

27MB35PH

Please read this manual carefully before operating

your set and retain it for future reference.

IPS LED MONITOR MODEL

ENGLISH

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3LICENSE

4ASSEMBLING AND PREPAR-

ING

4 Unpacking

5 Parts and buttons

7 Moving and Lifting the Monitor

8 Setting up the Monitor set

8 - Attaching the Stand Base

9 - Detaching the stand base

10 - Detaching the stand body

10 - Using the cable holder

11 - Mounting on a table

12 - Adjusting the angle

13 - Adjusting the stand height

13 - Using the Kensington locking device

14 - Swivel stand

14 - Using the Pivot function

15 - Swivel stand

15 - Using the Pivot function

16 - Mounting on a wall

17 USING THE MONITOR SET

17 Connecting to a PC

17 - D-SUB connection

17 - DVI-D connection

18 - HDMI connection

18 Connecting to AV Devices

18 - HDMI connection

19 Connecting to External Devices

19 - Peripheral device connection

20 CUSTOMIZING SETTINGS

21 Customizing Settings

21 - Menu Settings

22 -Picture

23 -Color

24 -Display

24 -Audio

25 -Others

26 READER Setting

27 SMART ENERGY SAVING

28 TROUBLESHOOTING

30 SPECIFICATIONS

30 23MB35PH

31 24MB35PH

32 27MB35PH

33 Preset Modes (Resolution)

33 Indicator

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing Ad-

ministrator, Inc. in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to

meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no

adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

ENG

ENGLISH

ASSEMBLING AND PREPARING

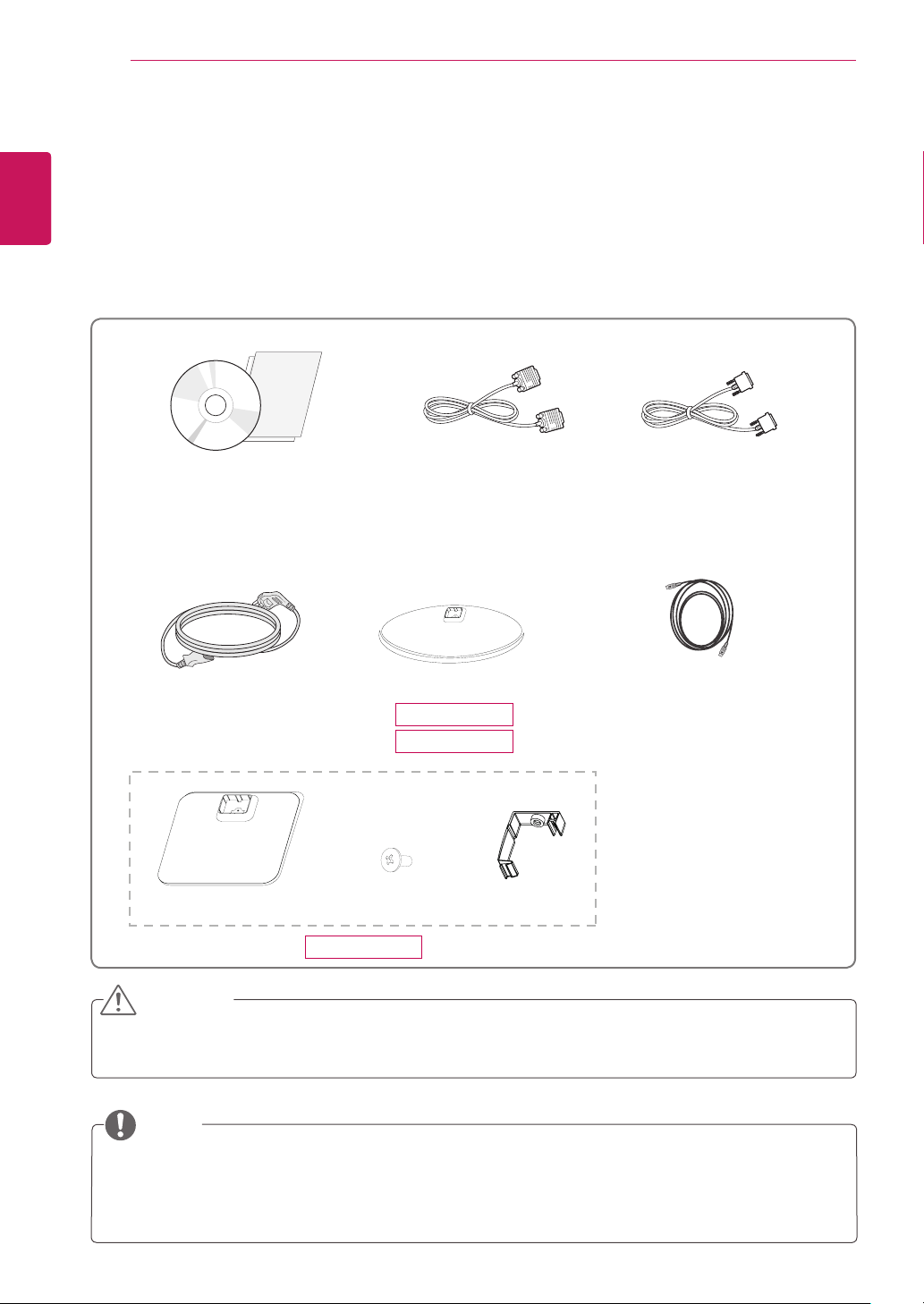

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

CD / Card

D-SUB Cable

(This cable is not

included in all

countries.)

HDMI Cable

(This cable is not included in all

countries.)

DVI-D Cable

(This cable is not

included in all

countries.)

Stand Base

Stand Base One Screw Cable Holder

Power Cord

27MB35PH

23MB35PH

24MB35PH

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Connection panel (See p.17~19)

Front Side Buttons

(Power Button)

23MB35PH

24MB35PH

ENG

ENGLISH

ASSEMBLING AND PREPARING

Parts and buttons

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Connection panel (See p.17~19)

Front Side Buttons

(Power Button)

27MB35PH

ENG

ENGLISH

ASSEMBLING AND PREPARING

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation regardless of its shape or size.

yAs far as possible, avoid touching the moni-

tor screen. This may result in damage to the

screen or some of the pixels used to create

images.

yIt is advisable to place the monitor in the

original box or packing material before at-

tempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all cables.

yHold the top and bottom of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face away from you to prevent it being

scratched.

yWhen moving the monitor, avoid any strong

shock or vibrations to the product.

yWhen moving the monitor, keep it upright,

never turn the monitor on its side or tilt it

sideways.

CAUTION

ENG

ENGLISH

ASSEMBLING AND PREPARING

2Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

Setting up the Monitor set

Attaching the Stand Base

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Stand Base

Stand Body

yTo protect the screen from scratches, cover

the surface with a soft cloth.

3Using a coin, turn the screw clockwise to se-

cure the stand base.

CAUTION

Stand Base

Stand Body

2Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

2Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

3Using a coin, turn the screw clockwise to se-

cure the stand base.

23MB35PH

24MB35PH

27MB35PH

ENG

ENGLISH

ASSEMBLING AND PREPARING

Stand Base

Stand Body

yThe components appearing in the illustra-

tions may look different from the actual prod-

uct.

yDo not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

yOnly remove the tape and the locking pin

when the monitor is mounted on the stand

base and is in an upright position. Otherwise,

the stand body may protrude, which may

lead to injury.

Detaching the stand base

1Place the monitor's screen face down.

To protect the screen from scratches, cover the

surface with a soft cloth.

2Using a coin, turn the screw in the stand base

counterclockwise. Detach the stand base from

the stand body.

2Using a coin, turn the screw in the stand base

counterclockwise. Detach the stand base from

the stand body.

CAUTION

2Detach the stand base from the stand body.

24MB35PH

23MB35PH

27MB35PH

ENG

ENGLISH

ASSEMBLING AND PREPARING

Detaching the stand body

1Place the monitor's screen face down. To

protect the screen from scratches, cover the

surface with a soft cloth.

2Using a screwdriver, remove the four screws

and detach the stand from the monitor.

Using the cable holder

Fix the Knob (Cable holder) to the

Hole(Hingebody).

Use one screw to fix the Cable Holder and

monitor set.

Close the Cable holder.

yThe holes are used for wall mount bracket.

yVaries depending upon your country or

model.

NOTE

27MB35PH

24MB35PH

23MB35PH

27MB35PH
