Owner's Manual

IPS LED MONITOR

(LED MONITOR)

25UM64

25UM65

34UM64

34UM65

Please read the safety information carefully

before using the product.

IPS LED Monitor (LED Monitor) Model List

ENGLISH

2TABLE OF CONTENTS

TABLE OF CONTENTS

3LICENSE

4ASSEMBLING AND

PREPARING

4 Product Composition

5 Product and Button Description

6 - How to Use the Joystick Button

7 - Input Connector

8 Moving and Lifting the

Monitor

9 Installing the Monitor

9 - Assembling the Stand

12 - Detaching the Stand

15 - Installing on a Table

16 - Adjusting the angle

17 - Tidying up Cables

18 - Installing the Wall Mount Plate

18 - Installing on the Wall

20 - Using the Kensington Lock

21 USING THE MONITOR

21 Connecting to a PC

21 - DVI Connection

22 - HDMI Connection

22 - DisplayPort Connection

23 Connecting AV Devices

23 - HDMI Connection

23 Connecting Peripherals

23 - Connecting Headphones

24 INSTALLING THE LG

MONITOR SOFTWARE

26 USER SETTINGS

26 Activating the Main Menu

26 - Main Menu Features

27 User Settings

27 - Menu Settings

28 - Ratio

29 - Function

30 - PBP

31 - Picture

32 - Color

33 - Settings

34 - Reset

35 - Reader

36 TROUBLESHOOTING

38 PRODUCT SPECIFICATION

40 Factory Support Mode

(Preset Mode, DVI-D/HDMI/DisplayPort

PC)

40 HDMI Timing (Video)

40 Power LED

41 PROPER POSTURE

41 Proper Posture for Using the Monitor

WARNING: This product contains chemicals known to the State of California to cause cancer and birth

defects or other reproductive harm. Wash hands after handling.

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

VESA, VESA logo, DisplayPort compliance logo and DisplayPort

compliance logo for dual-mode source devices are all registered trademarks of

the Video Electronics Standards Association.

ENGLISH

4ASSEMBLING AND PREPARING

ASSEMBLING AND PREPARING

Product Composition

Please check whether all the components are included in the box before using the product. If there are

any missing components, contact the retailer where you purchased the product. Note that the product and

related components may look different from those shown here.

CD (Owner's Manual /

Software) / Guides /

Cards

Power cord AC/DC Adapter AC/DC Adapter

(Depending upon

country)

(Depending upon country)

HDMI cable

25UM65

25UM64

Stand Base Stand Body Screw Cover Two Screws

(M4 x 10)

34UM65

Stand Base Screw Cover Two Screws

(M4 x 10) Clear sheet

yAlways use genuine LG components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of unauthorized components.

CAUTION

34UM64

ENGLISH

ASSEMBLING AND PREPARING

yThe components may look different from those illustrated here.

yWithout prior notice, all product information and specifications contained in this manual are subject to

change to improve the performance of the product.

yTo purchase optional accessories, visit an electronics store or an online shopping site, or contact the

retailer from which you purchased the product.

yThe power cord provided may differ depending upon the region.

NOTE

Product and Button Description

25UM65 25UM64

Joystick

Button

Power Indicator

yOn Power on

yOff Power off

yThe joystick button is located at the bottom of the monitor.

NOTE

ENGLISH

6ASSEMBLING AND PREPARING

34UM65

Joystick

Button

Power Indicator

yOn Power on

yOff Power off

yThe joystick button is located at the bottom of the monitor.

NOTE

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with

your finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off

the monitor.

◄/►Volume

Control You can control the volume by moving the joystick button left/right.

34UM64

ENGLISH

ASSEMBLING AND PREPARING

Input Connector

25UM65 25UM64

DVI-D IN

DP IN

HDMI IN 2

H/P

HDMI IN 1

AUDIO IN(PC)

DC-IN

(19 V )

34UM65

HDMI IN 2

DC-IN

(19 V )

HDMI

DVI-D IN

DP IN

H/P

HDMI IN 1

AUDIO IN

(PC)

34UM64

ENGLISH

8ASSEMBLING AND PREPARING

Moving and Lifting the

Monitor

When moving or lifting the monitor, follow these

instructions to prevent the monitor from being

scratched or damaged and to ensure safe trans-

portation, regardless of its shape or size.

yPlace the monitor in the original box or pack-

ing material before attempting to move it.

yBefore moving or lifting the monitor, discon-

nect the power cord and all other cables.

yHold the bottom and side of the monitor frame

firmly. Do not hold the panel itself.

yWhen holding the monitor, the screen should

face toward you to prevent it from being

scratched.

yWhen transporting the monitor, do not expose

the monitor to shock or excessive vibration.

yWhen moving the monitor, keep it upright and

never turn the monitor on its side or tilt it side-

ways.

yAvoid touching the monitor screen as much as

possible.

- This may result in damage to the screen or

some of the pixels used to create images.

yIf you use the monitor panel without the stand

base, its joystick button may cause the moni-

tor to become unstable and fall, resulting in

damage to the monitor or human injury. In

addition, this may cause the joystick button to

malfunction.

CAUTION

ENGLISH

ASSEMBLING AND PREPARING

Installing the Monitor

Assembling the Stand

yApplying excessive force when tightening

screws may cause damage to the monitor.

Damage caused in this way will not be cov-

ered by the product warranty.

yIf you use the monitor panel without the

stand base, its joystick button may cause the

monitor to become unstable and fall, result-

ing in damage to the monitor or human injury.

In addition, this may cause the joystick button

to malfunction.

CAUTION

25UM65 25UM64

1 Place the screen face down.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

CAUTION

2 Check the direction of the stand body (front,

back) and then mount the stand body onto the

stand hinge.

Stand Hinge

Stand Body

3 Tighten two screws into the back of the stand

body and close the screw cover.

Screw Cover

ENGLISH

10 ASSEMBLING AND PREPARING

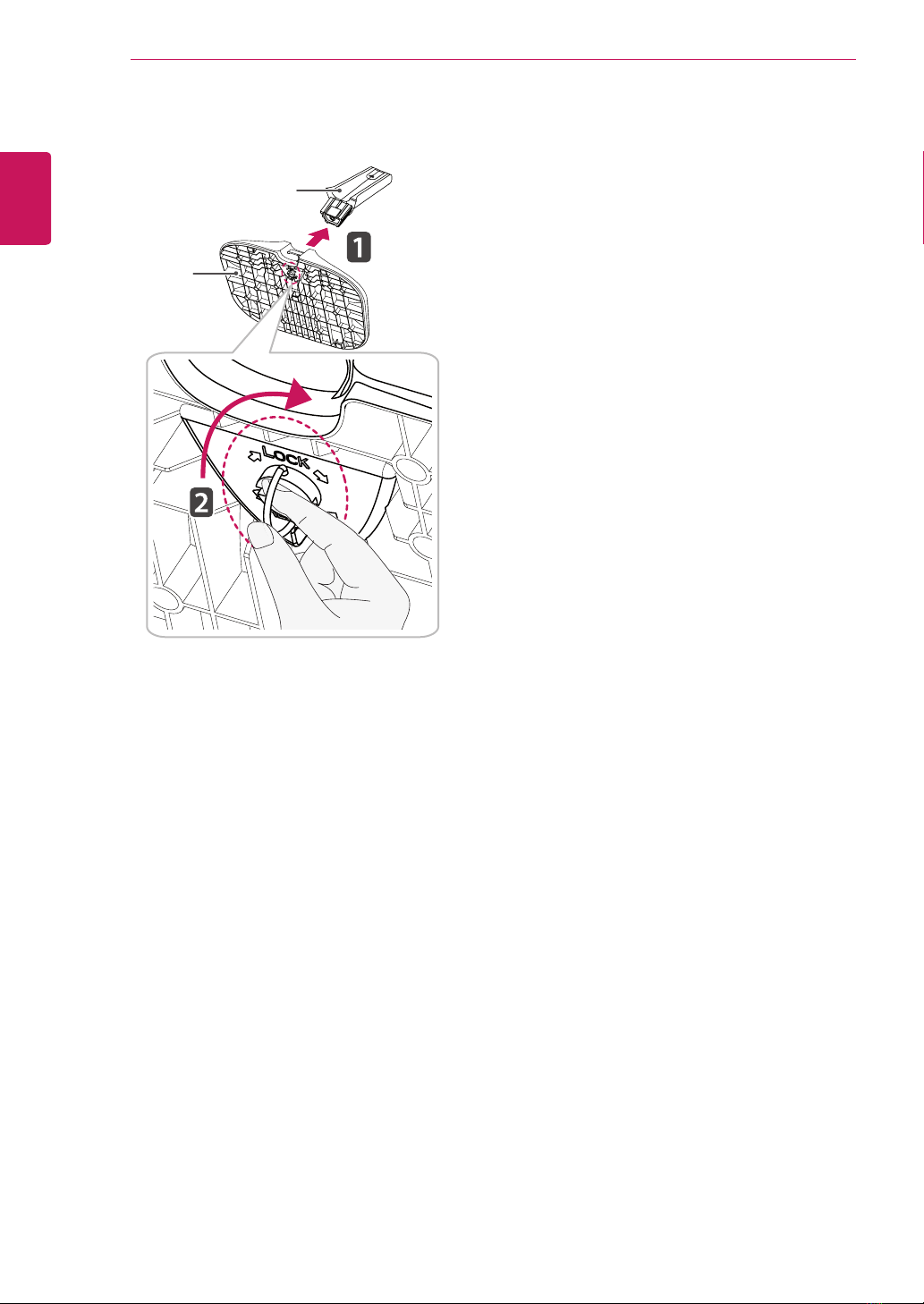

4 Fix the stand base to the stand body. Turn the

screws on the stand base to the right.

Stand Body

Stand Base
