LG 24MN33S Manual de usuario

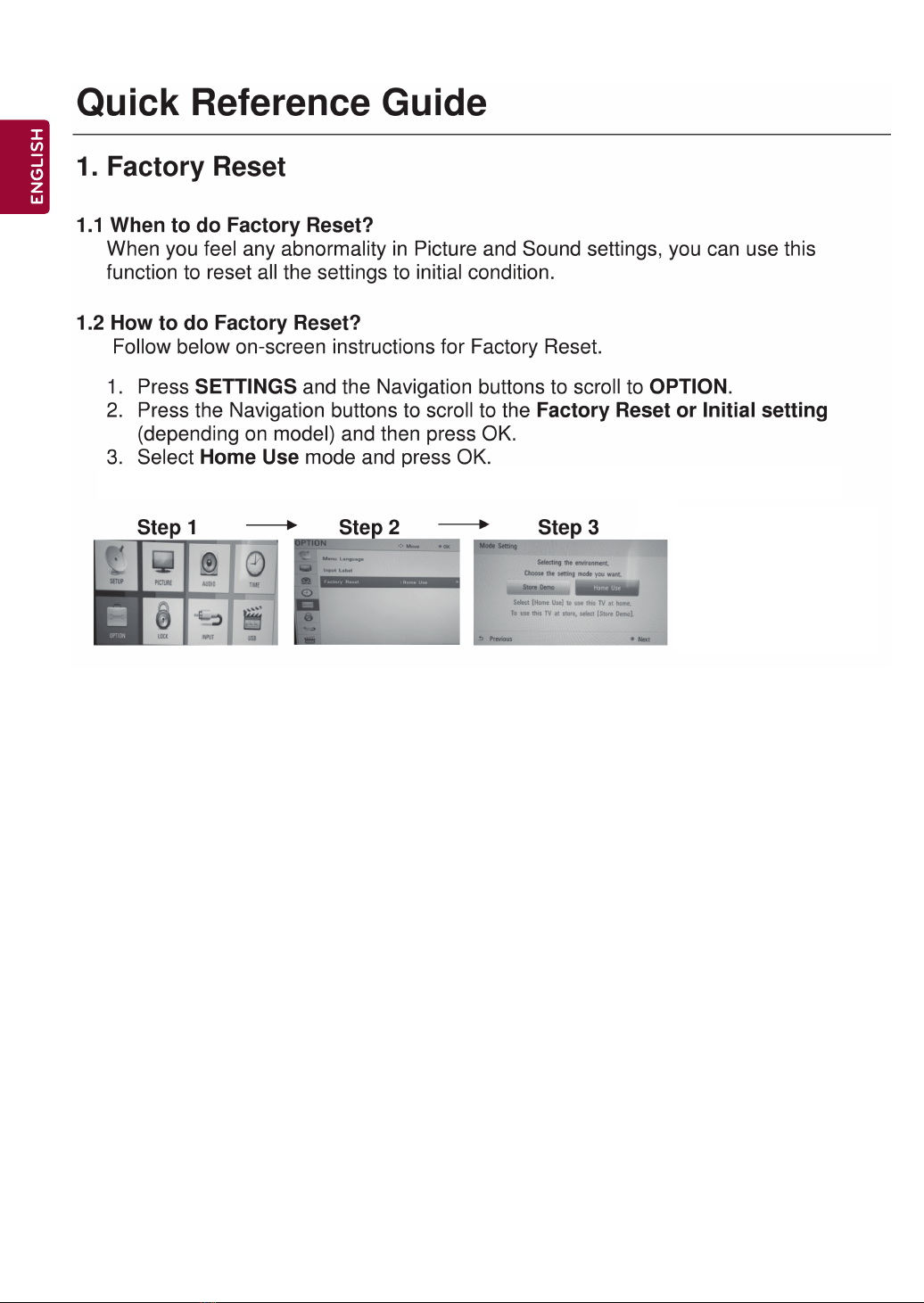

ENGLISH

24MN33S

www.lg.com

OWNER’S MANUAL

LED LCD Monitor

Please read this manual carefully before operating the your Monitor

and retain it for future reference.

ENGLISH

TABLE OF CONTENTS

3 LICENSES

4 INSTALLATION PROCEDURE

5 ASSEMBLING AND PREPARING

5 Unpacking

7 Parts and buttons

8 Lifting and moving the Monitor

9 Setting up the Monitor

9 - Attaching the Stand Base

9 - Detaching the Stand Base

11 - Mounting on a table

12 - Using the Kensington security system

12 - Tidying cables

12 - Mounting on a wall

14 MAKING CONNECTIONS

14 Connecting to a HD receiver, DVD, VCR

player or Gaming device

14 - HDMI connection

15 - Composite connection

16 Connecting to a USB

17 Connecting to a PC

17 - RGB connection

18 Audio System connection

18 - External Stereo Connection

19 REMOTE CONTROL

20 ENTERTAINMENT

20 Connecting USB storage devices

21 Browsing files

22 Viewing photos

23 Listening to music

24 Viewing movies

26 DivX® VOD Guide

27 CUSTOMIZING MONITOR SETTING

27 Accessing main menus

27 Customizing Settings

27 - PICTURE Settings

29 - AUDIO Settings

30 - TIME Settings

31 - OPTION Settings

31 - LOCK Settings

32 Using additional options

32 - Adjusting aspect ratio

33 - Using the input list

34 TELETEXT

34 Switch On/Off

34 Simple Text

34 - Page selection

34 - Programming a colour button in LIST

mode

34 Fastext

34 - Page selection

34 Special Teletext Function

35 MAINTENANCE

35 Cleaning Your Monitor

35 Screen and frame

35 Cabinet and stand

35 Power cord

36 TROUBLESHOOTING

36 General

37 SPECIFICATIONS

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo

are trademarks or registered trademarks of HDMI Licensing LLC in the United States

and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol

are trademarks of Dolby Laboratories.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX

video. Visit divx.com for more information and software tools to convert your files into

DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered

in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your

registration code, locate the DivX VOD section in your device setup menu. Go to vod.

divx.com for more information on how to complete your registration.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its

subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710;

7,519,274

ENGLISH

INSTALLATION PROCEDURE

1Open the package and make sure all the accessories are included.

2Attach the stand to the Monitor.

3Connect an external device to the Monitor.

yImage shown may differ from your Monitor.

yYour Monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.

yThe available menus and options may differ from the input source or product model that you are using.

yNew features may be added to this Monitor in the future.

NOTE

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you

purchased your product. The illustrations in this manual may differ from the actual product and accessories.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade of

product functions.

NOTE

yDo not use any pirated items to ensure the safety and product life span.

yAny damages or injuries by using pirated items are not covered by the warranty.

CAUTION

yThe items supplied with your product may vary depending on the model.

yProduct specifications or contents of this manual may be changed without prior notice due to upgrade of product

functions.

yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm

width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your

Monitor’s USB port.

NOTE

*A 10 mm

*B 18 mm

ENGLISH

ASSEMBLING AND PREPARING

Remote control /

Batteries (AAA)

CD (Owner's Manual) /

Cards

AC-DC Adapter

Cable Tie

Power Cord AC-DC Adapter

(Depending on the country) (Depending on the country)

Stand Base

(See p.19) (See p.9)

(See p.12)(See p.17)

(See p.11) (See p.11) (See p.11)

D-SUB Cable

ENGLISH

ASSEMBLING AND PREPARING

DC-IN

HDMI IN

RGB IN (PC)

USB IN

5 V 0.5 A

(19 V )

VIDEO AUDIO

L/MONO

AV IN

AUDIO OUT

INPUT

SETTINGS

Remote Control

Sensor

Connection panel (See p.14)

Touch button Description

Scrolls through menus or options.

Adjusts the volume level.

OK Selects the highlighted menu option or confirms an input.

SETTINGS Accesses the main menus, or saves your input and exits the menus.

INPUT Changes the input source.

/ I Turns the power on or off.

Touch Buttons

Standby Light

yLighting On: Turned off

yLighting Off: Turned on

Parts and buttons

All of the bottoms are touch sensitive and can be operated through simple touch with your finger.

NOTE

Speakers

ENGLISH

ASSEMBLING AND PREPARING

speaker, or speaker grill area.

yWhen holding the Monitor, the screen should

face away from you to prevent the screen from

scratches.

yWhen transporting the Monitor, do not expose the

Monitor to jolts or excessive vibration.

yWhen transporting the Monitor, keep the Monitor

upright, never turn the Monitor on its side, or tilt

towards the left or right.

Lifting and moving the Monitor

When moving or lifting the Monitor, read the following to

prevent the Monitor from being scratched or damaged

and for save transportation regardless of its type and

size.

Avoid touching the screen at all times, as this may

result in damage to the screen or some of the

pixels used to create images.

CAUTION

yIt is recommended to move the Monitor in the

box or packing material that the Monitor originally

came in.

yBefore moving or lifting the Monitor, disconnect

the power cord and all cables.

yHold the top and bottom of the Monitor frame

firmly. Make sure not to hold the transparent part,

ENGLISH

ASSEMBLING AND PREPARING

Setting up the Monitor

Image shown may differ from your Monitor.

Stand Base

Attaching the Stand Base Detaching the Stand Base

yWhen Detaching the stand from Monitor, Detach

the stand with lifting up the lever in the direction of

the arrow.

NOTE

Stand Base

CAUTION

yLay a foam mat or soft protective cloth on the

surface to protect the screen from damage.

yWhen attaching the stand to the Monitor set, place

the screen facing down on a cushioned table or

flat surface to protect the screen from scratches.

CAUTION

yLay a foam mat or soft protective cloth on the

surface to protect the screen from damage.

yWhen Detaching the stand to the Monitor set,

place the screen facing down on a cushioned

table or flat surface to protect the screen from

scratches.
