LG 24MK4 series Manual de usuario

www.lg.com

LED LCD MONITOR MODEL

Please read this manual carefully before operating your set and

retain it for future reference.

OWNER'S MANUAL

LED LCD Monitor

(LED Monitor*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

(20MK400H,20MK410H,20MK420H,20MK430H)

(22MK400H,22MK420H,22MK430H)

(24MK400H,24MK430H)

(27MK400H,27MK430H)

22MK4 series

20MK4 series

24MK4 series

27MK4 series

ENGLISH

CONTENTS

LICENSE ---------------------------- 3

ASSEMBLING AND PREPARING - 4

- Product Components -------------------------- 4

- Supported Drivers and Software -------------- 5

- Component and Button Description ---------- 6

How to Use the Joystick Button

Input Connector

- Moving and Lifting the Monitor --------------- 8

- Setting up the Monitor set ------------------- 9

Attaching the Stand Base

Mounting on a table

Mounting on a wall

USING THE MONITOR SET------ 14

- Connecting to a PC ---------------------------14

D-SUB connection

HDMI connection

- Connecting to AV Devices --------------------15

HDMI connection

- Connecting Peripherals -----------------------15

Connecting Headphones

CUSTOMIZING SETTINGS ------ 16

TROUBLESHOOTING ------------ 21

SPECIFICATIONS ---------------- 22

- Preset Modes (Resolution) -------------------27

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the

United States and other countries.

ENG

ENGLISH

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are missing

components, contact the retail store where you purchased the product. Note that the product and components may

look different from those shown here.

CD(Owner's Manual) /

Card

HDMI Cable D-SUB Cable

( Depending on the country )

( Depending on the country ) ( Depending on the country )

( Depending on the country )

AC-DC AdapterPower Cord

AC-DC Adapter

Stand Body

Stand Base

2 Screws

22MK4 series 24MK4 series

27MK4 series

20MK4 series

ENG

ENGLISH

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve the

performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store

where you purchased the product.

CAUTION

NOTE

Supported Drivers and Software

Check the drivers and software supported by your product and refer to the manuals on the CD enclosed in the product

package.

yRequired and Recommended: You can download and install the latest version from the enclosed CD or from the

LGE website (www.lg.com).

yOptional: You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority

20MK4 series

22MK4 series

24MK4 series

27MK4 series

Monitor Driver Recommended O

OnScreen Control Recommended O

ENG

ENGLISH

Component and Button Description

Joystick Button

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your

finger.

Basic Functions

Power on Press the joystick button once with your finger to turn on the

monitor.

Power off Press and hold the joystick button once with your finger to turn off the

monitor.

◄/►Volume

Control

You can control the volume by moving the joystick button left/right.

(for HDMI only)

yThe joystick button is located at the bottom of the monitor.

NOTE

ENG

ENGLISH

Connection panel (See p.14~15)

Input Connector

ENG

ENGLISH

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these in-

structions to prevent the monitor from being scratched

or damaged and to ensure safe transportation regard-

less of its shape or size.

yAs far as possible, avoid touching the monitor screen.

This may result in damage to the screen or some of

the pixels used to create images.

yIt is advisable to place the monitor in the original box

or packing material before attempting to move it.

yBefore moving or lifting the monitor, disconnect the

power cord and all cables.

yHold the top and bottom of the monitor frame firmly.

Do not hold the panel itself.

yWhen holding the monitor, the screen should face

away from you to prevent it being scratched.

yWhen moving the monitor, avoid any strong shock or

vibrations to the product.

yWhen moving the monitor, keep it upright, never turn

the monitor on its side or tilt it sideways.

CAUTION

yIf you use the monitor panel without the stand

base, its joystick button may cause the monitor to

become unstable and fall, resulting in damage to

the monitor or human injury. In addition, this may

cause the joystick button to malfunction.

ENG

ENGLISH

Setting up the Monitor set

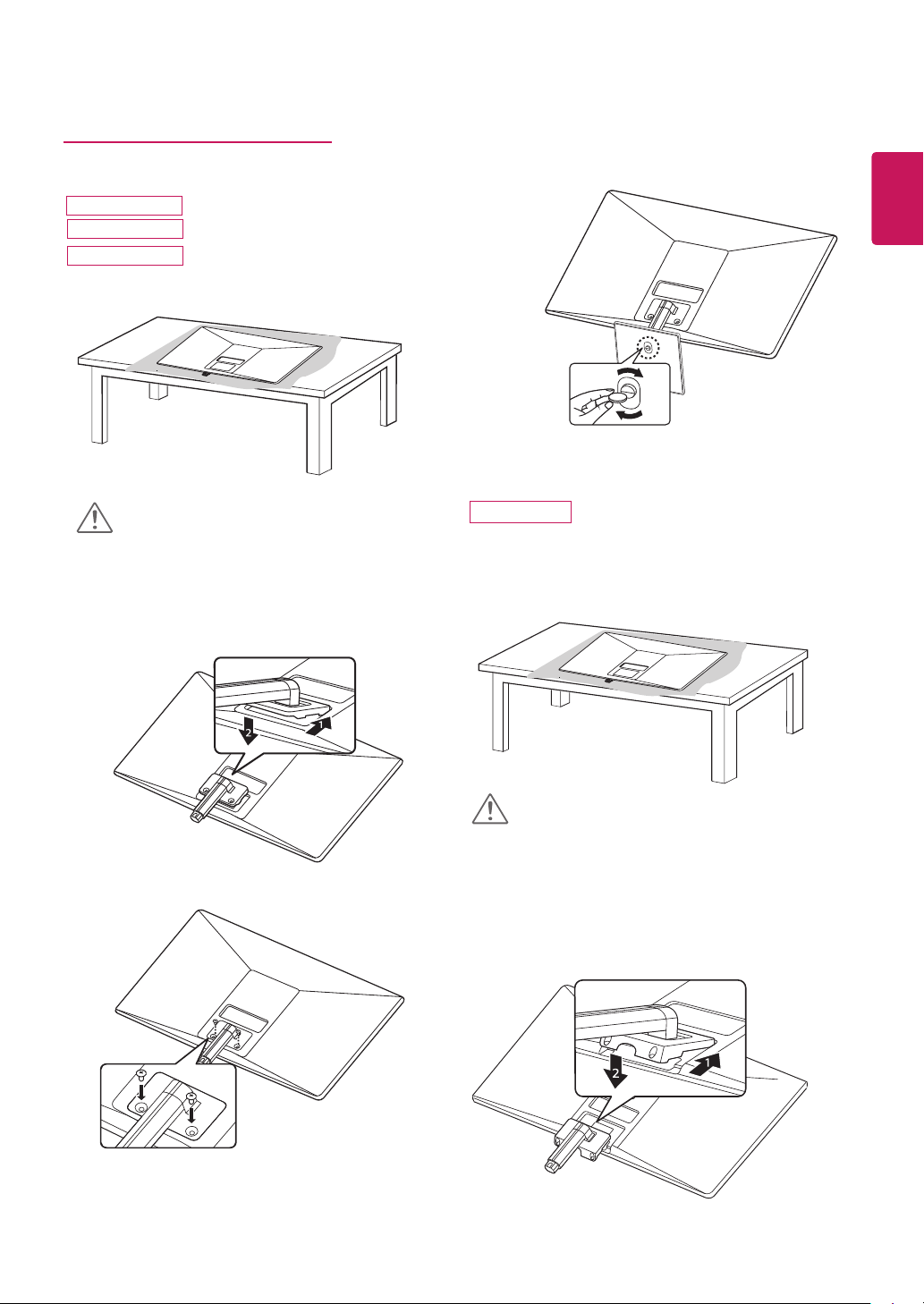

Attaching the Stand Base

yTo protect the screen from scratches, cover the

surface with a soft cloth.

yTo protect the screen from scratches, cover the

surface with a soft cloth.

CAUTION

22MK4 series

20MK4 series

24MK4 series

27MK4 series

screw torque :10~12kgf

ENG

ENGLISH

yTo avoid injury to the fingers and foot when

Assembly Stand Body and Base, should hold Base

when assembly stand body and base.

yIllustrations in this document represent typical

procedures, so they may look different from the

actual product.

yDo not carry the monitor upside down by just

holding the stand base. This may cause the

monitor to fall off the stand and could result in

personal injury.

yWhen lifting or moving the monitor, do not touch

the monitor screen. The force applied to the

monitor screen may cause damage to it.

yDo not apply foreign substances (oils, lubricants,

etc.) to the screw parts when assembling the

product. (Doing so may damage the product.)

yApplying excessive force when tightening screws

may cause damage to the monitor. Damage caused

in this way will not be covered by the product

warranty.

CAUTION

yYou can disassemble the stand in the reverse

order of the assembly.

NOTE

WARNING

screw torque :10~12kgf
