ASSEMBLING AND PREPARING

Unpacking

Please check whether all the components are included in the box before using the product. If there are

missing components, contact the retail store where you purchased the product. Note that the product and

components may look different from those shown here.

yOnly use an approved LG power adapter.

yDamage caused by other power adapters is not covered by warranty.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve

the performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail

store where you purchased the product.

Power Cord

User Manual/Card

CAUTION

NOTE

D-SUB Cable

(This cable is not included in all

countries.)

Stand Base One Screw Cable Holder

AC-DC Adapter

ENG

English

ASSEMBLING AND PREPARING

Parts and buttons

Power Indicator

yLED On : Power is on

yLED Off: Power is off

Front Side Buttons

Input Connectors (See p.12 to 15)

(Power Button)

Input Connectors

(See p.15 )

ENG

English

ASSEMBLING AND PREPARING

Setting Up the Monitor set

Attaching the Stand Base

1Place the monitor's screen face down.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

3Using a coin, turn the screw clockwise to se-

cure the stand base.

2Check the position (at the front and rear) of

the stand body, then mount the stand base on

the stand body as shown in the figure.

CAUTION

Stand Body

Stand Base

Lifting and moving the

Monitor

Please heed the following information when

moving the monitor.

yAvoid touching the screen at all times, as this

may result in damage to the screen or pixels .

CAUTION

yIt is recommended to move the Monitor in

the box or packing material that the Monitor

originally came in.

yBefore moving or lifting the Monitor,

disconnect the power cord and all cables.

yHold the top and bottom of the Monitor frame

firmly. Make sure not to hold the transparent

part area.

yWhen holding the Monitor, the screen should

face away from you to prevent the screen

from scratches.

yWhen transporting the Monitor, do not

expose the Monitor to jolts or excessive

vibration.

yWhen transporting the Monitor, keep the

Monitor upright, never turn the Monitor on its

side, or tilt towards the left or right.

ENG

English

ASSEMBLING AND PREPARING

Adjusting the angle

1Place the monitor mounted on the stand base

in an upright position.

2Adjust the angle of the screen. The angle of

the screen can be adjusted up to 5° forwards

and 35° backwards for a comfortable viewing

experience.

yTo avoid injury to the fingers when adjusting

the screen, do not hold the lower part of the

monitor's frame as illustrated below.

yBe careful not to touch or press the screen

area when adjusting the angle of the monitor.

WARNING

Mounting on a table

1Lift the monitor and place it on the table in an

upright position.

Install at least 10 cm away from the wall to

ensure sufficient ventilation.

2Connect the adaptor to the monitor, then plug

the power cord into the wall outlet.

3Press the (Power) button on the front of the

monitor to turn on the monitor.

10 cm

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

CAUTION

Front SideRear Side

ENG

English

ASSEMBLING AND PREPARING

Using the Kensington locking

device

The connector for the Kensington lock is located

on the rear of the monitor.

For more information on installation and usage,

refer to the Kensington lock user manual or visit

the website at http://www.kensington.com.

Connect the monitor to the table with the Kensing-

ton lock cable.

yUsing the Kensington lock is optional. The

accessories can be purchased at your local

electronics store.

NOTE

yOnce the pin is removed, it is not necessary

to re-insert it to adjust the height.

Adjusting the stand height

1Place the monitor mounted on the stand base

in an upright position.

2Remove the tape attached at the bottom rear

of the stand body, then pull out the locking

pin.

3The height can be adjusted up to 130 mm.

yDo not put your finger be-

tween the screen and the

base (chassis) when adjust-

ing the screen's height.

CAUTION

WARNING

130.0mm

Tape

Locking Pin

Stand Body

ENG

English

ASSEMBLING AND PREPARING

Detaching the stand body

1Place the monitor's screen face down. To

protect the screen from scratches, cover the

surface with a soft cloth.

2Using a screwdriver, remove the four screws

and detach the stand from the monitor.

yThe components appearing in the illustra-

tions may look different from the actual prod-

uct.

yDo not carry the monitor upside-down as this

may cause it to fall off its stand, resulting in

damage or injury.

yTo avoid damaging the screen when lifting

or moving the monitor, only hold the stand or

the plastic cover. This avoids putting unnec-

essary pressure on the screen.

yOnly remove the tape and the locking pin

when the monitor is mounted on the stand

base and is in an upright position. Otherwise,

the stand body may protrude, which may

lead to injury.

Detaching the stand base

1Place the monitor's screen face down.

To protect the screen from scratches, cover the

surface with a soft cloth.

2Using a coin, turn the screw in the stand base

counterclockwise. Detach the stand base from

the stand body.

CAUTION

Stand Body

Stand Base

Using the cable holder

NOTE

The holes are used for wall mount bracket.

Varies depending upon your country or

model.

yThe holes are used for wall mount bracket.

yVaries depending upon your country or

model.

NOTE

The holes are used for wall mount bracket.

Varies depending upon your country or

model.

Fix the Knob (Cable holder) to the

Hole(Hingebody).

Use one screw to fix the Cable Holder and

monitor set.

Close the Cable holder.

ENG

English

ASSEMBLING AND PREPARING

Swivel stand

yImage shown may differ from your Monitor

set.

1Swivel 355 degrees and adjust the angle of the

Monitor set to suit your view.

1Lift the monitor to its highest height to utilize

the Pivot function.

Using the Pivot function

The pivot function allows you to rotate the screen

90 degrees clockwise.

2Landscape & Portrait : You can rotate the panel

90° clockwise. Please be cautious and avoid

contact between the monitor head and the

Stand Base when rotating the screen to access

the Pivot function. If the monitor head touches

the Stand Base, then the Stand Base could

crack.

Head

section

Stand

section

3Be careful with the cables when rotating the

screen.

ENG

English

ASSEMBLING AND PREPARING

10 cm

10 cm 10 cm

If you intend to mount the Monitor set to a wall,

attach Wall mounting interface (optional parts) to

the back of the set.

When you install the Monitor set using a wall

mounting interface (optional parts), attach it

carefully so it will not drop.

1If you use screw longer than standard, the moni-

tor might be damaged internally.

2If you use improper screw, the product might be

damaged and drop from mounted position.

In this case, LG Electronics is not responsible

for it.

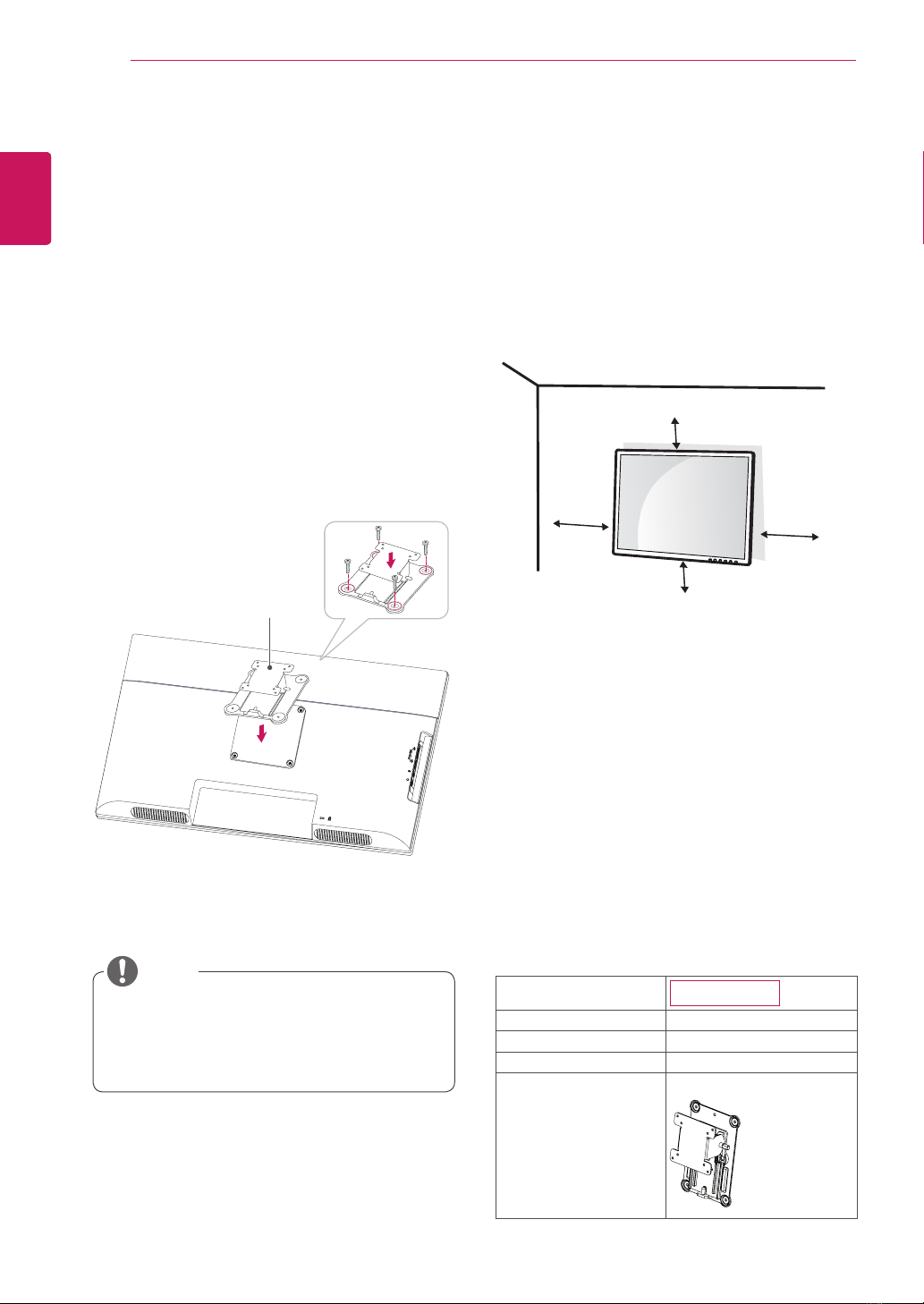

Mounting on a wall

Install the monitor at least 10 cm away from the

wall and leave about 10 cm of space at each side

of the monitor to ensure sufficient ventilation. De-

tailed installation instructions can be obtained from

your local retail store. Please refer to the manual

to install and set up a tilting wall mounting bracket.

Installing the wall mount plate

This monitor has a VESA compatible mount on the

back. Most mounts will require an LG mounting

plate.

1Place the monitor's screen face down. To

protect the screen from scratches, cover the

surface with a soft cloth.

2Place the wall mount plate on the monitor and

align it with the screw holes on the monitor.

3Using a screwdriver, tighten the four screws to

fix the plate onto the monitor.

yThe wall mount plate is sold separately.

yFor more information on the installation, refer

to the wall mount plate's installation guide.

NOTE

Wall Mount Plate

Model 24CAV37K

Wall Mount (A x B) 100 x 100

Stand Screw M4

Number of screws 4

Wall Mount Plate

(Optional)

RW120
