LG 24BK550Y-W Manual de usuario

www.lg.com

IPS LED MONITOR MODEL

Please read this manual carefully before operating your set and

retain it for future reference.

OWNER'S MANUAL

IPS LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

24BK550Y

27BK550Y

ENGLISH

CONTENTS

LICENSE ---------------------------- 3

ASSEMBLING AND PREPARING - 4

- Product Components -------------------------- 4

- Supported Drivers and Software -------------- 5

- Component and Button Description ---------- 6

- Moving and Lifting the Monitor --------------- 7

- Setting up the Monitor set ------------------- 8

Attaching the Stand Base

Mounting on a table

Using the cable holder

Adjusting the Stand Height

Adjusting the angle

Swivel stand

Pivot Feature

Detaching the Stand Body

Installing the wall mount plate

Installing to a wall

USING THE MONITOR SET------ 16

- Connecting to a PC ---------------------------16

- Connecting to AV Devices --------------------18

- Connecting Peripherals -----------------------18

CUSTOMIZING SETTINGS ------ 20

TROUBLESHOOTING ------------ 24

SPECIFICATIONS ---------------- 25

- Preset Modes (Resolution) -------------------27

- Indicator---------------------------------------27

ENG

ENGLISH

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.

* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the

United States and other countries.

ENG

ENGLISH

( This cable is not included in

all countries. )

USB Cable

ASSEMBLING AND PREPARING

Product Components

Please check whether all the components are included in the box before using the product. If there are missing

components, contact the retail store where you purchased the product. Note that the product and components may

look different from those shown here.

yAlways use genuine components to ensure safety and product performance.

yThe product warranty will not cover damage or injury caused by the use of counterfeit components.

yIt is recommend that use the supplied components.

yIf you use generic cables not certified by LG, the screen may not display or there may be image noises.

yNote that the components may look different from those shown here.

yWithout prior notice, all information and specifications in this manual are subject to change to improve the

performance of the product.

yTo purchase optional accessories, visit an electronics store or online shopping site or contact the retail store

where you purchased the product.

CAUTION

NOTE

CD / Card

( Depending on the country )

( This cable is not included in all

countries. )

( This cable is not included in all

countries. )

Power Cord

Audio Cable DisplayPort Cable

DVI-D Cable

( This cable is not included

in all countries. )

D-SUB Cable HDMI Cable

( This cable is not included

in all countries. )

( This cable is not included

in all countries. )

Stand Body Cable Holder

Stand Base

ENG

ENGLISH

Supported Drivers and Software

You can download and install the latest version from the LGE website (www.lg.com).

Drivers and Software Installation Priority 24BK550Y

27BK550Y

Monitor Driver Recommended O

OnScreen Control Recommended O

Dual Controller Optional O

ENG

ENGLISH

H/P USB IN 1 USB IN 2

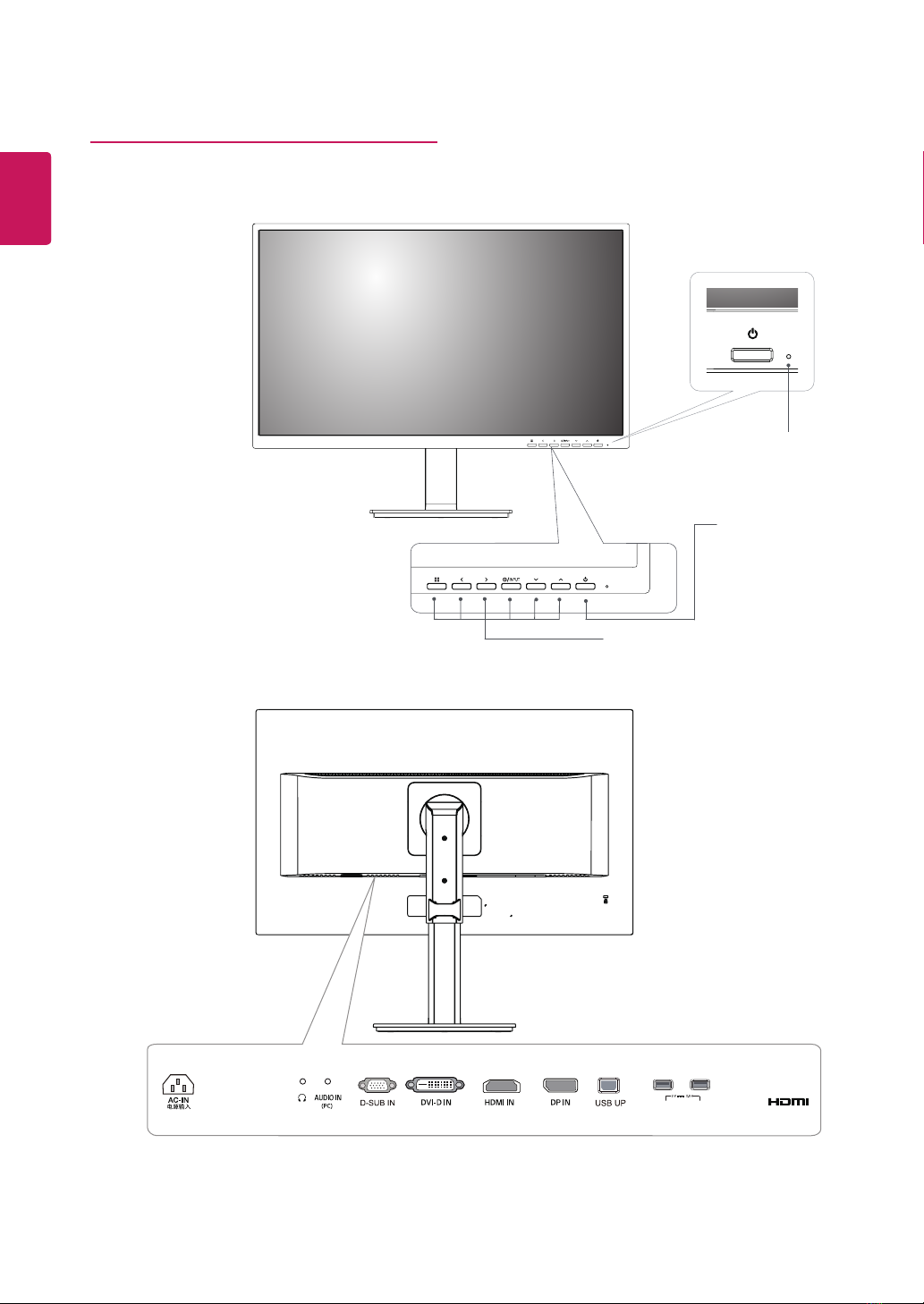

Component and Button Description

Power Indicator

yLighting On : Turned on

yLighting Off : Turned off

Input Connector

(Power Button)

Button

ENG

ENGLISH

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these in-

structions to prevent the monitor from being scratched

or damaged and to ensure safe transportation regard-

less of its shape or size.

yAs far as possible, avoid touching the monitor screen.

This may result in damage to the screen or some of

the pixels used to create images.

yIt is advisable to place the monitor in the original box

or packing material before attempting to move it.

yBefore moving or lifting the monitor, disconnect the

power cord and all cables.

yHold the top and bottom of the monitor frame firmly.

Do not hold the panel itself.

yWhen holding the monitor, the screen should face

away from you to prevent it being scratched.

yWhen moving the monitor, avoid any strong shock or

vibrations to the product.

yWhen moving the monitor, keep it upright, never turn

the monitor on its side or tilt it sideways.

CAUTION

ENG

ENGLISH

Setting up the Monitor set

Attaching the Stand Base

yTo protect the screen from scratches, cover the

surface with a soft cloth.

yTo avoid injuring the fingers and foot, when

assembling the Stand Body and Base, you should

hold the Stand Base.

yTo avoid injury to the fingers and foot when

Assembly Stand Body and Base, should hold Base

when assembly stand body and base.

CAUTION

yPress the stand until the button reaches the top.

NOTE

WARNING

ENG

ENGLISH

yIllustrations in this document represent typical

procedures, so they may look different from the actual

product.

yDo not carry the monitor upside down by just holding

the stand base. This may cause the monitor to fall off

the stand and could result in personal injury.

yWhen lifting or moving the monitor, do not touch the

monitor screen.The force applied to the monitor screen

may cause damage to it.

yDo not apply foreign substances (oils, lubricants,

etc.) to the screw parts when assembling the

product. (Doing so may damage the product.)

yApplying excessive force when tightening screws

may cause damage to the monitor. Damage caused

in this way will not be covered by the product

warranty.

Mounting on a table

1Lift and tilt the Monitor set into its upright position

on a table.

Leave a 100 mm (minimum) space from the wall for

proper ventilation.

2Connect the Power cord to the monitor, then plug

the power cord into the wall outlet.

3Press the Power button on the front of the monitor

to turn on the monitor.

100 mm

CAUTION

yYou can disassemble the stand in the reverse

order of the assembly.

yUnplug the power cord prior to moving or

installing the monitor. There is risk of electric

shock.

NOTE

ENG

ENGLISH

Using the cable holder Adjusting the Stand Height

Arrange the cables using the cable holder as shown

in the illustration.

Rotate Set(Pivot) and put connectors. It is easy to

put connectors and manage cables using cable holder.

100-240 V ~

Cautions When Connecting Power Cord

yMake sure to use the power cord that is provided

in the product package and connect it to a

grounded power outlet.

yIf you need another power cord, please contact

your local dealer or the nearest retail store.

yDo not put your fingers or

hand between the screen

and the base (chassis)

when adjusting the screen's

height.

1Handle the monitor with both hands for safety.

2The height can be adjusted up to 130.0 mm.

WARNING

130.0 mm
