LG 17MB15P Manual de usuario

www.lg.com

17MB15P

LED MONITOR MODEL

Please read this manual carefully before operating your set

and retain it for future reference.

Owner's Manual

LED MONITOR

(LED MONITOR*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

Accessories

!!! Thank for selecting LGE products !!!

Please make sure the following items are included with your

monitor. If any items are missing, contact your dealer.

User's Guide/Cards Power Cord

15-pin D-Sub Signal Cable

(To set it up, this signal cable may be

attached to this product before

shipping out.)

DVI-D Signal Cable

(This feature is not available in all

countries.)

NOTE

This accessories may look different from those shown here.

User must use shielded signal interface cables (D-sub 15 pin cable, DVI-D cable) with ferrite

cores to maintain standard compliance for the product.

Cable Holder Stand Base

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor, the

computer system, and other attached devices is turned off.

Connecting the stand

1. Place the monitor with its front facing downward on a cushion or soft cloth.

2.Assemble the Stand Base into the Stand Body.

Be sure don't pull out the Stop Pin and make the Stand Base direction as shown.

Stand Base

Stand Body

Stop Pin

Important

This illustration depicts the general model of connection. Your monitor may differ from the items

shown in the picture.

Do not carry the product upside down holding only the stand base. The product may fall and get

damaged or injure your foot.

3.Make the monitor stand,then pull out the Stop Pin.

WARNING :

The tape and locking pin may only be removed from those monitors

equipped with a standing base when the base is pulled up. Otherwise, you

may be injured by the protruding sections of the stand.

FRONT

Side

Stop Pin

pull out the stop pin

Connecting the Display

Before setting up the monitor, ensure that the power to the monitor, the

computer system, and other attached devices is turned off.

Positioning your display

1. Adjust the position of the panel in various ways for maximum comfort.

Tilt Range : -5˚ to 25˚

Height Range : maximum 4.33 inches (110.0 mm)

First ,remove the

locking pin.

110.0 mm

rgonomic

t is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle

of the monitor should not exceed 5 degrees.

Connecting the Display

ERGONOMIC

t is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt

angle of the monitor should not exceed 5 degrees.

WARNING

You do not need to replace the Locking pin after it is removed, to adjust its height.

When adjusting the angle of the screen, do not put your finger(s) in

between the head of the monitor and the stand body. You can hurt your

finger(s).

When adjusting the height of the screen, do not put your finger(s) in

between the head of the monitor and the stand base. You can hurt your

finger(s).

Connecting the Display

-The pivot function allows you to rotate the screen 90 degrees clockwise.

Lift the monitor to its highest height to utilize the Pivot function.

2.Landscape & Portrait : You can rotate the panel 90o clockwise.

Please be cautious and avoid contact between the monitor head and the

Stand Base when rotating the screen to access the Pivot function. If the

monitor head touches the Stand Base, then the Stand Base could crack.

Be careful with the cables when rotating the screen.

Using the Pivot function

Stand section

Head section

Connecting the Display

NOTE

‘ Self Image Setting Function’? This function provides the user with optimal display

settings.When the user connects the monitor for the first time, this function automatically adjusts

the display to optimal settings for individual input signals.

‘AUTO’ Function? When you encounter problems such as blurry screen, blurred letters, screen

flicker or tilted screen while using the device or after changing screen resolution, press the

AUTO function button to improve resolution.

Connect DVI-D(Digital signal) Cable

Connect D-sub(Analog signal) Cable

1. Before setting up the monitor, ensure that the power to the monitor, the computer

system, and other attached devices is turned off.

Connect signal input cable and power cord in order, then tighten the screw

of the signal cable.

Connecting with the PC

Wall-outlet type

Mac adapter : For Apple Macintosh use, a

separate plug adapter is needed to change the

15 pin high density (3 row) D-sub VGA

connector on the supplied cable to a 15 pin 2

row connector.

When using a D-Sub signal input cable connector

for Macintosh

Varies according to model.

DVI-D (This feature is not available in all countries.)

NOTE

This is a simplified representation of the rear view.

This rear view represents a general model; your display may differ from the view as shown.

3. Press the power button on the front panel to turn the power on. When monitor power is

turned on, the 'Self Image Setting Function' is executed automatically.

(Only Analog Mode)

Connect the signal

input cable and tighten

it up by turning in the

direction of the arrow

as shown in the figure.

Control Panel Functions

Front Panel Controls

MENU Button

OSD LOCKED/UNLOCKED

This function allows you to lock the current control

settings, so that they cannot be inadvertently changed.

Press and hold the MENU button for several seconds.

The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing

the MENU button for several seconds. The message

"OSD UNLOCKED" should appear.

Control Panel Functions

AUTO/SET Button

AUTO IMAGE ADJUSTMENT

When adjusting your display settings, always press

the AUTO/SET button prior to entering the On Screen

Display(OSD). This will automatically adjust your

display image to the ideal settings for the current

screen resolution size (display mode).

The best display mode is

17 inch:1280 x 1024

Power Button

Use this button to turn the display on or off.

The indicator lights up as blue when the display is

operating normally (On Mode). If the display is in Sleep

Mode (Energy Saving), this indicator changes to flicker.

Power Indicator

Buttons

Use this button to select or adjust functions in the On

Screen Display.

SOURCE

Use this button to make D-Sub or DVI connector

active.This feature is used when two computers are

connected to the display.The default setting is D-

Sub.

Use this button to select an icon in the On Screen

Display.

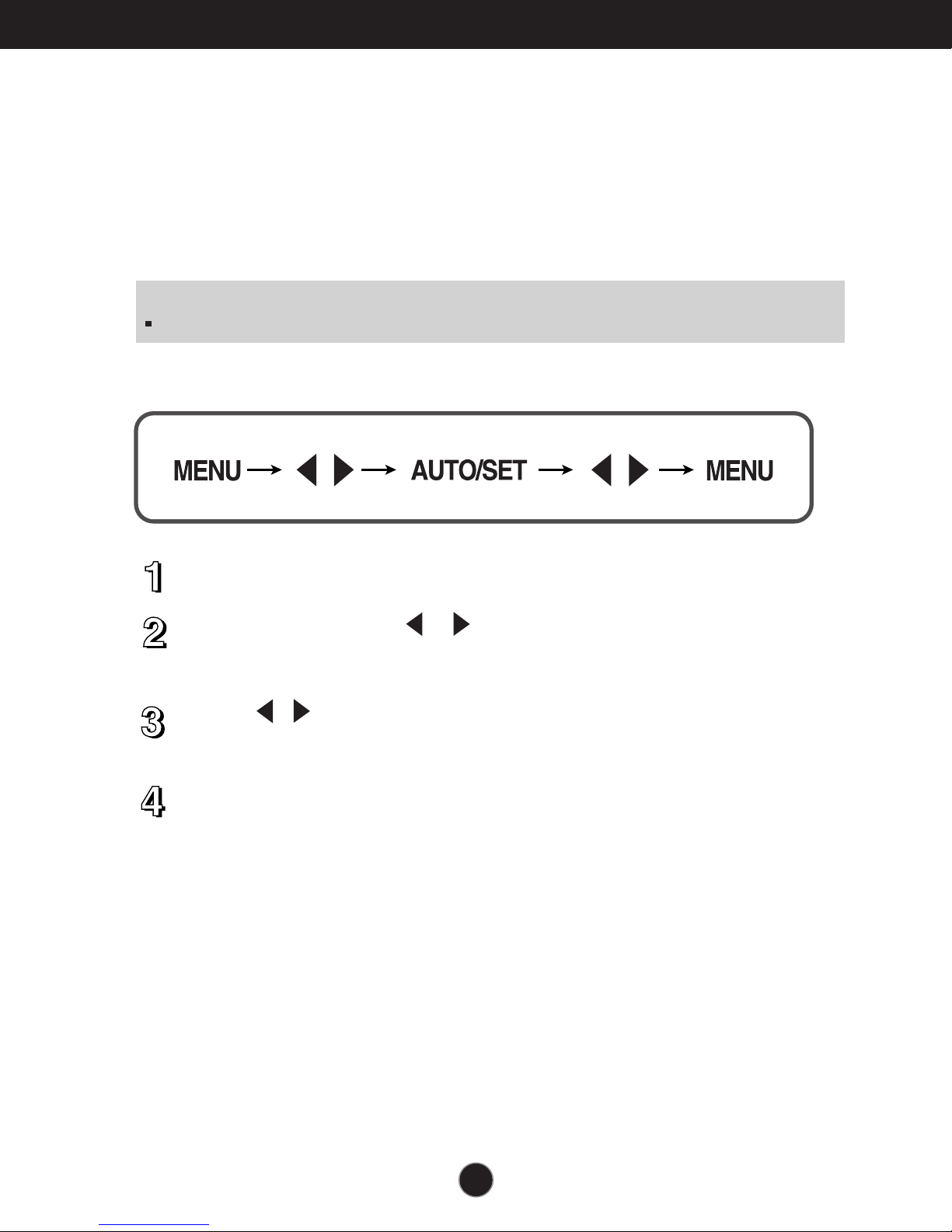

On Screen Display (OSD) Control Adjustment

Screen Adjustment

Making adjustments to the image size, position and operating parameters of the

display is quick and easy with the On Screen Display Control system.

A short example is given below to familiarize you with the use of the controls. The

following section is an outline of the available adjustments and selections you can

make using the OSD.

To make adjustments in the On Screen Display, follow these steps:

Press the MENU Button, then the main menu of the OSD appears.

To access a control, use the or Buttons.When the icon you want

becomes highlighted,press the AUTO/SET Button.

Use the / Buttons to adjust the image to the desired level.

Use the AUTO/SET Button to select other sub-menu items.

Push the MENU Button once to return to the main menu to select another

function .Push the MENU Button twice to exit from the OSD.

NOTE

Allow the display to stabillize for at least 30 minutes before making image adjustments.
