LG UW34 Series Manual de usuario

INSTALLATION MANUAL

LED TV*

Please read this manual carefully before operating your

set and retain it for future reference.

www.lg.com

UW76**

UW34**

2TABLE OF CONTENTS

ENGLISH

TABLE OF CONTENTS

3 LOCATION AND FUNCTION OF

CONTROLS

3 Parts and Button

4 LED Clock Connection

5 EZMANAGER

5 INTRODUCTION

5 EZ-MANAGER WIZARD

6 LANGUAGE & COUNTRY SELECTION

7 - Automatically for Setup

10 - Manually for Setup

13 - USB LG Smart Install Utility

16 INSTALLATION MENU

16 INTRODUCTION

17 LG HOTEL MODE

17 - Hotel Mode Operation

17 - Power On Status

17 - Volume

18 - Key Management

18 - Limited Mode

19 - DTV Programme Update

19 - Power On Default

20 - Aux Source Setting

20 - Power Management

20 - Radio Video Blank

20 - Factory Reset

21 NETWORK

21 - MAC Address

21 - Network Setting

22 - IP Stream Control

22 - Wake On LAN

22 PRO:CENTRIC

22 - Mode

23 - WORF

23 - Room Number Setting

23 - Media Type

23 - Receive Data

23 - Native EPG

24 - Room Number Setting

24 GENERAL

24 - Configuration Setup

27 - External Speaker

27 - Set ID Setup

27 - Power Saving

28 - HCEC Setup

29 - Clock Setup

29 - Password Change

30 - PreLoaded App

30 - Lock Mode

30 MEDIA SHARE

30 - SmartShare

30 - Screen Share

31 - DMR

31 - Bluetooth Sound Sync

31 - DIAL

31 - TV Name

31 - SoftAP

32 TV MANAGER

32 - USB Download Menu

LOCATION AND FUNCTION OF CONTROLS

ENGLISH

LOCATION AND FUNCTION OF CONTROLS

Parts and Button

Screen

Remote control and

Intelligent1sensors

Power Indicator

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

2 Joystick Button -This button is located below the TV screen.

NOTE

yYou can set the power indicator light to on or off by selecting General in the main menus.

4LOCATION AND FUNCTION OF CONTROLS

ENGLISH

LED Clock Connection

(Depending on model)

ThisTV can be connected to a LED Clock via the CLOCK port.

CLOCK

LED Clock

(*Not Provided)

EZMANAGER

ENGLISH

EZMANAGER

•Image shown may differ from yourTV.

INTRODUCTION

The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions.The default Domain“procentric.local”and IP Server Address

are needed to be registered in DNSTV will contact the IP Server using the default Domain“procentric.local”via IP on server search page. If TV doesn’t

contact the Server, TV will search the pre-defined channel earlier than all channels. (Only DVB-C)

The frequencies of pre-defined channels are below.

Germany:‘51000, 858000, 778000, 698000, 618000, 538000, 458000, 378000, 298000, 218000, 138000 khz’. Philippines 6Mhz:‘57000, 651000, 591000,

531000, 471000, 411000, 351000, 291000, 231000, 171000, 111000 khz’. Other Country:‘50000, 842000, 762000, 682000, 602000, 522000, 442000,

362000, 282000, 202000, 122000 khz’.

EZ-MANAGER WIZARD

-If you are using Pro:Centric, this setup wizard till help you easily set up theTV. Select ‘NEXT’to continue.

-Otherwise, if you will not be installing a Pro:Centric Server, select‘ ’to quit.

6EZMANAGER

ENGLISH

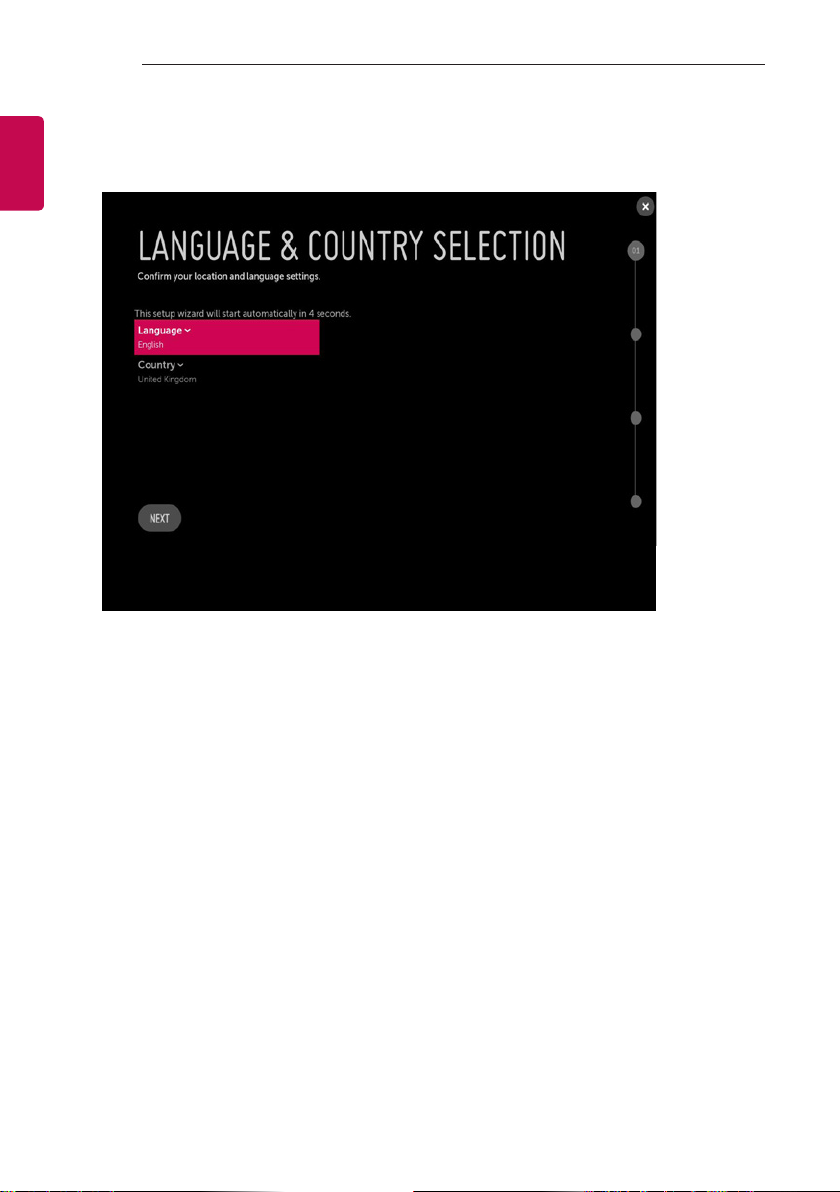

LANGUAGE & COUNTRY SELECTION

-Please select the Language and Country. Some countries need to select the Time Zone.

EZMANAGER

ENGLISH

Automatically for Setup

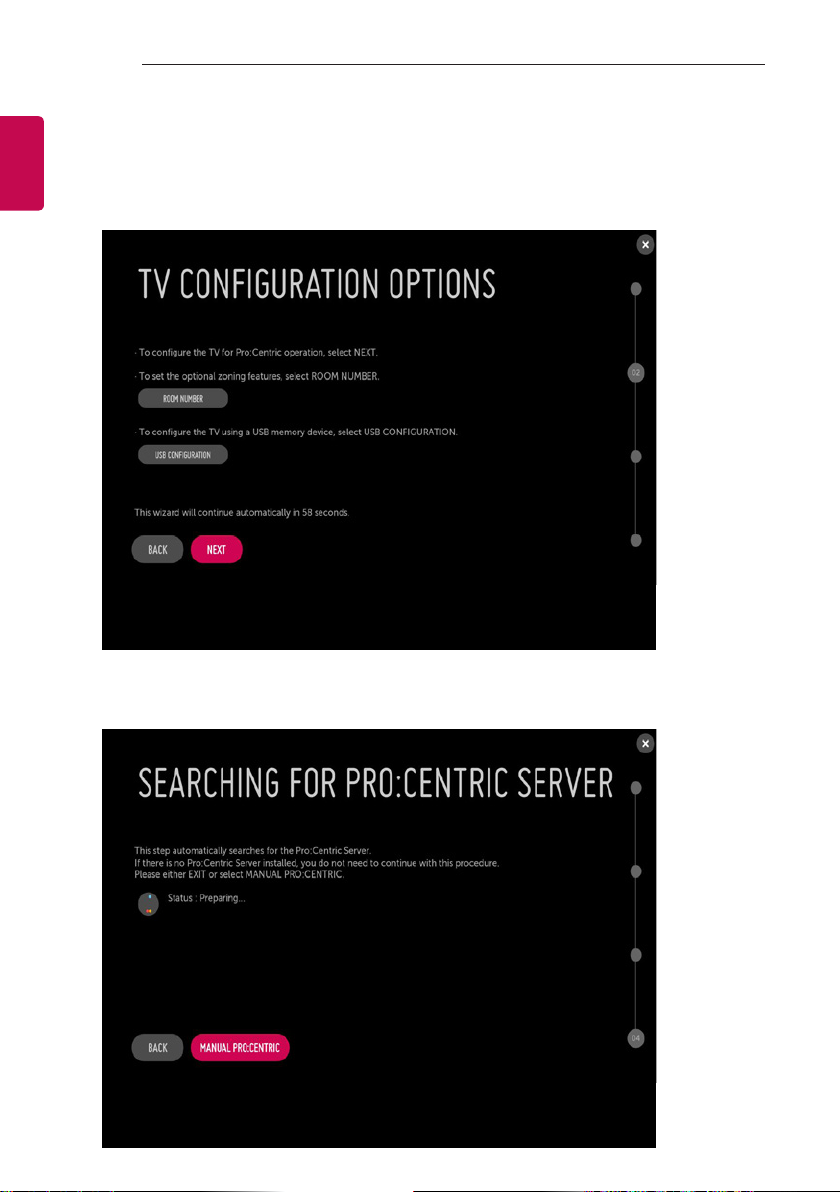

1 From theTV Conguration Options screen, you can choose how to proceed with the conguration of thisTV. Whether you will congure theTV for

Pro:Centric operation via the wizard or use a USB memory device to congure theTV, you may rst wish to set the Room Number on theTV.

-If you intend to set Room Number as part of theTV configuration, use the Room Number option to assign the Room # for thisTV before you

continue with additional configuration.

-In the Label field, use the Left/Right arrow keys to specify a North, South, East, orWest designation for this TV.

-In the Room Number field, you can use the number keys on the Installer Remote to direct enter a room number or use the virtual keyboard

on the TV screen.

-To continue, move and select‘NEXT’.

8EZMANAGER

ENGLISH

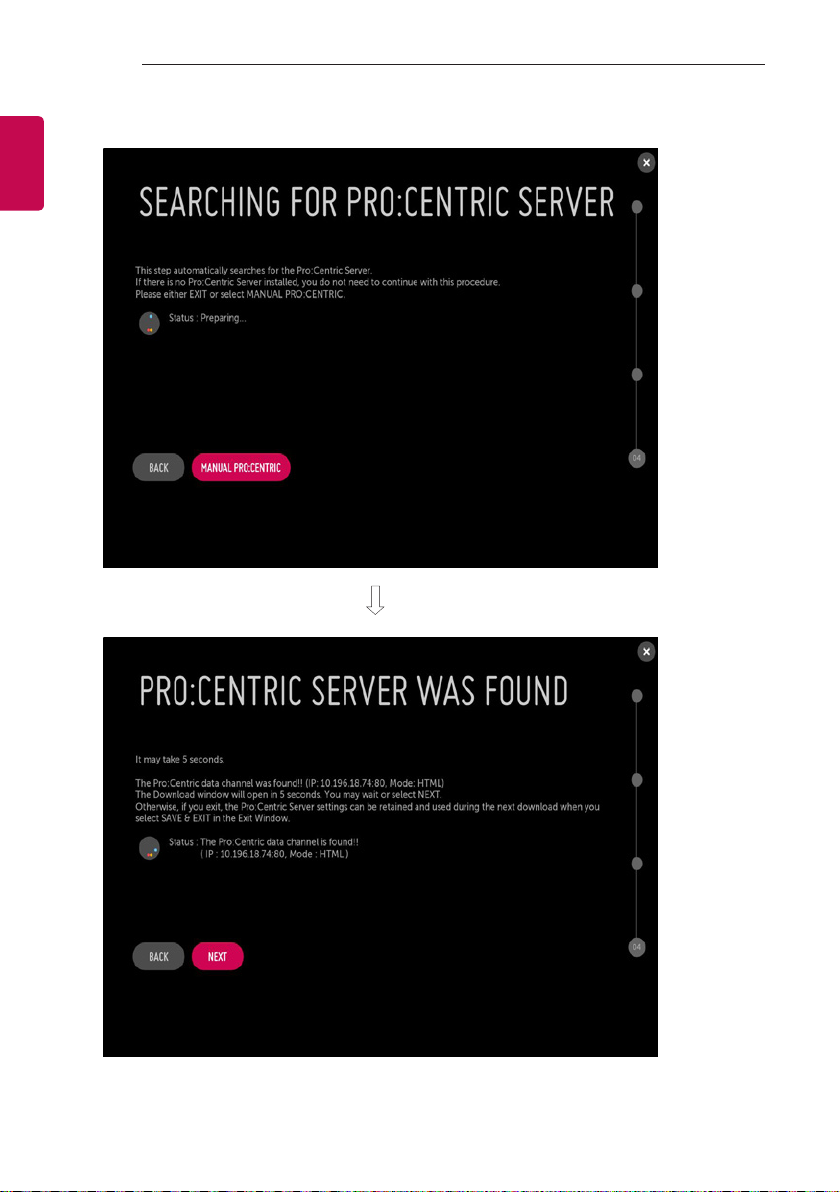

2 This step automatically searches for the Pro:Centric Server. If was found the Pro:Centric data channel, select the‘NEXT’.

EZMANAGER

ENGLISH

3 Downloading the Pro:Centric application les takes few minutes.

4 After the installation is completed, the following screen will be displayed.

10 EZMANAGER

ENGLISH

Manually for Setup

1 Select a Label and/or enter the Room Number using the numeric keypad on the remotes or using the virtual keyboard on the TV screen.To continue,

move and select‘NEXT’.

2 Please select the‘MANUAL PRO:CENTRIC’.
