LG 40LX761H.AFM Manual de usuario

INSTALLATION MANUAL

LED TV*

Please read this manual carefully before operating

your set and retain it for future reference.

www.lg.com

LX76**

LW76**

ENG

ENGLISH

2TABLE OF CONTENTS

TABLE OF CONTENTS

3 LOCATION AND FUNCTION OF

CONTROLS

3 Parts and Button

4 LED Clock Connection

5 EZMANAGER

5 INTRODUCTION

5 EZ-MANAGER WIZARD

6 LANGUAGE & COUNTRY SELECTION

7 - Automatically for Setup

10 - Manually for Setup

14 - USB LG Smart Install Utility

17 INSTALLATION MENU

17 INTRODUCTION

18 LG HOTEL MODE

18 - Hotel Mode Operation

18 - Power On Status

19 - Volume

19 - Key Management

20 - Limited Mode

20 - DTV Programme Update

21 - Power On Default

21 - Power Management

21 - Radio Video Blank

21 - Factory Reset

22 NETWORK

22 - MAC Address

22 - Network Setting

23 - IP Stream Control

23 - Wake On LAN

24 PRO:CENTRIC

24 - Mode

24 - WORF

25 - Media Type

25 - Receive Data

25 - Room Number Setting

25 - Native EPG

26 GENERAL

26 - Configuration Setup

29 - External Speaker

29 - Set ID Setup

29 - Power Saving

30 - HCEC Setup

31 - Clock Setup

32 - Password Change

32 - PreLoaded App

32 - Lock Mode

33 MEDIA SHARE

33 - SmartShare

33 - Screen Share

33 - DMR

34 - Bluetooth Sound Sync

34 - DIAL

34 - TV Name

34 - SoftAP

35 TV MANAGER

35 - USB Download Menu

- Diagnostics Menu

ENGENGLISH

LOCATION AND FUNCTION OF CONTROLS

Parts and Button

Screen

Remote control and

Intelligent1sensors

Power Indicator

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.

2 Joystick Button -This button is located below the TV screen.

NOTE

yYou can set the power indicator light to on or off by selecting General in the main menus.

ENG

ENGLISH

4LOCATION AND FUNCTION OF CONTROLS

LED Clock Connection

(Except for LW76**)

ThisTV can be connected to a LED Clock via the CLOCK port.

CLOCK

LED Clock

(*Not Provided)

ENGENGLISH

EZMANAGER

•

•Image shown may differ from your TV.

INTRODUCTION

The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions.The default Domain“procentric.local”

and IP Server Address are needed to be registered in DNSTV will contact the IP Server using the default Domain“procentric.local”via IP

on server search page. IfTV doesn’t contact the Server, TV will search the pre-defined channel earlier than all channels. (Only DVB-C)

The frequencies of pre-defined channels are below.

Germany:‘51000, 858000, 778000, 698000, 618000, 538000, 458000, 378000, 298000, 218000, 138000 khz’.

Philippines 6Mhz:‘57000, 651000, 591000, 531000, 471000, 411000, 351000, 291000, 231000, 171000, 111000 khz’.

Other Country:‘50000, 842000, 762000, 682000, 602000, 522000, 442000, 362000, 282000, 202000, 122000 khz’.

EZ-MANAGER WIZARD

-If you are using Pro:Centric, this setup wizard till help you easily set up the TV. Select ‘NEXT’to continue.

-Otherwise, if you will not be installing a Pro:Centric Server, select‘EXIT’to quit.

ENG

ENGLISH

6EZMANAGER

LANGUAGE & COUNTRY SELECTION

(Except for Iran)

-Please select the Language and Country. Some countries need to select the Time Zone.

(Only Iran)

-Please select the Language.

ENGENGLISH

EZMANAGER

Automatically for Setup

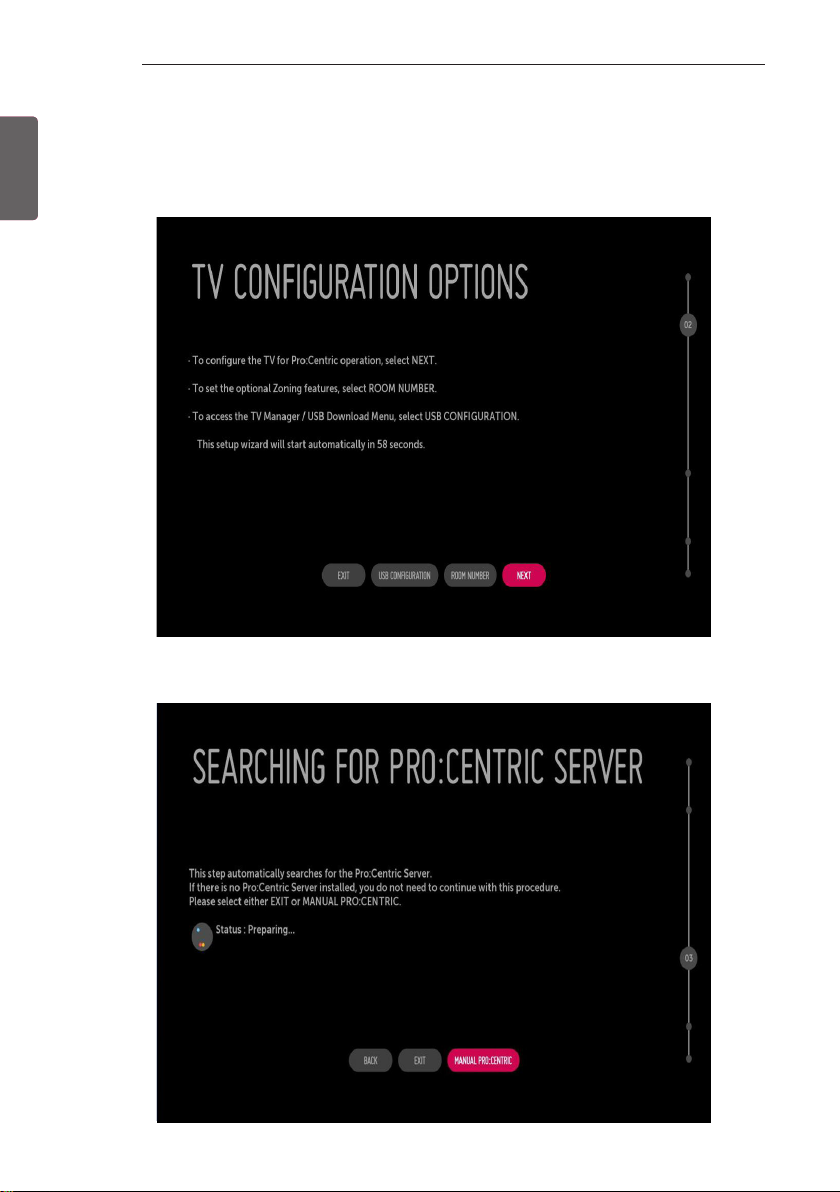

1 From theTV Conguration Options screen, you can choose how to proceed with the conguration of this TV. Whether you will

congure theTV for Pro:Centric operation via the wizard or use a USB memory device to congure theTV, you may rst wish to set

the Room Number on the TV.

-If you intend to set Room Number as part of the TV configuration, use the Room Number option to assign the Room # for

this TV before you continue with additional configuration.

-In the Label field, use the Left/Right arrow keys to specify a North, South, East, or West designation for this TV.

-In the Room Number field, you can use the number keys on the Installer Remote to direct enter a room number or use the

virtual keyboard on the TV screen.

-To continue, move and select‘NEXT’.

ENG

ENGLISH

8EZMANAGER

2 This step automatically searches for the Pro:Centric Server. If was found the Pro:Centric data channel, select the‘NEXT’.

ENGENGLISH

EZMANAGER

3 Downloading the Pro:Centric application les takes few minutes.

4 After the installation is completed, the following screen will be displayed.

ENG

ENGLISH

10 EZMANAGER

Manually for Setup

1 Select a Label and/or enter the Room Number using the numeric keypad on the remotes or using the virtual keyboard on the TV

screen.To continue, move and select‘NEXT’.

2 Please select the‘MANUAL PRO:CENTRIC’.
